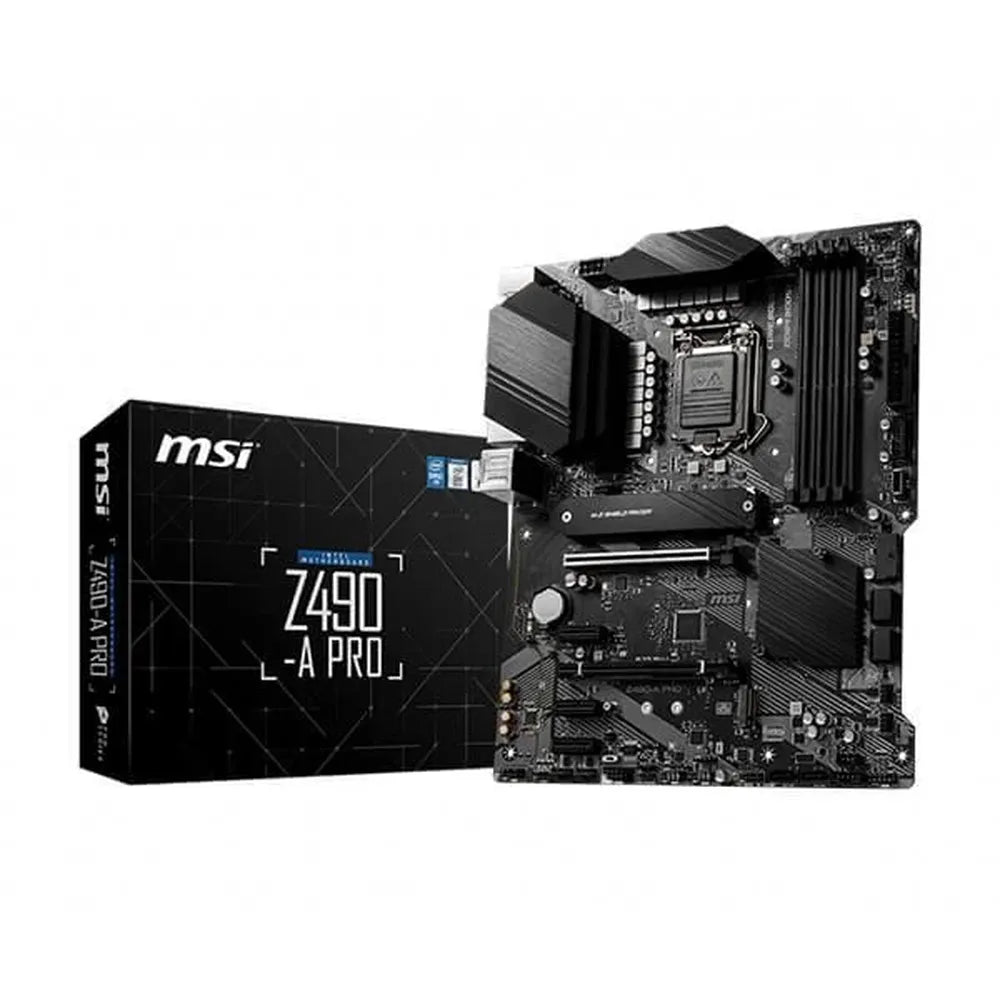

Features of MSI Z490-A PRO Motherboard
MSI Z490-A PRO is powered by Intel USB 3.2 Gen2 controller. Now provides more stability and faster USB helps to have an uninterrupted connection, all thanks to Turbo USB. Tired of bad sound quality? MSI Z490-A PRO comes with an audio boost. The studio-grade sound quality helps in gaming and multimedia. MSI Z490-A PRO supports 2-Way AMD Crossfire with Steel armor PCI-E slots. This helps to set up a Multi-GPU.
- Supports 10th Gen Intel® Core™ / Pentium® Celeron® processors for LGA 1200 socket
- Supports DDR4 Memory, up to 4800(OC) MHz
- Set Core Power Free: 12+1+1 Duet Rail Power System, 8+4 pin CPU power connectors, Core Boost, DDR4 Boost
- Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
- 2.5G LAN: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs
- Intel Turbo USB 3.2 Gen 2: Powered by Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds
- Audio Boost: Reward your ears with studio grade sound quality
- Multi-GPU: With Steel armor PCI-E slots. Supports 2-Way AMD Crossfire™
Specifications of GIGABYTE B460M DS3H DDR4 Intel Motherboard
| Processor | Supports 10th Gen Intel® Core™ and Pentium® Gold / Celeron® processors for LGA1200 socket 1 Please go to intel.com for compatibility information. 2 Onboard graphics output are disabled when using the F SKU processors. |
| Chipset | Intel® Z490 Chipset |
| Memory | 4 x DDR4 memory slots, support up to 128GBSupports 1R 2133/2666/2933 MHz1DPC 1R Max speed up to 4800+ MHz 1DPC 2R Max speed up to 4266+ MHz 2DPC 1R Max speed up to 4400+ MHz 2DPC 2R Max speed up to 4000+ MHzSupports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP) |
| Expansion Slot | 1x PCIe 3.0 x16 slot (from CPU) 1x PCIe 3.0 x16 slot (from PCH， supports x4 mode) 3x PCIe x1 slots (from PCH) |
| Onboard Graphics | 1x HDMI port, supports a maximum resolution of 4096×2160 @ 30Hz 1x DisplayPort port supports a maximum resolution of 4096 x 2304 @ 60Hz |
| Multi-GPU | Supports 2-Way AMD® CrossFire™ Technology |
| Storage | Intel® Z490 Chipset 6x SATA 6Gb/s ports 1 2x M.2 slots (Key M)M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices 1 M2_2 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices 2 Intel® Optane™ Memory Ready 3 Supports Intel® Smart Response Technology for Intel Core™ processorsSATA2 will be unavailable when installing M.2 SATA SSD in the M2_1 slot. SATA5 & SATA6 will be unavailable when installing M.2 SATA/PCIe SSD in the M2_2 slot. Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website. |
| RAID | Intel® Z490 Chipset Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 PCIe storage devices |
| USB | Intel® Z490 Chipset 2x USB 3.2 Gen 2 10Gbps ports (1 Type-A port and 1 Type-C port on the back panel) 7x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 4 ports through the internal USB connectors, 1 Type-C internal connector) 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) |
| Audio | Realtek® ALC892 Codec 7.1-Channel High Definition Audio |
| LAN | 1x Realtek® RTL8125B-CG 2.5G LAN Controller |
| Internal connectors | 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 1x 4-pin ATX 12V power connector 6x SATA 6Gb/s connectors 1x USB 3.2 Gen 1 5Gbps Type-C port 2x USB 3.2 Gen 1 5Gbps connectors (support additional 4 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (support additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water pump connector 6x 4-pin system fan connectors 1x front panel audio connector 2x system panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x 4-pin RGB LED connector 2x 3-pin RAINBOW LED connectors 1x serial port connector 1x TPM module connector 1x TBT connector 1 Thunderbolt card need support RTD3 |
| Back panel ports | Keyboard / Mouse 2.5G LAN Audio Connectors USB 2.0 HDMI DisplayPort USB 3.2 Gen 2 10Gbps Type-A + Type-C USB 3.2 Gen 1 5Gbps Type-A |
| Dimensions | ATX Form Factor 12 in. x 9.6 in. (30.5 cm x 24.4 cm) |
| Mounting | 9 mounting holes |
| Operating System | Support for Windows® 10 64-bit |
| Warranty | 3 Years |
| Note | ***Features, Price and Specifications are subject to change without notice. |
