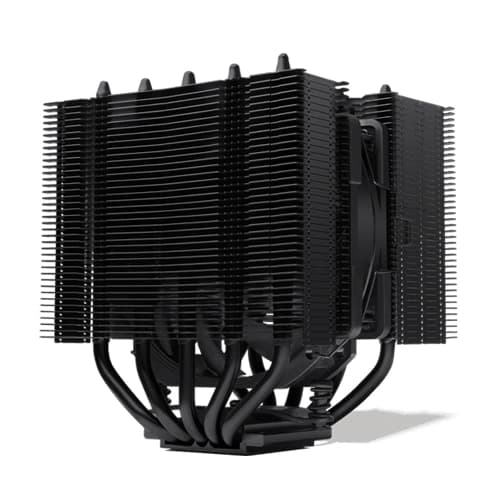

Features of NOCTUA NH-D12L Chromax Black 120mm Dual Tower CPU Air Cooler ( Black )
NH-D12L chromax.black
Compact 120mm dual tower cooler
- Low-height dual-tower heatsink
145mm tall for broader case compatibility
- Premium NF-A12x25r fan
With PWM support and Low-Noise Adaptor
- chromax.black edition
With a black coated heatsink and chromax.black fan
Award-winning NH-D12L cooler
The NH-D12L has proven in countless tests that it can keep up with larger 120mm coolers despite its reduced height. Its winning combination of excellent performance and extended case compatibility has earned the NH-D12L awards and recommendations from more than 50 hardware websites and magazines across the world.
chromax.black design
The NH-D12L chromax.black is black from head to toe: featuring a black coated heatsink, a black fan with black anti-vibration pads, black fan clips and black mounting parts, it’s right at home in all-black builds and easy to integrate with other colour schemes.
145mm height for broader case compatibility
While Noctua’s regular 120mm CPU coolers stand 158mm tall, the NH-D12L measures only 145mm. This allows it to fit not only a wide range of 4U rackmount server cases and many tower-style enclosures that are not wide enough for 158mm units, but also some larger Small Form Factor (SFF) and Mini-ITX chassis.
100% RAM compatibility on LGA1851/1700/1200 and AM5/AM4
In its standard orientation (blowing towards the I/O panel), the NH-D12L does not overhang the RAM slots on Intel LGA1851 / LGA1700 / LGA1200 / LGA115x and AMD AM5 / AM4 based motherboards due to its asymmetric design. This ensures easy access to the installed modules and 100% compatibility with DIMMs that feature tall heat-spreaders or RGB lighting.
PWM support and Low-Noise Adaptors
The NF-A12x25r 120mm fan supplied with the NH-D12L supports PWM for convenient automatic speed control through the motherboard: full performance under load, virtually silent at idle! In addition, the maximum fan speed can be reduced from 2000 to 1700rpm using the supplied Low-Noise Adaptor for even quieter operation.
Compatibility with past and future sockets
Thanks to Noctua’s SecuFirm ecosystem, the NH-D12L chromax.black can be made compatible with the older LGA2066, LGA2011, LGA1366 and LGA775 sockets using the optional NM-i20xx and NM-I3 mounting kits, which are provided free of charge on request. If technically possible, Noctua will also provide upgrade kits for future sockets, which makes the NH-D12L a safe long-term investment.
6-year manufacturer’s warranty
Noctua products are renowned for their impeccable quality and outstanding longevity. True to this legacy, the NH-D12L heatsink is built to last, and like all Noctua fans, the supplied NF-A12x25r features an MTTF rating of more than 150,000 hours. The entire package comes with a full 6-year manufacturer’s warranty.

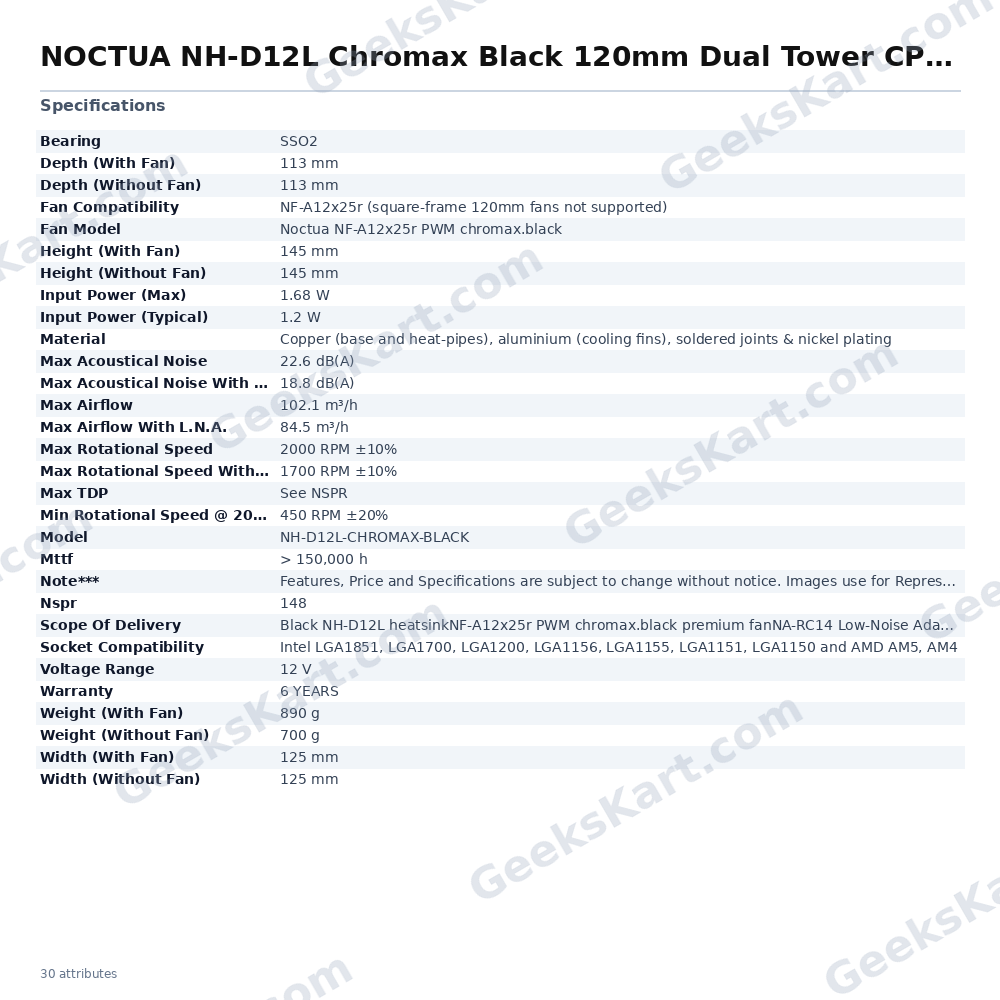

Specifications of NOCTUA NH-D12L Chromax Black 120mm Dual Tower CPU Air Cooler ( Black )
| Model No | NH-D12L-CHROMAX-BLACK |
| Socket Compatibility | Intel LGA1851, LGA1700, LGA1200, LGA1156, LGA1155, LGA1151, LGA1150 and AMD AM5, AM4 |
| Height (without fan) | 145 mm |
| Width (without fan) | 125 mm |
| Depth (without fan) | 113 mm |
| Weight (without fan) | 700 g |
| Height (with fan) | 145 mm |
| Width (with fan) | 125 mm |
| Depth (with fan) | 113 mm |
| Weight (with fan) | 890 g |
| Material | Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating |
| NSPR | 148 |
| Max TDP | See NSPR |
| Fan Compatibility | NF-A12x25r (square-frame 120mm fans not supported) |
| Scope of Delivery | Black NH-D12L heatsink NF-A12x25r PWM chromax.black premium fan NA-RC14 Low-Noise Adaptor (L.N.A) NT-H1 high-grade thermal compound Black SecuFirm2™ mounting kit Noctua metal case-badge Warranty 6 Years |
| Fan Model | Noctua NF-A12x25r PWM chromax.black |
| Bearing | SSO2 |
| Max Rotational Speed | 2000 RPM ±10% |
| Max Rotational Speed with L.N.A. | 1700 RPM ±10% |
| Min Rotational Speed @ 20% PWM | 450 RPM ±20% |
| Max Airflow | 102.1 m³/h |
| Max Airflow with L.N.A. | 84.5 m³/h |
| Max Acoustical Noise | 22.6 dB(A) |
| Max Acoustical Noise with L.N.A. | 18.8 dB(A) |
| Input Power (Typical) | 1.2 W |
| Input Power (Max) | 1.68 W |
| Voltage Range | 12 V |
| MTTF | > 150,000 h |
| Warranty | 6 YEARS |
| NOTE*** | Features, Price and Specifications are subject to change without notice. Images use for Representation Purpose Only |
