Nzxt C850 Gold Fully Modular ATX 3.1 SMPS

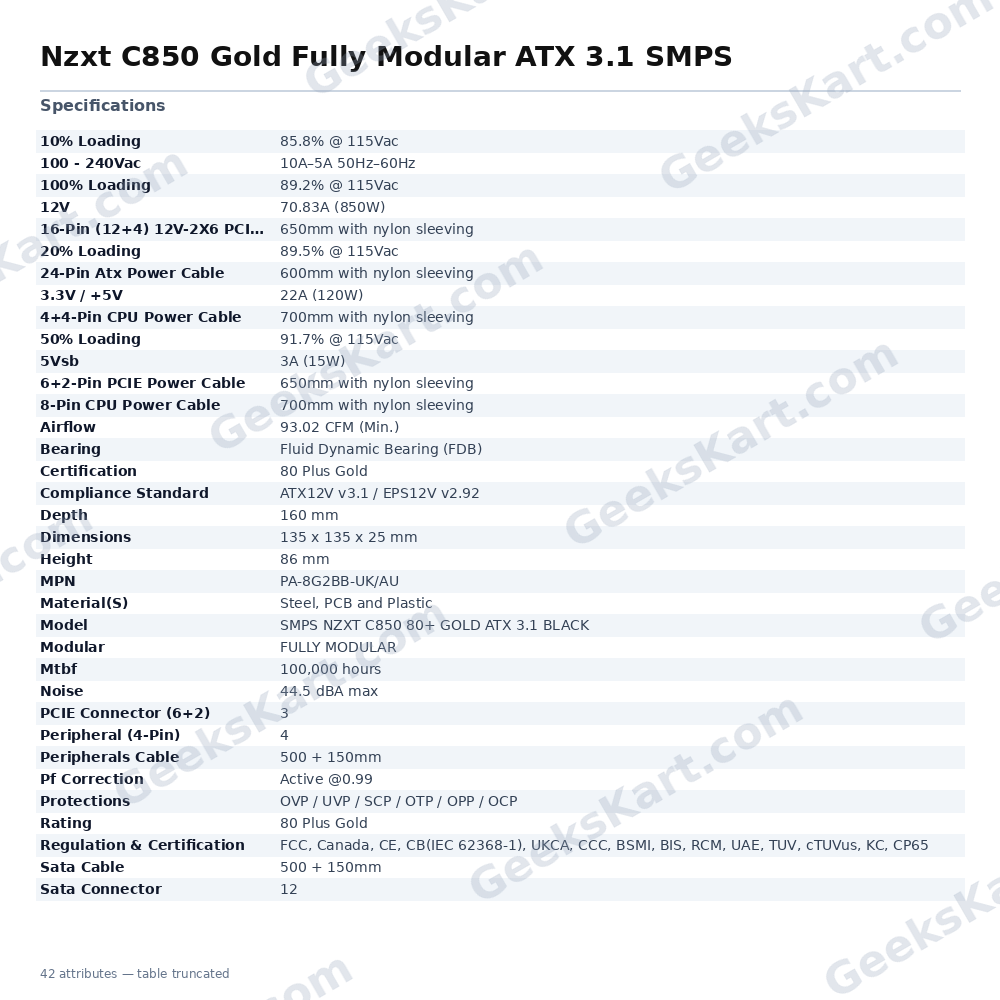

Features: Designed for maximum performance with minimal noise, NZXT C Series Gold ATX 3.1 PSUs are ready to fuel the demands of top-tier GPUs and CPUs. Compliant with the ATX 3.1 standard to fuel high-performance PC components with stability, efficiency, and power spike resistance. Durable, heat-resistant 12V-2x6 connector pumps up to 600 watts to NVIDIA® GeForce RTX™ 50 Series graphics cards. 135mm fluid dynamic bearing fan with Zero Fan Mode is completely silent when under 50% load. 100% premium Japanese capacitors improve hold-up time and minimal ripple noise, ensuring reliable and stable power delivery. Fully modular design allows for only connecting essential cables, reducing clutter for better airflow and a neater build. Compact form factor frees up valuable room for cable management and more case airflow. Thanks to high-quality construction and rigorous product testing, NZXT PSUs are backed by a 10-year warranty. Specification: Model Name SMPS NZXT C850 80+ GOLD ATX 3.1 BLACK Model Part Number PA-8G2BB-UK/AU Output Connectors 24-pin ATX Power Cable 1 4+4-pin CPU Power Cable 1 8-pin CPU Power Cable 1 6+2-pin PCIe Power Cable 3 16-pin (12+4) 12V-2x6 PCIe Cable 1 SATA Cable 12 Peripherals Cable 4 Cable Specs 24-pin ATX Power Cable 600mm with nylon sleeving 4+4-pin CPU Power Cable 700mm with nylon sleeving 8-pin CPU Power Cable 700mm with nylon sleeving 6+2-pin PCIe Power Cable 650mm with nylon sleeving 16-pin (12+4) 12V-2x6 PCIe Cable 650mm with nylon sleeving SATA Cable 500 + 150mm Peripherals Cable 500 + 150mm AC Input Rating 100 - 240Vac 10A–5A 50Hz–60Hz 200 - 240Vac - DC Output Rating 3.3V / +5V 22A (120W) 12V 70.83A (850W) 5Vsb 3A (15W) Total 850W Energy Efficiency Rating 80 Plus Gold 10% loading 85.8% @ 115Vac 20% loading 89.5% @ 115Vac 50% loading 91.7% @ 115Vac 100% loading 89.2% @ 115Vac Electrical Features PF Correction Active @0.99 Protections OVP / UVP / SCP / OTP / OPP / OCP Fan Specs Dimensions 135 x 135 x 25 mm Speed 2300 ± 10% RPM Airflow 93.02 CFM (Min.) Noise 44.5 dBA max Bearing Fluid Dynamic Bearing (FDB) Operation MTBF 100,000 hours Temperature 0 - 50 °C SMPS Dimensions Width 150 mm Height 86 mm Depth 160 mm General Material(s) Steel, PCB and Plastic Compliance Standard ATX12V v3.1 / EPS12V v2.92 Regulation & Certification FCC, Canada, CE, CB(IEC 62368-1), UKCA, CCC, BSMI, BIS, RCM, UAE, TUV, cTUVus, KC, CP65 Warranty 10 Years Note Features, Price and Specifications are subject to change without notice. Images used for Representation Purpose Only. Product Part No. may vary
