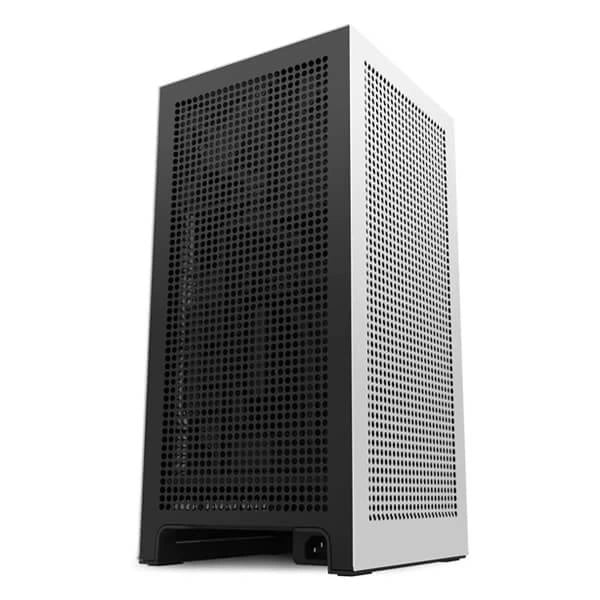

NZXT H1 Version 2 ITX Mini Tower Cabinet (Matte White)
MPN NZXT-H1-VERSION-2 · Brand NZXT · X16
Features of NZXT H1 Version 2 ITX Mini Tower Cabinet (Matte White) The H1 allows you to get the most out of a small package. Pre-routed cables, a 750W PSU, support for the latest GPUs, and PCIe Gen 4 make the build powerful and simple. 140mm AIO liquid cooling NZXT CAM enabled fan controller SFX 750W Gold PSU included Chassis size accommodates latest NVIDIA 30 series & AMD 6000 series graphics cards Pre-routed cables and downward-facing motherboard I/O for a clean, simplified appearance. PCI
Inclusive of GST · GST invoice available
Overview
Features of NZXT H1 Version 2 ITX Mini Tower Cabinet (Matte White)
The H1 allows you to get the most out of a small package. Pre-routed cables, a 750W PSU, support for the latest GPUs, and PCIe Gen 4 make the build powerful and simple.
- 140mm AIO liquid cooling
- NZXT CAM enabled fan controller
- SFX 750W Gold PSU included
- Chassis size accommodates latest NVIDIA 30 series & AMD 6000 series graphics cards
- Pre-routed cables and downward-facing motherboard I/O for a clean, simplified appearance.
- PCIe 4.0 Extender supporting maximum 25Gbps high-speed transmission
POWERFULLY SMALL
The compact vertical design of NZXT H1 VERSION 2 MINI-ITX white cabinet pc provides a small footprint while maintaining support for most full-sized GPUs on the market.
A SIMPLE BUILD
The tool less SSD tray and riser card are incredibly simple to install. In addition to pre-routed cables, the motherboard I/O faces down, routing all cables through the bottom of the case.
INTEGRATED COMPONENTS
Integrated power supply and AIO liquid cooler provide a better build experience, along with pre-routed cables. An integrated PCIe Riser card is also included for vertical GPU mounting.
ELEGANT AIRFLOW
The nzxt cpu case airflow is thermally designed to allow the CPU, GPU, and PSU to pull in fresh air, and exhaust hot air without affecting temperatures of neighbouring components.
VERSION 2 EXCLUSIVE
The increased chassis size provides support for larger GPUs. Other upgrades include upgraded PSU wattage, an added fan controller, and an PCIe Gen4 Riser.
Best cpu case with fan at affordable prices at!
Specifications of NZXT H1 Version 2 ITX Mini Tower Cabinet (Matte White)
| Motherboard Support | Mini-ITX |
| Case Material | SGCC Steel, Tempered Glass |
| Dimensions | |
| Height | 405 mm / 15.9 inches |
| Width | 196 mm / 7.7 inches |
| Depth | 196 mm / 7.7 inches |
| Weight | 7.6 kg / 16.7 lb |
| Fan Specs | |
| Quantity | 1 (RF-92RC1-B1) |
| Speed | 600 - 1800 ± 200 RPM |
| Airflow | 28.64 CFM |
| Static Pressure | 1.1 mm-H₂O |
| Noise | 23 dBA |
| Fan Connector | 4-pin |
| Model Number | CS-H11BW |
| Compatibility & Clearance | |
| Max GPU Clearance | 324mm |
| Max GPU Thickness | 58mm |
| Memory Height | 46mm |
| Power Supply Specs | |
| Form Factor | SFX (PS-7G1B) |
| Modular | Full |
| Wattage | 750W |
| Compliance Standard | Complies with SFX12V v3.42 ATX12V v2.52 & EPS12V v2.92 |
| Energy Efficiency | 80 Plus Gold |
| Fan | 92mm FDB Silent Fan |
| MTBF | 100,000 hours at 25°C. excluding the DC Fan |
| Protection | OPP, OVP, UVP, OCP, OTP, SCP |
| Front I/O Ports | |
| USB 3.2 Gen 1 Type-A | 2 |
| USB 3.2 Gen 2 Type-C | 1 |
| Headset Audio Jack | 1 |
| Expansion Slots | |
| Standard | 2 |
| Drive Bays | |
| 2.5" | 2 |
| 3.5" | - |
| PCIe Extender Cable | |
| Form Factor | X16 |
| Compatibility | PCIe 4.0 Compatible |
| Cable Length | 330 ± 5 mm |
| Compatible Socket & CPU | |
| Intel | Socket LGA 1700, 1200/115X |
| AMD | AMD Socket AM4 |
| Radiator | |
| Dimensions | 139 x 174 x 28 mm |
| Material | Aluminum |
| Pump | |
| Dimensions (D x H) | 65 x 26 mm |
| Motor Speed | 4200 ± 10%RPM |
| Power | 12V DC, 0.35A |
| Fan Controller | |
| Channel | 2 |
| Controller Method | PWM |
| Input | 12V DC |
| Output | 12V DC |
| Fan Specs | |
| Quantity | 1 (Aer P140mm PWM fan) |
| Speed | 500 - 1,800 ± 300RPM |
| Airflow | 27.27 - 98.17 CFM |
| Static Pressure | 0.21 - 2.71 mm-H₂O |
| Noise | 21 - 38 dBA |
| Fan Connector | 4-pin |
| Warranty | 3 Years on case, riser card, and AIO 10 Years on PSU |
| Note | *** Features, Price, Specifications are subject to change without notice. |

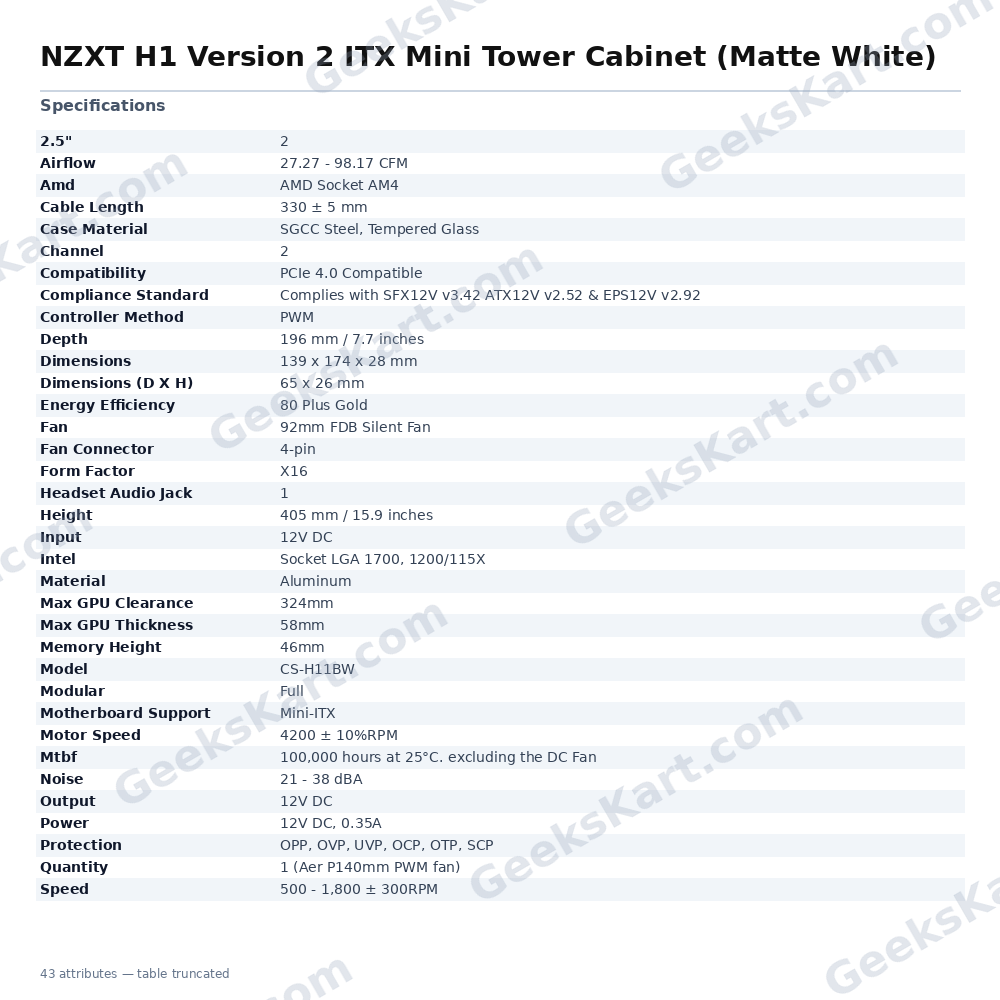

Datasheet
| Warranty | 10 Years |
|---|---|
| Amd | AMD Socket AM4 |
| Fan | 92mm FDB Silent Fan |
| 2.5" | 2 |
| Mtbf | 100,000 hours at 25°C. excluding the DC Fan |
| Depth | 196 mm / 7.7 inches |
| Input | 12V DC |
| Intel | Socket LGA 1700, 1200/115X |
| Noise | 21 – 38 dBA |
| Power | 12V DC, 0.35A |
| Speed | 500 – 1,800 ± 300RPM |
| Width | 196 mm / 7.7 inches |
| Height | 405 mm / 15.9 inches |
| Output | 12V DC |
| Weight | 7.6 kg / 16.7 lb |
| Airflow | 27.27 – 98.17 CFM |
| Channel | 2 |
| Modular | Full |
| Wattage | 750W |
| Material | Aluminum |
| Quantity | 1 (Aer P140mm PWM fan) |
| Standard | 2 |
| Dimensions | 139 x 174 x 28 mm |
| Protection | OPP, OVP, UVP, OCP, OTP, SCP |
| Motor Speed | 4200 ± 10%RPM |
| Cable Length | 330 ± 5 mm |
| Model | CS-H11BW |
| Case Material | SGCC Steel, Tempered Glass |
| Compatibility | PCIe 4.0 Compatible |
| Fan Connector | 4-pin |
| Memory Height | 46mm |
| Static Pressure | 0.21 – 2.71 mm-H₂O |
| Controller Method | PWM |
| Energy Efficiency | 80 Plus Gold |
| Max GPU Clearance | 324mm |
| Max GPU Thickness | 58mm |
| Dimensions (D X H) | 65 x 26 mm |
| Headset Audio Jack | 1 |
| Compliance Standard | Complies with SFX12V v3.42 ATX12V v2.52 & EPS12V v2.92 |
| Motherboard Support | Mini-ITX |
| USB 3.2 Gen 1 Type-A | 2 |
| USB 3.2 Gen 2 Type-C | 1 |
| Form Factor | X16 |
