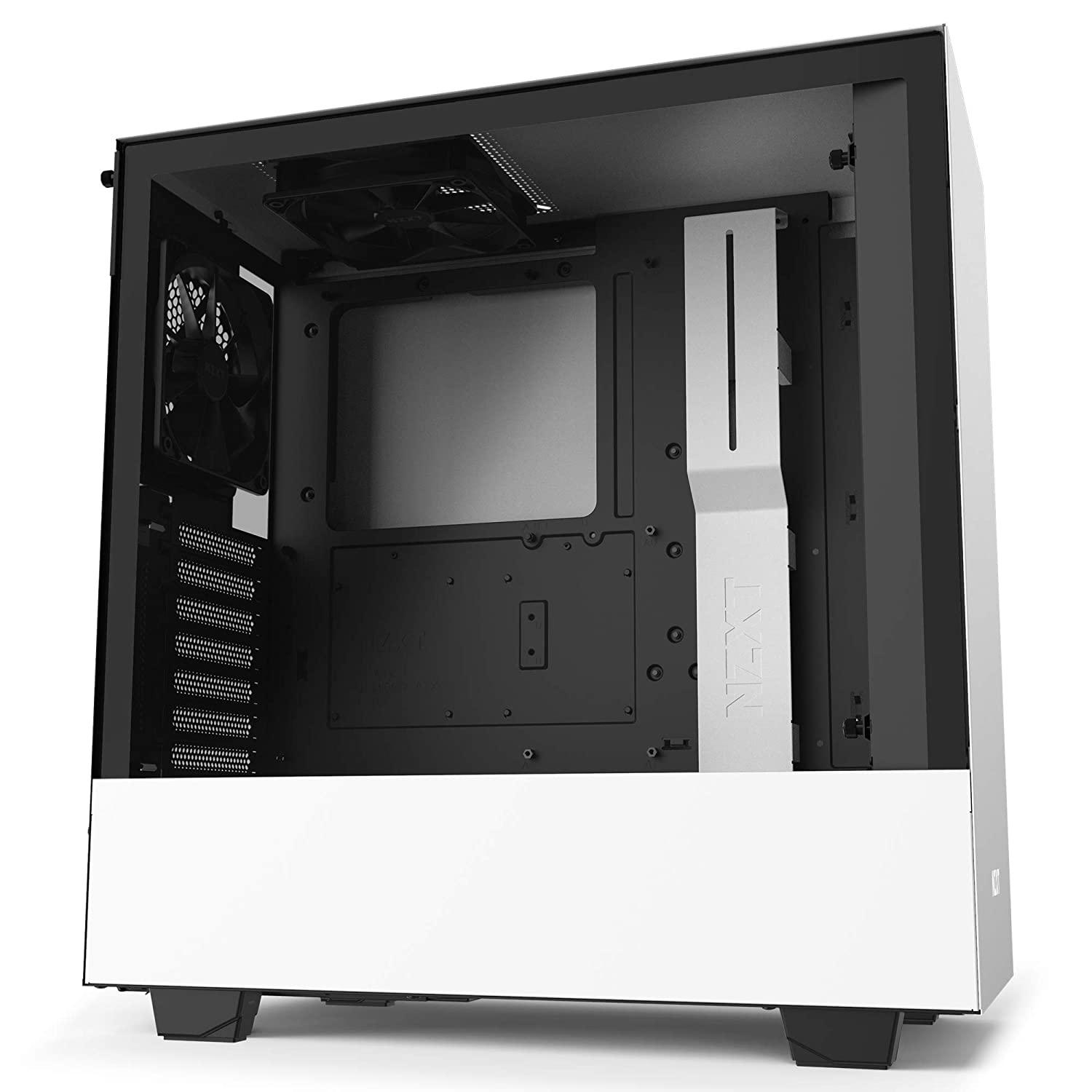

NZXT H510 ATX Mid Tower Cabinet With Tempered Glass Side Panel (Matte White)

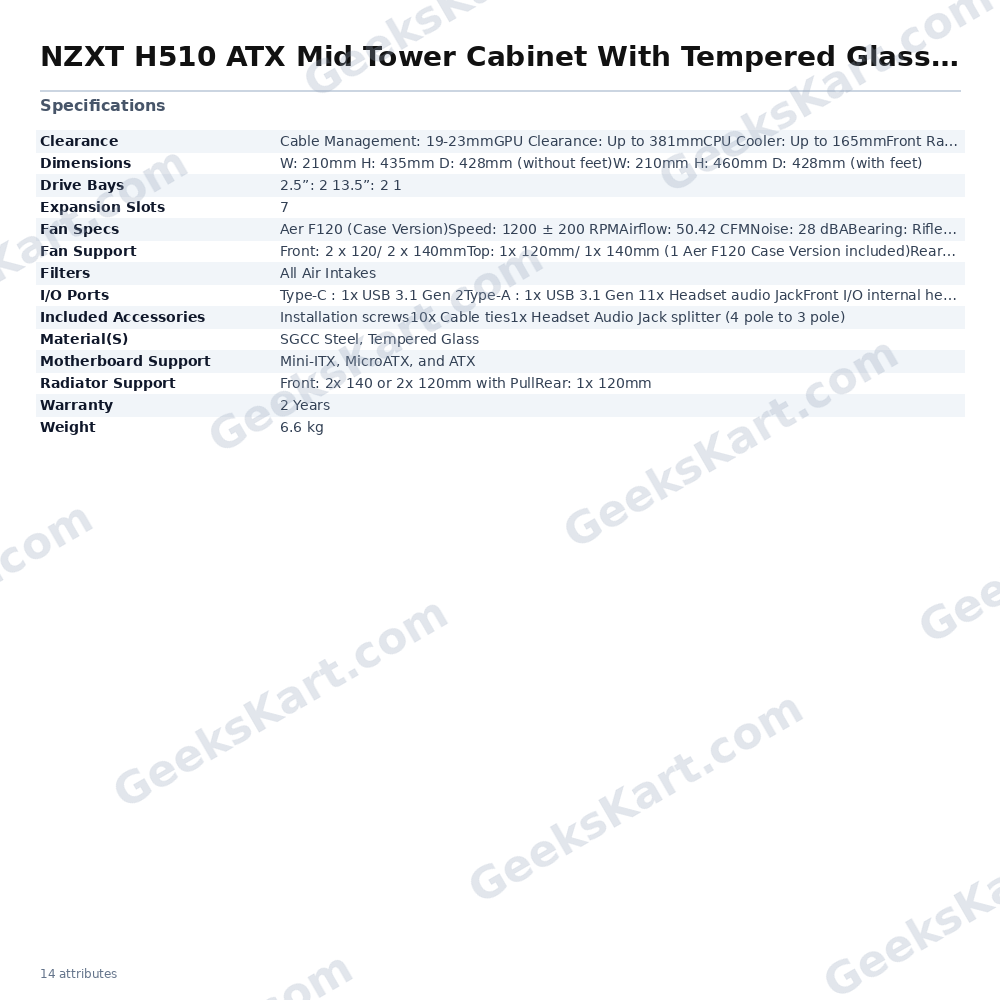

The NZXT H510 ATX Mid Tower Cabinet in Matte White is a refined enclosure designed for builders who want a clean, modern aesthetic alongside practical internal organisation. Constructed from SGCC steel and tempered glass, the chassis weighs 6.6 kg and measures 210 mm wide by 460 mm tall by 428 mm deep with feet installed, making it a compact yet capable platform for full ATX builds. The front panel features a USB 3.1 Gen 2 Type-C connector alongside a USB 3.1 Gen 1 Type-A port and a headset audio jack, so connecting fast external storage or modern peripherals is straightforward without reaching around to the rear of the system. Internal headers include one Gen 2 USB 3.1 header, one Gen 1 USB 3.1 header, and one HD Audio header, keeping the motherboard connection tidy. Cable routing is simplified by a pre-installed cable management bar with channels and straps that guide cables behind the motherboard tray, leaving between 19 mm and 23 mm of clearance for routing. Two Aer F120 case-version fans are included — one at the rear and one at the top — each spinning at 1200 ± 200 RPM with an airflow rating of 50.42 CFM and a noise level of 28 dBA, using rifle-bearing hardware. The front panel and PSU intakes include removable dust filters on all air intakes. Cooling expansion is well supported: the front can accommodate two 120 mm or two 140 mm fans, or radiators up to 280 mm; the rear accepts one 120 mm fan or a 60 mm-depth radiator. GPU clearance reaches up to 381 mm, and CPU cooler height is supported up to 165 mm. Reservoir and pump mounting allows up to 180 mm along the cable bar or up to 86 mm along the bottom panel. Motherboard compatibility spans Mini-ITX, MicroATX, and ATX form factors. Storage options include two 2.5-inch and two 3.5-inch drive bays, while seven expansion slots accommodate multi-GPU or high-profile add-in card configurations. Verifiable Specifications: – Form Factor: ATX Mid Tower – Motherboard Support: Mini-ITX, MicroATX, ATX – Dimensions (with feet): W 210 mm × H 460 mm × D 428 mm – Dimensions (without feet): W 210 mm × H 435 mm × D 428 mm – Weight: 6.6 kg – Material: SGCC Steel, Tempered Glass – Front I/O: 1× USB 3.1 Gen 2 Type-C, 1× USB 3.1 Gen 1 Type-A, 1× Headset Audio Jack – Drive Bays: 2× 2.5-inch, 2× 3.5-inch – Expansion Slots: 7 – Fan Support: Front 2× 120/140 mm, Top 1× 120/140 mm, Rear 1× 120 mm – Included Fans: 2× Aer F120 (1200 ± 200 RPM, 50.42 CFM, 28 dBA, Rifle Bearing) – Radiator Support: Front up to 280 mm, Rear 1× 120 mm – GPU Clearance: Up to 381 mm – CPU Cooler Clearance: Up to 165 mm – Filters: All air intakes – Warranty: 2 Years
