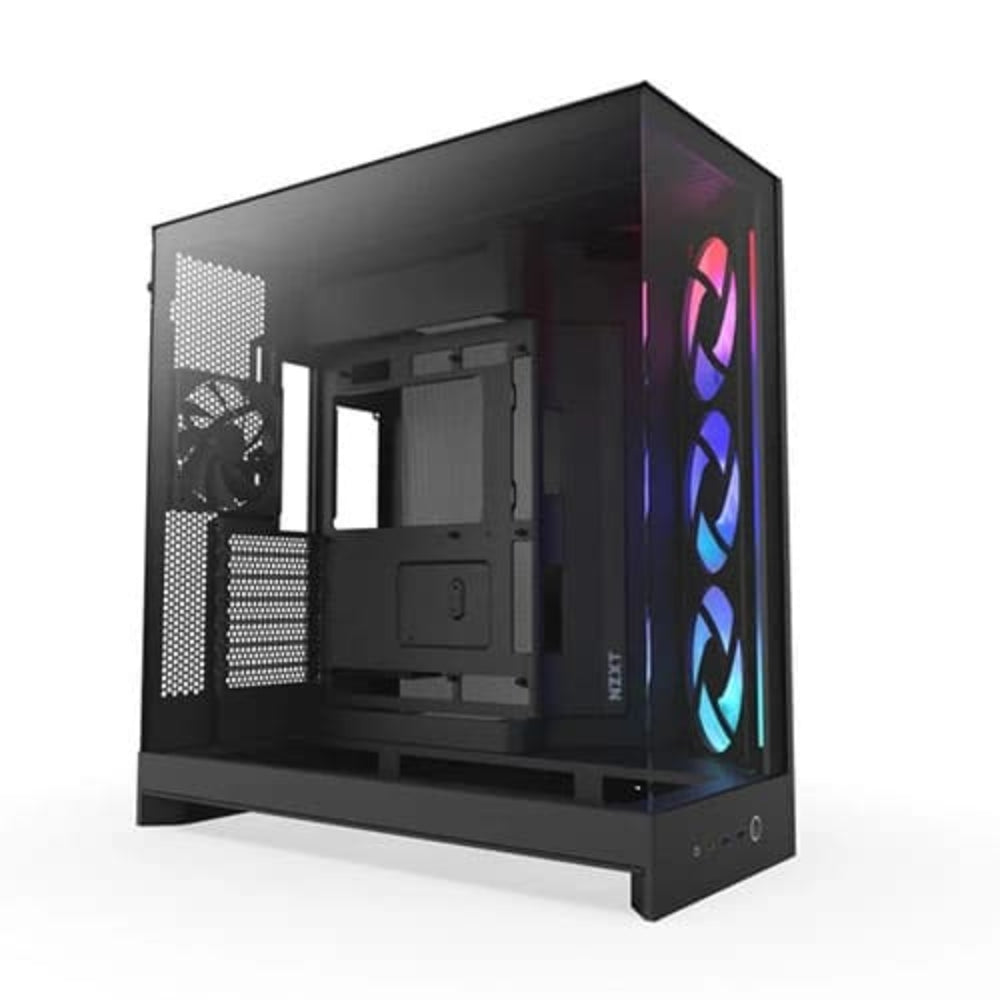

NZXT H9 Flow RGB 2025 Edition EATX Mid Tower Cabinet (Black)

The NZXT H9 Flow RGB 2025 Edition (model CM-H92FB-R1) is a large mid-tower case built around a dual-chamber architecture that physically separates the primary components — motherboard, GPU, and cooler — from the PSU and storage drives. This separation keeps heat-generating hardware in a dedicated airflow zone, resulting in more predictable thermal behaviour and a noticeably cleaner interior aesthetic. Airflow is addressed on multiple fronts. Perforated SGCC steel mesh panels line the intake surfaces, and the factory angled fan placement on the front-right section directs air across the GPU and CPU zones without creating hot spots. The case ships with four pre-installed fans: one F420 RGB Core single-frame fan unit at the front-right and one F120Q (CV) 3-pin DC fan at the rear. In total the chassis accepts up to ten fans — nine 140mm positions spread across the top, front-right, and bottom, plus a single 120mm rear position — giving builders considerable headroom for a custom fan curve without purchasing an expansion bracket. For liquid cooling, radiator compatibility is broad: the top and front-right positions each support up to a 420mm radiator, while the same spots also accommodate 360mm, 280mm, 240mm, 140mm, and 120mm configurations, covering virtually every AIO on the market. Component clearances are equally generous. GPU length is supported up to 435mm, comfortably housing current flagship graphics cards. CPU coolers up to 165mm tall will fit without modification, and PSUs up to 200mm in length are supported in the isolated lower chamber. Motherboard compatibility spans E-ATX, ATX, Micro-ATX, and Mini-ITX form factors across seven expansion slots. Storage is handled by up to two 3.5-inch HDDs and six 2.5-inch SSDs. The front I/O panel carries a USB 3.2 Gen 1 Type-A port, a USB 3.2 Gen 2x2 Type-C port, and a combined headset jack. The panoramic wraparound tempered glass side and top panels allow full visibility into the build without interruption, while back-connect motherboard compatibility (ASUS BTF and MSI Project Zero) enables a completely cable-free front-facing interior. Cable management is further aided by extra-wide routing channels, built-in Velcro straps, and multiple tie-down points. Verified Specifications: - Model: CM-H92FB-R1 - Form Factor: Mid-Tower - Supported Motherboards: E-ATX, ATX, Micro-ATX, Mini-ITX - Expansion Slots: 7 - Material: SGCC Steel, Tempered Glass - Pre-Installed Fans: 4 (1× F420 RGB Core front-right, 1× F120Q CV rear) - Max Fan Support: 10 (nine 140mm + one 120mm) - Radiator Support: 420mm, 360mm, 280mm, 240mm, 140mm, 120mm - Max GPU Length: 435mm - Max CPU Cooler Height: 165mm - Max PSU Length: 200mm - Storage: 2× 3.5" HDD, 6× 2.5" SSD - Dust Filter: Bottom - Front I/O: USB 3.2 Type-A, USB 3.2 Gen 2x2 Type-C, Headset Jack - Colour: Black - Warranty: 2 Years
