NZXT N7 B650E Wifi DDR5 AMD Motherboard (Black)

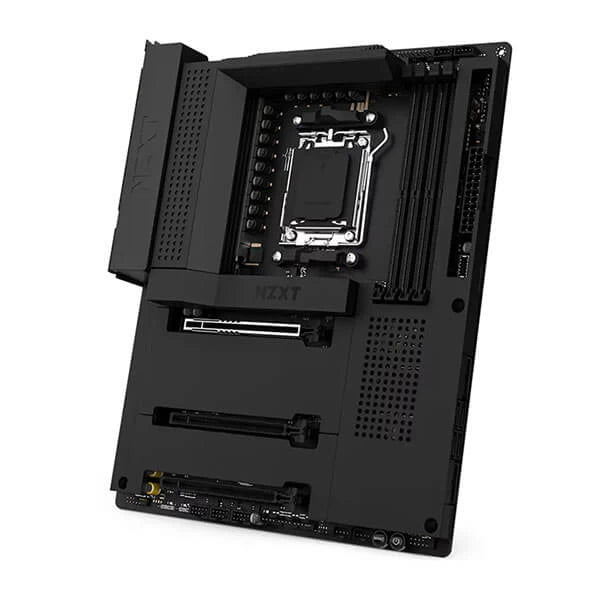

The NZXT N7 B650E is a full-ATX motherboard built on the AMD B650E chipset, designed for AMD Socket AM5 processors including Ryzen 7000 series CPUs. Its defining visual feature is a seamless cover panel with an integrated heat spreader that conceals most of the board's surface, creating a clean, uniform backdrop ideal for showcase builds. Memory support is handled by four DDR5 DIMM slots in a dual-channel configuration, accommodating up to 128 GB of DDR5 Non-ECC unbuffered RAM. Overclocking profiles are supported via both Intel XMP and AMD EXPO standards, with frequencies reaching 6000 MT/s and above in OC mode. Storage connectivity is extensive: one M.2_1 slot runs at PCIe 5.0 x4 for next-generation NVMe drives, while M.2_2 and M.2_3 provide PCIe 4.0 x4 and PCIe 4.0 x2 options respectively. Four SATA 6 Gb/s ports supplement these, all compatible with RAID 0, 1, and 10 configurations for both SATA and NVMe devices. Expansion is provided by one full-bandwidth PCIe 5.0 x16 slot for the primary GPU, plus two PCIe 4.0 x16 physical slots each wired at x2 mode. Wireless connectivity is handled by an 802.11ax Wi-Fi 6E module with Bluetooth 5.2, backed by a 2.5 GbE wired LAN port using the Realtek RTL8125BG controller. The rear I/O panel—pre-installed and shielded—provides one HDMI 2.1 port, one USB 3.2 Gen 2 Type-C, two USB 3.2 Gen 2 Type-A, four USB 3.2 Gen 1 Type-A, two USB 2.0 ports, five audio jacks, one optical S/PDIF output, and dedicated Clear CMOS and BIOS Flashback buttons. Audio is handled by a Realtek ALC1220 codec. Fan and lighting management runs through NZXT CAM software (Windows 10/11 required), offering seven independent fan channels—one CPU fan header, one AIO pump header, and five system fan headers. RGB and addressable lighting are supported via four NZXT proprietary RGB connectors and two 5 V ARGB headers. Power delivery is built on a 16+2+1 phase design with 90 A Smart Power Stage (SPS) modules. Key Verified Specifications: - Chipset: AMD B650E - Socket: AM5 (Ryzen 7000 Series) - Form Factor: ATX - Memory: 4× DDR5 DIMM, dual-channel, up to 128 GB, XMP & EXPO supported, up to 6000+ MT/s (OC) - Storage: 1× M.2 PCIe 5.0 x4, 1× M.2 PCIe 4.0 x4, 1× M.2 PCIe 4.0 x2, 4× SATA 6 Gb/s, RAID 0/1/10 - GPU Slot: 1× PCIe 5.0 x16, 2× PCIe 4.0 x16 (x2 mode) - LAN: Realtek RTL8125BG 2.5 GbE - Wireless: Wi-Fi 6E (802.11ax) + Bluetooth 5.2 - Audio: Realtek ALC1220 - Rear USB: 1× USB 3.2 Gen 2 Type-C, 2× USB 3.2 Gen 2, 4× USB 3.2 Gen 1, 2× USB 2.0 - Display Output: 1× HDMI 2.1 (up to 4K 60 Hz via integrated RDNA 2 graphics) - Power Delivery: 16+2+1 phase, 90 A SPS - Fan Headers: 7 total (1× CPU, 1× AIO pump, 5× system) - RGB: 4× NZXT RGB, 2× 5 V ARGB - Certifications: FCC, CE, WHQL, ErP/EuP Ready - Warranty: 3 years
