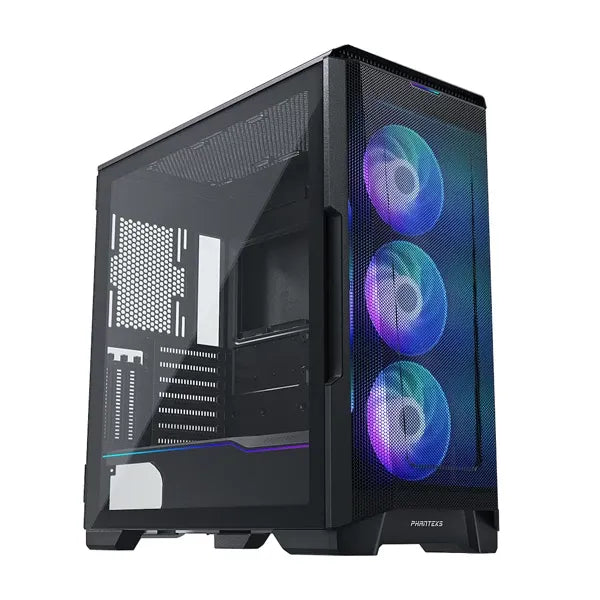

PHANTEKS Eclipse P500 Air DRGB EATX Mid Tower Cabinet (Black)

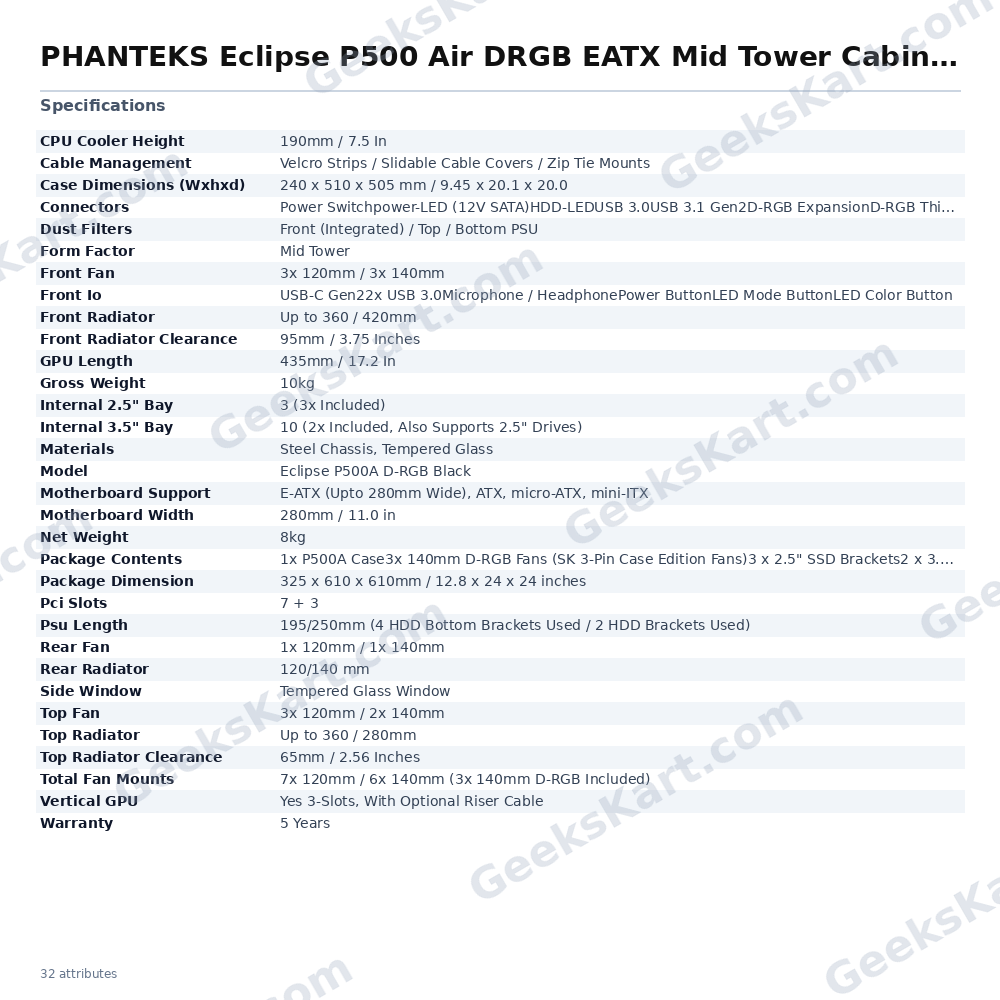

The Phanteks Eclipse P500A Air D-RGB is a mid-tower chassis built for enthusiast-grade PC builds that demand strong airflow, extensive cooling support, and flexible storage capacity. Its 1 mm ultra-fine performance mesh front panel promotes high-volume air intake while the integrated front dust filter manages particulate ingress effectively. The case accommodates E-ATX motherboards up to 280 mm wide, as well as standard ATX, micro-ATX, and mini-ITX form factors. A hinged tempered glass side panel provides a clear view of the interior without requiring tool removal, and three 140 mm D-RGB fans (SK 3-pin case edition) are included in the box to get airflow running out of the gate. For water-cooling enthusiasts, the P500A Air supports radiators up to 420 mm at the front and up to 360 mm at the top, with front radiator clearance of 95 mm and top clearance of 65 mm. The total fan mounting capacity spans seven 120 mm or six 140 mm positions across the front (3x 120/140 mm), top (3x 120 mm / 2x 140 mm), and rear (1x 120/140 mm) positions. Storage flexibility is a key strength: up to ten 3.5-inch HDD bays (two brackets included, each also supporting 2.5-inch drives) and three dedicated 2.5-inch SSD bays (three brackets included) are available. The PSU compartment accepts units up to 195 mm with four HDD bottom brackets fitted, or up to 250 mm with two brackets fitted. GPU clearance reaches 435 mm, accommodating even the longest modern graphics cards, while CPU cooler height allowance is 190 mm. Vertical GPU mounting is supported across three slots using an optional riser cable (vertical GPU mount bracket included in box). A total of 7+3 PCI expansion slots are provided. Front I/O includes a USB-C Gen 2 port, two USB 3.0 ports, and a combined microphone/headphone jack, plus dedicated LED mode and LED colour buttons for controlling the software-free D-RGB lighting system without requiring a PC restart or additional software. Cable management is aided by velcro strips, slidable cable covers, and zip tie mounts. Dust filtration covers the front panel (integrated), top, and bottom PSU area. An anti-sag bracket is included to support heavy graphics cards. Verified Specifications: – Model: Eclipse P500A D-RGB Black | Part No: PH-EC500ATG-DBK01 – Dimensions (W×H×D): 240 × 510 × 505 mm – Motherboard Support: E-ATX (up to 280 mm wide), ATX, micro-ATX, mini-ITX – Materials: Steel chassis, tempered glass side panel – Included Fans: 3× 140 mm D-RGB (SK 3-pin case edition) – Total Fan Mounts: 7× 120 mm / 6× 140 mm – Front Radiator: up to 420 mm | Top Radiator: up to 360/280 mm | Rear: 120/140 mm – GPU Clearance: 435 mm | CPU Cooler Height: 190 mm – HDD Bays: up to 10× 3.5-inch | SSD Bays: 3× 2.5-inch (dedicated) – PCI Slots: 7+3 | Vertical GPU: 3-slot (optional riser cable required) – Front I/O: USB-C Gen 2, 2× USB 3.0, audio combo – Net Weight: 8 kg | Gross Weight: 10 kg – Warranty: 5 years
