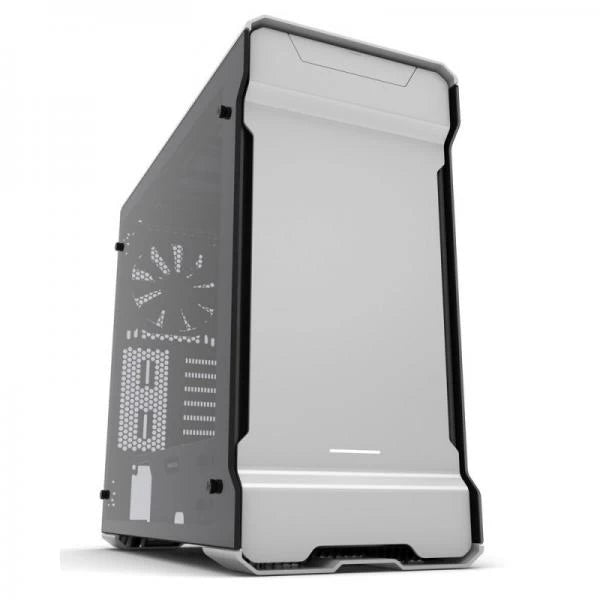

Features of PHANTEKS Enthoo Evolv EATX mid Tower Cabinet (Silver)
Phanteks CPU Case Enthoo Evolv ATX includes 2 x 140mm fans in front and 1 x 140mm fan in the rear. Ability to upgrade to additional fans is possible. All fans included are Phanteks new redesigned and better performing premium fans.
Appearance
Aluminum body (3mm thick)
Clean interior – Hidden PSU and HDDs
RGB LED Illumination – 10 different colors
Designed based on the EVOLV line, the Enthoo EVOLV ATX EATX Cabinet Tempered Glass Edition combines sandblasted aluminum with tempered glass panels. System builders and watercooling enthusiasts can now present their build with a premium touch. The EVOLV ATX Tempered Glass Edition is equipped with innovative features, amazing (water)cooling potential, and RGB illumination.
High Performance Mesh Fabric
Compact and Versatile
Cooling Capacity
Storage Capacity
Get the affordable cpu case with fan with the huge variety with us!

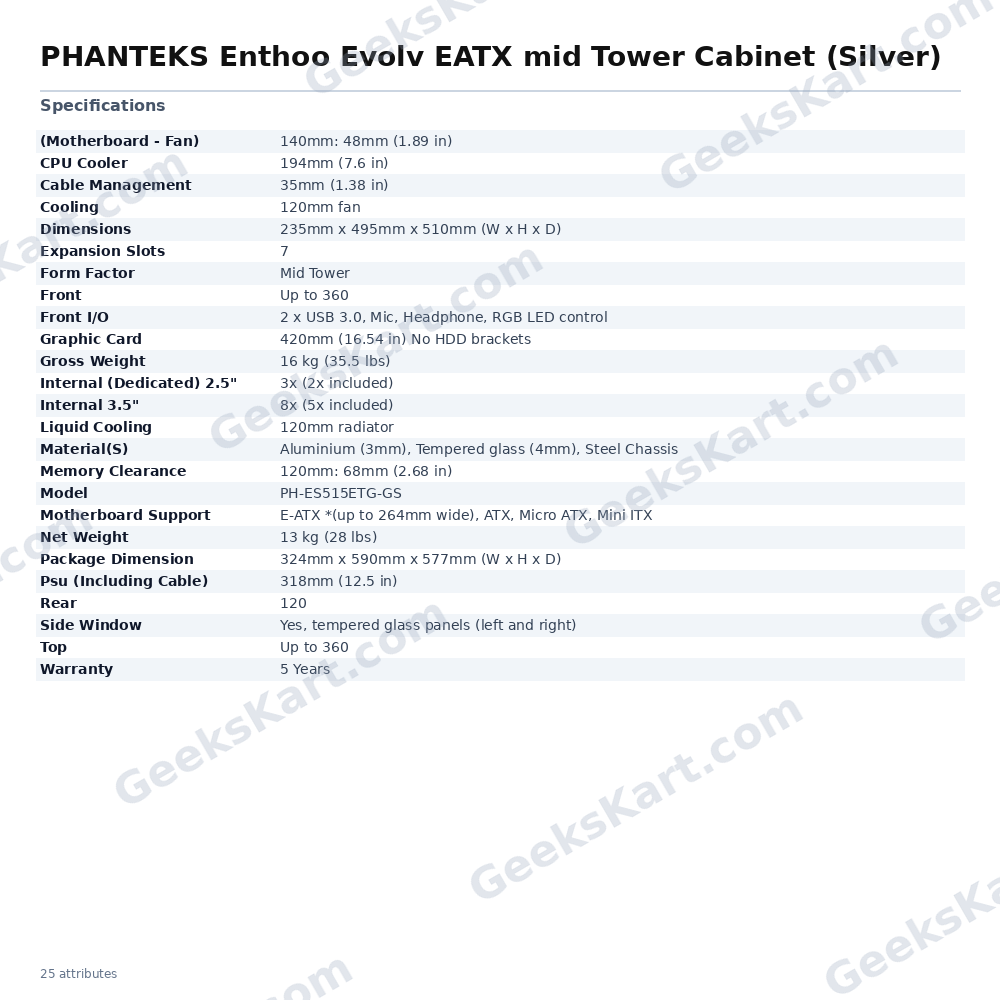

Specifications of PHANTEKS Enthoo Evolv EATX mid Tower Cabinet (Silver)
| Dimensions | 235mm x 495mm x 510mm (W x H x D) | |
| 9.25in x 19.5in x 20.1in | ||
| Form Factor | Mid Tower | |
| Material(s) | Aluminium (3mm), Tempered glass (4mm), Steel Chassis | |
| Motherboard support | E-ATX *(up to 264mm wide), ATX, Micro ATX, Mini ITX | |
| Front I/O | 2 x USB 3.0, Mic, Headphone, RGB LED control | |
| Side window | Yes, tempered glass panels (left and right) | |
| Expansion & Drive Bays | ||
| Expansion slots | 7 | |
| Internal 3.5″ | 8x (5x included) | |
| Internal (dedicated) 2.5″ | 3x (2x included) | |
| Cooling | 120mm fan | |
| Front | 3x | |
| Top | 3x | |
| rear | 1x | |
| Liquid Cooling | 120mm radiator | |
| Front | Up to 360 | |
| Top | Up to 360 | |
| Rear | 120 | |
| Clearance | ||
| Graphic Card | 420mm (16.54 in) No HDD brackets | |
| 300mm (11.8 in) HDD brackets installed | ||
| CPU cooler | 194mm (7.6 in) | |
| Cable management | 35mm (1.38 in) | |
| PSU (including cable) | 318mm (12.5 in) | |
| Memory clearance | 120mm: 68mm (2.68 in) | |
| (motherboard – fan) | 140mm: 48mm (1.89 in) | |
| Packaging | ||
| Model | PH-ES515ETG-GS | |
| Net Weight | 13 kg (28 lbs) | |
| Gross Weight | 16 kg (35.5 lbs) | |
| Package Dimension | 324mm x 590mm x 577mm (W x H x D) | |
| Warranty | 5 Years | |
