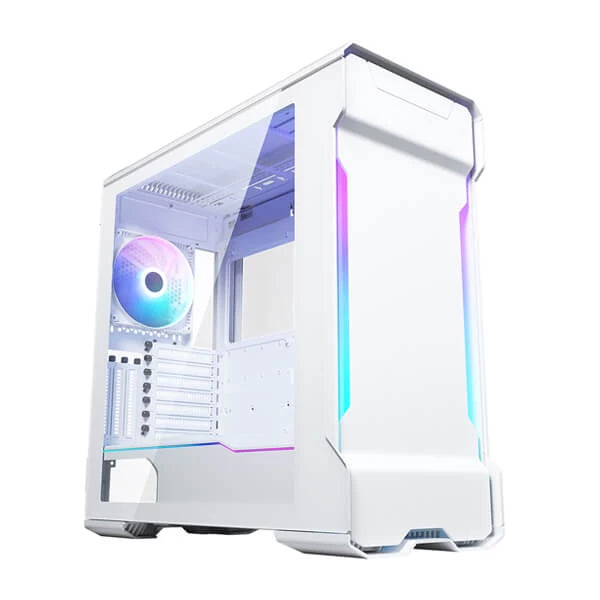

PHANTEKS Enthoo Evolv X EATX Mid Tower Cabinet (Matte White)

The Phanteks Enthoo Evolv X (model PH-ES518XTG-DMW01) is a mid-tower chassis finished in Matte White, built to support E-ATX, ATX, Micro-ATX, and Mini-ITX motherboards within a compact 240 mm × 520 mm × 520 mm (W × H × D) footprint. Its exterior combines an anodized aluminum panel with a powder-coated steel chassis and dual tinted tempered-glass side windows that hinge open for convenient access to the interior. The Evolv X is engineered around three core use cases: high-end water-cooling builds, high-density storage arrays, and dual-system configurations. When paired with the Phanteks Revolt X dual-system power supply, the case can accommodate a secondary Mini-ITX board in the top compartment, allowing two independent systems to share one chassis — ideal for streaming or home-server setups. Cooling headroom is generous. The front panel accepts up to three 120 mm or three 140 mm fans (two 140 mm fans are pre-installed), and supports radiators up to 420 mm. The top supports up to three 120 mm fans or two 140 mm fans with radiators up to 360 mm (3 × 120) or 280 mm (2 × 140). A single 120 mm or 140 mm fan position is available at the rear (one fan pre-installed). CPU cooler clearance reaches 190 mm (7.4 in), and graphics card clearance extends to 435 mm (17.2 in), accommodating virtually all current multi-slot GPUs. Storage capacity is substantial: up to 10 × 3.5-inch drives (4 trays included) and 9 × 2.5-inch drives (6 brackets included), making it a strong choice for prosumer NAS-style builds. Seven PCI expansion slots are available for multi-GPU or add-in card configurations. Front I/O includes one USB 3.1 Gen 2 Type-C port, two USB 3.0 ports, 3.5 mm headphone and microphone jacks, a power button, and dedicated D-RGB mode and color buttons. An integrated Universal Fan Hub lets builders connect 3-pin or 4-pin fans to a single motherboard header. Dual-lane cable tie anchors with a quick-release system keep the interior organized. Key Specifications: • Dimensions (W × H × D): 240 mm × 520 mm × 520 mm • Form Factor: Mid-Tower • Materials: Anodized aluminum panel, powder-coated steel chassis, tinted tempered-glass side panels • Motherboard Support: E-ATX, ATX, Micro-ATX, Mini-ITX • PCI Slots: 7 • Drive Bays: 10 × 3.5-inch (4 included), 9 × 2.5-inch (6 included) • Front Fans: Up to 3 × 120 mm or 3 × 140 mm (2 × 140 mm pre-installed) • Top Fans: Up to 3 × 120 mm or 2 × 140 mm • Rear Fan: 1 × 120 mm or 1 × 140 mm (1 pre-installed) • Max Front Radiator: 420 mm | Max Top Radiator: 360 mm • CPU Cooler Clearance: 190 mm | GPU Clearance: 435 mm • Front I/O: 1 × USB 3.1 Gen 2 Type-C, 2 × USB 3.0, audio, D-RGB controls • Net Weight: 15 kg | Gross Weight: 17 kg • Warranty: 5 Years
