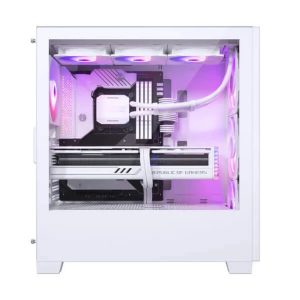

Features of PHANTEKS XT Pro Ultra DRGB EATX Mid Tower Cabinet (White)
With new hardware releases demanding more cooling capacity and internal space, the PHANTEKS XT Pro Ultra D-RGB EATX Cabinet is designed to deliver just that. And it delivers extremely good value. The length and width of the chassis easily fit even the largest graphics cards with space to spare for cable management. Cooling has been optimized with up to 10x 120 mm fan locations, support for 140 mm fans and dedicated radiator space in the top of the chassis.
Phanteks CPU Case XT-Series further innovates to bring support for the latest mainboards that host hidden connectors at the rear to unlock that zero-cable setup. The graphics card also benefits from 3x 120 mm fan locations on the mid-plate that provides direct cooling.
DESIGNED FOR HIGH-END HARDWARE
- Dedicated top 360mm radiator space.
- Support E-ATX Mainboards (up to 280mm).
- Support for large graphic cards. (length: 415mm / width: 184mm).
OPTIMIZED COOLING PERFORMANCE
- 3x 120mm fans location in mid plate for direct and dedicated GPU cooling.
- 4x M25-140mm DRGB fans included.
- Ultra-performance mesh front panel and top mesh dust filter.
- 10x 120mm or 6x 140mm fan locations.
SUPPORT FOR LATEST REARSIDE CONNECTOR MAINBOARDS
- Supports MSI Project Zero / ASUS BTF Mainboards.
- Unlock zero cable setup.
FAN & RADIATOR SUPPORT
- Supports up to 10x 120mm / 6x 140mm fan locations.
- Top: 360mm | Front: 240mm | Rear: 120/140mm.
- 3x 120mm fans on mid-plate for direct GPU cooling.
STORAGE LAYOUTS
- Configuration 1: 5x 2.5” + 1 x 3.5”.
- Configuration 2: 3x 2.5” + 2x 3.5”.
- Includes 1x Triple 2.5” Bracket.
EASILY ACCESSIBLE I/O FRONT PANEL
- 1x USB-C 3.2 Gen2 / 1x USB 3.0
- Power and Reset Button.
- Audio/Microphone Combo.
- Best cpu case with fan at affordable prices at!
Specifications of PHANTEKS XT Pro Ultra DRGB EATX Mid Tower Cabinet (White)
| Model Number | PH-XT523P1-DWT01 |
| General | |
| ProductDimension(DxWxH) | 450x230x500mm |
| FormFactor | Mid Tower |
| Motherboard Support | ATX,Micro-ATX,Mini-IT,E-ATX(280mm without GPU support bracket) |
| Materials | Steel Chassis (Tempered Glass) |
| Front lO | XT Pro Ultra:lxUSB-C 3.2 GEN 2/ lx USB3.0
Microphone/Headphonecombo |
| Connectors | Power Switch Reset Switch Power LED HDD LED HD-audio USB 3.0 USB 3.2 GEN 2 Type-E(XT Pro Ultra only) |
| Expansion | |
| PCI Slots | 7 |
| Internal 3.5″ Bay | 2(2x included) |
| Internal 2.5″ Bay | XT Pro Ultra:5(5xincluded) |
| Fans & Radiators | |
| Top Fan | 3 x 120mm/2 x 140mm |
| Front Fan | 3x 120mm/ 3x 140mm |
| Rear Fan | 1x l20mm/ 1x 140mm |
| Midplate Fan | 3 x 120mm |
| Top Radiator | upto360 |
| Front Radiator | upto360 |
| Rear Radiator | 120 |
| Clearances | |
| GPU Length | 415 mm |
| GPU Width | 184 mm |
| CPU Cooler Height | 184 mm |
| Power Supply | 270 mm |
| Top 360 radiator | 415 x 138 x 60 mm |
| Rear 120 radiator | 132 x 170mm |
| Warranty | 5 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
