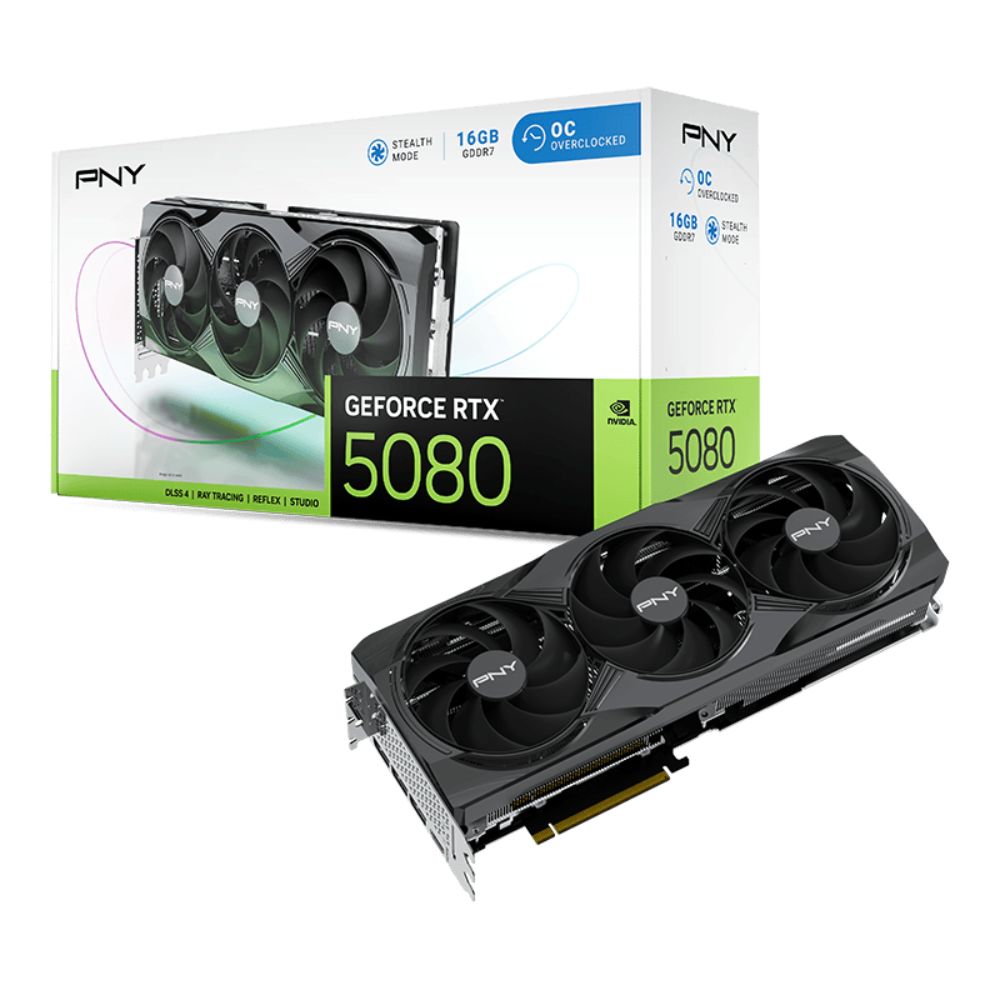

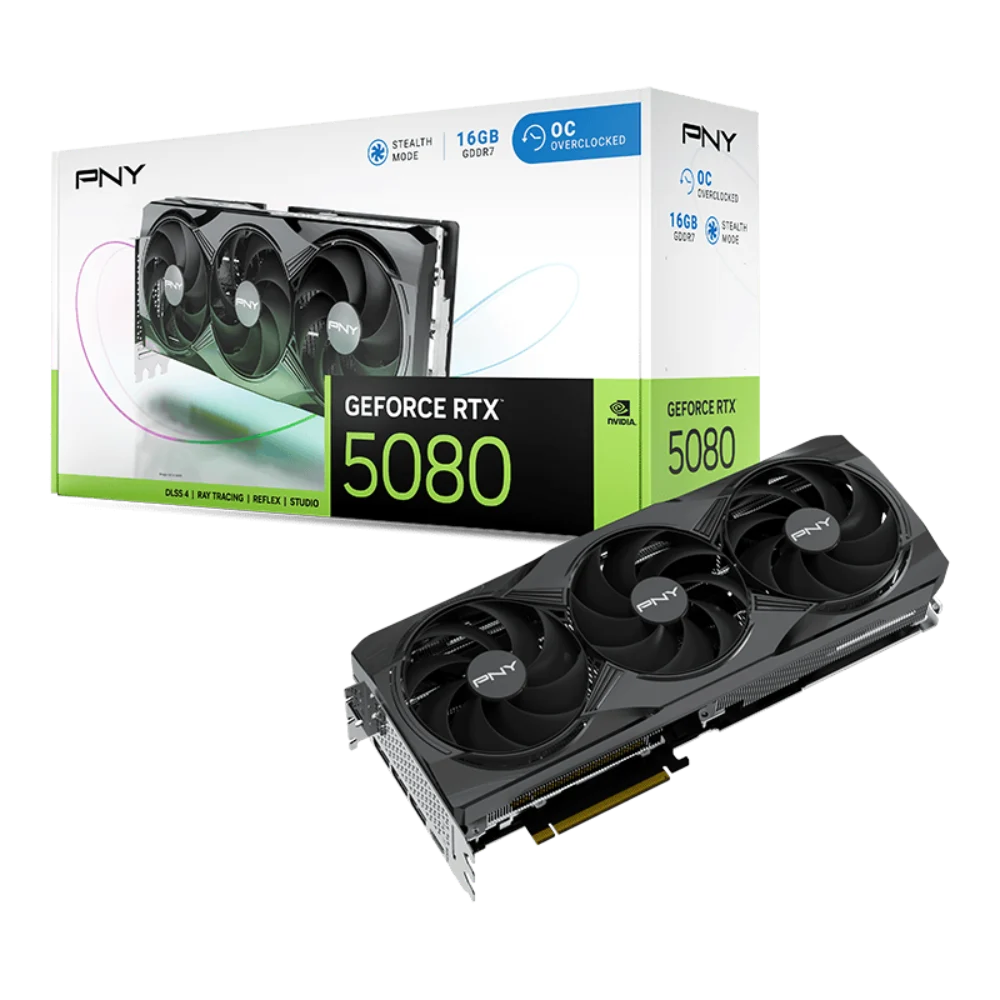

PNY GeForce RTX 5080 OC 16GB Nvidia Graphic Card

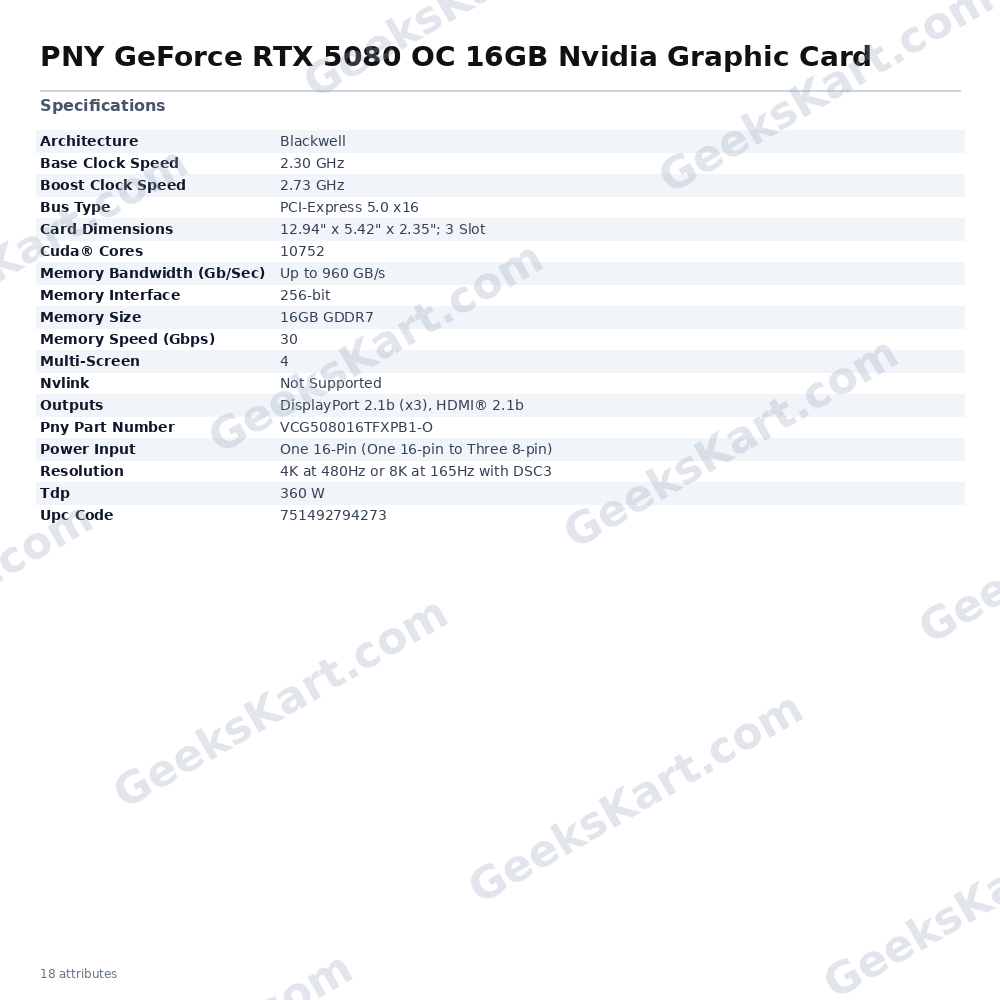

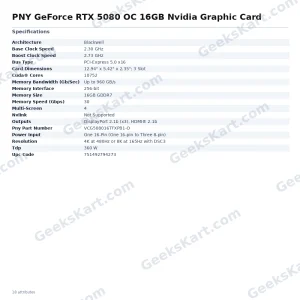

The PNY GeForce RTX 5080 OC 16GB is a high-performance desktop graphics card built on NVIDIA’s Blackwell architecture. It is designed for users who run graphically intensive games and creative workloads at high resolutions, delivering substantial compute and memory bandwidth headroom for demanding tasks. At its core, the card features 10752 CUDA Cores paired with 16 GB of GDDR7 memory running at 30 Gbps across a 256-bit memory interface. This configuration yields up to 960 GB/s of memory bandwidth, enabling the GPU to feed its processing units efficiently even at 4K resolutions. The Blackwell architecture introduces fifth-generation Tensor Cores with FP4 support for AI-accelerated workloads and DLSS 4, as well as fourth-generation Ray Tracing Cores optimised for complex geometry rendering. The OC variant ships with a base clock of 2.30 GHz and a boost clock of 2.73 GHz, representing a factory overclock above reference speeds. Cooling is handled by a triple-fan solution spread across a three-slot cooler measuring 12.94 x 5.42 x 2.35 inches. The mounting bracket is physically secured to the cooler via top-mounted screws, reinforcing structural rigidity during transport and use. PNY describes the thermal solution as targeting lower GPU operating temperatures with quieter fan operation. Display outputs include three DisplayPort 2.1b connectors and one HDMI 2.1b port, supporting up to four simultaneous screens. Maximum supported resolution is 4K at 480 Hz or 8K at 165 Hz when using Display Stream Compression 3. The card connects via a PCI-Express 5.0 x16 slot and draws power through a single 16-pin connector (supplied adapter converts three 8-pin connectors to one 16-pin). TDP is rated at 360 W. NVLink multi-GPU is not supported on this model. NVIDIA Studio support means the card is compatible with NVIDIA’s suite of creator-focused driver optimisations for applications such as 3D rendering, video editing, and AI image generation. Verified Specifications: – Architecture: NVIDIA Blackwell – CUDA Cores: 10,752 – Memory: 16 GB GDDR7, 256-bit interface – Memory Speed: 30 Gbps | Bandwidth: Up to 960 GB/s – Base Clock: 2.30 GHz | Boost Clock: 2.73 GHz – TDP: 360 W – Outputs: 3x DisplayPort 2.1b, 1x HDMI 2.1b (4 screens max) – Resolution: 4K @ 480 Hz or 8K @ 165 Hz (DSC3) – Power Connector: 1x 16-pin (3x 8-pin adapter included) – Bus: PCI-Express 5.0 x16 – Dimensions: 12.94″ x 5.42″ x 2.35″ | 3-slot – PNY Part Number: VCG508016TFXPB1-O
