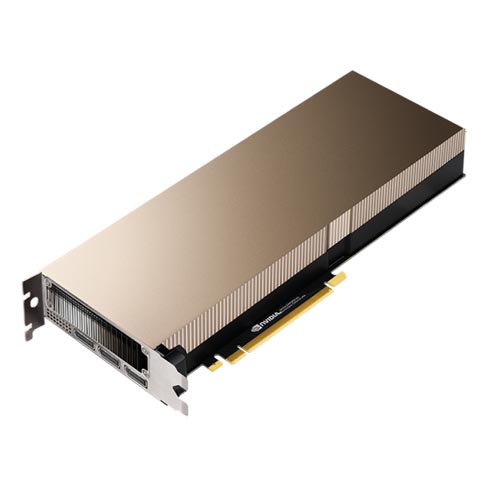

PNY NVIDIA GeForce A40 48GB Passive Ampere Workstation Graphic Card
MPN TCSA40M-PB · Brand PNY · 4.4″ (H) x 10.5″ (L) dual slot
Features of PNY NVIDIA GeForce A40 48GB Passive Ampere Workstation Graphic Card The PNY NVIDIA GeForce A40 48GB Passive Ampere Workstation Graphic Card accelerates the most demanding visual computing workloads from the data center, combining the latest NVIDIA Ampere architecture RT Cores, Tensor Cores, and CUDA® Cores combined with lowest video card prices of 48 GB graphics memory. From powerful virtual workstations accessible from anywhere to dedicated render nodes, NVIDIA A40 brings next gener
Inclusive of GST · GST invoice available
Overview
Features of PNY NVIDIA GeForce A40 48GB Passive Ampere Workstation Graphic Card
The PNY NVIDIA GeForce A40 48GB Passive Ampere Workstation Graphic Card accelerates the most demanding visual computing workloads from the data center, combining the latest NVIDIA Ampere architecture RT Cores, Tensor Cores, and CUDA® Cores combined with lowest video card prices of 48 GB graphics memory. From powerful virtual workstations accessible from anywhere to dedicated render nodes, NVIDIA A40 brings next generation NVIDIA RTX™ technology to the data center for the most advanced professional visualization workloads.
The NVIDIA A40 GPU delivers state-of-the-art visual computing capabilities, including real-time ray tracing, AI acceleration, and multi-workload flexibility to accelerate deep learning, data science, and compute-based workloads. Virtual workstations powered by NVIDIA A40 and NVIDIA RTX Virtual Workstation (vWS) and NVIDIA Virtual Computer Server software benefit from extensive testing across a broad range of industry applications and professional software for optimal performance and stability
Modern data centers are evolving rapidly. Advanced technologies such as real-time ray tracing, AI, compute, simulation, and VR are common across industries. The need to work remotely has accelerated faster than anyone could have anticipated, with workloads that span the entire enterprise.
NVIDIA A40 delivers the data center-based solution designers, engineers, artists, and scientists need to meet today’s challenges. Built on the NVIDIA Ampere architecture, the A40 combines the latest generation RT Cores, Tensor Cores, and CUDA Cores with 48GB of graphics memory for unprecedented graphics, rendering, compute, and AI performance. From powerful virtual workstations accessible from anywhere to dedicated render nodes, the A40 is built to tackle the most demanding visual computing workloads from the data center.
Specifications of PNY NVIDIA GeForce A40 48GB Passive Ampere Workstation Graphic Card
| Part Number | TCSA40M-PB |
| EAN Code | 3.54E+16 |
| GPU architecture | NVIDIA Ampere architecture |
| GPU memory | 48 GB GDDR6 with ECC |
| Memory bandwidth | 696 GB/s |
| Interconnect interface | NVIDIA® NVLink® 112.5 GB/s (bidirectional)3 PCIe Gen4 31.5 GB/s (bidirectional) |
| NVIDIA Ampere architecture- based CUDA Cores | 10,752 |
| NVIDIA second-generation RT Cores | 84 |
| NVIDIA third-generation Tensor Cores | 336 |
| Peak FP32 TFLOPS (non-Tensor) | 37.4 |
| Peak FP16 Tensor TFLOPS with FP16 Accumulate | 149.7 | 299.4* |
| Peak TF32 Tensor TFLOPS | 74.8 | 149.6* |
| RT Core performance TFLOPS | 73.1 |
| Peak BF16 Tensor TFLOPS with FP32 Accumulate | 149.7 | 299.4* |
| Peak INT8 Tensor TOPS Peak INT 4 Tensor TOPS | 299.3 | 598.6*598.7 | 1,197.4* |
| Form factor | 4.4″ (H) x 10.5″ (L) dual slot |
| Display ports | 3x DisplayPort 1.4**; Supports NVIDIA Mosaic and Quadro® Sync4 |
| Max power consumption | 300 W |
| Power connector | 8-pin CPU |
| Thermal solution | Passive |
| Virtual GPU (vGPU) software support | NVIDIA vPC/vApps, NVIDIA RTXVirtual Workstation, NVIDIA Virtual Compute Server |
| vGPU profiles supported | See the Virtual GPU Licensing Guide |
| NVENC | NVDEC | 1x | 2x (includes AV1 decode) |
| Secure and measured boot with hardware root of trust | Yes |
| NEBS ready | Level 3 |
| Compute APIs | CUDA, DirectCompute, OpenCL™, OpenACC® |
| Graphics APIs | DirectX 12.075, Shader Model 5.175,OpenGL 4.686, Vulkan 1.186 |
| Note | **Features, Price and Specifications are subject to change without notice to customer. |

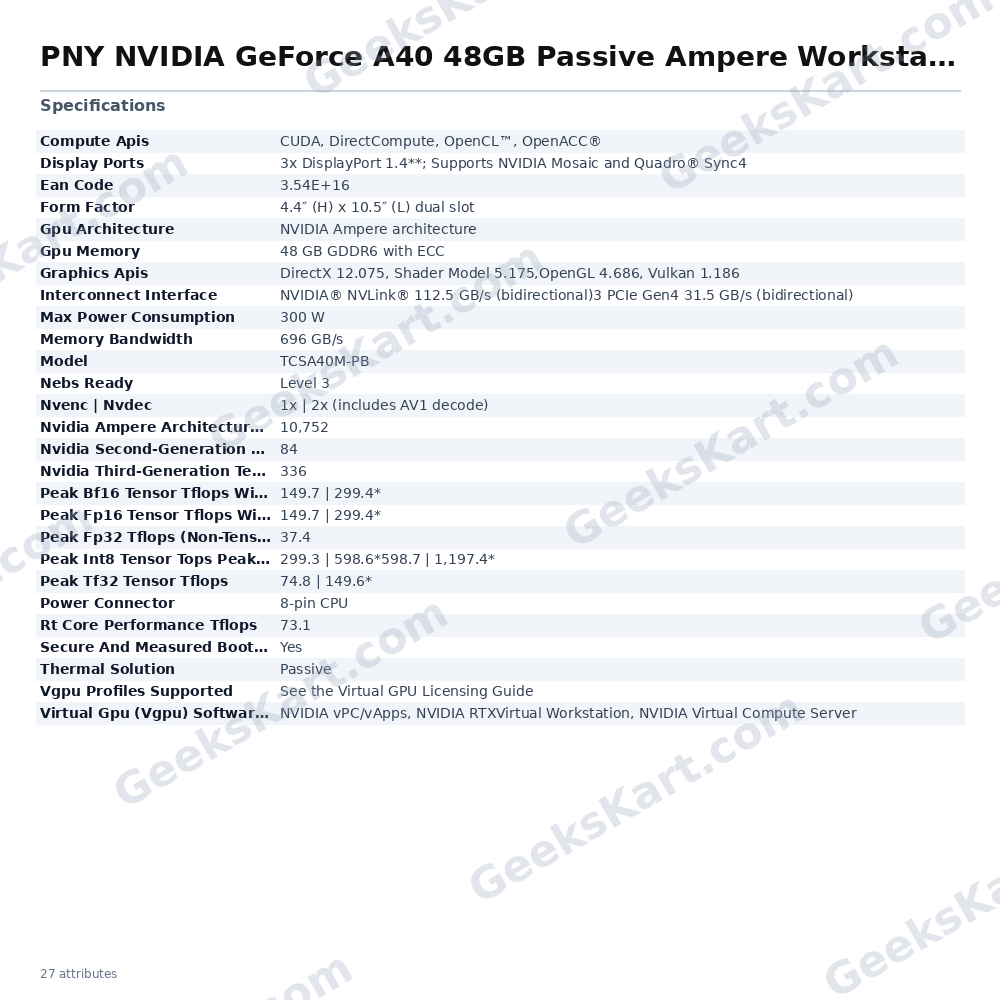

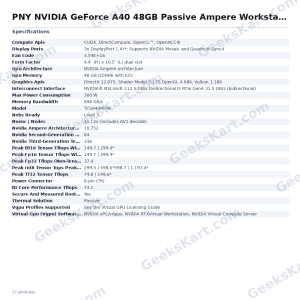

Datasheet
| Ean Code | 3.54E+16 |
|---|---|
| Gpu Memory | 48 GB GDDR6 with ECC |
| Nebs Ready | Level 3 |
| Model | TCSA40M-PB |
| Compute Apis | CUDA, DirectCompute, OpenCL™, OpenACC® |
| Display Ports | 3x DisplayPort 1.4**; Supports NVIDIA Mosaic and Quadro® Sync4 |
| Graphics Apis | DirectX 12.075, Shader Model 5.175,OpenGL 4.686, Vulkan 1.186 |
| Nvenc | Nvdec | 1x, 2x (includes AV1 decode) |
| Power Connector | 8-pin CPU |
| Gpu Architecture | NVIDIA Ampere architecture |
| Memory Bandwidth | 696 GB/s |
| Thermal Solution | Passive |
| Max Power Consumption | 300 W |
| Interconnect Interface | NVIDIA® NVLink® 112.5 GB/s (bidirectional)3 PCIe Gen4 31.5 GB/s (bidirectional) |
| Peak Tf32 Tensor Tflops | 74.8, 149.6* |
| Vgpu Profiles Supported | See the Virtual GPU Licensing Guide |
| Rt Core Performance Tflops | 73.1 |
| Peak Fp32 Tflops (Non-Tensor) | 37.4 |
| Nvidia Second-Generation Rt Cores | 84 |
| Virtual Gpu (Vgpu) Software Support | NVIDIA vPC/vApps, NVIDIA RTXVirtual Workstation, NVIDIA Virtual Compute Server |
| Nvidia Third-Generation Tensor Cores | 336 |
| Nvidia Ampere Architecture- Based Cuda Cores | 10,752 |
| Peak Bf16 Tensor Tflops With Fp32 Accumulate | 149.7, 299.4* |
| Peak Fp16 Tensor Tflops With Fp16 Accumulate | 149.7, 299.4* |
| Peak Int8 Tensor Tops Peak Int 4 Tensor Tops | 299.3, 598.6*598.7, 1,197.4* |
| Secure And Measured Boot With Hardware Root Of Trust | Yes |
| Form Factor | 4.4″ (H) x 10.5″ (L) dual slot |
