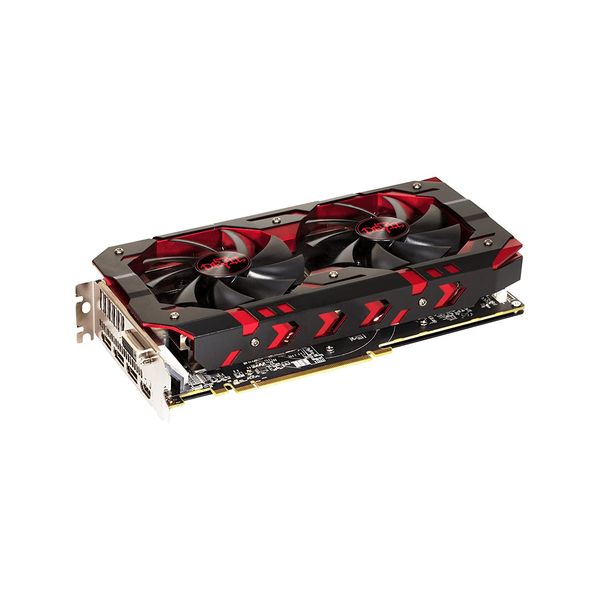

POWERCOLOR Radeon RX 580 Red Devil 8GB AMD Graphic Card
MPN POWERCOLOR-RED-DEVIL-RADEON-RX580 · Brand PowerColor
Features of POWERCOLOR Radeon RX 580 Red Devil 8GB AMD Graphic Card A New and More Powerful Devil is waked! POWERCOLOR Radeon RX 580 Red Devil 8GB AMD Graphic Card and utilize 8GB of GDDR5 memory with 2304 stream processors and have 2000MHz memory clock speed which is connected via a new high speed 256-bit memory interface. Enjoy ultimate gaming experience with superior silent cooler PowerColor RX580 Red Devil equips an 8Pin + 6Pin power connectors with superior 6+1 multi-phases for the ultimate
Inclusive of GST · GST invoice available
Overview
Features of POWERCOLOR Radeon RX 580 Red Devil 8GB AMD Graphic Card
A New and More Powerful Devil is waked!
POWERCOLOR Radeon RX 580 Red Devil 8GB AMD Graphic Card and utilize 8GB of GDDR5 memory with 2304 stream processors and have 2000MHz memory clock speed which is connected via a new high speed 256-bit memory interface.
Enjoy ultimate gaming experience with superior silent cooler
PowerColor RX580 Red Devil equips an 8Pin + 6Pin power connectors with superior 6+1 multi-phases for the ultimate performance. The platinum power kit uses Dr. Mos to provide superior power efficiency and better reliability. In order to achieve better thermal solution, PowerColor Red Devil RX 580 enlarges the surface of heatsink and equips with 8mm heat pipes which lower the temperature but increase performance.
0db –Silent gaming
Mute Fan Technology intelligently turns off the fan below 60°C, providing silent gaming during medium and low load while reducing power consumption simultaneously.
Lower temperature Better Performance
More is more. For providing powerful but silent gaming experience, Red Devil RX580 increases more fins on the heatsink to enlarge the surface for heat dissipation. The best part is it equips with up to 4x 8Φ heat pipes to guarantee lower temperature but better performance.
AMD CrossFire™ Technology
Increase our gaming performance up to 2x with AMD CrossFire™ technology, 2.75x for TriFire configurations, or 3.75x with QuadFire configs.
Radeon™ Chill
- 1.Back plate
- 2.Ultra OC or Silent OC, just switch what you want!
- 3.Stronger MOS, better protection
- 4.Cooler 4x8 heatpipes
- 5. LED light
Specifications of POWERCOLOR Radeon RX 580 Red Devil 8GB AMD Graphic Card
| Graphics Engine | AXRX 580 8GBD5-3DH/OC |
| Video Memory | 8GB GDDR5 |
| Stream Processor | 2304 Units |
| Engine Clock(OC) | up to 1380MHz with boost |
| Engine Clock(STD/Silent) | |
| Memory Clock | 2000MHz x4 (8.0Gbps) |
| Memory Interface | 256-bit |
| DirectX® Support | 12 |
| Bus Standard | PCIE 3.0 |
| Standard Display Connectors | DL DVI-D/ HDMI/ DisplayPort x3 |

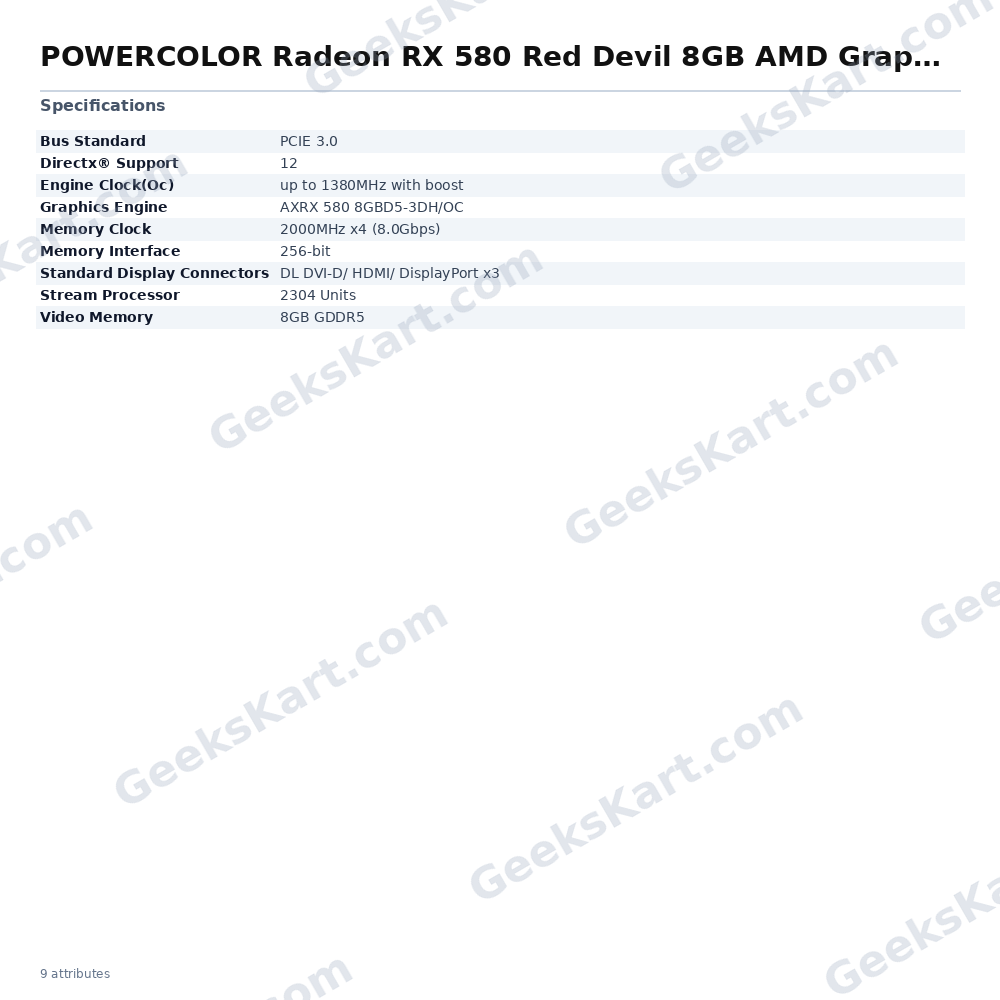

Datasheet
| Bus Standard | PCIE 3.0 |
|---|---|
| Video Memory | 8GB GDDR5 |
| Graphics Engine | AXRX 580 8GBD5-3DH/OC |
| Engine Clock(Oc) | up to 1380MHz with boost |
| Memory Interface | 256-bit |
| Stream Processor | 2304 Units |
| Directx® Support | 12 |
| Standard Display Connectors | DL DVI-D/ HDMI/ DisplayPort x3 |
| Memory Clock | 2000MHz x4 (8.0Gbps) |
