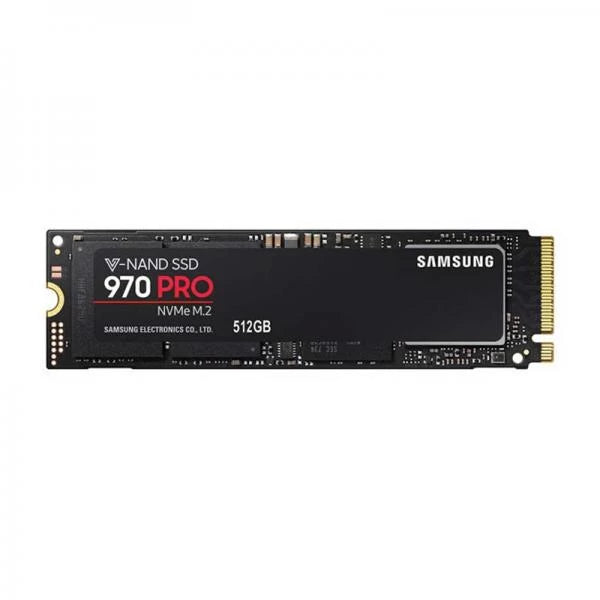

SAMSUNG 970 Pro 512GB M.2 NVME Gen3 Solid State Drive ( SSD )

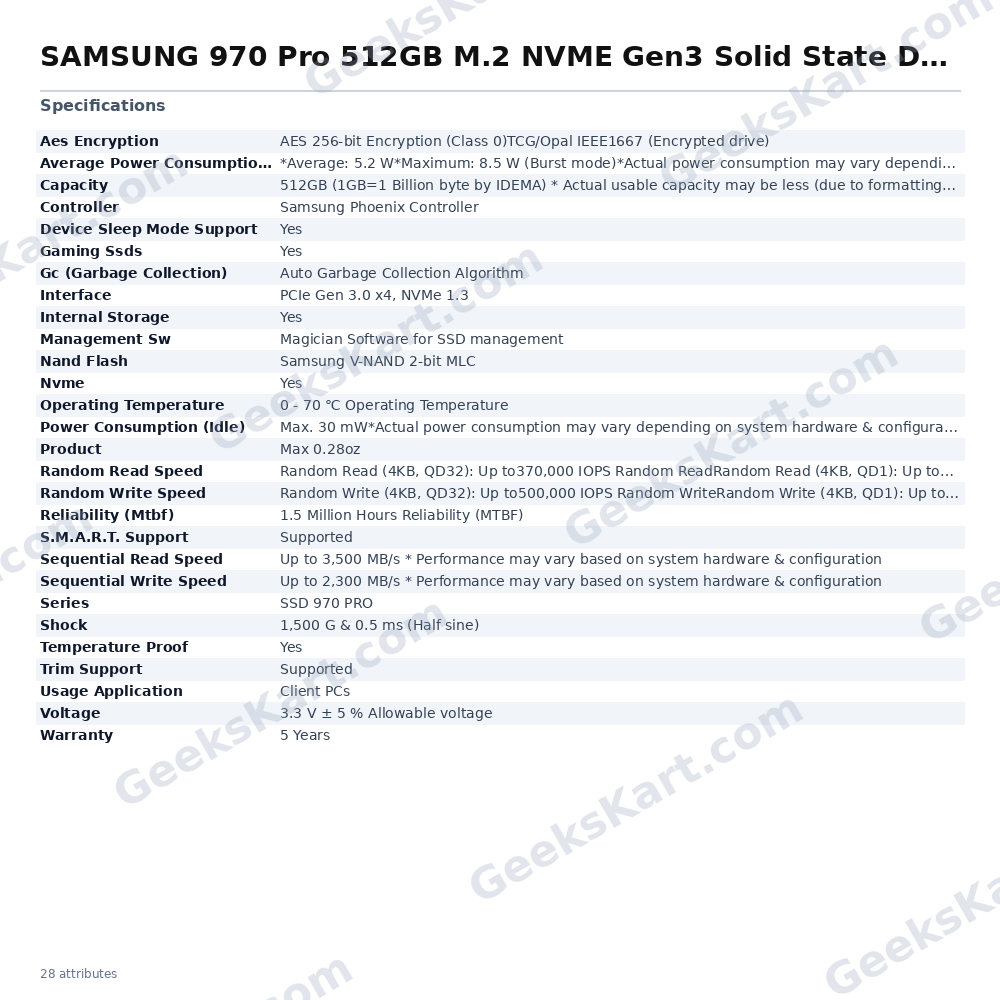

The Samsung 970 Pro 512GB M.2 NVMe SSD is a high-performance internal solid-state drive built for demanding workloads on desktop PCs and workstations. Sitting in the compact M.2 2280 form factor, it connects via a PCIe Gen 3.0 x4 interface running the NVMe 1.3 protocol, delivering sequential read speeds of up to 3,500 MB/s and sequential write speeds of up to 2,300 MB/s. These figures represent a significant step up from older PCIe Gen 2 and SATA-based drives. At the heart of the 970 Pro is Samsung’s proprietary Phoenix controller, paired with Samsung V-NAND 2-bit MLC (Multi-Level Cell) flash memory. MLC NAND stores two bits per cell, offering higher endurance and more consistent write performance than TLC or QLC alternatives. This design contributes to the drive’s rated 1,200 TBW (terabytes written) endurance for the 512GB capacity, and a mean time between failures (MTBF) of 1.5 million hours. Samsung backs the drive with a 5-year limited warranty. Random performance is equally strong: the 970 Pro reaches up to 370,000 IOPS for 4KB random reads at queue depth 32 and up to 500,000 IOPS for 4KB random writes at queue depth 32. At queue depth 1, random reads reach 15,000 IOPS and random writes reach 55,000 IOPS — figures that improve real-world application launch times and file transfer responsiveness. Thermal management is handled by Samsung’s nickel-coated controller and an onboard heat spreader, complemented by the Dynamic Thermal Guard, which automatically monitors operating temperature and adjusts performance to stay within safe thermal limits. The drive operates between 0 °C and 70 °C and can withstand shock loads of up to 1,500 G at 0.5 ms. Security features include AES 256-bit hardware encryption with TCG/Opal and IEEE 1667 compliance. The drive also supports TRIM, S.M.A.R.T. monitoring, and an auto garbage collection algorithm to maintain long-term performance. Device sleep mode (DevSleep) keeps idle power consumption to a maximum of 30 mW, while average active power is rated at 5.2 W (8.5 W burst). Samsung Magician software provides drive health monitoring, firmware updates, performance benchmarking, and optional performance optimisation tools, all from a single dashboard. Verifiable Specifications: Capacity: 512 GB | Interface: PCIe Gen 3.0 x4, NVMe 1.3 | Form Factor: M.2 2280 | Sequential Read: up to 3,500 MB/s | Sequential Write: up to 2,300 MB/s | Random Read (4KB QD32): up to 370,000 IOPS | Random Write (4KB QD32): up to 500,000 IOPS | Controller: Samsung Phoenix | NAND: Samsung V-NAND 2-bit MLC | Endurance: 1,200 TBW | MTBF: 1.5 million hours | Encryption: AES 256-bit, TCG/Opal, IEEE 1667 | Warranty: 5 years | Operating Temp: 0–70 °C | Idle Power: max 30 mW | Avg Active Power: 5.2 W | Dimensions: 80 mm × 22 mm × 2.38 mm (M.2 2280) | Weight: max 0.28 oz
