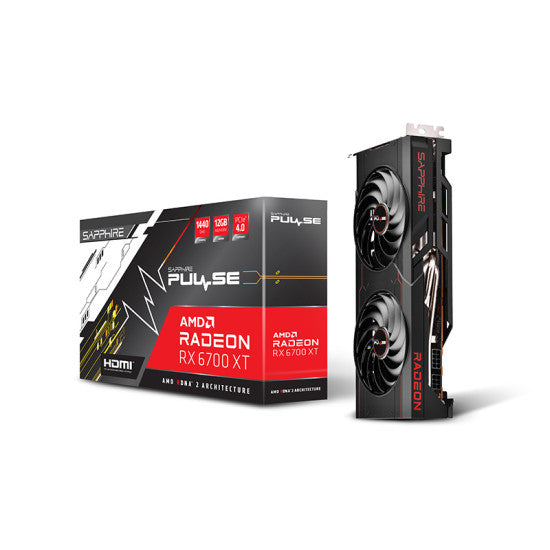

Features of SAPPHIRE Radeon RX 6700 XT Pulse Gaming OC 12GB AMD Graphic Card
The SAPPHIRE PULSE AMD Radeon™ RX 6700 XT Graphics Card runs on the powerful Dual-X Cooling Technology coupled with Intelligent Fan Control to keep temperatures low and fan noise low. The refined PCB design delivers stable, reliable, and steady performance, which efficiently lowers PCB temperature and component signal noise.
Vivid Visuals
With immersive gaming technologies and support for DirectX® 12 Ultimate.
AMD Radeon RX 6700 XT graphics cards draw you into the action. Experience 1440p gaming with realistic lighting, shadows, and reflections along with rich detail. thanks to DirectX Raytracing (OXR), variable rate shading (VRS), and AMD FidelityFX features, optimized for AMD RONA 2 architecture.
THE ULTIMATE GAME CHANGER
Powerhouse Performance for 4K Gaming
Technical Details
Brand: Sapphire
Model: RX 6700 XT Gaming OC
GPU
AMD Radeon™ RX 6700 XT Graphics Card
7nm GPU
AMD RDNA™ 2 Architecture
Engine Clock
Boost Clock: Up to 2620 MHz
Game Clock: Up to 2474 MHz
Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary.
Resolution
HDMI™: 7680×4320
DisplayPort1.4: 7680×4320
Output
1x HDMI
3x DisplayPort
Sapphire Features
Premium Digital Power Design
Fuse Protection
Dual-X Cooling Technology
Intelligent Fan Control
Precision Fan Control
Metal Backplate
Two-Ball Bearing Fans
Integrated Cooling Module
TriXX Supported
TriXX Boost
AMD Features
AMD RDNA™ 2 Gaming Architecture
DirectX® 12 Ultimate
Hardware Raytracing
Smart Access Memory
Infinity Cache
7nm GPU
PCI® Express 4.0 Support
AMD FreeSync™ Technology
DisplayPort™ 1.4 with DSC
HDMI™ 2.1 VRR
Video Streaming up to 8K
Radeon™ VR Ready Premium
AMD FidelityFX
Radeon™ Image Sharpening
Radeon™ Anti-Lag
Radeon™ Software
Game Driver Optimizations
Form Factor
2.2 slot, ATX
Dimension: 260(L)X 119.85(W)X 49(H)mm
OS
Linux®, Windows® 7*, Windows® 10, and Windows 8.1. 64-bit operating system required
*Does not support all features including but not limited to Hardware Raytracing
System Requirement
Minimum 650 Watt Power Supply
1 x 8-pin + 1 x 6-pin Power Connector.
PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard.
Minimum 8GB of system memory. 16GB recommended.

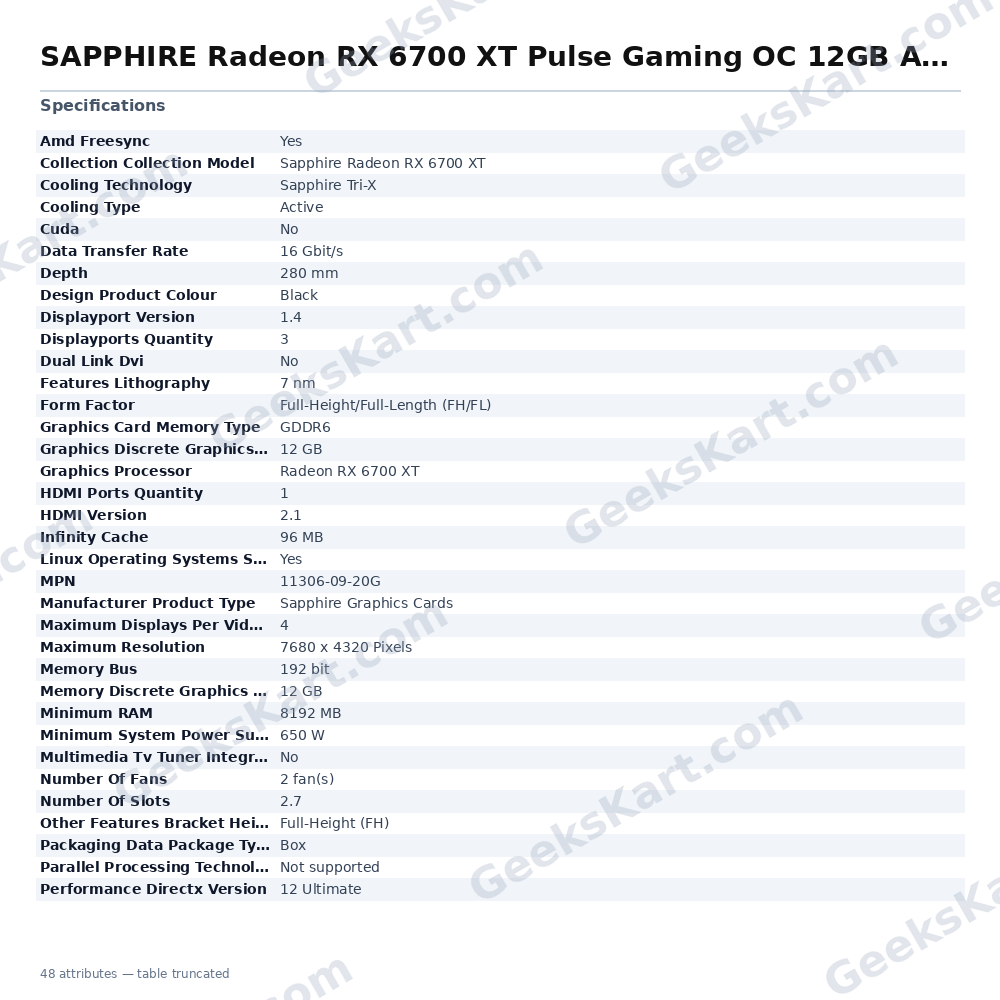

Specifications of SAPPHIRE Radeon RX 6700 XT Pulse Gaming OC 12GB AMD Graphic Card
| Brand | Sapphire |
| Collection Collection Model | Sapphire Radeon RX 6700 XT |
| Sapphire 11306-09-20G | |
| Manufacturer Product Type | Sapphire Graphics Cards |
| Design Product colour | Black |
| Cooling technology | Sapphire Tri-X |
| Form Factor | Full-Height/Full-Length (FH/FL) |
| Number of Slots | 2.7 |
| Cooling type | Active |
| Number of fans | 2 fan(s) |
| Product Family | Radeon RX 6700 XT |
| Processor Graphics processor family | AMD |
| Graphics processor | Radeon RX 6700 XT |
| Maximum Resolution | 7680 x 4320 Pixels |
| CUDA | No |
| Processor boost clock speed | 2581 MHz |
| Parallel processing technology support | Not supported |
| Maximum displays per videocard | 4 |
| Stream processors | 2560 |
| Infinity cache | 96 MB |
| Ray accelerators | 40 |
| Memory Discrete graphics adapter memory | 12 GB |
| Graphics card memory type | GDDR6 |
| Memory bus | 192 bit |
| Data transfer rate | 16 Gbit/s |
| Graphics Discrete graphics card memory | 12 GB |
| Ports & interfaces Interface Type | PCI Express x16 4.0 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 3 |
| HDMI version | 2.1 |
| DisplayPort version | 1.4 |
| Power Power consumption (max) | 230 W |
| Minimum system power supply | 650 W |
| Supplementary power connectors | 1x 6-pin, 1x 8-pin |
| System requirements Windows operating systems supported | Windows 10 x64, Windows 7 x64, Windows 8.1 x64 |
| Minimum RAM | 8192 MB |
| Linux operating systems supported | Yes |
| Weight & dimensions Height | 50.5 mm |
| Depth | 280 mm |
| Width | 122.8 mm |
| Smart TV Virtual Reality (VR) ready | Yes |
| Performance DirectX version | 12 Ultimate |
| Dual Link DVI | No |
| AMD FreeSync | Yes |
| Multimedia TV tuner integrated | No |
| Features Lithography | 7 nm |
| Packaging data Package Type | Box |
| Other features Bracket height | Full-Height (FH) |
| MPN | 11306-09-20G |
| Video Inputs | DisplayPort |
