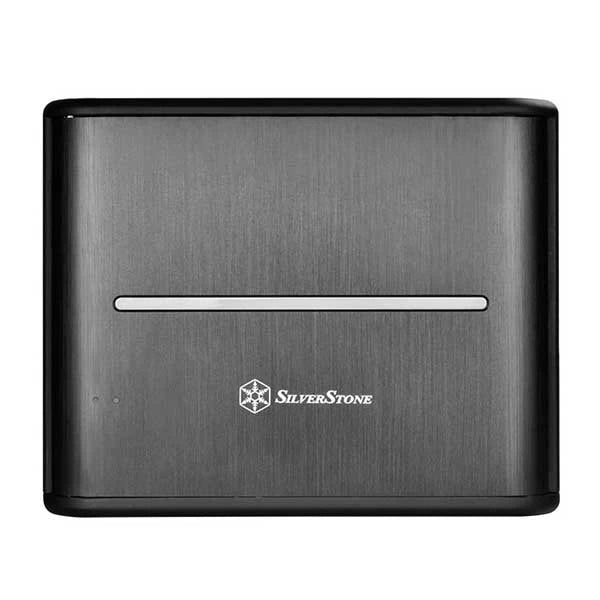

SILVERSTONE CS280 ITX Mini Tower Cabinet (Black)
MPN SILVERSTONE-CS280 · Brand SilverStone
Features of SILVERSTONE CS280 ITX Mini Tower Cabinet (Black) The door is made of premium aluminum with locks. Also, there are individual metal keys to each and every drive safety. Compatibility is an essential feature. Silverstone CS280 is compatible with Mini-ITX motherboard & SFX PSU. The limitations of the CPU cooler are 65 mm. The SilverStone CS280 Cabinet supports expansion cards up to 4.41" and low profile expansion cards up to 8.66". In order to use the SAS drive, it’s compulsory to h
Inclusive of GST · GST invoice available
Overview
Features of SILVERSTONE CS280 ITX Mini Tower Cabinet (Black)
The door is made of premium aluminum with locks. Also, there are individual metal keys to each and every drive safety. Compatibility is an essential feature. Silverstone CS280 is compatible with Mini-ITX motherboard & SFX PSU. The limitations of the CPU cooler are 65 mm. The SilverStone CS280 Cabinet supports expansion cards up to 4.41" and low profile expansion cards up to 8.66". In order to use the SAS drive, it’s compulsory to have a motherboard or expansion card with a hardware SAS controller. The warranty of this incredible SilverStone CS280 Cabinet is one whole year. So you have no worries!
- Supports 2.5" hot-swap hard drives x 8 with locker
- Premium aluminum front door with lock
- Individual metal key lock for each drive for extra security
- Fully supports SAS/SATA Hot-Swap function
- Mini-DTX/Mini-ITX motherboard & SFX power supply compatible

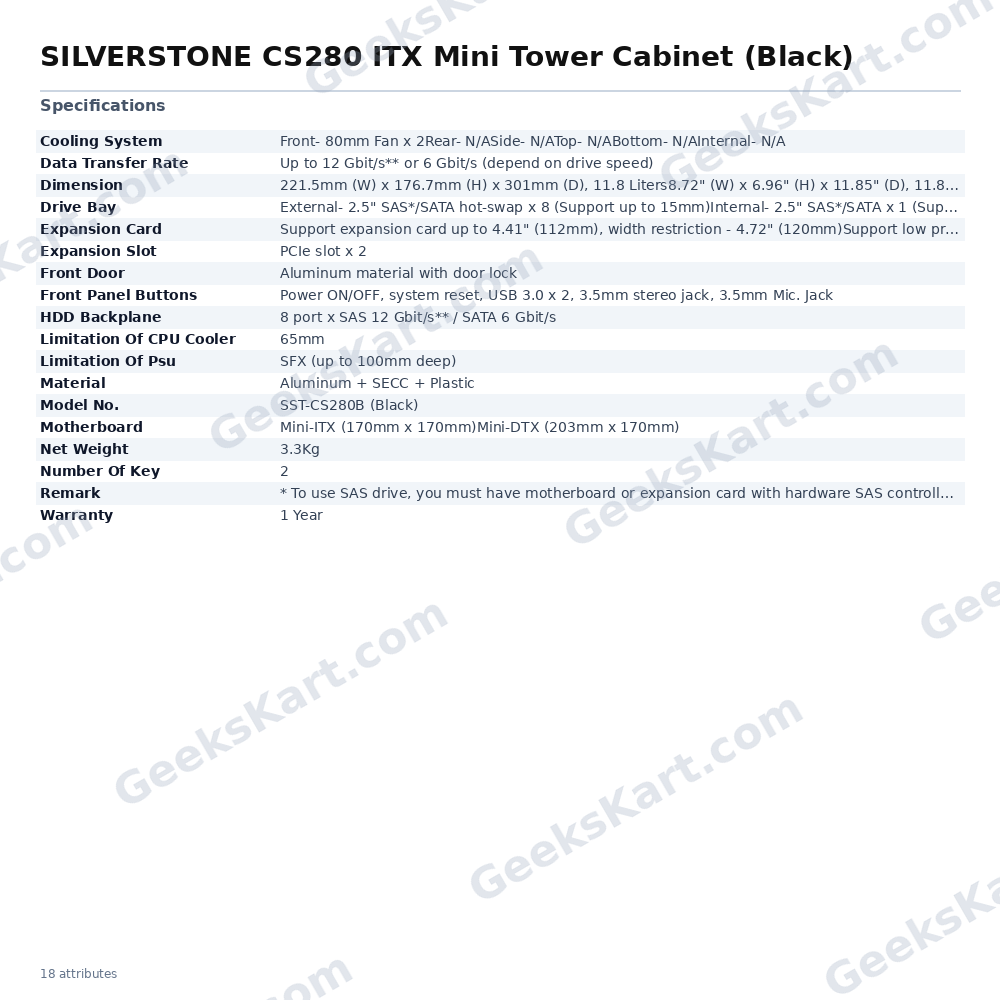

Specifications of SILVERSTONE CS280 ITX Mini Tower Cabinet (Black)
| Model No. | SST-CS280B (Black) |
| Material | Aluminum + SECC + Plastic |
| Motherboard | Mini-ITX (170mm x 170mm) Mini-DTX (203mm x 170mm) |
| Drive bay | External- 2.5" SAS*/SATA hot-swap x 8 (Support up to 15mm) Internal- 2.5" SAS*/SATA x 1 (Support up to 12.5mm) |
| Cooling system | Front- 80mm Fan x 2 Rear- N/A Side- N/A Top- N/A Bottom- N/A Internal- N/A |
| Expansion slot | PCIe slot x 2 |
| HDD backplane | 8 port x SAS 12 Gbit/s** / SATA 6 Gbit/s |
| Data transfer rate | Up to 12 Gbit/s** or 6 Gbit/s (depend on drive speed) |
| Front door | Aluminum material with door lock |
| Front panel buttons | Power ON/OFF, system reset, USB 3.0 x 2, 3.5mm stereo jack, 3.5mm Mic. Jack |
| Number of key | 2 |
| Expansion card | Support expansion card up to 4.41" (112mm), width restriction - 4.72" (120mm) Support low profile expansion card up to 8.66" (220mm), width restriction - 2.39" (60.75mm) |
| Limitation of CPU cooler | 65mm |
| Limitation of PSU | SFX (up to 100mm deep) |
| Net weight | 3.3Kg |
| Dimension | 221.5mm (W) x 176.7mm (H) x 301mm (D), 11.8 Liters 8.72" (W) x 6.96" (H) x 11.85" (D), 11.8 Liters |
| Remark | * To use SAS drive, you must have motherboard or expansion card with hardware SAS controller. ** Mini-SAS HD (SFF8643) to SATA 7 pin cable and 12 Gbit/s SAS HD card required for 12 Gbit/s performance (i.e. SilverStone CPS05 & ECS05) |
| Warranty | 1 Year |
| Note | ***Features, Price and Specifications are subject to change without notice. |
Datasheet
| Warranty | 1 Year |
|---|---|
| Remark | * To use SAS drive, you must have motherboard or expansion card with hardware SAS controller.** Mini-SAS HD (SFF8643) to SATA 7 pin cable and 12 Gbit/s SAS HD card required for 12 Gbit/s performance (i.e. SilverStone CPS05 & ECS05) |
| Material | Aluminum + SECC + Plastic |
| Dimension | 221.5mm (W) x 176.7mm (H) x 301mm (D), 11.8 Liters8.72" (W) x 6.96" (H) x 11.85" (D), 11.8 Liters |
| Drive Bay | External- 2.5" SAS*/SATA hot-swap x 8 (Support up to 15mm)Internal- 2.5" SAS*/SATA x 1 (Support up to 12.5mm) |
| Model No. | SST-CS280B (Black) |
| Front Door | Aluminum material with door lock |
| Net Weight | 3.3Kg |
| Motherboard | Mini-ITX (170mm x 170mm)Mini-DTX (203mm x 170mm) |
| HDD Backplane | 8 port x SAS 12 Gbit/s** / SATA 6 Gbit/s |
| Number Of Key | 2 |
| Cooling System | Front- 80mm Fan x 2Rear- N/ASide- N/ATop- N/ABottom- N/AInternal- N/A |
| Expansion Card | Support expansion card up to 4.41" (112mm), width restriction – 4.72" (120mm)Support low profile expansion card up to 8.66" (220mm) , width restriction – 2.39" (60.75mm) |
| Expansion Slot | PCIe slot x 2 |
| Limitation Of Psu | SFX (up to 100mm deep) |
| Data Transfer Rate | Up to 12 Gbit/s** or 6 Gbit/s (depend on drive speed) |
| Front Panel Buttons | Power ON/OFF, system reset, USB 3.0 x 2, 3.5mm stereo jack, 3.5mm Mic. Jack |
| Limitation Of CPU Cooler | 65mm |
