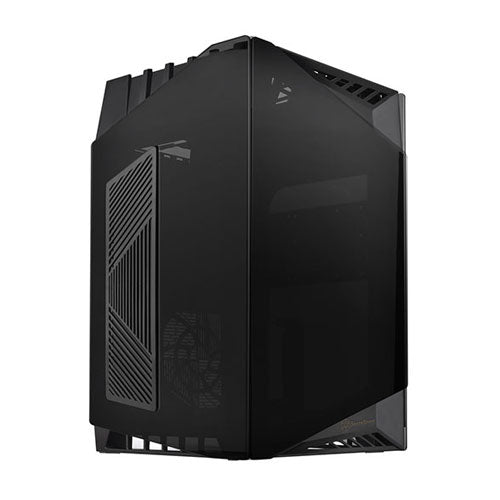

SILVERSTONE LUCID LDCID LD03-AF ITX Mini Tower Cabinet (Black)

The SilverStone Lucid LD03-AF is a Mini-ITX tower cabinet engineered for builders who want a compact, well-ventilated system without sacrificing compatibility with high-end components. At just 25.2 litres (265 mm W × 414 mm H × 230 mm D), it occupies a small footprint yet accommodates full-size CPU coolers up to 190 mm tall and graphics cards up to 309 mm (12.1 inches) long with a width restriction of 167 mm (6.59 inches). The defining upgrade of the LD03-AF over the standard LD03 is the air-inlet cutout machined into the left tinted tempered glass panel. This opening channels ambient air directly toward the GPU, improving thermal headroom for power-hungry graphics cards without requiring any additional hardware. Both side panels and the front panel use a tool-less buckle design for easy removal, keeping the exterior free of exposed screws for a cleaner aesthetic. Cooling is handled by two pre-installed 120 mm fans — one mounted at the top and one at the bottom. The rotated 90-degree motherboard orientation creates a natural stack-effect airflow path: cool air enters from the base, flows across heat-generating components, and exhausts upward. The case also supports 120 mm and 240 mm radiators, giving liquid-cooling enthusiasts viable options within the compact chassis. Nylon mesh filters are placed at all air intakes and are removable without tools, making routine dust maintenance straightforward. Storage options include up to two 3.5-inch drive bays (each also compatible with 2.5-inch drives) plus two dedicated 2.5-inch bays. Front I/O includes a USB Type-C port, one USB 3.0 port, a headphone output, and a microphone input. The chassis body is steel with tinted tempered glass panels on both sides. It supports Mini-DTX and Mini-ITX motherboards, and requires an SFX or SFX-L power supply. Verified Specifications: • Form factor: Mini-ITX / Mini-DTX motherboard support • Dimensions: 265 mm (W) × 414 mm (H) × 230 mm (D) — 25.2 litres • Material: Steel body with tinted tempered glass panels • PSU compatibility: SFX and SFX-L only • CPU cooler clearance: up to 190 mm • GPU clearance: up to 309 mm length; 167 mm width restriction • Expansion slots: 2 • Cooling (included): 1 × 120 mm top fan, 1 × 120 mm bottom fan • Radiator support: 120 mm / 240 mm • Drive bays: 3.5″ × 2 (2.5″ compatible) + 2.5″ × 2 • Front I/O: USB Type-C × 1, USB 3.0 × 1, Audio × 1, MIC × 1
