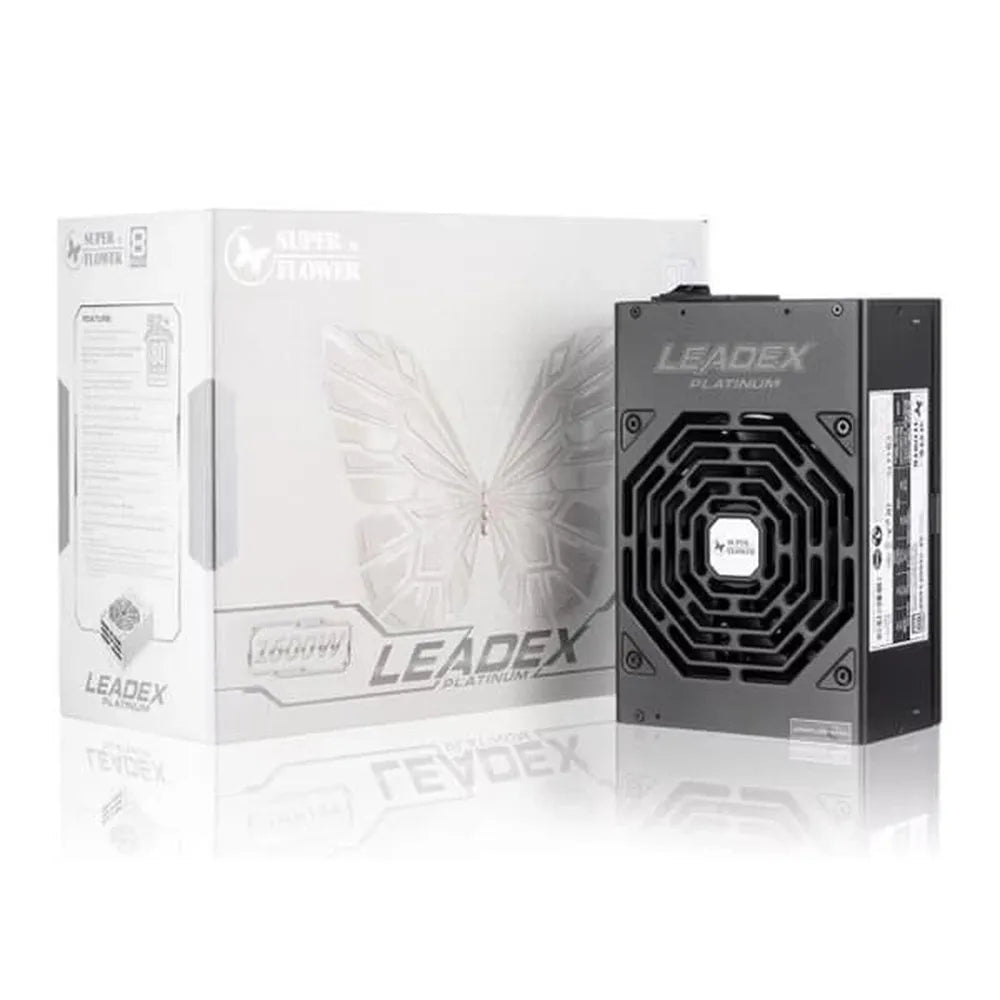

SUPER FLOWER Leadex 1600 80 Plus Platinum Fully Modular Power Supply (1600 W)
MPN SUPER-FLOWER-LEADEX-1600W-PLATINUM · Brand SUPER FLOWER
Feature of SUPER FLOWER Leadex 1600 80 Plus Platinum SUPER FLOWER Leadex SE 1600W Power Supply are 80+ Platinum certified with 100% fully modular cable design, our R&D team’s latest innovation, a brilliant idea to maximize PSU cables & connectors management to have the best cable routing solution, also increase case chassis air flow to have best cooling for your system. Super Flower Power Supply provides high efficiency & stable power output and come with a 14cm two-way thermal contr
Inclusive of GST · GST invoice available
Overview
Feature of SUPER FLOWER Leadex 1600 80 Plus Platinum
SUPER FLOWER Leadex SE 1600W Power Supply are 80+ Platinum certified with 100% fully modular cable design, our R&D team’s latest innovation, a brilliant idea to maximize PSU cables & connectors management to have the best cable routing solution, also increase case chassis air flow to have best cooling for your system.
Super Flower Power Supply provides high efficiency & stable power output and come with a 14cm two-way thermal control intelligent cooling fan to ensure your professional PC system will work under heavy load, also capable of powering your PC system equipped with NVIDIA® SLI™ or ATI CrossFireX™ setup.
- 100% Full Modular Cabling Design For Easy Cable Management.
- 80 PLUS ® Platinum Certified, 90% 92% 89% Efficiency At 20% 50% 100% Rated Load.
- Excelent stability & voltage regulation.
- Full Range Auto Voltage Detection Design 100V~240V (Active PFC).
- Comply With ATX 12V v2.32 & SSI EPS 12V v2.92 Specification.
- Comply With Energy Star Standard & EuP (Energy Using Products) Regulation.
- 100% high quality Japanese capacitors.
- 140mm double ball bearing cooling fan.
- Over Voltage Protection / Over Current Protection / Over Power Protection / Short Circuit Protection /Under Voltage Protection / Over Temperature Protection / Low Voltage Protection / No Load Operation / Surge & Inrush Protection.
- Support All Intel/AMD Multi-Core CPU & ATX/BTX Compatible Motherboards.
- Support NVIDIA® SLI™ & ATI CrossFireX™ High Performance Graphic Card.
- More than 2,000 times On/Off test.
- Unleaded Green Materials with RoHS/WEEE Compliance.
- Perfect For Professional & High Performance Gaming System.
- Bridgeless PFC & Full-Bridge LLC Resonant Circuit Design.
- Exclusive Patents(Taiwan & China Patents Approved,USA,Germany & Japan Patent Pending)
1.ECO Intelligent Thermal Control System.
2.Multi patent pending high efficiency main transformer.
This product is designed for personal desktop system and high-end gaming systems, warranty void if use for the following special-purpose system
Get the best 80 Plus Platinum computer SMPS price from us today!

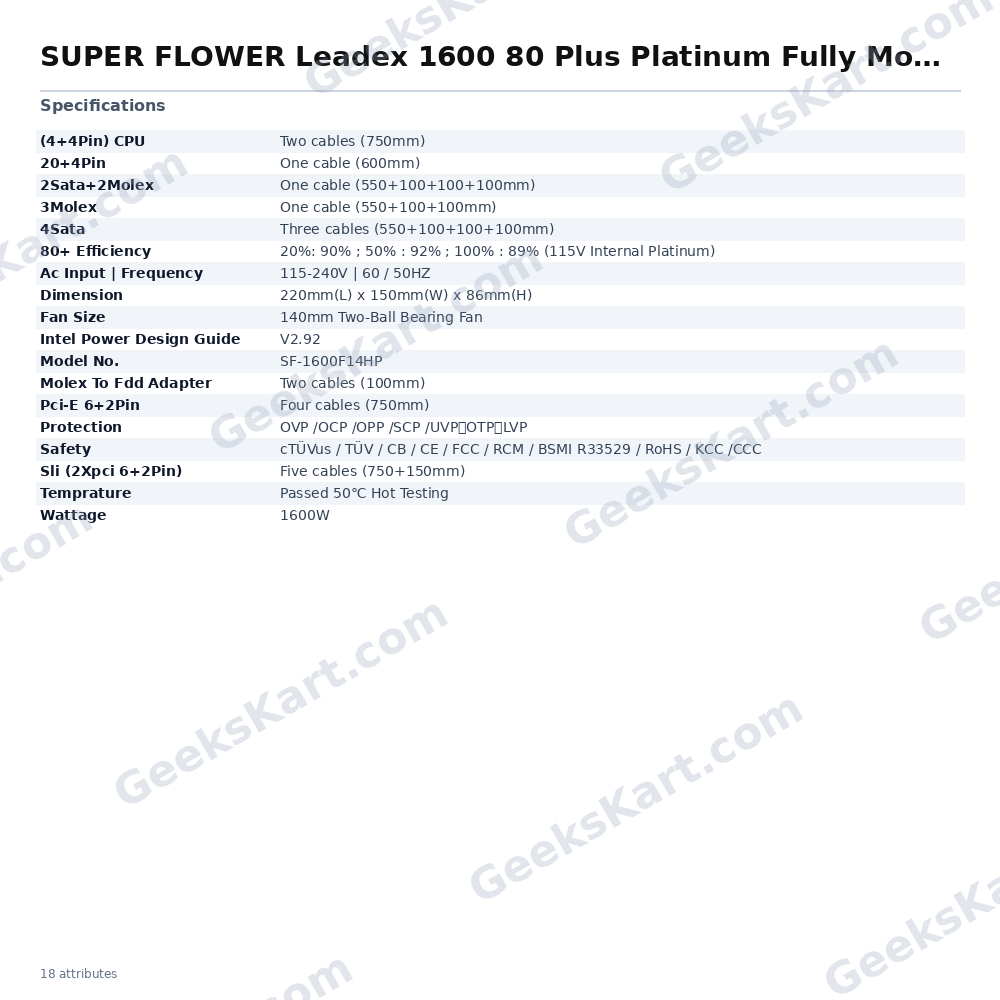

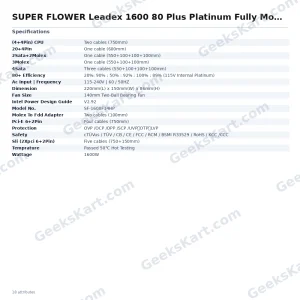

Specifications of SUPER FLOWER Leadex 1600 80 Plus Platinum
| Model No. | SF-1600F14HP |
| Wattage | 1600W |
| 80+ Efficiency | 20%: 90%; 50%: 92%; 100%: 89% (115V Internal Platinum) |
| Intel Power Design Guide | V2.92 |
| AC Input | Frequency | 115-240V | 60 / 50HZ |
| Fan Size | 140mm Two-Ball Bearing Fan |
| Dimension | 220mm(L) x 150mm(W) x 86mm(H) |
| Protection | OVP /OCP /OPP /SCP /UVP、OTP、LVP |
| Safety | cTÜVus / TÜV / CB / CE / FCC / RCM / BSMI R33529 / RoHS / KCC /CCC |
| Temprature | Passed 50℃ Hot Testing |
| Cable Spec | |
| 20+4Pin | One cable (600mm) |
| (4+4Pin) CPU | Two cables (750mm) |
| PCI-E 6+2Pin | Four cables (750mm) |
| SLI (2xPCI 6+2Pin) | Five cables (750+150mm) |
| 4SATA | Three cables (550+100+100+100mm) |
| 2SATA+2Molex | One cable (550+100+100+100mm) |
| 3Molex | One cable (550+100+100mm) |
| Molex to FDD Adapter | Two cables (100mm) |
Datasheet
| 4Sata | Three cables (550+100+100+100mm) |
|---|---|
| 3Molex | One cable (550+100+100mm) |
| Safety | cTÜVus / TÜV / CB / CE / FCC / RCM / BSMI R33529 / RoHS / KCC /CCC |
| 20+4Pin | One cable (600mm) |
| Wattage | 1600W |
| Fan Size | 140mm Two-Ball Bearing Fan |
| Dimension | 220mm(L) x 150mm(W) x 86mm(H) |
| Model No. | SF-1600F14HP |
| Protection | OVP /OCP /OPP /SCP /UVP、OTP、LVP |
| Temprature | Passed 50℃ Hot Testing |
| (4+4Pin) CPU | Two cables (750mm) |
| 2Sata+2Molex | One cable (550+100+100+100mm) |
| Pci-E 6+2Pin | Four cables (750mm) |
| 80+ Efficiency | 20%: 90% ; 50% : 92% ; 100% : 89% (115V Internal Platinum) |
| Sli (2Xpci 6+2Pin) | Five cables (750+150mm) |
| Ac Input | Frequency | 115-240V, 60 / 50HZ |
| Molex To Fdd Adapter | Two cables (100mm) |
| Intel Power Design Guide | V2.92 |
