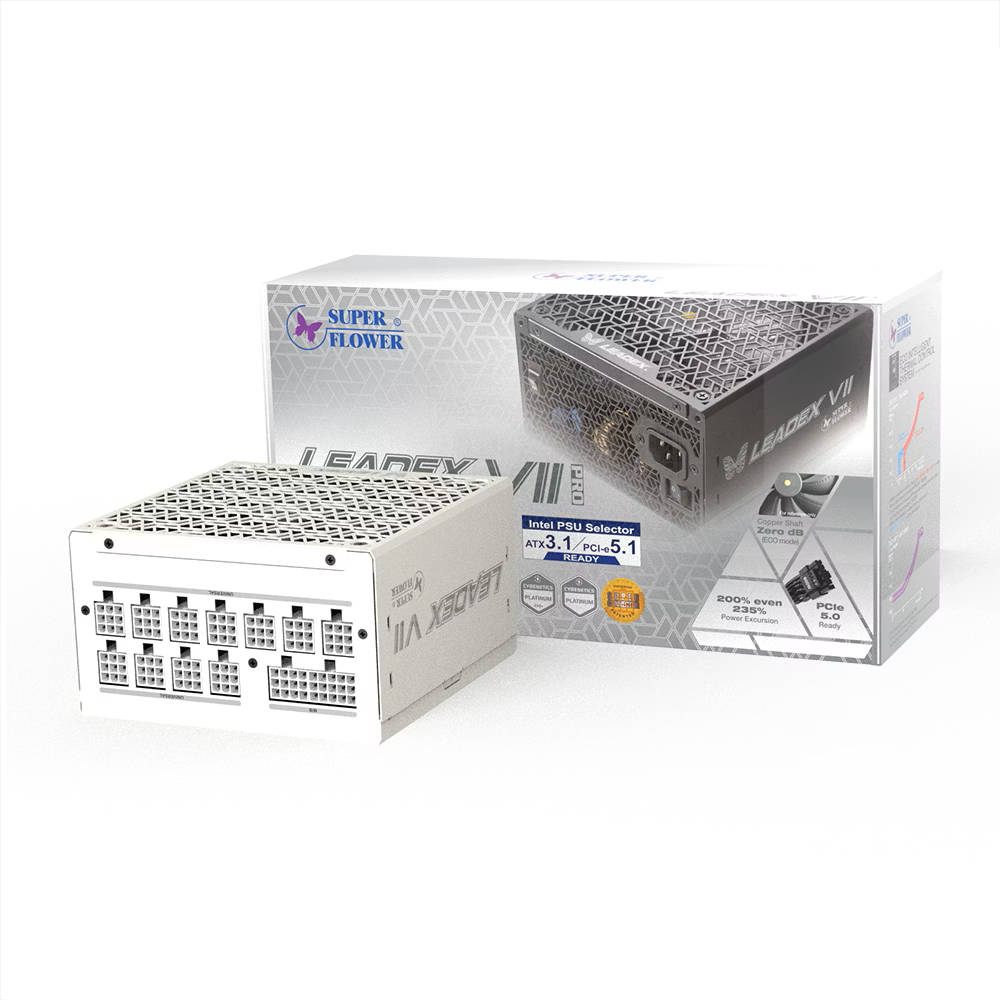

SUPER FLOWER Leadex VII 1000W 80+ Platinum Pro Fully Modular ATX 3.1 Power Supply ( 1000W ) ( White )

The Super Flower Leadex VII 1000W 80+ Platinum Pro is a fully modular ATX 3.1 power supply engineered for demanding gaming and workstation builds. Housed in a compact 150mm chassis finished in white, it slots neatly into cases where space efficiency matters without compromising on connectivity or thermal headroom. At the heart of the cooling system sits a 140mm Fluid Dynamic Bearing (FDB) fan featuring a unique 9-blade design. The copper shaft surrounding the bearing enhances stability, durability, and heat dissipation during sustained operation. An Auto & ECO fan control mode reduces fan speed under lighter loads, keeping acoustic output low when full cooling capacity is not required. The Leadex VII Platinum Pro carries the 80 PLUS Platinum certification with measured efficiencies of 90% at 20% load, 92% at 50% load, and 89% at full load (115V). It additionally holds Cybenetics Platinum ratings for both 115V and 230V operation, confirming consistent efficiency across a full range of grid voltages. Full-range Active PFC (100V–240V, 50/60Hz) enables use across global markets. Compliance with ATX 12V v3.1 and EPS 12V v2.92 specifications means this unit supports up to 200% power excursion events demanded by modern NVIDIA Ada Lovelace and AMD RDNA 3/4-generation GPUs. The modular panel incorporates HCS terminals and a dual patented 9-pin Super Connector terminating in a PCIe 12+4 pin (12VHPWR) cable, engineered to prevent high-angle bending at the GPU connector. All capacitors used on the mainboard and modular backpanel are 105°C Japanese-branded electrolytics and polymer solid capacitors, supporting long-term reliability. LLC resonance conversion handles the primary stage, while DC-to-DC conversion regulates the +3.3V and +5V rails for tightly controlled output. Protection suite: OVP, OCP, OPP, SCP, UVP, OTP, NLO, and SIP – covering over-voltage, over-current, over-power, short-circuit, under-voltage, over-temperature, no-load operation, and surge/inrush events. The unit has passed 50°C hot-testing and logged more than 2,000 on/off cycle tests per the source data. It complies with IEC/EN 62368 safety standards and supports ALPM (Active Low Power Mode). Safety certifications include cTÜVus, TÜV, CB, CE, FCC, UKCA, RCM, BSMI, RoHS, KCC, EAC, and CCC. Lead-free construction meets RoHS and WEEE requirements. Verified Specifications: - Model: SF-1000F14XP-WH-ATX-3-1 - Wattage: 1000W - Efficiency: 80 PLUS Platinum; Cybenetics Platinum (115V & 230V) - Efficiency (115V): 90% @ 20% load / 92% @ 50% load / 89% @ 100% load - Form Factor: ATX 3.1 / EPS 12V v2.92 - Fan: 140mm FDB, 9-blade, ECO/Auto control - Dimensions: 150mm (L) × 150mm (W) × 86mm (H) - Input: 100V–240V, 50/60Hz, Full-Range APFC - Cables: 20+4 pin ×1 (600mm); 8(4+4) CPU ×2 (700mm); PCIe 6+2 ×3 (700mm); PCIe 12+4 ×1 (700mm); SATA ×4 on 3 cables (550+130+130+130mm); Molex ×4 on 1 cable (550+150+150+150mm) - Protection: OVP / OCP / OPP / SCP / UVP / OTP / NLO / SIP - Temperature Rating: Passed 50°C hot test - Warranty: 10 years - Colour: White
