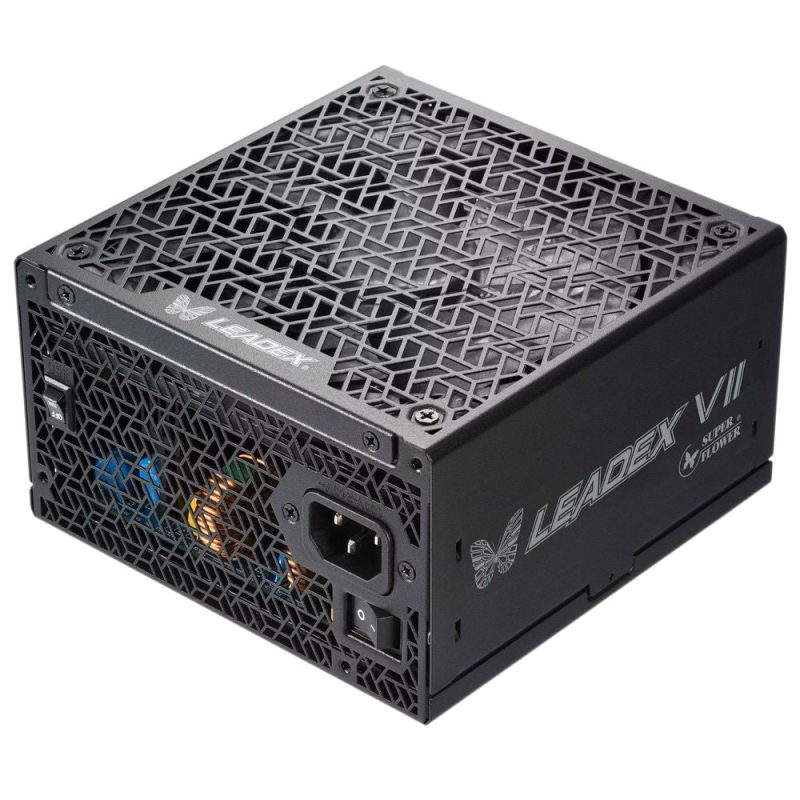

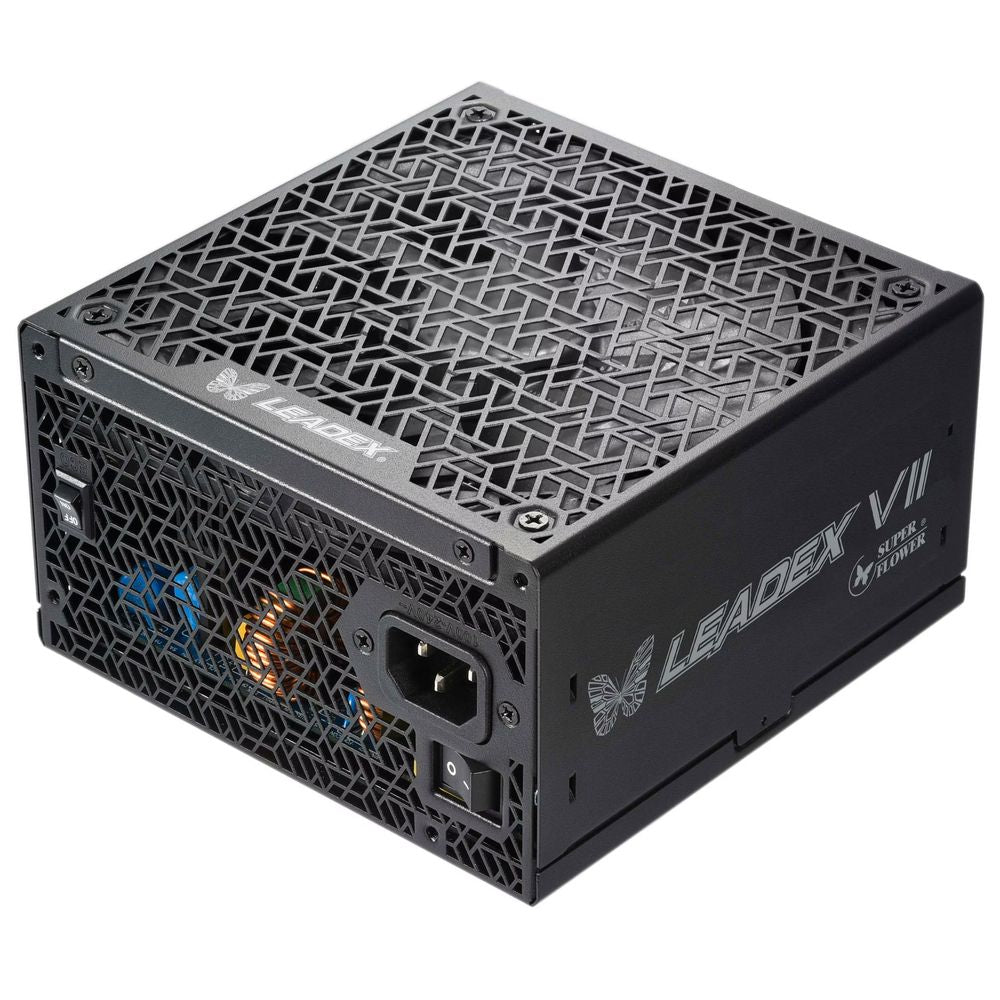

SUPER FLOWER Leadex VII 1300 80 Plus Gold Fully Modular Power Supply (1300 W)

The Super Flower Leadex VII 1300W 80 Plus Gold Fully Modular Power Supply (model SF-1300F14XG) is engineered for enthusiast and high-performance PC builds that demand reliable, clean power delivery at scale. Rated at 1,300 watts and certified 80 Plus Gold, this unit delivers efficiency ratings of 87% at 20% load, 90% at 50% load, and 87% at 100% load (measured at 115V), ensuring lower heat output and reduced energy waste across typical usage patterns. Built to comply with Intel ATX 3.0 and EPS 12V v2.92 specifications, the Leadex VII 1300W supports up to 200% power excursion on the PCIe connector, making it compatible with the most demanding modern graphics cards. The 12+4 pin GPU connector is paired with HCS terminals and dual 8-pin sockets on the modular panel, engineered to prevent high-angle cable bending and associated connector stress. A 140mm Fluid Dynamic Bearing (FDB) fan with a unique 9-blade design handles thermal management. The ECO fan control mode allows the fan to operate at low or zero noise levels during light workloads, spinning up automatically under heavier demand. The compact chassis measures just 150mm in length, easing installation in mid-tower and compact full-tower cases alike. All capacitors — both on the main board and the modular back panel — are 100% Japanese-made, rated to 105°C, supporting long-term reliability under sustained high loads. The fully modular cable system uses ultra-flexible flat ribbon cables, simplifying routing and improving airflow inside the case. The patented 20+4 pin buckle connector is compatible with ATX and BTX motherboards. Protection circuitry includes Over Voltage Protection (OVP), Over Current Protection (OCP), Over Power Protection (OPP), Short Circuit Protection (SCP), Under Voltage Protection (UVP), Over Temperature Protection (OTP), No Load Operation (NLO), and Surge & Inrush Protection (SIP). The unit accepts universal AC input from 100V to 240V at 50/60Hz via Active Power Factor Correction (APFC), and has passed 50°C hot-load testing. Safety certifications include cTÜVus, TÜV, CB, CE, FCC, UKCA, RCM, BSMI, RoHS, KCC, EAC, and CCC. It also complies with IEC/EN 62368, Energy Star, and EuP (Energy Using Products) regulations. Verified Specifications: – Model: SF-1300F14XG – Wattage: 1,300W – Efficiency: 80 Plus Gold (87%/90%/87% at 20%/50%/100% load, 115V) – ATX Standard: ATX 3.0 / ATX 3.1 | EPS 12V v2.92 – AC Input: 100V–240V, 50/60Hz, Full Range APFC – Fan: 140mm FDB, 9-blade, ECO control – Dimensions: 150mm (L) × 150mm (W) × 86mm (H) – Capacitors: 100% Japanese, 105°C rated – Protections: OVP, OCP, OPP, SCP, UVP, OTP, NLO, SIP – Hot-load test: Passed at 50°C – Certifications: cTÜVus, TÜV, CB, CE, FCC, UKCA, RCM, BSMI, RoHS, KCC, EAC, CCC
