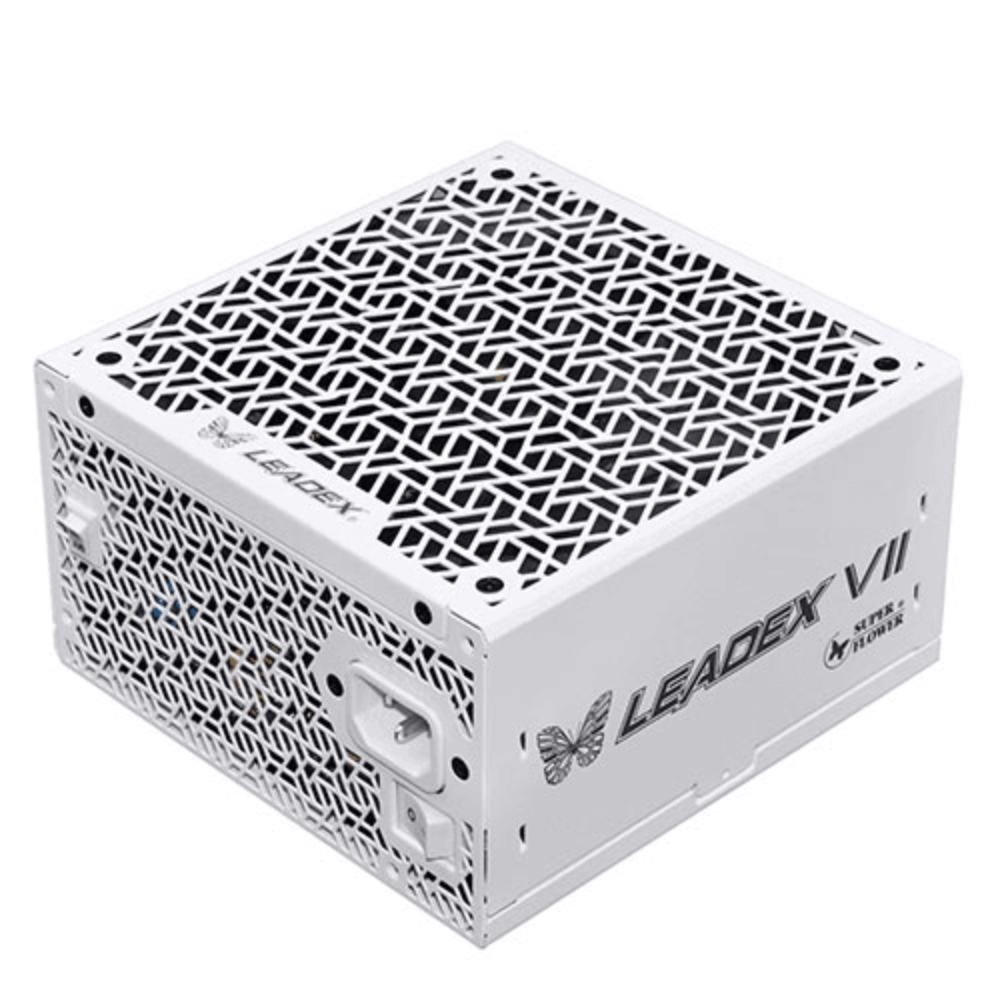

SUPER FLOWER Leadex VII Pro 1200W 80+ Platinum ATX 3.1 Fully Modular Power Supply ( 1200W ) ( White )

The SUPER FLOWER Leadex VII Pro 1200W is a fully modular power supply built to meet the demands of modern high-performance desktop PCs. Certified 80 PLUS Platinum, it delivers efficiency ratings of 90% at 20% load, 92% at 50% load, and 89% at 100% load, keeping energy waste and heat output to a minimum during intensive workloads and gaming sessions. Compliance with the ATX 3.1 specification means this unit natively supports the 12+4-pin PCIe 5.0 connector, enabling power excursion headroom of up to 200% to handle the transient spikes produced by the latest discrete graphics cards without triggering over-current shutdowns. SUPER FLOWER achieves this through patented Dual 9-Pin Super Connectors on the modular backpanel, with an HCS terminal design that routes power to the GPU-side 12+4-pin socket while reducing mechanical stress from high-angle cable bending. All capacitors on both the main board and modular backpanel are Japanese-made, rated to 105°C, promoting long-term reliability under sustained thermal loads. The unit operates across a full input voltage range of 100 V to 240 V via active Power Factor Correction, making it adaptable to varying regional supply standards. Cooling is handled by a 140 mm fluid dynamic bearing (FDB) fan with a unique 9-blade design, operated under Auto and ECO fan control modes. In ECO mode the fan reduces speed under light loads, lowering acoustics while maintaining stable temperatures. The copper shaft bearing construction is intended to extend fan lifespan and improve heat dissipation consistency. Six comprehensive protection circuits are active at all times: Over Voltage Protection, Over Current Protection, Over Power Protection, Short Circuit Protection, Under Voltage Protection, and Over Temperature Protection. Surge and inrush protection are also included. The unit carries a 10-year manufacturer warranty and is compliant with RoHS, WEEE, Energy Star, and EuP regulations, as well as IEC/EN 62368 safety standards and ALPM mode support. Verified Specifications: - Model / Product Code: SF-1200F14XP-WH-ATX-3-1 - Rated Output Power: 1200 W - Efficiency Certification: 80 PLUS Platinum (90% / 92% / 89% at 20% / 50% / 100% load) - ATX Specification: ATX 3.1 / ATX 12V v3.0; EPS 12V v2.92 - Modular Design: 100% fully modular with ultra-flexible ribbon cables - Capacitors: 100% Japanese 105°C (main board and modular backpanel) - Input Voltage: 100 V – 240 V (Active PFC, full range auto-detection) - PCIe (6+2)-Pin Connectors: 4 - SATA Connectors: 3 - Peripheral (4-Pin) Connectors: 1 - Fan: 140 mm FDB, 9-blade - Colour: White - Warranty: 10 Years - Compliance: RoHS, WEEE, Energy Star, EuP, IEC/EN 62368, ALPM
