Thermaltake Ceres 330 TG ARGB E-ATX Mid Tower Case (Hydrangea Blue)
MPN CA-1Y2-00MFWN-00 · Brand THERMALTAKE · ATX, E-ATX, mATX, Mini-ITX
The Thermaltake Ceres 330 TG ARGB Hydrangea Blue is an E-ATX mid-tower case with a 4mm tempered glass panel, 3 pre-installed CT140 fans, 360mm front radiator support, and hidden-connector motherboard compatibility
Inclusive of GST · GST invoice available
Overview
The Thermaltake Ceres 330 TG ARGB in Hydrangea Blue is a mid-tower chassis designed to accommodate Mini-ITX, Micro-ATX, ATX, and E-ATX motherboards up to 12" x 13". Built with SPCC steel and a 4mm tempered glass side panel, it combines structural rigidity with a clear view of your internal components. A standout feature of the Ceres 330 is its compatibility with hidden-connector motherboards from ASUS and MSI — including the ROG MAXIMUS Z790 HERO BTF, ASUS TUF GAMING Z790-BTF WIFI, and MSI Z790 PROJECT ZERO (ATX). This design routes cables to the rear of the motherboard tray, dramatically reducing cable clutter on the visible side of the build. More than 55% of the case panels are perforated, promoting strong passive airflow throughout. Three Thermaltake CT140 fans come pre-installed: two 140mm CT140 ARGB PWM fans at the front intake and one 140mm CT140 fan at the rear exhaust, each rated at 1,500 RPM and 30.5 dBA. Additional fan positions support up to three 120mm or two 140mm units at the front and top, plus one 120mm or 140mm unit at the rear. For liquid cooling, the Ceres 330 supports a 360mm or 280mm radiator at the front, and a 240mm or 280mm radiator at the top, giving builders significant flexibility with AIO configurations. CPU cooler clearance reaches up to 185mm, GPU length is supported up to 370mm (340mm with a front radiator installed), and PSU length up to 220mm. The front I/O panel includes one USB 3.2 Gen 2 Type-C port, two USB 3.0 ports, and HD Audio in/out. Storage options include one 3.5" HDD bay and up to three 2.5" SSD mounts. Seven expansion slots with a rotatable patented design accommodate a wide range of GPU and PCIe configurations. The ARGB lighting on the front fans is addressable and compatible with major motherboard RGB software ecosystems. Verifiable Specifications: - Part Number: CA-1Y2-00MFWN-00 - Case Type: Mid Tower - Dimensions: 475 x 245 x 463 mm (18.7 x 9.65 x 18.23 in) - Weight: 7.8 kg / 17.2 lbs - Side Panel: 4mm Tempered Glass - Material: SPCC steel body - Motherboard Support: Mini-ITX, Micro-ATX, ATX, E-ATX (up to 12" x 13") - Pre-installed Fans: 2x CT140 ARGB PWM (front), 1x CT140 PWM (rear), all 140x140x25mm, 1500 RPM, 30.5 dBA - Max Radiator: 360mm front / 280mm top - Max CPU Cooler Height: 185mm - Max GPU Length: 370mm (340mm with front radiator) - Max PSU Length: 220mm - Drive Bays: 1x 3.5", 2x or 3x 2.5" - Expansion Slots: 7 (rotatable patented design) - Front I/O: 1x USB 3.2 Gen 2 Type-C, 2x USB 3.0, HD Audio - PSU: Standard PS2 (not included) - Warranty: 3 Years

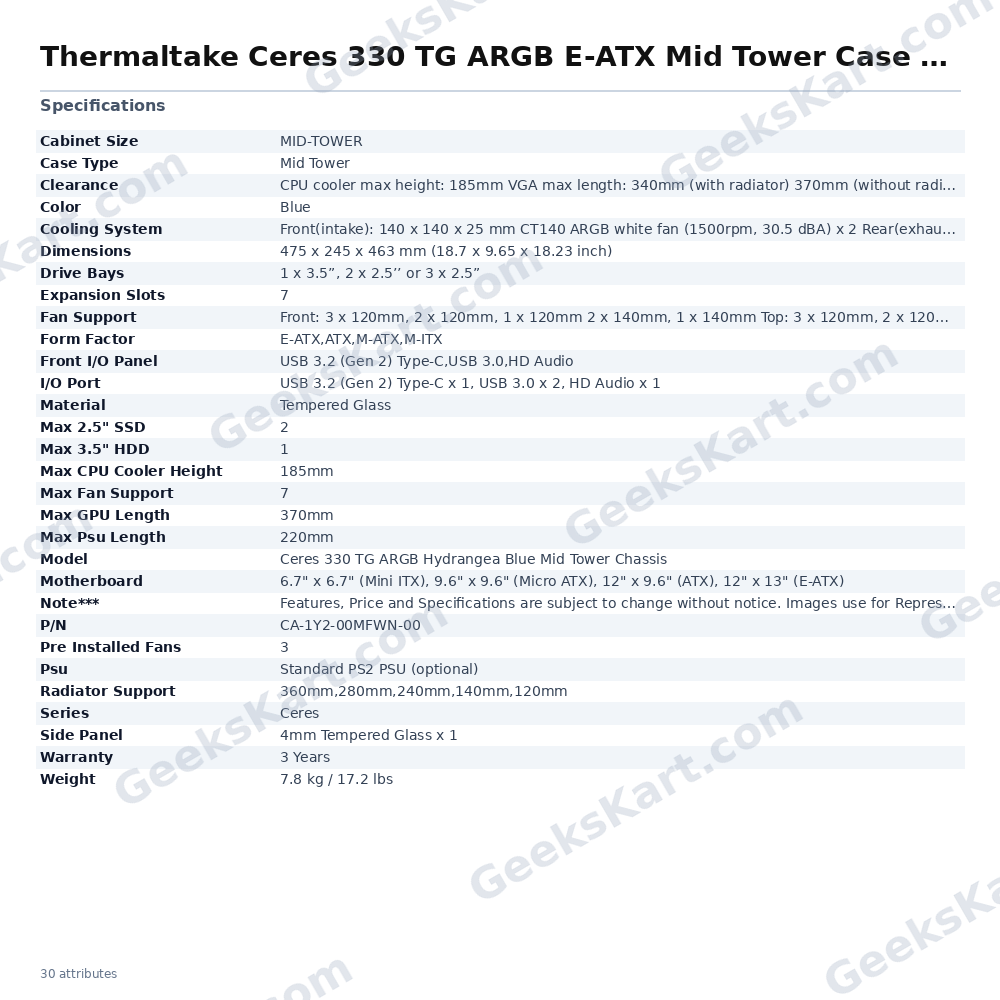

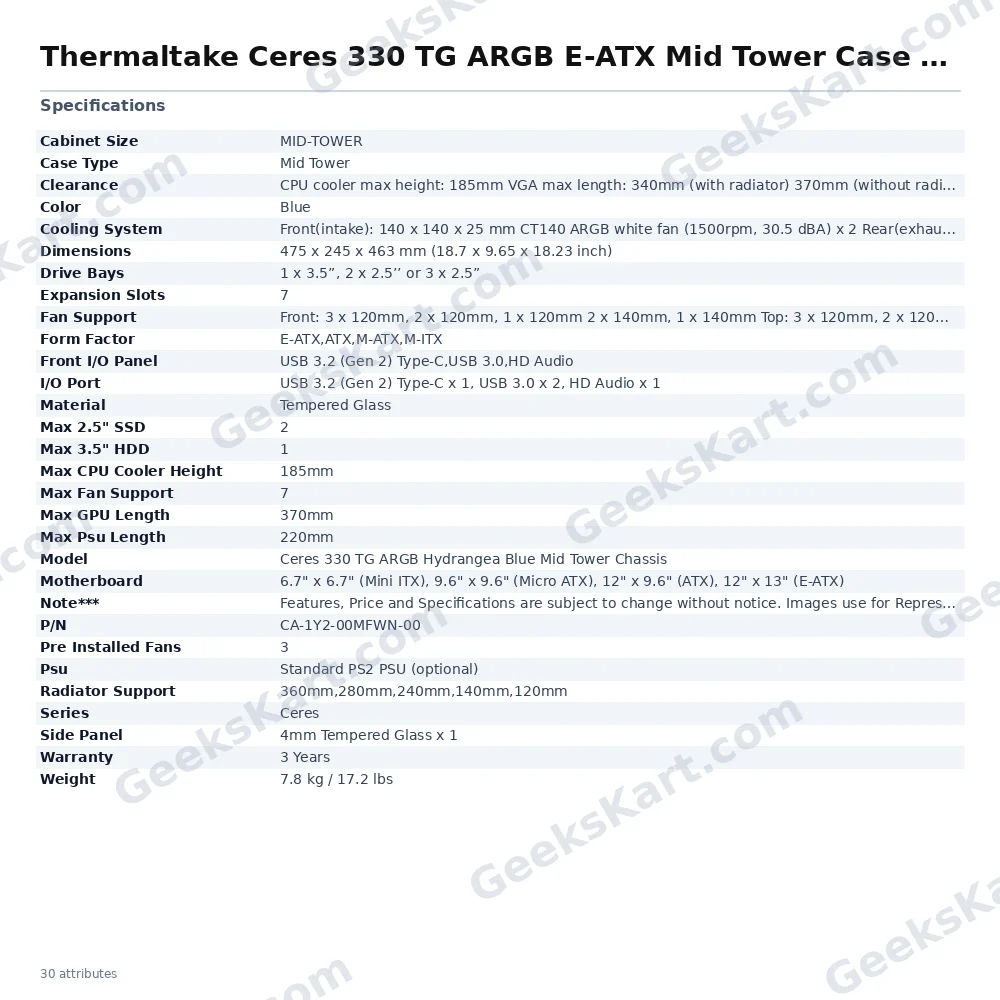

Datasheet
| Warranty | 3 Years |
|---|---|
| Form Factor | ATX, E-ATX, mATX, Mini-ITX |
| color | Blue |
| P/N | CA-1Y2-00MFWN-00 |
| Psu | Standard PS2 PSU (optional) |
| Model | Ceres 330 TG ARGB Hydrangea Blue Mid Tower Chassis |
| Series | Ceres |
| Weight | 7.8 kg / 17.2 lbs |
| Note*** | Features, Price and Specifications are subject to change without notice. Images use for Representation Purpose Only |
| I/O Port | USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1 |
| Material | Tempered Glass |
| Case Type | Mid Tower |
| Clearance | CPU cooler max height: 185mm VGA max length: 340mm (with radiator) 370mm (without radiator) PSU max length: 220mm |
| Dimensions | 475 x 245 x 463 mm (18.7 x 9.65 x 18.23 inch) |
| Drive Bays | 1 x 3.5”, 2 x 2.5’’ or 3 x 2.5” |
| Side Panel | 4mm Tempered Glass x 1 |
| Fan Support | Front: 3 x 120mm, 2 x 120mm, 1 x 120mm 2 x 140mm, 1 x 140mm Top: 3 x 120mm, 2 x 120mm, 1 x 120mm 2 x 140mm, 1 x 140mm Rear: 1 x 120mm, 1 x 140mm |
| Motherboard | 6.7" x 6.7" (Mini ITX), 9.6" x 9.6" (Micro ATX), 12" x 9.6" (ATX), 12" x 13" (E-ATX) |
| Cabinet Size | MID-TOWER |
| Max 2.5" SSD | 2 |
| Max 3.5" HDD | 1 |
| Cooling System | Front(intake): 140 x 140 x 25 mm CT140 ARGB white fan (1500rpm, 30.5 dBA) x 2 Rear(exhaust): 140 x 140 x 25 mm CT140 white fan (1500rpm, 30.5 dBA) x 1 |
| Max GPU Length | 370mm |
| Max Psu Length | 220mm |
| Expansion Slots | 7 |
| Front I/O Panel | USB 3.2 (Gen 2) Type-C,USB 3.0,HD Audio |
| Max Fan Support | 7 |
| Radiator Support | 360mm,280mm,240mm,140mm,120mm |
| Pre Installed Fans | 3 |
| Max CPU Cooler Height | 185mm |
