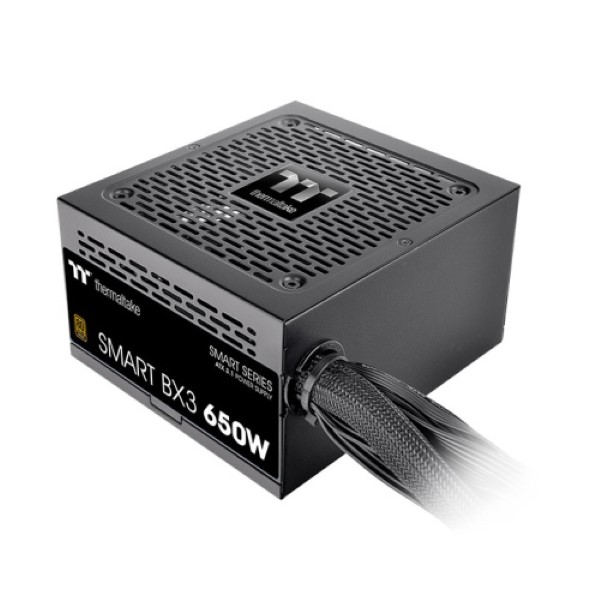

Thermaltake Smart BX3 650W 80 Plus Bronze ATX 3.1 Power Supply

The Thermaltake Smart BX3 650W is a non-modular ATX 3.1 power supply designed for builders who need a dependable, certified foundation for their desktop PC without overspending. Carrying the 80 Plus Bronze certification, the unit achieves up to 85% energy efficiency under typical loads, reducing heat output and keeping electricity costs in check compared to uncertified alternatives. Built to the latest ATX 3.1 specification, the Smart BX3 650W supports up to 200% power excursion headroom on the PCIe connector, making it compatible with modern discrete graphics cards that can draw brief transient spikes well above their rated TDP. The standard also mandates tighter power-supply timing requirements, which contributes to improved system stability at startup and under load transitions. Cooling is handled by a 120mm fluid-bearing fan, chosen for its longevity advantage over sleeve-bearing designs. A Smart Zero Fan mode keeps the fan completely stationary at low loads, resulting in silent operation during light desktop tasks and only spinning up when thermal demand rises. The high-quality 105°C-rated main capacitor supports long-term reliability and is a meaningful step up over standard 85°C capacitors commonly found in entry-level units. Power delivery relies on a single +12V rail topology paired with a DC-to-DC conversion stage for the minor voltage rails, providing tightly regulated outputs across +12V, +5V, and +3.3V lines. A comprehensive hardware protection suite — Over Current Protection (OCP), Over Voltage Protection (OVP), Under Voltage Protection (UVP), Over Power Protection (OPP), Short Circuit Protection (SCP), and Over Temperature Protection (OTP) — safeguards connected components from electrical anomalies. The non-modular flat black cable set is pre-attached, simplifying the build process, and the unit is noted as optimised for Intel C6/C7 low-power processor states to maximise energy savings during idle periods. Verified Specifications: - Wattage: 650 W - ATX Standard: ATX 3.1 - Efficiency Certification: 80 Plus Bronze (up to 85% efficiency) - Modular: Non-modular - Fan: 120 mm fluid bearing with Smart Zero Fan mode - Main Capacitor Rating: 105°C - +12V Rail: Single rail with DC-to-DC design - PCIe Connectors (6+2 pin): 2 - SATA Connectors: 4 - Peripheral (4-pin Molex): 4 - Protections: OCP, OVP, UVP, OPP, SCP, OTP - Warranty: 5 Years
