Thermaltake ST360 Ultra ARGB 360mm White AIO Liquid Cooler with 7-Inch LCD Display
MPN CL-W494-PL12SW-A · Brand THERMALTAKE
The Thermaltake ST360 Ultra ARGB Snow Edition is a 360mm white AIO liquid cooler featuring a magnetic 7-inch IPS LCD display (1024×600), three 120mm ARGB PWM fans up to 2500 RPM, and broad Intel and AMD socket support including LGA1851 and AM5
Inclusive of GST · GST invoice available
Overview

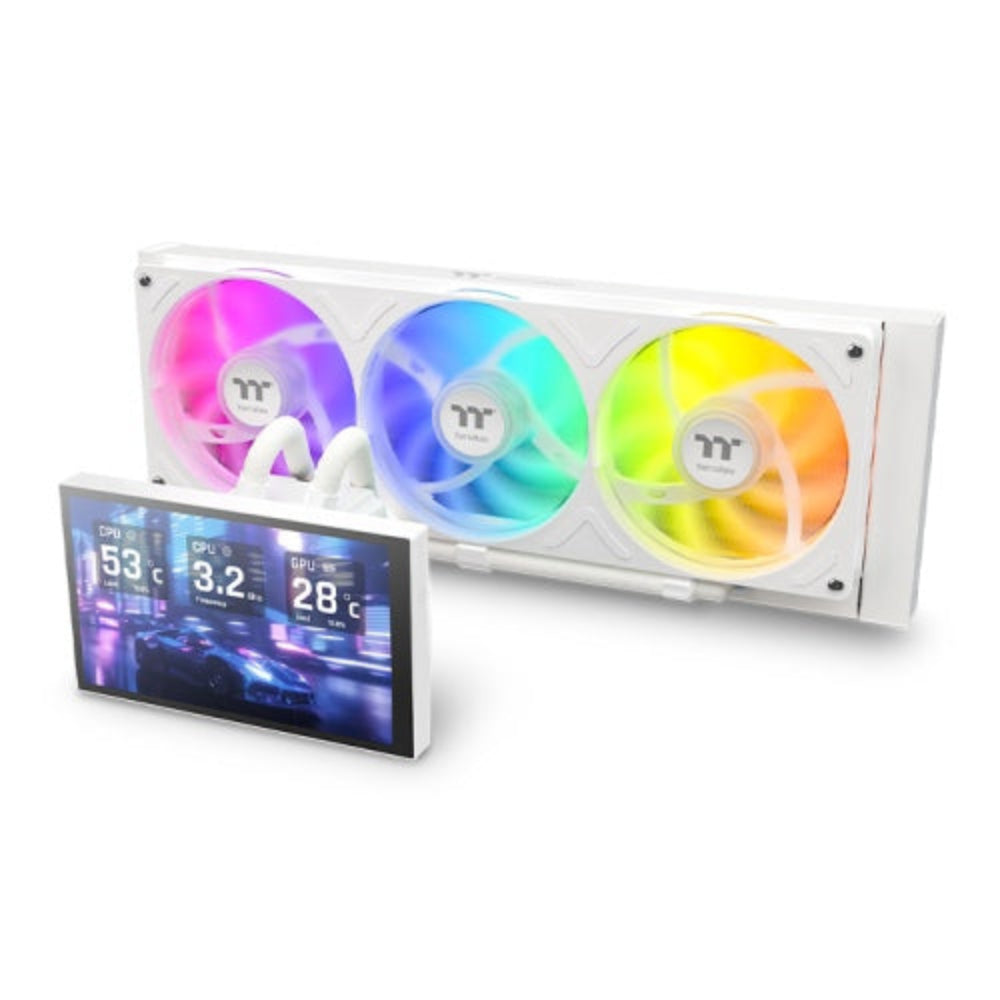

The Thermaltake ST360 Ultra ARGB Sync Snow Edition is a 360mm all-in-one CPU liquid cooler that combines high-performance thermal management with a striking visual centrepiece: a 7-inch IPS LCD display mounted on the water block. The display carries a 1024×600 (RGB) resolution and connects to the system via a USB 9-pin to USB Type-C interface. It is powered and managed through Thermaltake's TT RGB PLUS 3.0 software, which supports real-time system monitoring, local weather and time readouts, and custom background media in JPG, GIF, PNG, MP4, MOV, and AVI formats. The software also includes an AI Forge tool that generates custom display backgrounds from text prompts without requiring third-party downloads. The water block uses a magnetic mounting mechanism that lets you orient the LCD display horizontally or vertically, or detach it entirely to expose an integrated infinity-mirror finish — three distinct presentation styles from a single component. The detached display can also be magnetically mounted elsewhere inside the chassis for flexible placement. Cooling is handled by a single-frame 360mm fan module combining three 120mm PWM ARGB fans. Each fan delivers 85.29 CFM of airflow and 3.86 mm-H₂O of static pressure while staying at or below 37.8 dB-A. Fan speed spans 500–2500 RPM under PWM control. Tubing is routed along the side of the radiator rather than the end, keeping the LCD fully visible and reducing cable clutter alongside the single-frame design. The aluminium radiator measures 397×139.2×27 mm — a slim 27mm profile with a 20mm copper chamber section for improved heat exchange. The copper base plate and high-circulation pump together accelerate heat transfer away from the CPU die. Pump speed ranges from 1500 to 2500 RPM (PWM-controlled), rated at 12V/5V with a 4.2W/1.4W power draw. Key Specifications: - Radiator: 397×139.2×27 mm, aluminium - Fans: 3×120mm ARGB PWM, 500–2500 RPM, 85.29 CFM, 3.86 mm-H₂O, ≤37.8 dB-A each - Pump: PWM 1500–2500 RPM, 12V, 0.35A, 4.2W - LCD Display: 7-inch IPS, 1024×600 px, 5V, 0.6A, 3W - Display Interface: USB 9-pin to USB Type-C - Water Block Material: Copper - Tube Length: 263mm (rubber) - TDP Support: Up to 365W - CPU Socket Compatibility: Intel LGA2066/2011-3/2011/1851/1700/1366/1200/1156/1155/1151/1150; AMD AM5/AM4 - Warranty: 3 Years - SKU: CL-W494-PL12SW-A - Software: TT RGB PLUS 3.0 (Windows 10/11)

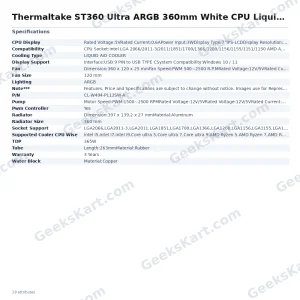

Datasheet
| Warranty | 3 Years |
|---|---|
| TDP | 365W |
| Fan | Dimension:360 x 120 x 25 mmFan Speed:PWM 500~2500 R.P.MRated Voltage:12V/5VRated Current:0.9 A & 0.9 APower Input:10.8 W & 4.5WAir Flow:85.29 CFM (per fan)Static Pressure:3.86 mm-H2O (per fan)Noise Level:37.8 dB-A (per fan)Connector:2510 – 4 Pin / ARGB – 3Pin |
| P/N | CL-W494-PL12SW-A |
| Pump | Motor Speed:PWM 1500~2500 RPMRated Voltage:12V/5VRated Voltage:12V/5VRated Current:0.35A/0.28APower Input:4.2W/1.4WConnector:2510 – 4 Pin / ARGB – 3Pin |
| Tube | Length:263mmMaterial:Rubber |
| Note*** | Features, Price and Specifications are subject to change without notice. Images use for Representation Purpose Only |

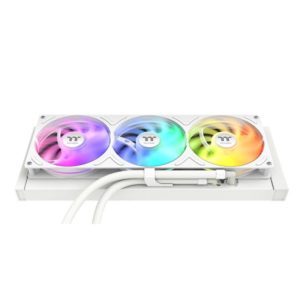

| Radiator | Dimension:397 x 139.2 x 27 mmMaterial:Aluminum |
| CPU Display | Rated Voltage:5VRated Current:0.6APower Input:3WDisplay Type:7”IPS-LCDDisplay Resolution:1024×600 (RGB) px |

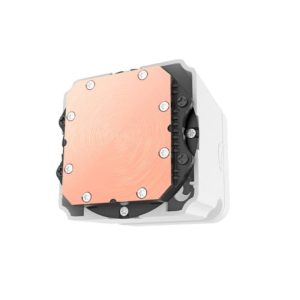

| Water Block | Material:Copper |
| Compatibility | CPU Socket:Intel LGA 2066/2011-3/2011/1851/1700/1366/1200/1156/1155/1151/1150 AMD AM5/AM4 |
| Display Support | Interface:USB 9 PIN to USB TYPE CSystem Compatibility:Windows 10 / 11 |
| Fan Size | 120 mm |
| Lighting | ARGB |
| Cooling Type | LIQUID AIO COOLER |
| Radiator Size | 360 mm |
| Pwm Controller | Yes |
| Socket Support | LGA2066,LGA2011-3,LGA2011,LGA1851,LGA1700,LGA1366,LGA1200,LGA1156,LGA1155,LGA1151,LGA1150,AM5,AM4 |
| Supported Cooler CPU Wise | intel i5,intel i7,intel i9,Core ultra 5,Core ultra 7,Core ultra 9,AMD Ryzen 5,AMD Ryzen 7,AMD Ryzen 9 |
