THERMALTAKE TH360 V3 Ultra ARGB Sync 360mm CPU Liquid Cooler ( Black ) ( With LCD Display )

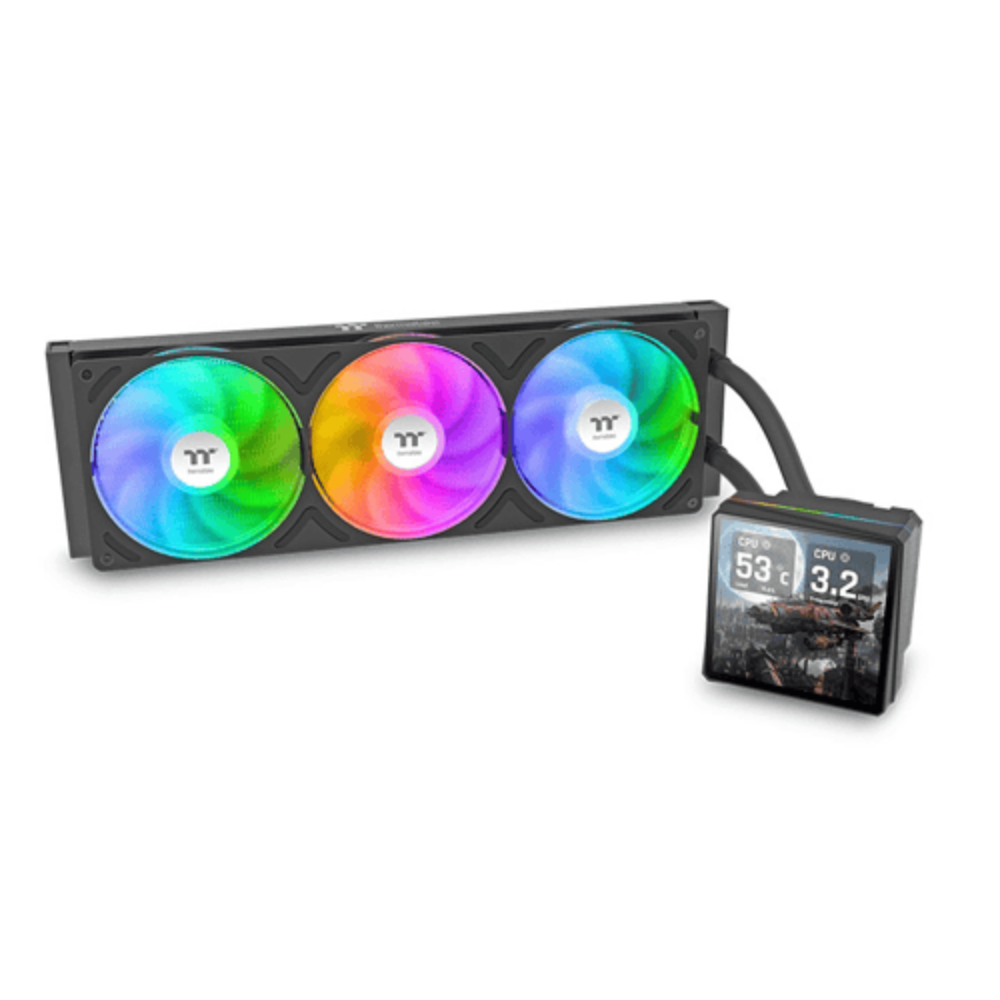

The Thermaltake TH360 V3 Ultra ARGB Sync is a 360mm all-in-one CPU liquid cooler designed for enthusiast builds that demand both high thermal performance and visual impact. At its centrepiece is a square pump head housing a 3.95-inch TFT-LCD display with a 720×720-pixel resolution, delivering sharp, vibrant visuals directly on the cooler head. The top cover is detachable and rotatable, allowing you to orient the display correctly regardless of your case's CPU socket position or mounting angle — a practical detail that saves time during installation. Cooling is handled by a trio of 120 mm PWM fans assembled into a single-frame unit. This unified frame not only simplifies cable routing but also reduces visual clutter inside the chassis. Each fan spins between 500 and 2500 RPM under PWM control, generates up to 85.29 CFM of airflow and 3.86 mm-H₂O of static pressure, and produces a maximum noise level of 37.8 dB-A. The 360 mm aluminium radiator measures 397 × 120 × 27 mm, featuring a 27 mm slim profile with a thickened 20 mm copper chamber. The copper water block base plate maximises thermal conductivity from the CPU contact surface, and the pump runs at 800–2500 RPM via PWM, rated at 12 V/5 V with 0.35 A/0.58 A current draw. The cooler is rated for a TDP of 365 W, making it suitable for high-core-count Intel and AMD processors. Display connectivity uses a Micro USB to USB (9-pin) interface, and the system requires Windows 10 or 11 together with Thermaltake's TT RGB PLUS 3.0 software. That software enables real-time system monitoring on the LCD, supports image and video upload (JPG, GIF, PNG, MP4, MOV, AVI), and includes six preset animated background styles. An AI Forge feature within the software allows text-prompt-based background generation, with results saved and editable directly in the application. The TT PlayLink mobile app provides an additional channel for uploading custom visuals. ARGB lighting is present on both the pump head and fans, synchronisable through the TT RGB PLUS 3.0 ecosystem. Rubber tubing of 460 mm length connects the pump to the radiator. A two-year warranty is included. --- Verified Specifications --- Model: CL-W474-PL12SW-A Radiator: 397 × 120 × 27 mm, aluminium, 360 mm class Fan: 3 × 120 mm PWM, 500–2500 RPM, 85.29 CFM, 3.86 mm-H₂O, 37.8 dB-A (per fan) Pump: PWM 800–2500 RPM, 12 V/5 V, 0.35 A/0.58 A, 4.2 W/3 W LCD Display: 3.95-inch TFT-LCD, 720×720 px, 5 V, 0.5 A, 2.5 W Display Interface: Micro USB to USB (9-pin); Windows 10/11 Water Block: Copper Tubing: 460 mm rubber TDP Rating: 365 W Socket Support: Intel LGA2066/2011-3/2011/1851/1700/1366/1200/1156/1155/1151/1150; AMD AM5/AM4 Lighting: ARGB (pump + fans) Warranty: 2 Years
