THERMALTAKE the Tower 600 ATX Mid Tower Cabinet (Black)
MPN CA-1Z1-00M1WN-00 · Brand Thermaltake

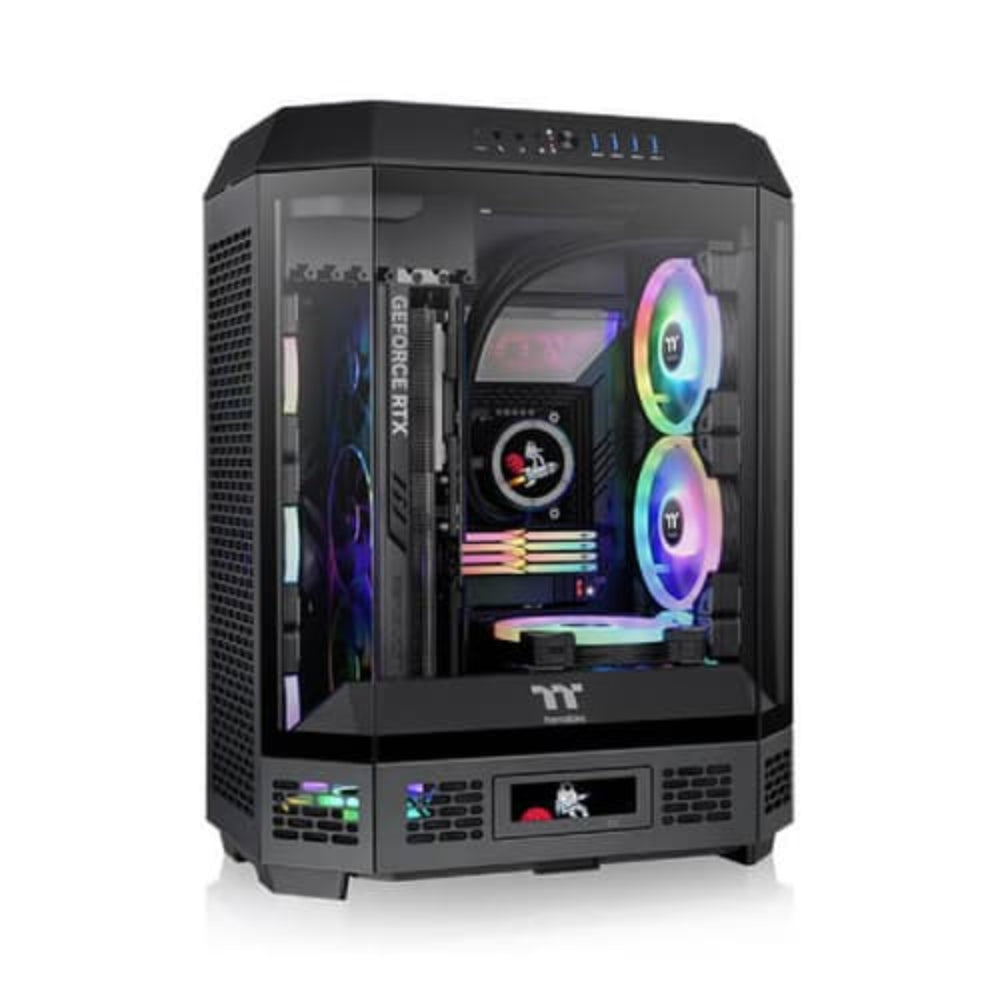

The Thermaltake The Tower 600 is a black ATX mid tower case with an octagonal design, three 3mm tempered glass panels, support for up to a 420mm AIO radiator, and two pre-installed CT140 140mm PWM fans
Inclusive of GST · GST invoice available
Overview
The Thermaltake The Tower 600 is a mid tower ATX computer case finished in black, built around a distinctive octagonal prism silhouette that sets it apart from conventional rectangular enclosures. Designed for modern, next-generation builds, it supports standard ATX, Micro-ATX, and Mini-ITX motherboards, and is also compatible with hidden-connector motherboard platforms including ASUS BTF Series, MSI PROJECT ZERO Series, and GIGABYTE PROJECT STEALTH Series — making it a strong choice for builders who want a clean, cable-free interior aesthetic. Cooling flexibility is a core strength of the Tower 600. The right side of the chassis accommodates AIO liquid coolers up to 420mm, while the left side supports radiators up to 360mm. Fan support is extensive: the case can house up to thirteen 120mm fans or nine 140mm fans distributed across the top, left, right, rear, power cover, and bottom positions. Two Thermaltake CT140 PWM fans (140 x 140 x 25 mm, 1500 rpm, 30.5 dBA) come pre-installed at the top exhaust position, providing airflow from day one. Dust filtration is integrated at the top, rear, inner sides, and inner bottom to help maintain system cleanliness over time. The front and sides feature three 3mm tempered glass panels that offer a wide, unobstructed view of internal components. Tool-free panel removal simplifies access. Rotating PCIe slots allow flexible GPU orientation, and two additional GPU support brackets are included; riser cables are sold separately. The case supports a CPU cooler up to 210mm tall, a GPU up to 400mm long (without power cover, or 280mm with it), and a PSU up to 220mm in length. Seven expansion slots are available, and storage support includes one 3.5-inch drive bay and either two or three 2.5-inch bays. Front I/O is top-mounted and includes four USB 3.0 Type-A ports, one USB 3.2 Gen 2 Type-C port, HD audio, a power button with integrated white LED, a red HDD activity LED, and a reset button. Cable management is assisted by two sets of cable clips in the rear chamber, plus included Velcro straps and cable ties. An optional Chassis Stand Kit (sold separately) enables horizontal placement for a unique display angle, and an optional 3.9-inch LCD Screen Kit (sold separately) can show real-time component data. Verified Specifications: • Model / MPN: The Tower 600 Black / CA-1Z1-00M1WN-00 • Case Type: ATX Mid Tower • Dimensions (H × W × D): 550 × 420 × 286.4 mm (21.65 × 16.54 × 11.28 in) • Net Weight: 9.70 kg / 21.39 lbs • Motherboard Support: ATX (12″ × 9.6″), Micro-ATX (9.6″ × 9.6″), Mini-ITX (6.7″ × 6.7″) • Expansion Slots: 7 • Panels: 3× 3mm tempered glass • Material: SPCC steel • Pre-installed Fans: 2× CT140 140mm PWM (1500 rpm, 30.5 dBA, top exhaust) • Max Radiator: 420mm (right side), 360mm (left side) • Total Fan Capacity: Up to 13× 120mm or 9× 140mm • CPU Cooler Clearance: 210mm • GPU Length Clearance: 400mm (without power cover), 280mm (with power cover) • PSU Clearance: 220mm (Standard PS2 PSU, not included) • Drive Bays: 1× 3.5″, 2× or 3× 2.5″ • I/O: USB 3.2 Gen 2 Type-C ×1, USB 3.0 Type-A ×4, HD Audio ×1 • Warranty: 3 Years

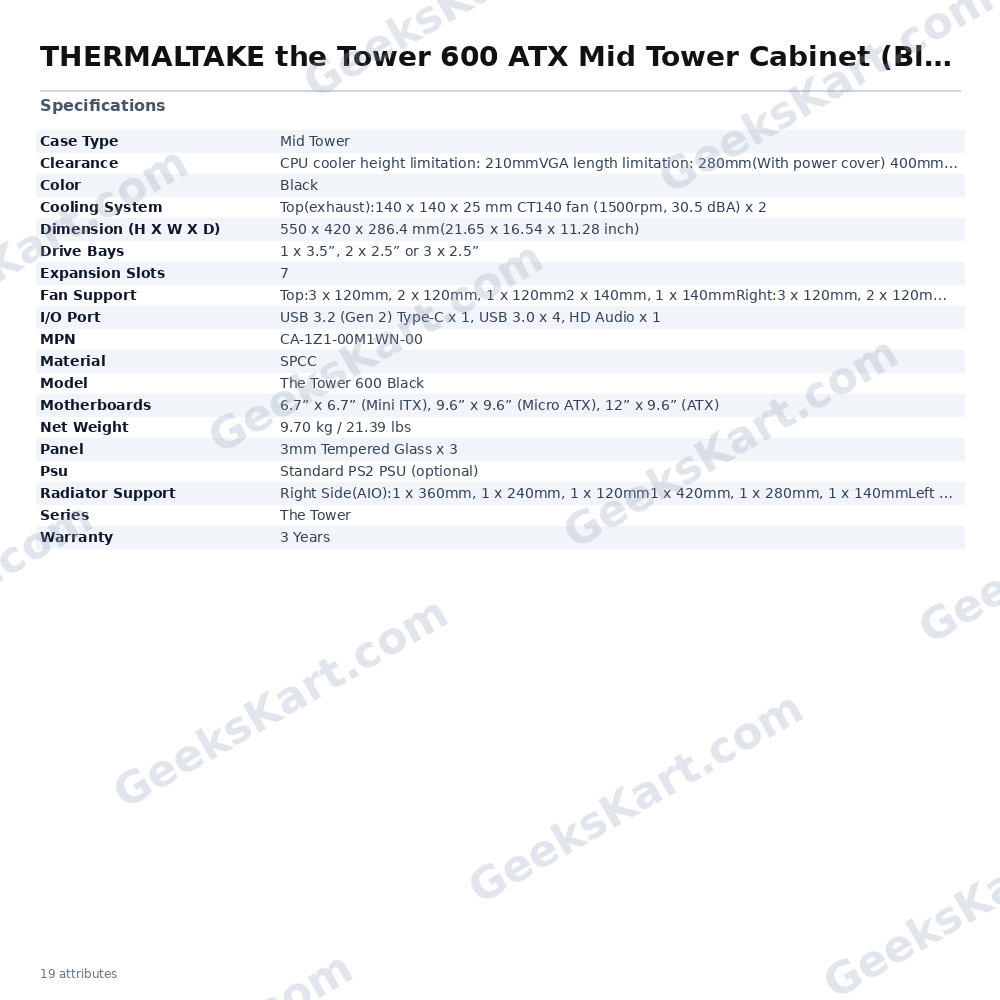

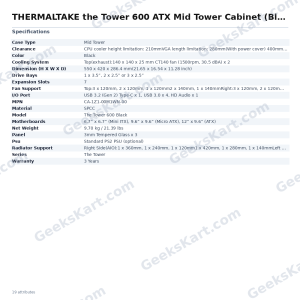

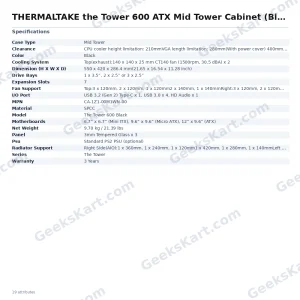

Datasheet
| Warranty | 3 Years |
|---|---|
| color | Black |
| Psu | Standard PS2 PSU (optional) |
| Panel | 3mm Tempered Glass x 3 |
| Series | The Tower |
| I/O Port | USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 4, HD Audio x 1 |
| Material | SPCC |
| Case Type | Mid Tower |
| Clearance | CPU cooler height limitation: 210mmVGA length limitation: 280mm(With power cover) 400mm(Without power cover)PSU length limitation: 220mm |
| Drive Bays | 1 x 3.5”, 2 x 2.5” or 3 x 2.5” |
| Model | The Tower 600 Black |
| Net Weight | 9.70 kg / 21.39 lbs |
| Fan Support | Top:3 x 120mm, 2 x 120mm, 1 x 120mm2 x 140mm, 1 x 140mmRight:3 x 120mm, 2 x 120mm, 1 x 120mm3 x 140mm, 2 x 140mm, 1 x 140mmLeft:3 x 120mm, 2 x 120mm, 1 x 120mmRear:2 x 120mm, 1 x 120mm2 x 140mm, 1 x 140mmPower Cover:1 x 120mm, 1 x 140mmBottom:1 x 120mm, 1 x 140mm |
| Motherboards | 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX) |
| Cooling System | Top(exhaust):140 x 140 x 25 mm CT140 fan (1500rpm, 30.5 dBA) x 2 |
| Expansion Slots | 7 |
| Radiator Support | Right Side(AIO):1 x 360mm, 1 x 240mm, 1 x 120mm1 x 420mm, 1 x 280mm, 1 x 140mmLeft Side(AIO):1 x 360mm, 1 x 240mm, 1 x 120mm |
| Dimension (H X W X D) | 550 x 420 x 286.4 mm(21.65 x 16.54 x 11.28 inch) |
