THERMALTAKE the Tower 600 ATX Mid Tower Cabinet ( Bubble Pink )
MPN _NOSKU_ELITEHUBS_CAAF563C30C5 · Brand Thermaltake
The Thermaltake Tower 600 Bubble Pink is an octagonal-prism ATX mid tower with three tempered glass panels, support for up to a 420mm AIO radiator, and capacity for up to thirteen 120mm fans — dressed in a distinctive pink finish
Inclusive of GST · GST invoice available
Overview

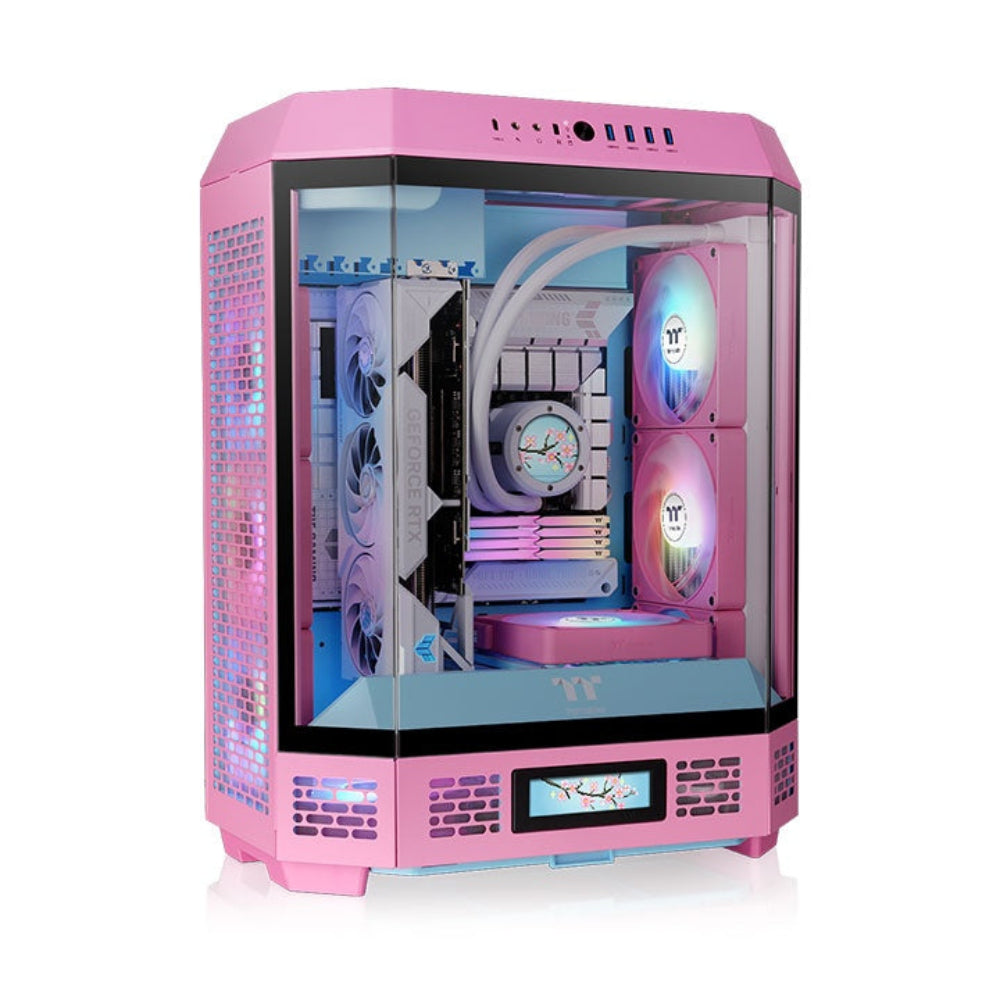

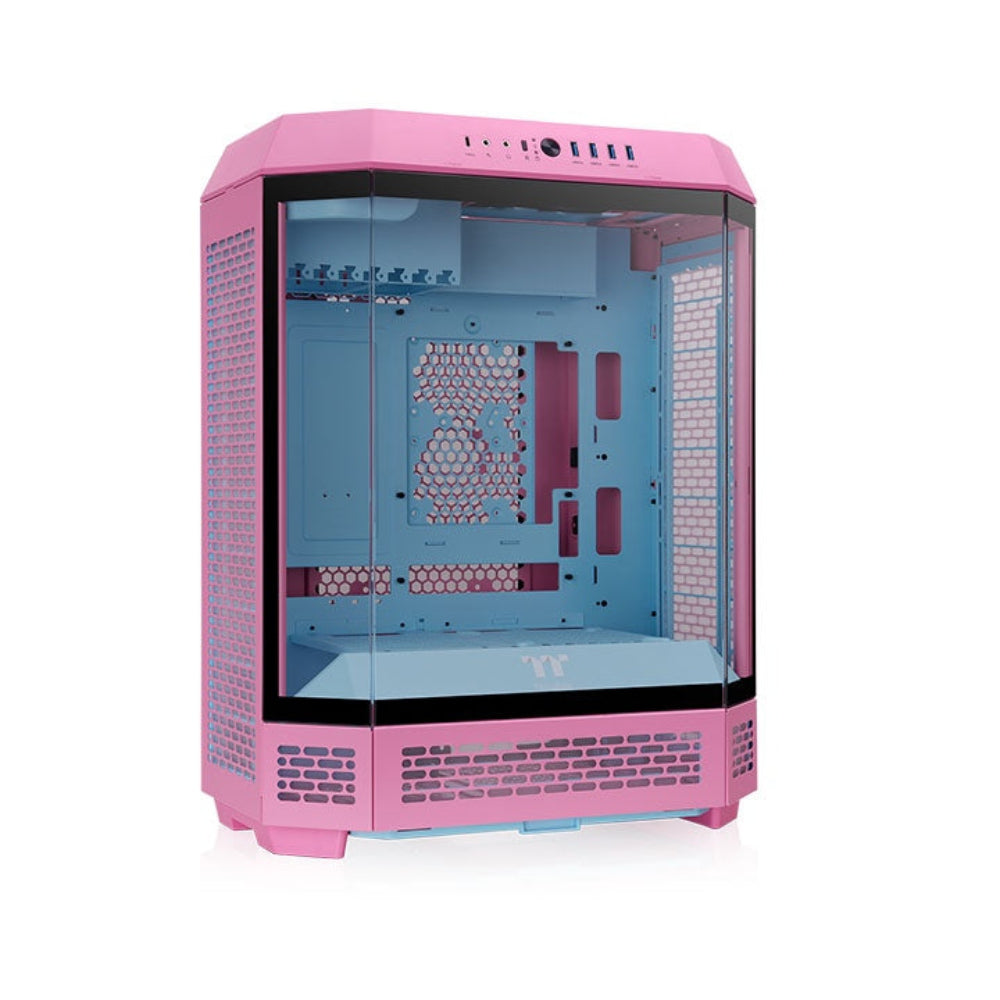

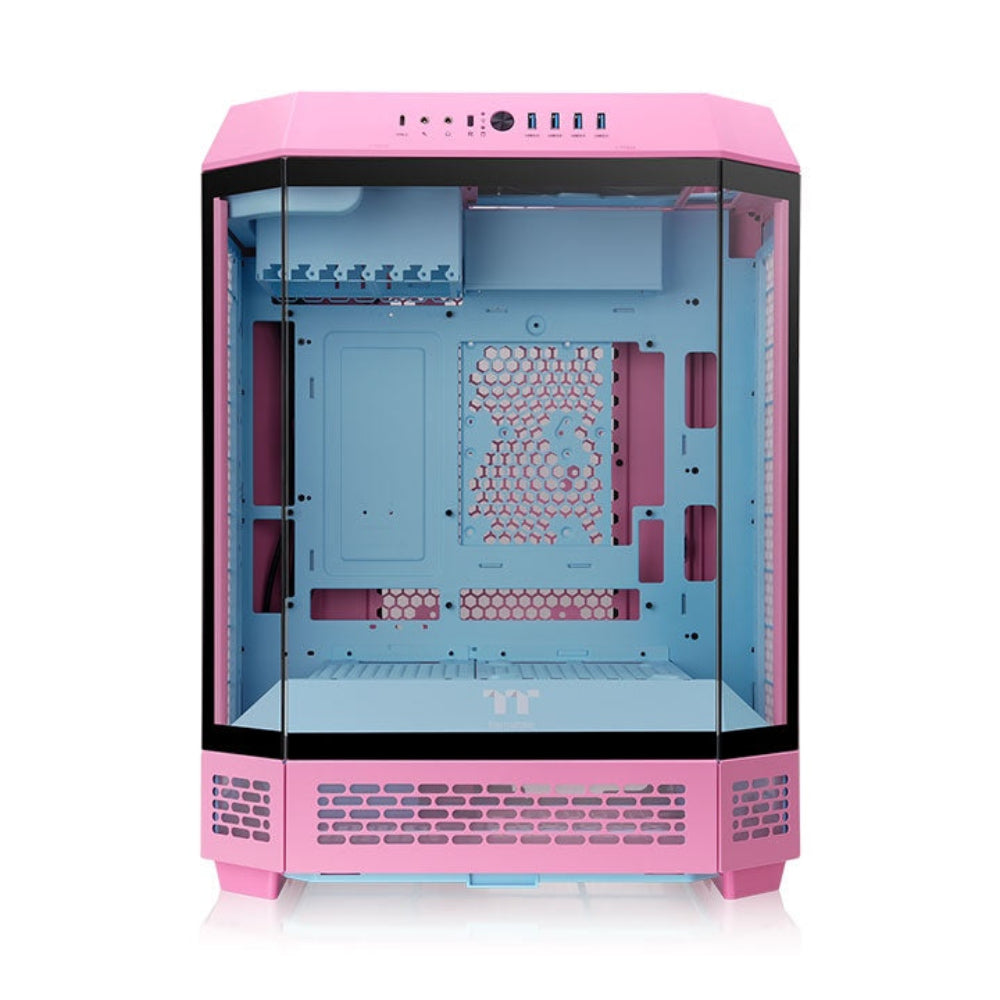

The Thermaltake Tower 600 Bubble Pink is a mid-tower ATX chassis that stands out with its signature octagonal prism silhouette — a design that minimises dead space on your desk while opening up a panoramic view of your components through three 3mm tempered glass panels on the front. Built in the classic vertical orientation of The Tower series, it supports Mini-ITX, Micro-ATX, and full ATX motherboards, including the latest hidden-connector boards whose cable-free aesthetic it is purpose-built to complement. Cooling headroom is a core strength of this case. On the right side you can mount an AIO radiator up to 420mm; on the left side you can fit a radiator up to 360mm. In total the chassis accommodates up to thirteen 120mm fans or nine 140mm fans distributed across the top, right, left, rear, power-cover, and bottom mounting positions. Two Thermaltake CT140 PWM fans (140 x 140 x 25 mm, 1500 rpm, 30.5 dBA) are pre-installed at the top as exhaust, providing airflow from day one. Dedicated dust filters on the top, rear, inner sides, and inner bottom protect your investment from particulate build-up. The rotating PCI-E expansion slots give you flexibility in how you orient your GPU, and two additional GPU brackets (riser cable sold separately) provide extra physical support. CPU coolers up to 210mm tall fit without issue, and graphics cards up to 400mm long (power cover removed) or 280mm (with power cover) are accommodated. Power supplies up to 220mm in length and of standard PS2 form factor are supported. For storage, the Tower 600 Bubble Pink accepts one 3.5-inch HDD alongside up to three 2.5-inch SSDs, or three 2.5-inch SSDs without the HDD. Cable management is aided by two rear-chamber cable-clip sets plus included Velcro straps and cable ties. Optional accessories — the 3.9-inch LCD Screen Kit for real-time component monitoring and the Chassis Stand Kit for horizontal placement — let you further personalise the build. Both are sold separately. Verified Specifications: Part Number: CA-1Z1-00MAWN-00 | Dimensions (H×W×D): 550 × 420 × 286.4 mm (21.65 × 16.54 × 11.28 in) | Material: SPCC steel | Panels: 3 × 3mm tempered glass | Motherboard Support: Mini-ITX, Micro-ATX, ATX | Expansion Slots: 7 | I/O: 1× USB 3.2 Gen 2 Type-C, 4× USB 3.0, HD Audio | Pre-installed Fans: 2× CT140 140mm PWM (top exhaust, 1500 rpm, 30.5 dBA) | Max Radiator — Right: 420mm; Left: 360mm | CPU Cooler Clearance: 210mm | GPU Length: 400mm (no power cover) / 280mm (with power cover) | PSU Length: 220mm | Drive Bays: 1× 3.5-inch, up to 3× 2.5-inch | Warranty: 1 Year

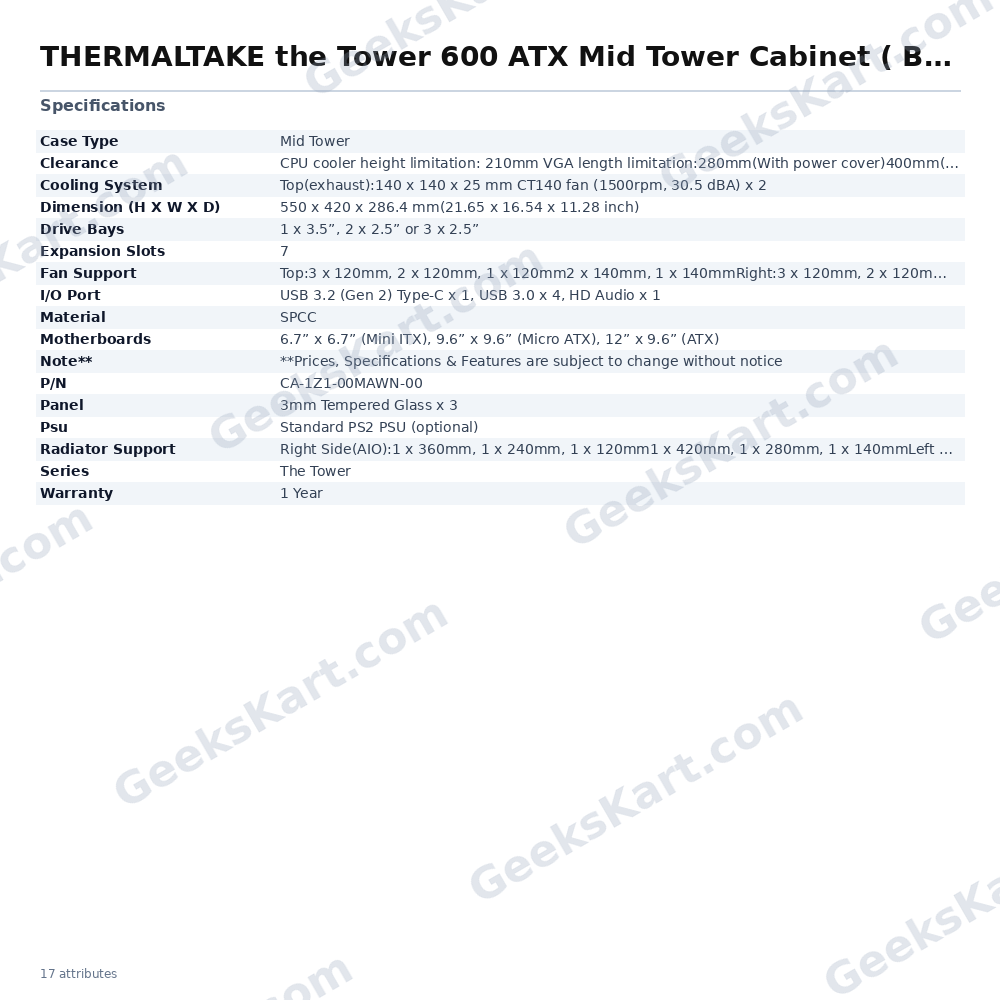

Datasheet
| Warranty | 1 Year |
|---|---|
| P/N | CA-1Z1-00MAWN-00 |
| Psu | Standard PS2 PSU (optional) |
| Panel | 3mm Tempered Glass x 3 |
| Note** | **Prices, Specifications & Features are subject to change without notice |
| Series | The Tower |
| I/O Port | USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 4, HD Audio x 1 |
| Material | SPCC |
| Case Type | Mid Tower |
| Clearance | CPU cooler height limitation: 210mm VGA length limitation:280mm(With power cover)400mm(Without power cover)PSU length limitation:220mm |
| Drive Bays | 1 x 3.5”, 2 x 2.5” or 3 x 2.5” |
| Fan Support | Top:3 x 120mm, 2 x 120mm, 1 x 120mm2 x 140mm, 1 x 140mmRight:3 x 120mm, 2 x 120mm, 1 x 120mm3 x 140mm, 2 x 140mm, 1 x 140mmLeft:3 x 120mm, 2 x 120mm, 1 x 120mmRear:2 x 120mm, 1 x 120mm2 x 140mm, 1 x 140mmPower Cover:1 x 120mm, 1 x 140mmBottom:1 x 120mm, 1 x 140mm |
| Motherboards | 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX) |
| Cooling System | Top(exhaust):140 x 140 x 25 mm CT140 fan (1500rpm, 30.5 dBA) x 2 |
| Expansion Slots | 7 |
| Radiator Support | Right Side(AIO):1 x 360mm, 1 x 240mm, 1 x 120mm1 x 420mm, 1 x 280mm, 1 x 140mmLeft Side(AIO):1 x 360mm, 1 x 240mm, 1 x 120mm |
| Dimension (H X W X D) | 550 x 420 x 286.4 mm(21.65 x 16.54 x 11.28 inch) |
