THERMALTAKE ToughPower GF 750 80+ Gold Fully Modular Power Supply (750W )

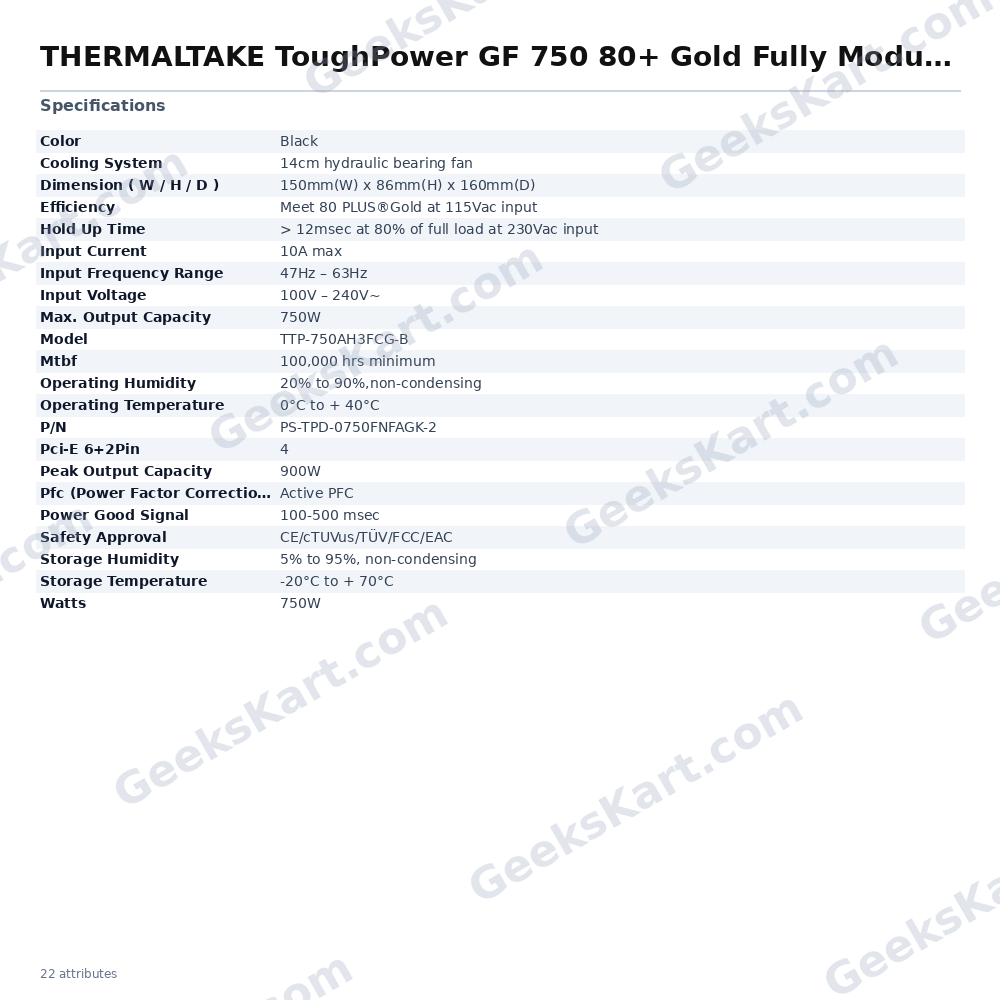

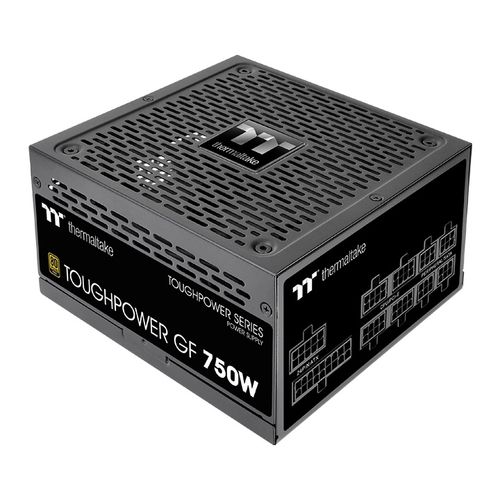

The Thermaltake ToughPower GF 750W 80 Plus Gold Fully Modular Power Supply (model TTP-750AH3FCG-B, P/N PS-TPD-0750FNFAGK-2) is a mid-to-high-range ATX desktop PSU designed to deliver reliable, efficient power to modern gaming and workstation builds. Rated at 750W continuous output with a peak capacity of 900W, it carries the 80 PLUS Gold efficiency certification, meaning it meets the Gold efficiency standard at 115Vac input — helping reduce wasted energy and heat inside your chassis. The fully modular flat-cable design means every single connector, from motherboard power to PCIe cables, can be removed when not in use. This keeps your case interior tidy, improves airflow, and makes future upgrades or cable-management projects considerably simpler. The unit ships in black and measures 150mm (W) × 86mm (H) × 160mm (D), making it compatible with most standard ATX enclosures. Cooling is handled by a 140mm hydraulic bearing fan. Hydraulic bearing fans offer quieter operation compared to sleeve-bearing alternatives and typically carry a longer service life. The fan regulates its speed in response to system load, so at moderate loads it remains largely inaudible. Power delivery is architected around a high-amperage single +12V rail, which simplifies compatibility with modern GPUs and high-core-count CPUs that draw the bulk of their power from the 12V bus. A DC-to-DC conversion topology is used for the minor rails, keeping voltage regulation tight even under fluctuating loads. Active PFC ensures a power factor close to unity, reducing reactive power draw from the mains. The ToughPower GF 750W holds a stated MTBF of 100,000 hours minimum and carries safety certifications including CE, cTUVus, TÜV, FCC, and EAC. It also supports Intel Lake C6/C7 low-power CPU states, helping the overall system consume less power at idle. The unit accepts a wide input voltage range of 100V–240V at 47Hz–63Hz, making it suitable for use across different regional power standards. Verified Specifications: – Model: TTP-750AH3FCG-B | P/N: PS-TPD-0750FNFAGK-2 – Rated Output: 750W | Peak Output: 900W – Efficiency: 80 PLUS Gold at 115Vac input – Cooling: 140mm (14cm) hydraulic bearing fan – Modular: Fully modular, flat cable design – PCI-E 6+2 Pin connectors: 4 – PFC: Active PFC – Input Voltage: 100V–240V~ | Input Current: 10A max. – Input Frequency: 47Hz–63Hz – Power Good Signal: 100–500 ms | Hold-Up Time: >12ms at 80% full load, 230Vac – Operating Temp: 0°C to +40°C | Operating Humidity: 20%–90% non-condensing – Storage Temp: -20°C to +70°C | Storage Humidity: 5%–95% non-condensing – MTBF: 100,000 hrs minimum – Safety: CE / cTUVus / TÜV / FCC / EAC – Dimensions (W×H×D): 150mm × 86mm × 160mm | Colour: Black
