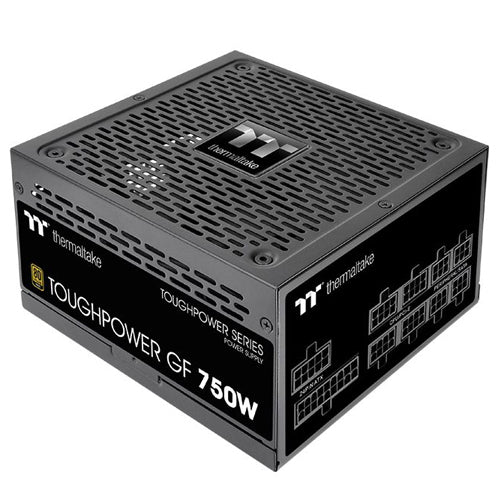

THERMALTAKE ToughPower GF 750W 80+ Gold Fully Modular ATX 2.0 Power Supply (750 W)

The Thermaltake ToughPower GF 750W is a fully modular ATX 2.0 power supply carrying the 80 PLUS Gold certification, delivering continuous stable power at up to 90% efficiency at 115 V AC input. Rated for a maximum continuous output of 750 W and a peak output capacity of 900 W, this unit is engineered to meet the demands of high-performance desktop PC builds without sacrificing reliability. At the heart of the thermal management system is a 140 mm hydraulic bearing fan that keeps the unit cool during intensive workloads while maintaining near-silent operation. Japanese main capacitors are used throughout the design to ensure long-term stability and durability, and the DC-to-DC conversion topology stabilises output across the +12 V, +5 V, and +3.3 V rails. A high-amperage single +12 V rail simplifies power distribution to demanding components such as discrete graphics cards and modern multi-core processors. The fully modular flat-cable design means only the cables your build requires need to be connected, improving airflow inside the chassis and making installation straightforward. Four PCI-E 6+2-pin connectors are included, providing ample connectivity for contemporary graphics hardware. Active PFC ensures compatibility with wide-range AC input from 100 V to 240 V at 47–63 Hz, making the unit suited for use across different regional power standards. Safety and compliance certifications include CE, cTUVus, TÜV, FCC, and EAC. The unit is also Intel Lake C6/C7 sleep-state ready, enabling maximum energy savings when paired with supported Intel processors. Thermaltake backs this power supply with a 10-year warranty. Verified Specifications: • Part Number: PS-TPD-0750FNFAGD-2 | Model: TTP-750AH3FCG-B • Max. Continuous Output: 750 W | Peak Output: 900 W • Efficiency: 80 PLUS Gold certified at 115 V AC input • Cooling: 140 mm (14 cm) hydraulic bearing fan • PFC: Active PFC • Input Voltage: 100 V – 240 V | Input Frequency: 47 Hz – 63 Hz | Input Current: 10 A max. • PCI-E 6+2-pin connectors: 4 • Dimensions (W × H × D): 150 mm × 86 mm × 160 mm • Operating Temperature: 0 °C to +40 °C | Operating Humidity: 20%–90% non-condensing • MTBF: 100,000 hours minimum • Safety Approvals: CE / cTUVus / TÜV / FCC / EAC • Warranty: 10 Years • Colour: Black
