THERMALTAKE UX100 ARGB Lighting Single Tower CPU Air Cooler (Black)
MPN TT-UX100 · Brand Thermaltake
The Thermaltake UX100 ARGB Single Tower CPU Air Cooler features a 120mm hydraulic-bearing fan, 15 addressable RGB LEDs with 16.8 million colours, and 65W TDP support across Intel and AMD sockets
Inclusive of GST · GST invoice available
Overview
The Thermaltake UX100 ARGB Lighting Single Tower CPU Air Cooler (Black) is a compact, value-oriented cooling solution designed for budget and mainstream desktop builds. It pairs an aluminium fin heatsink with a single 120mm hydraulic-bearing fan to deliver steady, low-noise thermal management for processors up to 65W TDP. The included 120mm fan spins at up to 1800 RPM, moving 38.82 CFM of airflow at a static pressure of 1.48 mm-H2O, while keeping acoustical noise to 26.92 dBA during typical operation. The hydraulic bearing uses a self-lubricating mechanism to reduce friction and operating noise, and the sealed cap is designed to prevent lubricant leakage, contributing to a rated fan life of 30,000 hours. Visually, the UX100 features 15 addressable RGB LEDs capable of displaying 16.8 million colours. The ARGB header connects via a 3-pin 5V connector, enabling direct synchronisation with ASUS Aura Sync, ASRock Polychrome RGB, GIGABYTE RGB Fusion, and MSI Mystic Light Sync on compatible motherboards. Installation is handled through an all-in-one backplate mounting kit that supports a wide range of Intel and AMD sockets without requiring separate brackets. Verified Specifications: - Part Number: CL-P064-AL12SW-A - Overall Dimensions: 122.3 x 122.3 x 66.1 mm (L x W x H) - Heatsink Material: Aluminium fins - Fan Dimensions: 120 x 120 x 25 mm - Fan Quantity: 1 - Fan Speed: 1800 RPM - Rated Voltage: 12V DC | Start Voltage: 6.0V - Rated Current: 0.35A | Power Input: 4.2W - Airflow: 38.82 CFM | Static Pressure: 1.48 mm-H2O - Noise Level: 26.92 dBA - Fan Rated Life: 30,000 hours - ARGB Connector: 5V 3-pin header - Cooling Power (TDP): 65W - Socket Compatibility: Intel LGA 1156/1155/1151/1150/775; AMD AM4/FM2/FM1/AM3/AM2 - Warranty: 2 years The UX100 is a practical choice for entry-level gaming PCs, office workstations, or any build where a compact form factor, quiet operation, and ARGB aesthetics are priorities within a modest budget

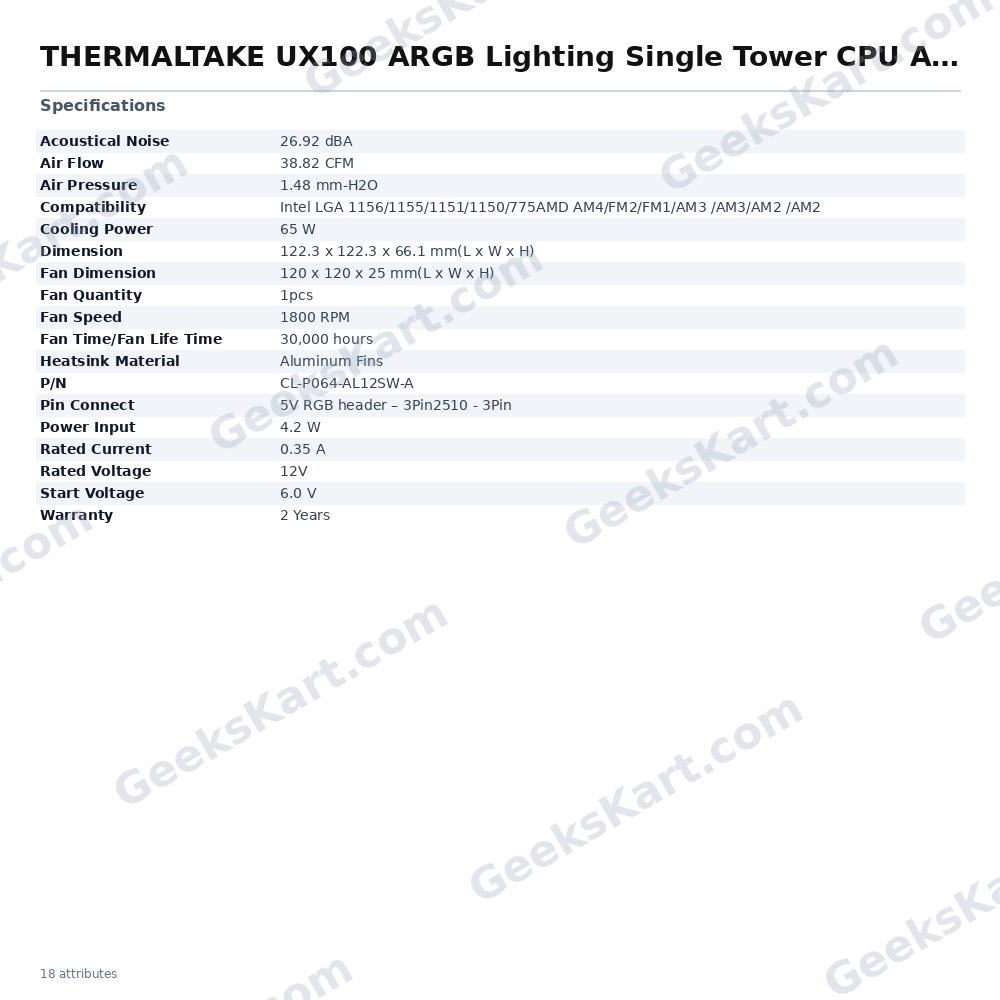

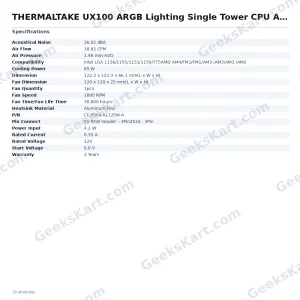

Datasheet
| Warranty | 2 Years |
|---|---|
| P/N | CL-P064-AL12SW-A |
| Air Flow | 38.82 CFM |
| Dimension | 122.3 x 122.3 x 66.1 mm(L x W x H) |
| Fan Speed | 1800 RPM |
| Pin Connect | 5V RGB header – 3Pin2510 – 3Pin |
| Power Input | 4.2 W |
| Air Pressure | 1.48 mm-H2O |
| Fan Quantity | 1pcs |
| Compatibility | Intel LGA 1156/1155/1151/1150/775AMD AM4/FM2/FM1/AM3 /AM3/AM2 /AM2 |
| Cooling Power | 65 W |
| Fan Dimension | 120 x 120 x 25 mm(L x W x H) |
| Rated Current | 0.35 A |
| Rated Voltage | 12V |
| Start Voltage | 6.0 V |
| Acoustical Noise | 26.92 dBA |
| Heatsink Material | Aluminum Fins |
| Fan Time/Fan Life Time | 30,000 hours |
