Thermaltake View 290 TG ARGB ATX Mid Tower Case
MPN CA-11G-00M1WN-00 · Brand THERMALTAKE · ATX, mATX, Mini-ITX
The Thermaltake View 290 TG ARGB is an ATX mid tower case featuring a 4mm curved tempered glass front, 3 pre-installed 120mm ARGB Lite fans, support for hidden-connector motherboards, and up to 360mm radiator compatibility — all in a cable-managed, PSU-shrouded chassis
Inclusive of GST · GST invoice available
Overview
The Thermaltake View 290 TG ARGB is an ATX mid tower chassis designed for builders who want a clear window into their system alongside practical cooling headroom. Two standout panels define the exterior: a 4mm curved tempered glass front panel that arcs gracefully across the face of the case, and a 3mm flat tempered glass left side panel that puts your components on full display. Both panels work together to showcase the pre-installed lighting without sacrificing structural rigidity. Three 120mm ARGB Lite fans come pre-installed from the factory — two reverse-spinning units and one standard fan — providing immediate airflow from day one. The ARGB lighting on these fans is compatible with motherboard sync software from ASUS (Aura Sync), GIGABYTE (RGB Fusion), MSI (Mystic Light), and ASRock (Polychrome Sync), so you can unify your build's lighting from a single interface without proprietary controllers. One of the View 290's more forward-looking features is its support for hidden-connector motherboards from ASUS, MSI, and GIGABYTE, meaning builders planning a next-generation, cable-free aesthetic will find the chassis ready for that workflow. The rotational PCI-E slots further enhance flexibility by allowing horizontal or vertical GPU mounting, with dedicated standoff space for a 90-degree riser cable — useful for showcasing high-end graphics cards as a centrepiece. Cooling capacity extends well beyond the pre-installed fans. The chassis can house up to nine 120mm fans across the top (3×120mm or 2×140mm), right side (2×120mm), rear (1×120mm or 1×140mm), and PSU cover (3×120mm) positions. Radiator support is equally generous: the top mount accepts up to a 360mm AIO, while the right side accommodates up to a 240mm radiator, making the View 290 a viable home for both air and liquid cooling setups. A dust filter on the top panel helps manage particulate ingress over time. A full-length PSU shroud covers the power supply and routes cables out of the main chamber, keeping the visible interior tidy. Storage is handled by up to two 3.5-inch HDD bays and two 2.5-inch SSD mounts. The top I/O panel includes one USB 3.2 Gen 2 Type-C port, two USB 3.0 ports, and HD Audio connectivity. Verified Specifications: - Form Factor: ATX, Micro-ATX, Mini-ITX - Color: Black | Material: SPCC steel - Pre-installed Fans: 3 × 120mm ARGB Lite (2 reverse + 1 standard, hydraulic bearing) - Max Fan Support: 9 × 120mm - Max Radiator: 360mm (top), 240mm (right side) - GPU Clearance: up to 450mm - CPU Cooler Clearance: up to 180mm - PSU Clearance: up to 200mm - Expansion Slots: 7 (rotational PCI-E) - Storage: 2 × 3.5" HDD, 2 × 2.5" SSD - Front I/O: 1 × USB 3.2 Gen 2 Type-C, 2 × USB 3.0, HD Audio - Tempered Glass: 4mm curved front, 3mm side - Dust Filter: Top - Warranty: 3 Years - SKU: CA-11G-00M1WN-00

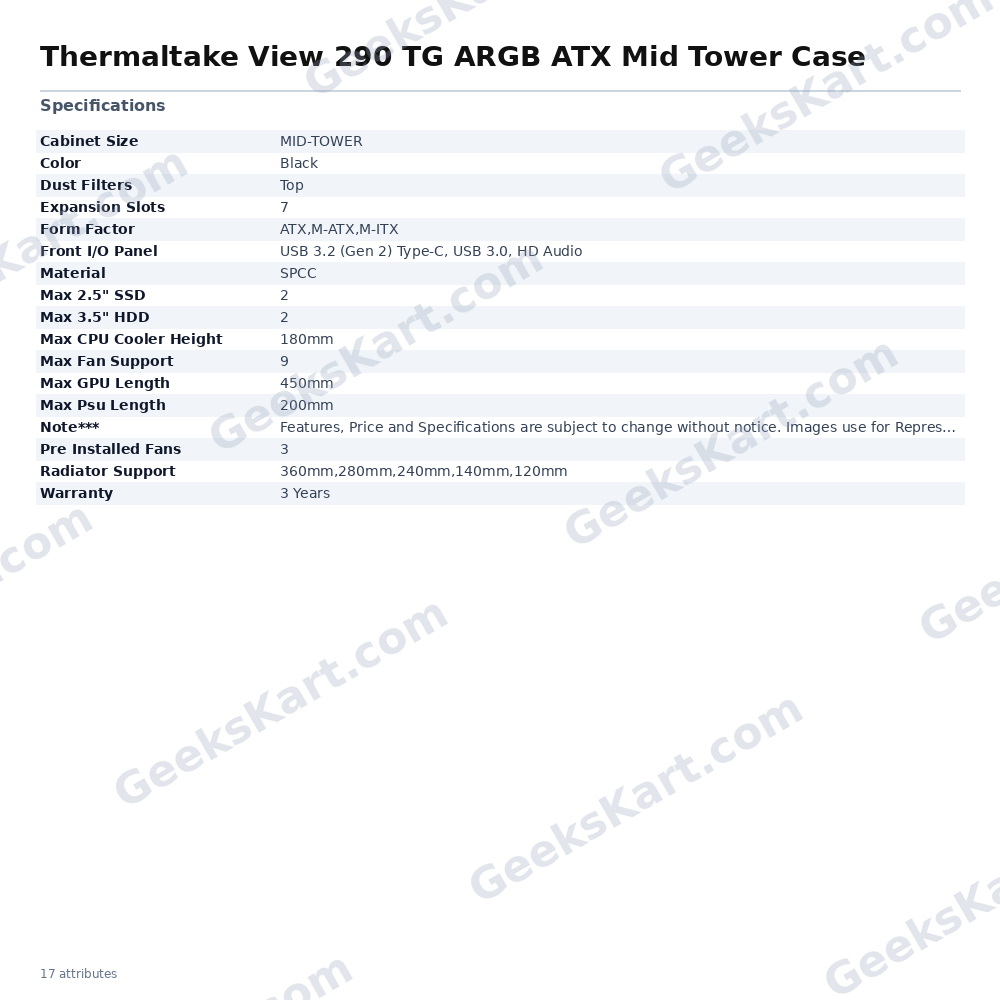

Datasheet
| Warranty | 3 Years |
|---|---|
| Form Factor | ATX, mATX, Mini-ITX |
| color | Black |
| Note*** | Features, Price and Specifications are subject to change without notice. Images use for Representation Purpose Only |
| Material | SPCC |
| Cabinet Size | MID-TOWER |
| Dust Filters | Top |
| Max 2.5" SSD | 2 |
| Max 3.5" HDD | 2 |
| Max GPU Length | 450mm |
| Max Psu Length | 200mm |
| Expansion Slots | 7 |
| Front I/O Panel | USB 3.2 (Gen 2) Type-C, USB 3.0, HD Audio |
| Max Fan Support | 9 |
| Radiator Support | 360mm,280mm,240mm,140mm,120mm |
| Pre Installed Fans | 3 |
| Max CPU Cooler Height | 180mm |
