THERMALTAKE View 380 TG ARGB ATX Mid Tower Cabinet ( Black )
MPN THERMALTAKE-VIEW-380-BLACK · Brand Thermaltake
The Thermaltake View 380 TG ARGB is a dual-chamber ATX mid tower cabinet with tempered glass front and side panels, four pre-installed 120 mm ARGB Lite fans, and support for up to a 360 mm radiator — designed for standard and hidden-connector motherboards from ASUS, MSI, and GIGABYTE
Inclusive of GST · GST invoice available
Overview

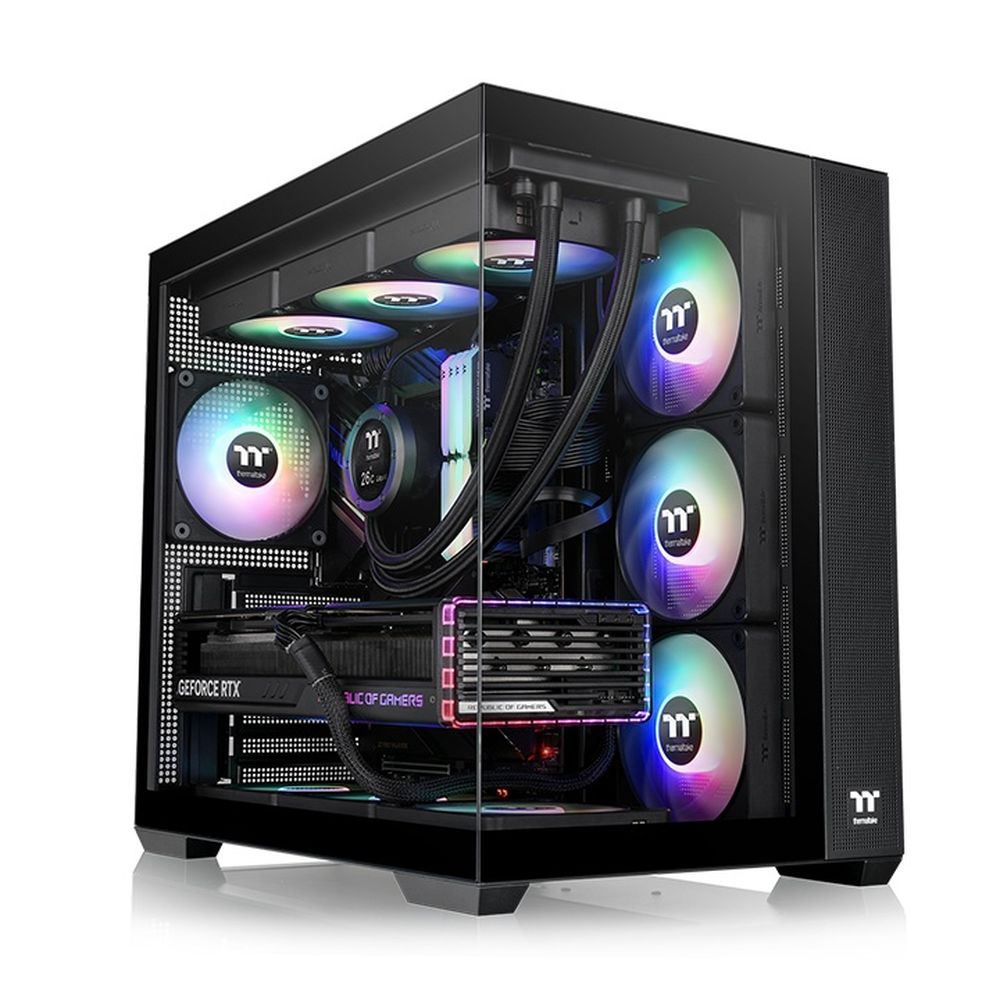

The Thermaltake View 380 TG ARGB is an ATX mid tower cabinet built around a dual-chamber layout that cleanly separates the primary motherboard compartment from cables and the power supply. The case ships with four 120 mm ARGB Lite fans — three mounted on the right intake position and one at the rear exhaust — each rated at 1,000 RPM and 22.3 dBA for a balance of airflow and acoustic performance. Designed with next-generation compatibility in mind, the View 380 natively accommodates hidden-connector motherboards from ASUS, MSI, and GIGABYTE in addition to standard ATX, Micro-ATX, and Mini-ITX form factors. ARGB lighting across all four included fans can be synchronised directly through motherboard software from ASUS (Aura Sync), GIGABYTE (RGB Fusion), MSI (Mystic Light), and ASRock (Polychrome Sync). Visibility is a core part of the design: both the front and left side panels are tempered glass, giving a clear view of the installed components and ARGB lighting from multiple angles. For cooling flexibility, the chassis supports up to ten 120 mm fans in total across the top, right, rear, and bottom positions, and a 140 mm fan can be installed on the right panel as well. Radiator support extends to a 360 mm unit on the top or bottom, a 280 mm or 240 mm radiator on the right panel, and a 120 mm radiator at the rear — making the case compatible with a wide range of all-in-one and custom liquid-cooling solutions. The front I/O panel includes a USB 3.2 Gen 2 Type-C port, two USB 3.0 ports, and HD audio in/out. Storage provision covers one 3.5-inch and two 2.5-inch drive bays, with seven expansion slots available for multi-GPU or add-in-card configurations. Verified Specifications: - Part Number: CA-1Z2-00M1WN-00 - Case Type: ATX Mid Tower - Dimensions (H × W × D): 410 × 285 × 442 mm (16.14 × 11.22 × 17.4 in) - Net Weight: 6.93 kg / 15.28 lbs - Material: SPCC steel - Colour: Black - Included Fans: 4 × 120 × 120 × 25 mm ARGB Lite (1,000 RPM, 22.3 dBA) - Fan Support: Top 3 × 120 mm; Right 3 × 120 mm or 2 × 140 mm; Rear 1 × 120 mm; Bottom 3 × 120 mm - Radiator Support: Top up to 360 mm; Right up to 280 mm; Bottom up to 360 mm; Rear 120 mm - CPU Cooler Clearance: 160 mm - GPU Length Clearance: 415 mm - PSU Length Clearance: 200 mm - Motherboard Support: Mini-ITX, Micro-ATX, ATX - I/O: USB 3.2 Gen 2 Type-C × 1, USB 3.0 × 2, HD Audio × 1 - Drive Bays: 1 × 3.5-inch, 2 × 2.5-inch - Expansion Slots: 7 - PSU: Standard PS2 (not included)

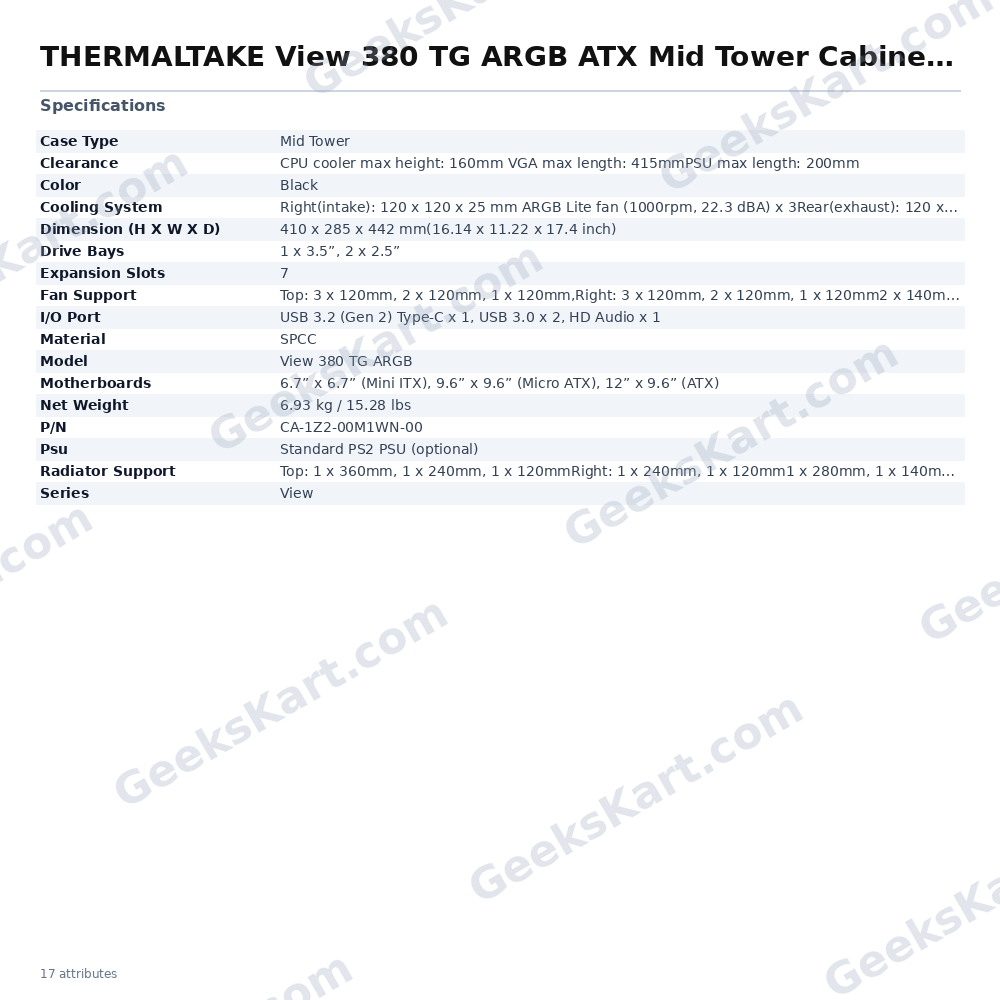

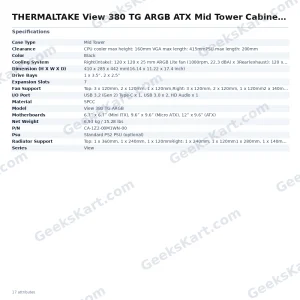

Datasheet
| color | Black |
|---|---|
| P/N | CA-1Z2-00M1WN-00 |
| Psu | Standard PS2 PSU (optional) |
| Model | View 380 TG ARGB |
| Series | View |
| I/O Port | USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1 |
| Material | SPCC |
| Case Type | Mid Tower |
| Clearance | CPU cooler max height: 160mm VGA max length: 415mmPSU max length: 200mm |
| Drive Bays | 1 x 3.5”, 2 x 2.5” |
| Net Weight | 6.93 kg / 15.28 lbs |
| Fan Support | Top: 3 x 120mm, 2 x 120mm, 1 x 120mm,Right: 3 x 120mm, 2 x 120mm, 1 x 120mm2 x 140mm, 1 x 140mm Rear: 1 x 120mmBottom: 3 x 120mm, 2 x 120mm, 1 x 120mm |
| Motherboards | 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX) |
| Cooling System | Right(intake): 120 x 120 x 25 mm ARGB Lite fan (1000rpm, 22.3 dBA) x 3Rear(exhaust): 120 x 120 x 25 mm ARGB Lite fan (1000rpm, 22.3 dBA) x 1 |
| Expansion Slots | 7 |
| Radiator Support | Top: 1 x 360mm, 1 x 240mm, 1 x 120mmRight: 1 x 240mm, 1 x 120mm1 x 280mm, 1 x 140mmRear: 1 x 120mmBottom: 1 x 360mm, 1 x 240mm, 1 x 120mm |
| Dimension (H X W X D) | 410 x 285 x 442 mm(16.14 x 11.22 x 17.4 inch) |
