THERMALTAKE View 380 XL ARGB ATX Mid Tower Cabient ( Gravel Sand )
MPN THERMALTAKE-VIEW-380-XL-ARGB-GRAVEL-SAND · Brand Thermaltake · ATX, mATX, Mini-ITX
The Thermaltake View 380 XL ARGB ATX Mid Tower Cabinet (Gravel Sand) features a dual-chamber design, tempered glass front and left panels, four pre-installed 120mm ARGB Lite fans, and support for up to a 360mm radiator — built for ATX, M-ATX, and M-ITX boards including hidden-connector models
Inclusive of GST · GST invoice available
Overview
The Thermaltake View 380 XL TG ARGB Mid Tower Cabinet in Gravel Sand is a dual-chamber ATX chassis engineered for builders who want both visual impact and practical thermal performance. Its dual-chamber layout physically separates the main motherboard compartment from the power supply and cable-management zone, giving you a cleaner build aesthetic and improved airflow routing without compromise. Designed for next-generation connectivity, the View 380 XL supports Hidden-Connector Motherboards from ASUS, MSI, and GIGABYTE — in addition to standard ATX, Micro-ATX, and Mini-ITX form factors. This forward-compatibility makes it a solid long-term platform as hidden-connector boards grow more common in the enthusiast market. Visibility is a core part of the design: tempered glass panels on both the front and left side put your components on full display. Four pre-installed 120mm Hydraulic Bearing ARGB Lite fans come ready out of the box — three reversed fans positioned on the motherboard side and one at the rear exhaust — with RGB lighting controllable via ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light, and ASRock Polychrome Sync software. The chassis can accommodate up to ten 120mm fans in total, giving you substantial headroom for custom airflow builds. For liquid cooling enthusiasts, the case supports up to a 360mm radiator at both the top and motherboard side, along with 280mm, 240mm, 140mm, and 120mm options across available mounting positions. A built-in GPU holder provides structural support for heavy graphics cards, reducing the risk of PCIe slot stress over time. Front I/O is conveniently placed at the bottom of the front panel and includes one USB 3.2 Gen 2 Type-C port, two USB 3.0 ports, and an HD Audio jack. The chassis ships with a 3-year warranty from Thermaltake. Verified Specifications: - Product Code: CA-11E-00MGWN-00 - Form Factor: Mid Tower - Supported Motherboards: ATX, Micro-ATX, Mini-ITX - Color: Gravel Sand - Material: Steel, Tempered Glass - Expansion Slots: 8 - Max CPU Cooler Height: 160mm - Max GPU Length: 420mm - Max PSU Length: 180mm - Pre-installed Fans: 4 × 120mm Hydraulic Bearing ARGB Lite - Max Fan Support: 10 × 120mm - Radiator Support: 360mm / 280mm / 240mm / 140mm / 120mm - Storage: Up to 3 × 2.5-inch SSD or 1 × 3.5-inch HDD - Front I/O: 1 × USB 3.2 Gen 2 Type-C, 2 × USB 3.0, HD Audio - Dust Filter: Top - Warranty: 3 Years

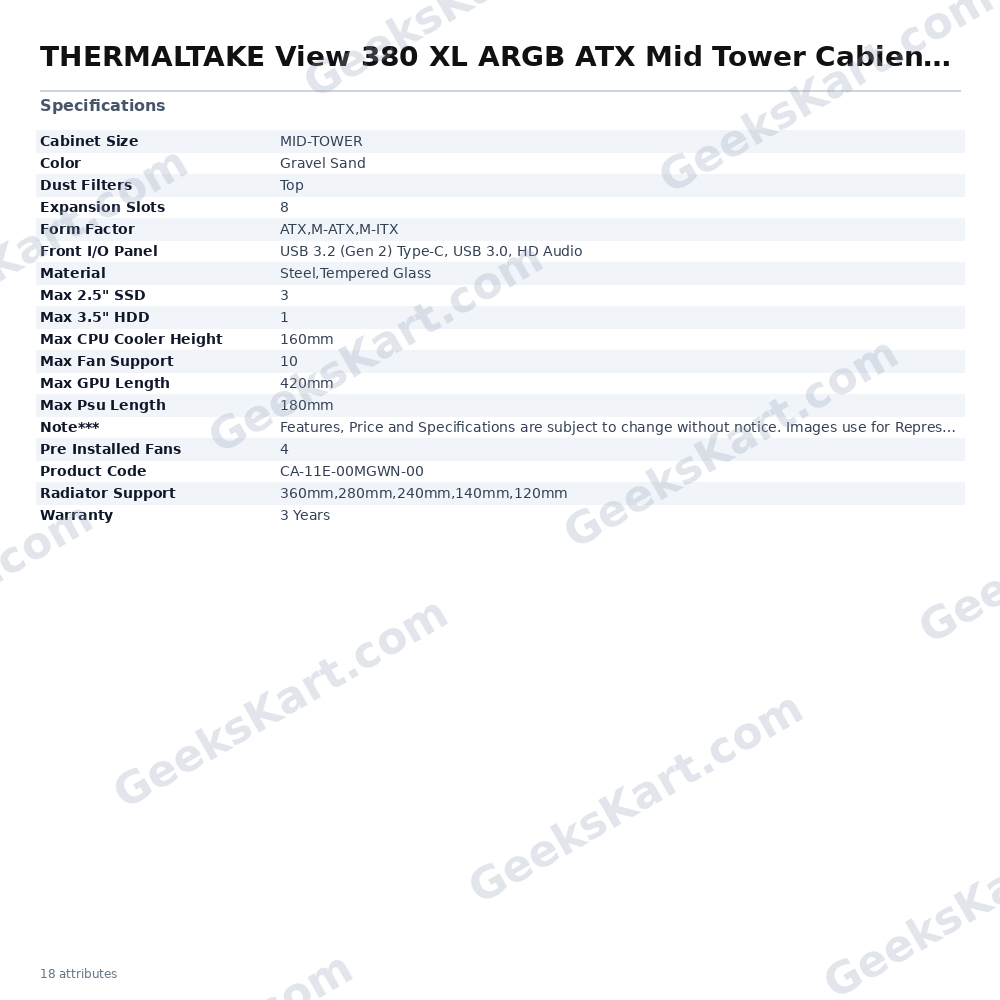

Datasheet
| Warranty | 3 Years |
|---|---|
| Form Factor | ATX, mATX, Mini-ITX |
| Note*** | Features, Price and Specifications are subject to change without notice. Images use for Representation Purpose Only |
| Material | Steel,Tempered Glass |
| Cabinet Size | MID-TOWER |
| Dust Filters | Top |
| Max 2.5" SSD | 3 |
| Max 3.5" HDD | 1 |
| Product Code | CA-11E-00MGWN-00 |
| Max GPU Length | 420mm |
| Max Psu Length | 180mm |
| Expansion Slots | 8 |
| Front I/O Panel | USB 3.2 (Gen 2) Type-C, USB 3.0, HD Audio |
| Max Fan Support | 10 |
| Radiator Support | 360mm,280mm,240mm,140mm,120mm |
| Pre Installed Fans | 4 |
| Max CPU Cooler Height | 160mm |
| Color | Gravel Sand |
