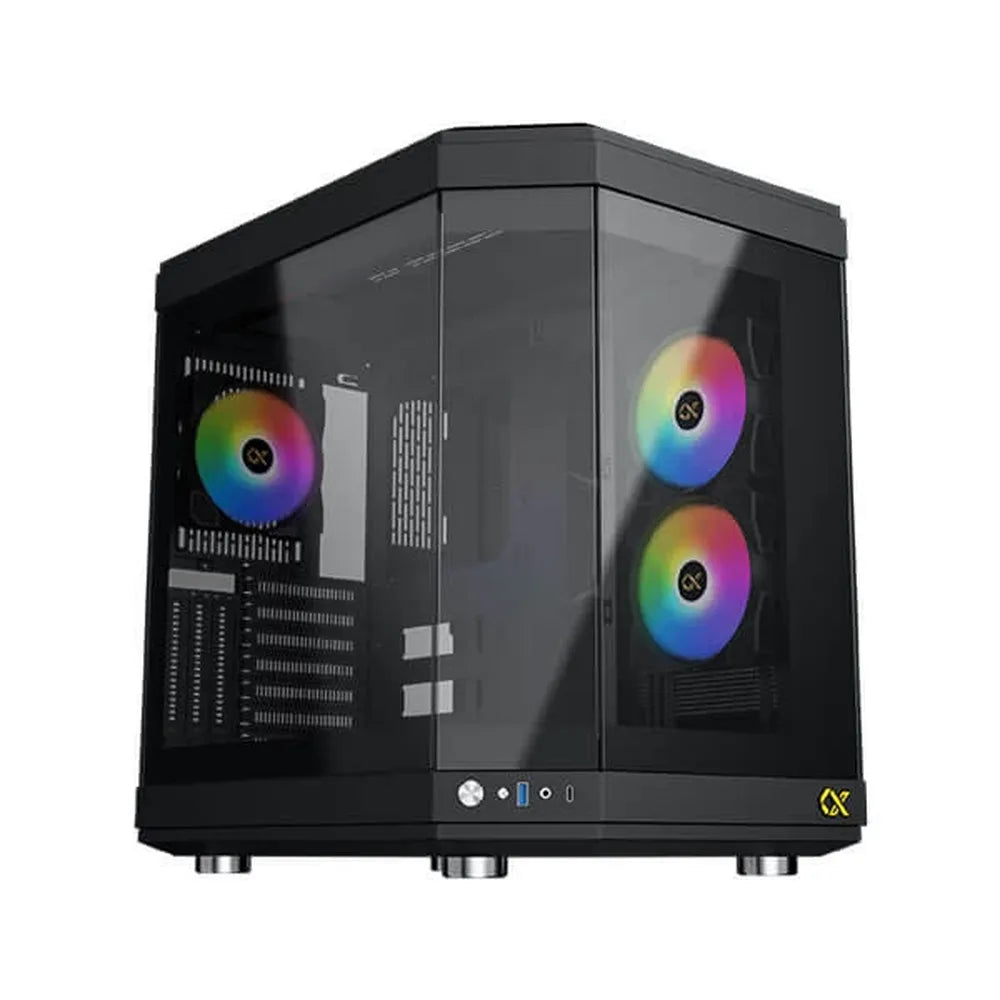

Features of XIGMATEK Cubi EATX Mid Tower Cabinet ( Black )
Xigmatek Cubi is the EATX Cabinet color design cabinet which is supporting E-ATX motherboard support, graphics card length 420mm, 360mm radiator support. This cabinet has tempered glass panel on both the side’s front and side
- MOTHERBOARD EATX
- CPU COOLER 180MM
- FAN SUPPORT 9 PCS.
- POWER SUPPLY 200MM
- GRAPHICS CARD 420MM
- RADIATOR 360MM
- HDD x 4 & SSD x 2
EFFECTIVE HEAT DISSIPATION
Fan Cooling System：
• Top: 120mm x3 • Bottom: 120mm x3 • Rear: 120mm x1 • MB Panel: 120mm x3 or 140mm x2
Liquid Cooling System：
• Top: 360 • MB Panel: 240 (E-ATX Width ≤ 28cm) • Bottom: 360 • Rear: 120mm x1
TOP MOUNT I/O PORTS
• USB3.0 x 1
• Type C x 1
• HD Audio Jack
• Reset Button
• Power Button
Get the affordable pc cabinet case with the huge variety with us!

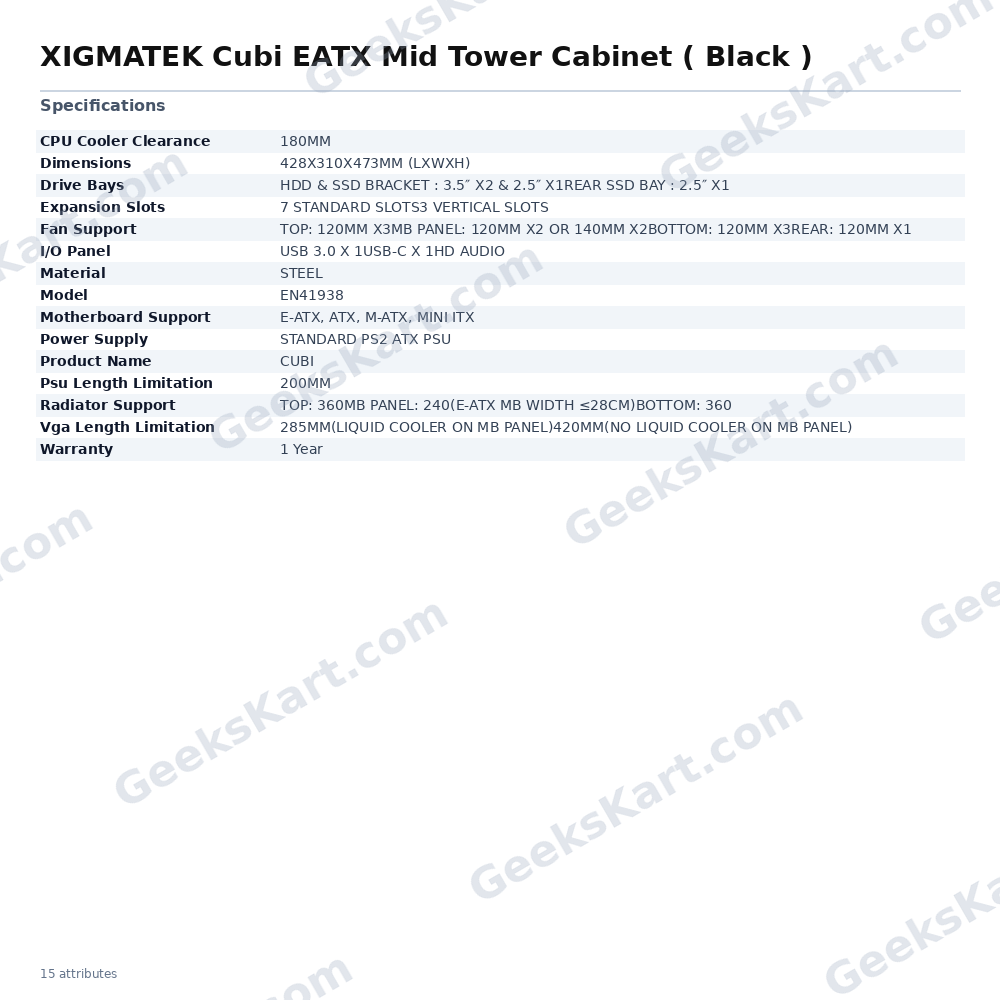

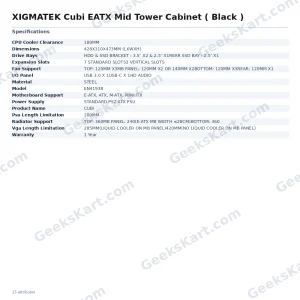

Specification of XIGMATEK Cubi EATX Mid Tower Cabinet ( Black )
| PRODUCT NAME | CUBI |
| Model Name | EN41938 |
| MATERIAL | STEEL |
| DIMENSIONS | 428X310X473MM (LXWXH) |
| DRIVE BAYS | HDD & SSD BRACKET: 3.5″ X2 & 2.5″ X1 REAR SSD BAY: 2.5″ X1 |
| EXPANSION SLOTS | 7 STANDARD SLOTS 3 VERTICAL SLOTS |
| MOTHERBOARD SUPPORT | E-ATX, ATX, M-ATX, MINI ITX |
| POWER SUPPLY | STANDARD PS2 ATX PSU |
| FAN SUPPORT | TOP: 120MM X3 MB PANEL: 120MM X2 OR 140MM X2 BOTTOM: 120MM X3 REAR: 120MM X1 |
| RADIATOR SUPPORT | TOP: 360 MB PANEL: 240 (E-ATX MB WIDTH ≤28CM) BOTTOM: 360 |
| I/O PANEL | USB 3.0 X 1 USB-C X 1 HD AUDIO |
| CPU COOLER CLEARANCE | 180MM |
| VGA LENGTH LIMITATION | 285MM (LIQUID COOLER ON MB PANEL) 420MM (NO LIQUID COOLER ON MB PANEL) |
| PSU LENGTH LIMITATION | 200MM |
| Warranty | 1 Year |
| Note | *** Features, Price, Specifications are subject to change without notice. |
