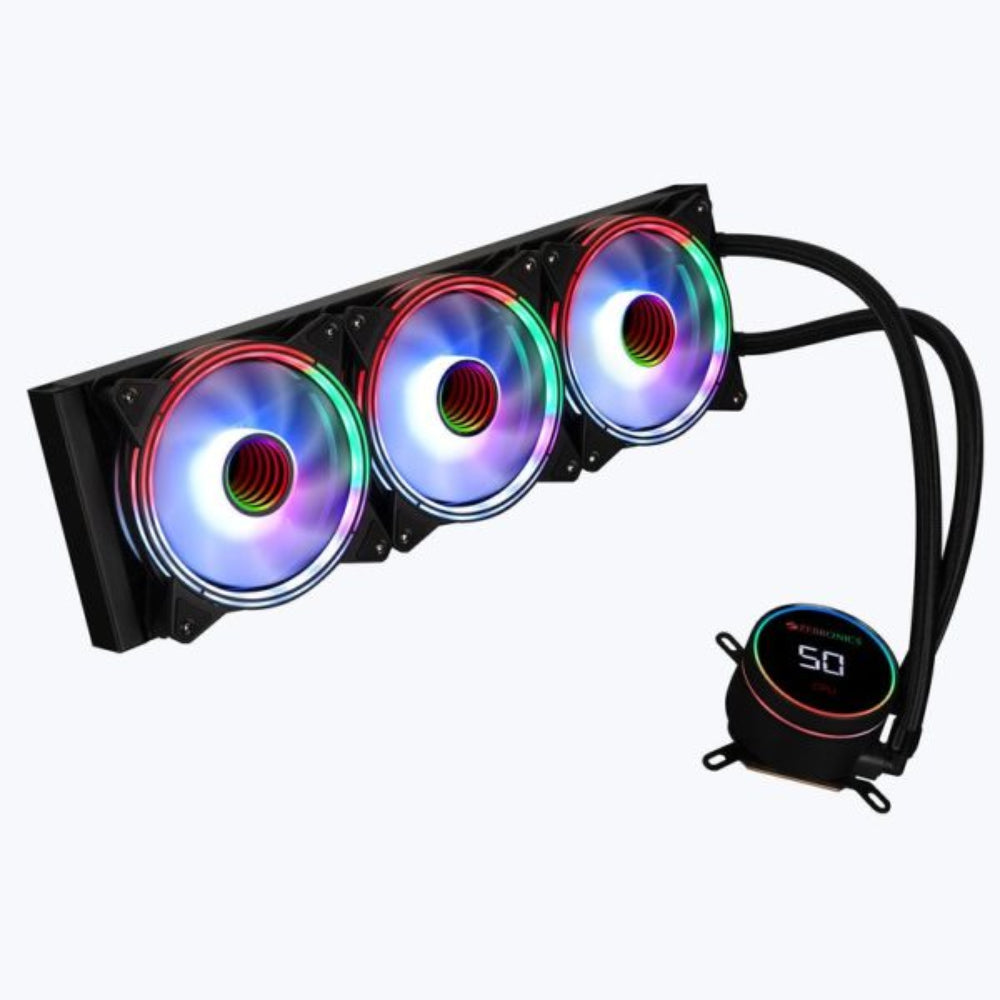

ZEBRONICS ZEB AIO360TB ARGB 360mmCPU Liquid Cooler ( Black )
MPN ZEBRONICS-ZEB-AIO-360TB-ARGB-LIQUID-COOLER · Brand Zebronics · 360mm
The Zebronics ZEB AIO360TB is a 360mm ARGB all-in-one CPU liquid cooler featuring three 120mm fans, 67.96 CFM airflow, a 2500 RPM pump, and broad Intel (LGA 115X–1700/2011/2066) and AMD (AM4/AM5 and legacy) socket compatibility
Inclusive of GST · GST invoice available
Overview
The Zebronics ZEB AIO360TB is a 360mm all-in-one CPU liquid cooler designed for enthusiast and mainstream desktop builds that demand effective thermal management with visual flair. It ships with three 120mm fans running up to 1800 RPM, collectively delivering 67.96 CFM of airflow through a 395 × 120 × 27 mm aluminium radiator. The noise floor sits between 15 dB and 35 dB under varying load conditions, keeping the system acoustically manageable during everyday tasks and demanding workloads alike. The cooler block features an ARGB-lit CPU head that connects via a 3-pin LED connector, enabling synchronisation with compatible motherboard ARGB headers or the included Windows software for independent control. The pump operates at up to 2500 RPM and draws 3.6 W at 12 V / 0.3 A, while the fans draw a combined 2.16 W through their 4-pin PWM connectors. Braided rubber tubing (38 cm length, 12 mm diameter) connects the pump block to the radiator, adding durability and a cleaner cable-management aesthetic. Compatibility is broad: Intel socket families covered include LGA 115X, 1200, 1366, 1700, 2011, and 2066, while AMD support spans FM1, FM2, FM2+, FM3, AM2, AM2+, AM3, AM3+, AM4, and AM5—covering modern Ryzen 7000-series processors. Both the heat sink and heat-transfer pipe are aluminium construction. The pump block dimensions are 95 × 90 × 52 mm, and the entire assembly weighs 1.4 kg. In the box you will find the AIO cooler unit, an AMD mounting bracket, an Intel backplate, five screw sets, thermal paste with a spreader, and a QR code quick-start guide. Mean time between failures (MTBF) is rated at 30,000 hours for both the fans and the pump. Verified Specifications: • Radiator size: 360mm (395 × 120 × 27 mm) • Fans: 3 × 120mm, max 1800 RPM, 67.96 CFM, 15–35 dB • Pump: max 2500 RPM, 3.6 W, 30 dB, 12 V / 0.3 A • Fan power: 2.16 W, 4-pin connector • ARGB: 3-pin LED connector, ARGB sync supported • Tube: braided rubber, 38 cm length, 12 mm diameter • Intel sockets: LGA 115X / 1200 / 1366 / 1700 / 2011 / 2066 • AMD sockets: FM1 / FM2 / FM2+ / FM3 / AM2 / AM2+ / AM3 / AM3+ / AM4 / AM5 • MTBF (fans & pump): 30,000 hours • Net weight: 1.4 kg • Country of origin: PRC

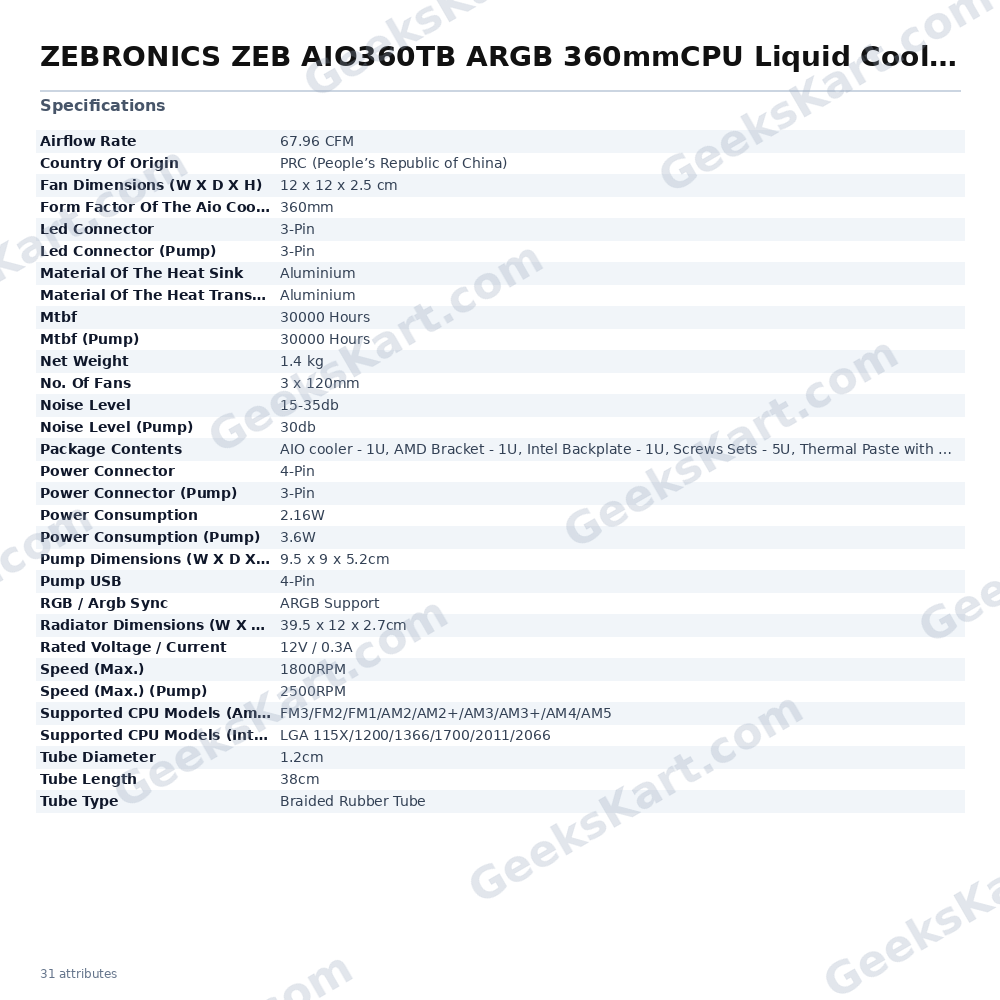

Datasheet
| Power Consumption | 2.16W |
|---|---|
| Mtbf | 30000 Hours |
| Pump USB | 4-Pin |
| Tube Type | Braided Rubber Tube |
| Net Weight | 1.4 kg |
| Mtbf (Pump) | 30000 Hours |
| No. Of Fans | 3 x 120mm |
| Noise Level | 15-35db |
| Tube Length | 38cm |
| Airflow Rate | 67.96 CFM |
| Speed (Max.) | 1800RPM |
| Led Connector | 3-Pin |
| Tube Diameter | 1.2cm |
| Power Connector | 4-Pin |
| RGB / Argb Sync | ARGB Support |
| Package Contents | AIO cooler – 1U, AMD Bracket – 1U, Intel Backplate – 1U, Screws Sets – 5U, Thermal Paste with Spreader – 1U, QR Code Guide – 1U |
| Country Of Origin | PRC (People’s Republic of China) |
| Noise Level (Pump) | 30db |
| Speed (Max.) (Pump) | 2500RPM |
| Led Connector (Pump) | 3-Pin |
| Power Connector (Pump) | 3-Pin |
| Rated Voltage / Current | 12V / 0.3A |
| Power Consumption (Pump) | 3.6W |
| Material Of The Heat Sink | Aluminium |
| Fan Dimensions (W X D X H) | 12 x 12 x 2.5 cm |
| Supported CPU Models (Amd) | FM3/FM2/FM1/AM2/AM2+/AM3/AM3+/AM4/AM5 |
| Pump Dimensions (W X D X H) | 9.5 x 9 x 5.2cm |
| Supported CPU Models (Intel) | LGA 115X/1200/1366/1700/2011/2066 |
| Form Factor Of The Aio Cooler | 360mm |
| Radiator Dimensions (W X D X H) | 39.5 x 12 x 2.7cm |
| Material Of The Heat Transfer Pipe | Aluminium |
