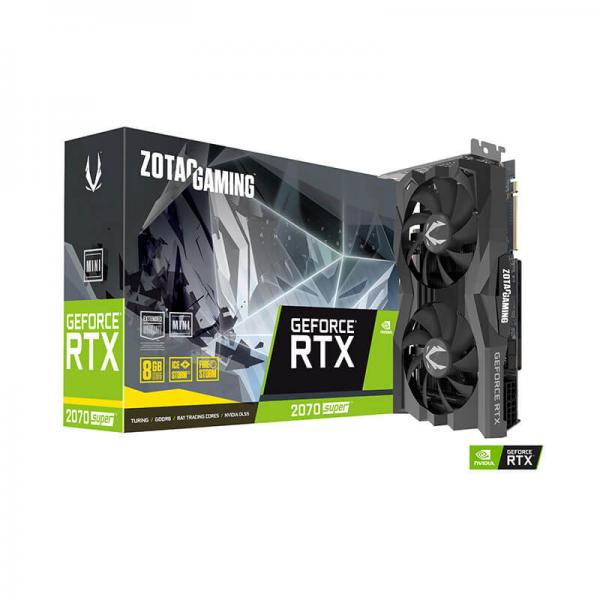

ZOTAC Gaming GeForce RTX 2070 Super Mini 8GB Nvidia Graphic Card
MPN ZOTAC-RTX2070-SUPERMINI · Brand Zotac
Features of ZOTAC Gaming GeForce RTX 2070 Super Mini 8GB Nvidia Graphic Card ZOTAC GAMING GEFORCE RTX 2070 SUPER MINI 8GB GRAPHICS CARD is a fresh addition to the RTX 20 Super series of graphics cards by Zotac Based on the Turing architecture, ZOTAC GAMING GEFORCE RTX 2070 SUPER MINI 8GB GRAPHICS CARD has been packed with more cores and comes with ultra-fast GDDR6 memory. ZOTAC GAMING GEFORCE RTX 2070 SUPER MINI is small only in size. This mini card can deliver a big performance. Being super com
Inclusive of GST · GST invoice available
Overview
Features of ZOTAC Gaming GeForce RTX 2070 Super Mini 8GB Nvidia Graphic Card
ZOTAC GAMING GEFORCE RTX 2070 SUPER MINI 8GB GRAPHICS CARD is a fresh addition to the RTX 20 Super series of graphics cards by Zotac Based on the Turing architecture, ZOTAC GAMING GEFORCE RTX 2070 SUPER MINI 8GB GRAPHICS CARD has been packed with more cores and comes with ultra-fast GDDR6 memory. ZOTAC GAMING GEFORCE RTX 2070 SUPER MINI is small only in size.
This mini card can deliver a big performance. Being super compact in size is compatible with 99% systems. The ZOTAC GAMING GEFORCE RTX 2070 SUPER MINI 8GB GRAPHICS CARD has 2560 CUDA cores with a memory bus of 256-bit and a memory clock of 14.0Gbps. The ZOTAC GAMING GEFORCE RTX 2070 SUPER MINI features the most powerful cooling solution hardware.
Icestorm v2.0 enables cooler, quieter, and stronger overall performance. The GPU has a dynamic layout for the heat sink utilizing more surface area, improved heat pipe layout, stronger aluminum array heat sink fin stack allowing additional heat dissipation. The two 90mm fans help to remove heat away from the heat sink. The ZOTAC GAMING GEFORCE RTX 2070 SUPER MINI comes with NV Link SLI support and an OC scanner for ultimate overclocking with system crashes.
The ZOTAC GAMING GEFORCE RTX 2070 SUPER MINI has a minimum system power requirement of 650W and requires a 6 pin and an 8 pin supplementary power connector. The GPU supports the Microsft DirectX12 API along with VULKAN API and OpenGL 4.5. The ZOTAC GAMING GEFORCE RTX 2070 SUPER MINI comes with 3+2 years of limited warranty.
Everything is super with the all-new ZOTAC GAMING GeForce RTX 20 Series SUPER graphics cards. Based on the NVIDIA Turing architecture, it’s packed with more cores and ultra-fast GDDR6 memory. Integrated with more smart and optimized technologies, get ready to GET FAST and GAME STRONG.
GEFORCE® RTX SUPER™ SERIES
The ZOTAC GAMING GeForce RTX SUPER™ series is powered by the award-winning NVIDIA Turing architecture with dedicated Al and ray-tracing cores for ultimate performance and graphics.
NVIDIA TURING™ ARCHITECTURE
This revolutionary architecture, combined with our all-new ZOTAC GAMING GeForce RTX SUPER platform, fuses together real-time ray tracing, artificial intelligence, and programmable shading. You've never created and enjoyed games like this before.
REAL-TIME RAY TRACING IN GAMES
Ray tracing is the definitive solution for lifelike lighting, reflections, and shadows, offering a level of realism far beyond what's possible using traditional rendering techniques. NVIDIA Turing™ is the first GPU capable of real-time ray tracing.
PERFORMANCE
The ZOTAC GAMING GeForce RTX SUPER series come loaded with superfast GDDR6 memory and powerful GPU to unleash your creative productivity and gaming dominance.
ICESTORM 2.0
The ZOTAC GAMING GeForce RTX SUPER™ graphic card feature our most powerful cooling hardware. IceStorm 2.0 enables cooler, quieter, and stronger overall sustained performance.
ACTIVE FAN CONTROL
Two individual fan controllers allow users to adjust fan rotations independently and apply increased airflow only to where and when it's needed, reducing overall noise and increasing longevity while still keeping things cool under the hood and performance going strong. It's all done automatically so there's nothing you need to do.
- GDDR6 memory
- IceStorm 2.0 Cooling
- Wraparound Metal Backplate
- White LED Lighting
- OC Scanner
- FireStorm Utility

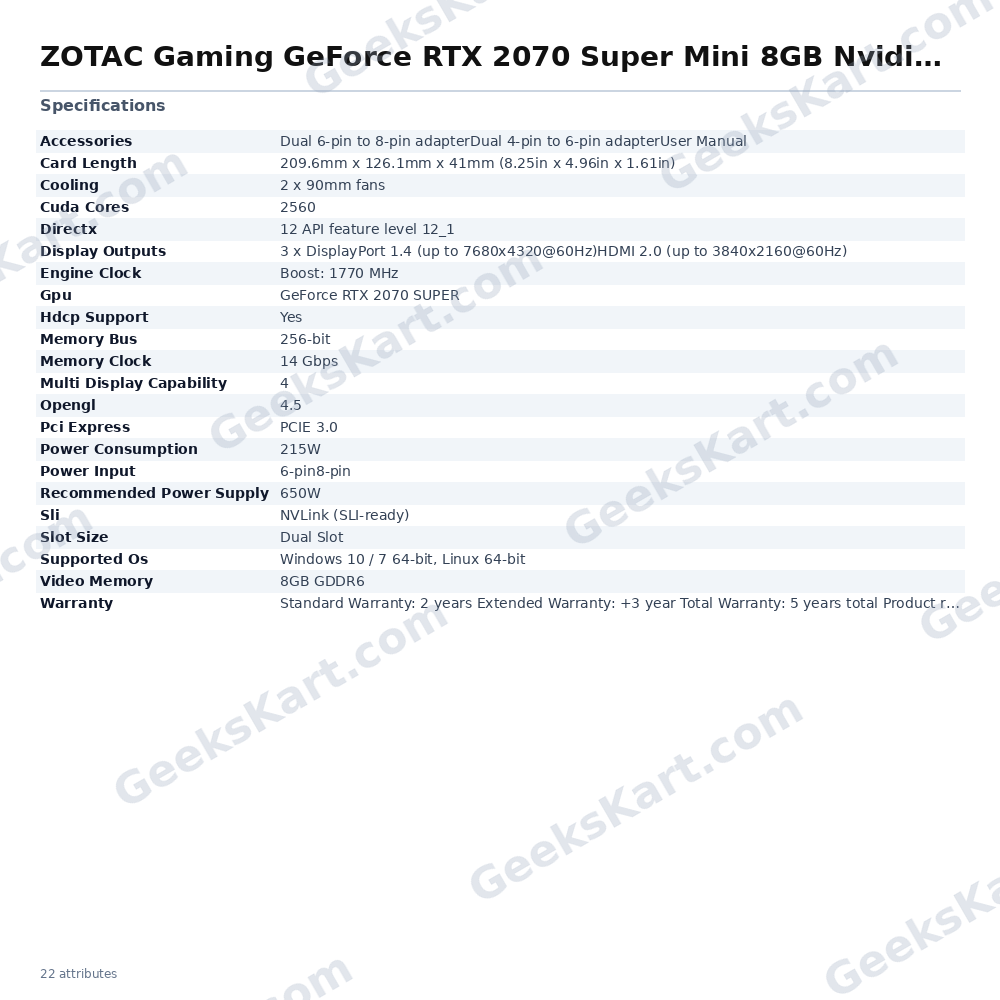

Specifications of ZOTAC Gaming GeForce RTX 2070 Super Mini 8GB Nvidia Graphic Card
| GPU | GeForce RTX 2070 SUPER |
| CUDA Cores | 2560 |
| Video Memory | 8GB GDDR6 |
| Memory BUS | 256-bit |
| Engine Clock | Boost: 1770 MHz |
| Memory Clock | 14 Gbps |
| PCI Express | PCIE 3.0 |
| Display Outputs | 3 x DisplayPort 1.4 (up to 7680x4320@60Hz)HDMI 2.0 (up to 3840x2160@60Hz) |
| HDCP Support | Yes |
| Multi Display Capability | 4 |
| Recommended Power Supply | 650W |
| Power Consumption | 215W |
| Power Input | 6-pin8-pin |
| DirectX | 12 API feature level 12_1 |
| OpenGL | 4.5 |
| Cooling | 2 x 90mm fans |
| Slot Size | Dual Slot |
| SLI | NVLink (SLI-ready) |
| Supported OS | Windows 10 / 7 64-bit, Linux 64-bit |
| Card Length | 209.6mm x 126.1mm x 41mm (8.25in x 4.96in x 1.61in) |
| Accessories | Dual 6-pin to 8-pin adapterDual 4-pin to 6-pin adapterUser Manual |
| Warranty | Standard Warranty: 2 years Extended Warranty: +3 year Total Warranty: 5 years total Product registration is must to get Extended Warranty. Register product at https://www.zotac.com/in/support#registration |
| Note | Price, feature and specifications are subject to change without notice. |
Datasheet
| Sli | NVLink (SLI-ready) |
|---|---|
| Opengl | 4.5 |
| Cooling | 2 x 90mm fans |
| Directx | 12 API feature level 12_1 |
| Slot Size | Dual Slot |
| Cuda Cores | 2560 |
| Memory Bus | 256-bit |
| Accessories | Dual 6-pin to 8-pin adapterDual 4-pin to 6-pin adapterUser Manual |
| Card Length | 209.6mm x 126.1mm x 41mm (8.25in x 4.96in x 1.61in) |
| Pci Express | PCIE 3.0 |
| Power Input | 6-pin8-pin |
| Engine Clock | Boost: 1770 MHz |
| Hdcp Support | Yes |
| Supported Os | Windows 10 / 7 64-bit, Linux 64-bit |
| Video Memory | 8GB GDDR6 |
| Display Outputs | 3 x DisplayPort 1.4 (up to 7680×4320@60Hz)HDMI 2.0 (up to 3840×2160@60Hz) |
| Multi Display Capability | 4 |
| Recommended Power Supply | 650W |
| Warranty | 5 Years |
| GPU | GeForce RTX 2070 SUPER |
| Memory Clock | 14 Gbps |
| Power Consumption | 215W |
