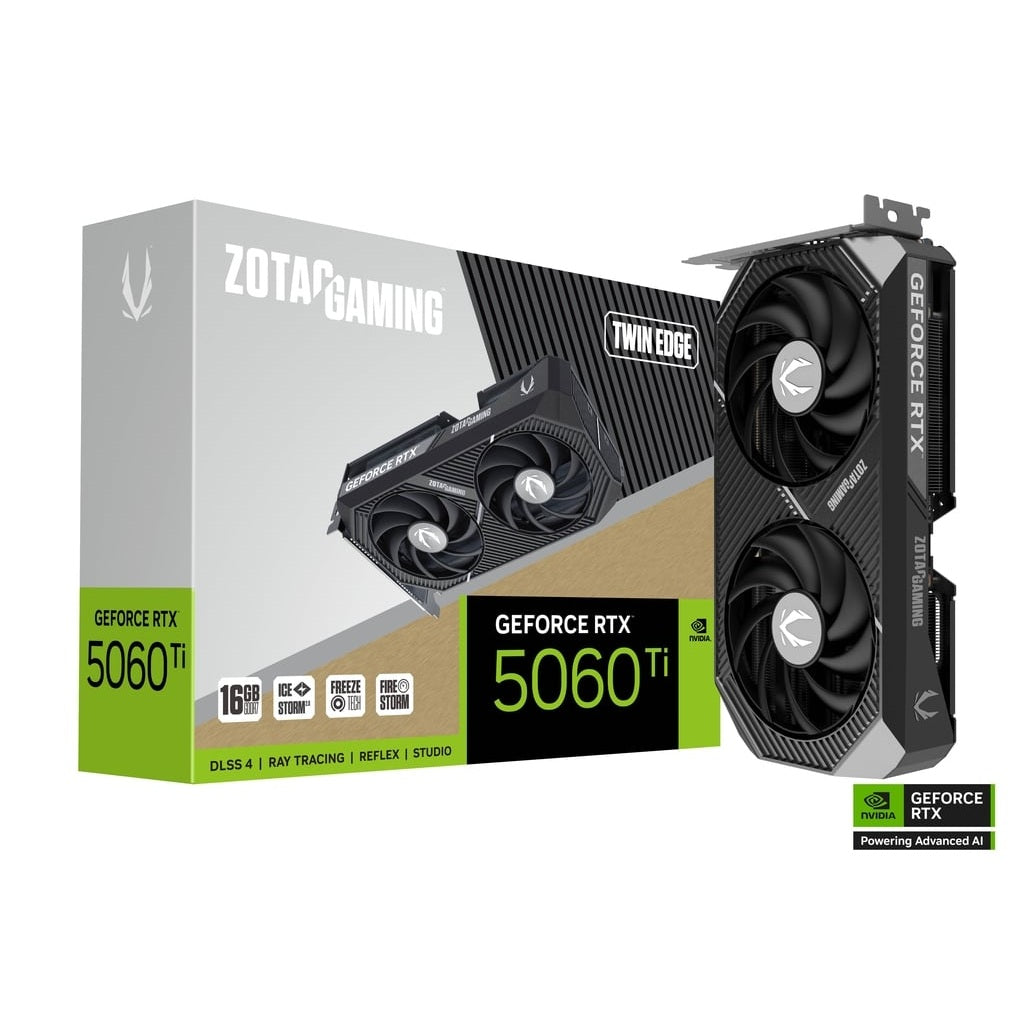

ZOTAC Gaming GeForce RTX 5060 Ti Twin Edge 16GB Nvidia Graphic Card

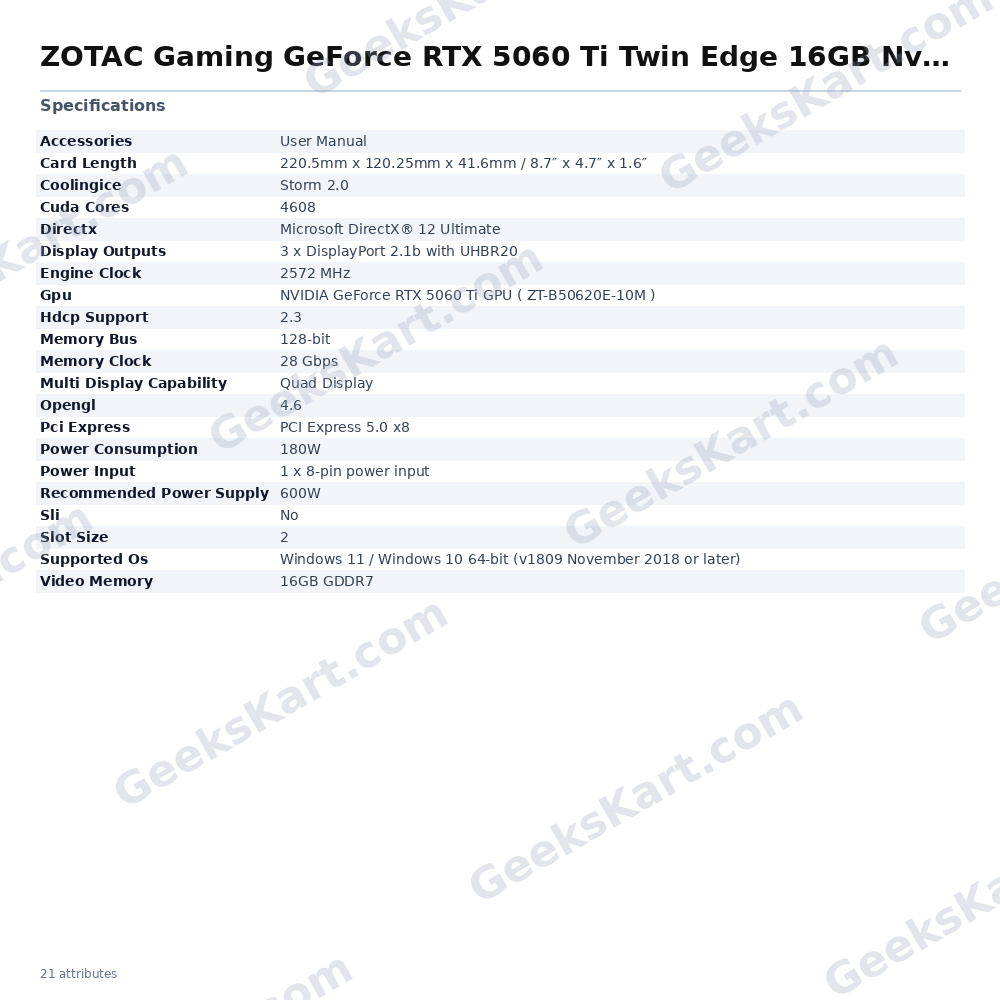

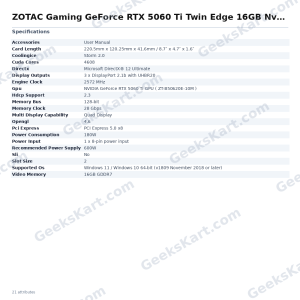

The ZOTAC Gaming GeForce RTX 5060 Ti Twin Edge 16GB is a compact, high-performance graphics card built on NVIDIA’s Blackwell architecture. Designed for gamers and creators who want powerful performance without sacrificing desk or case space, the Twin Edge fits into a slim 2-slot, 220.5 mm footprint — making it an excellent choice for small-form-factor builds and straightforward drop-in upgrades in most standard mid-tower cases. At the core of the card are 4608 CUDA cores paired with 16 GB of GDDR7 memory on a 128-bit bus running at 28 Gbps, delivering fast texture throughput and responsive frame delivery across modern titles. The engine clock reaches 2572 MHz, while the 180 W TDP keeps thermals and power draw modest for its class. A single 8-pin PCIe power connector is all that is required, and ZOTAC recommends a 600 W power supply — a relatively accessible threshold for a mid-range upgrade. Cooling is handled by the IceStorm 2.0 solution, featuring dual BladeLink fans mounted on a heatsink backed by a rigid metal backplate. Display connectivity is generous for a card of this size: three DisplayPort 2.1b outputs with UHBR20 support resolutions up to 4K at 480 Hz or 8K at 165 Hz (with DSC), alongside one HDMI connector capable of 4K at 480 Hz HDR or 8K at 120 Hz HDR (DSC, HDMI 2.1b spec). The card supports quad-display configurations, HDCP 2.3, Microsoft DirectX 12 Ultimate, and OpenGL 4.6. Software support includes NVIDIA DLSS 4 with Multi Frame Generation, NVIDIA Reflex 2 with Frame Warp for reduced latency in competitive titles, full ray tracing via fourth-generation RT Cores, and G-SYNC compatibility. The ZOTAC FireStorm utility provides monitoring and tuning options including clock speed, fan curve, voltage, and white LED lighting control. The card connects via PCI Express 5.0 x8 and supports Windows 10 64-bit (v1809 or later) and Windows 11. Verified Specifications: • GPU: NVIDIA GeForce RTX 5060 Ti (ZT-B50620E-10M) • CUDA Cores: 4608 • Video Memory: 16 GB GDDR7 • Memory Bus: 128-bit • Memory Clock: 28 Gbps • Engine Clock: 2572 MHz • PCI Express: PCIe 5.0 x8 • Display Outputs: 3× DisplayPort 2.1b (UHBR20), 1× HDMI 2.1b • Multi-Display: Quad Display • HDCP: 2.3 • Power Consumption: 180 W • Power Input: 1× 8-pin PCIe • Recommended PSU: 600 W • Slot Width: 2-slot • Card Dimensions: 220.5 mm × 120.25 mm × 41.6 mm • DirectX: 12 Ultimate | OpenGL: 4.6 • OS Support: Windows 11 / Windows 10 64-bit (v1809+) • Cooling: IceStorm 2.0 • Backplate: Metal
