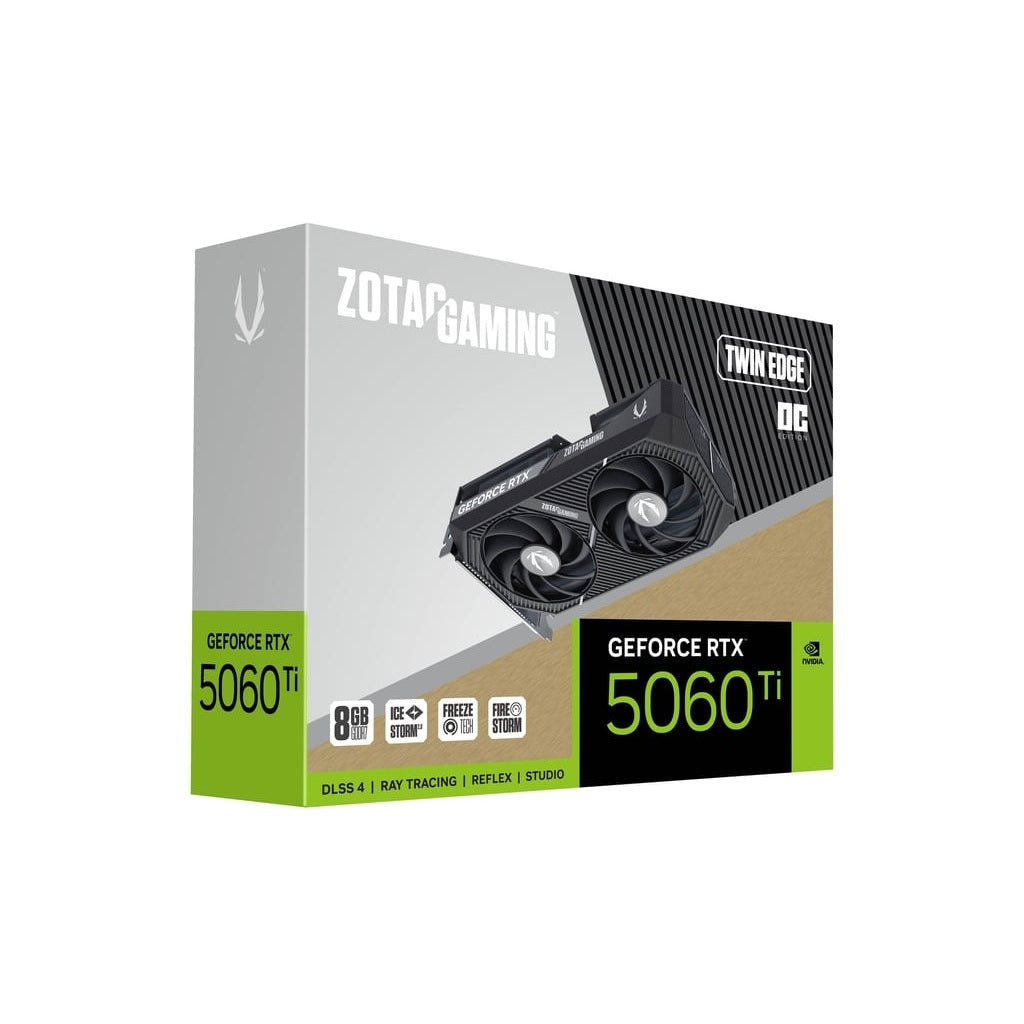

ZOTAC Gaming GeForce RTX 5060 Ti Twin Edge OC 8GB Nvidia Graphic Card

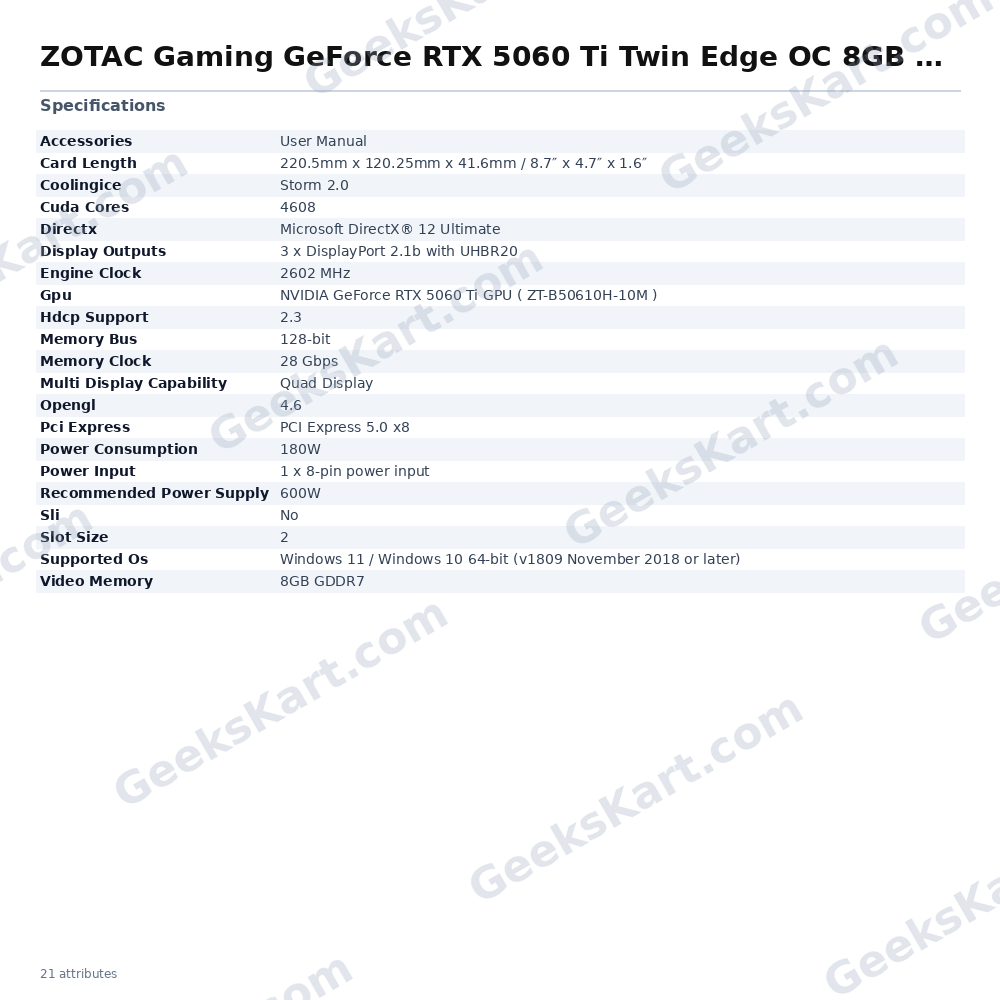

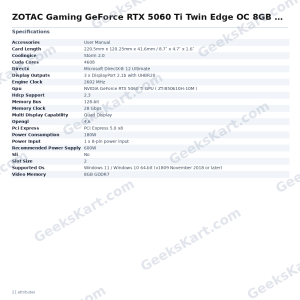

The ZOTAC Gaming GeForce RTX 5060 Ti Twin Edge OC 8GB is a compact, factory-overclocked graphics card built on NVIDIA’s Blackwell architecture. It is designed for gamers and creators who need capable, space-efficient hardware without compromising on modern GPU features. At the heart of this card is the NVIDIA GeForce RTX 5060 Ti GPU (model ZT-B50610H-10M) with 4608 CUDA cores and 8GB of GDDR7 memory running at 28 Gbps across a 128-bit memory bus. The factory boost clock is set at 2602 MHz, reflecting the OC tuning applied at the factory. The Twin Edge OC uses ZOTAC’s IceStorm 2.0 cooling system with BladeLink dual fans and a 2-slot form factor. At 220.5 mm in length, it is SFF-ready and will fit the vast majority of ATX, mATX, and small-form-factor PC cases. A metal backplate adds structural rigidity and a clean finish. White LED lighting provides subtle visual accent without full RGB complexity. For power delivery, a single 8-pin PCIe connector is all that is required. Total board power is rated at 180 W, and ZOTAC recommends a 600 W power supply — a practical threshold that many existing systems already meet, making this an accessible upgrade path. Display connectivity covers up to four simultaneous outputs: three DisplayPort 2.1b ports supporting UHBR20 (capable of 4K at 480 Hz or 8K at 165 Hz with DSC) and one HDMI 2.1b port (supports 4K 120 Hz HDR, 8K 60 Hz HDR, and Variable Refresh Rate). HDCP 2.3 is supported. On the software side, the card supports NVIDIA DLSS 4, including Multi Frame Generation powered by fifth-generation Tensor Cores, as well as NVIDIA Reflex 2 with Frame Warp for reduced system latency. Full ray tracing is enabled via fourth-generation RT Cores on the Blackwell architecture. DirectX 12 Ultimate and OpenGL 4.6 are supported. The card connects via PCI Express 5.0 x8. The ZOTAC FireStorm utility provides monitoring and tuning controls including clock speeds, memory frequencies, voltage adjustment, fan curve customisation, and SPECTRA lighting management. Verified Specifications: – GPU: NVIDIA GeForce RTX 5060 Ti (ZT-B50610H-10M) – CUDA Cores: 4608 – Video Memory: 8 GB GDDR7 – Memory Bus: 128-bit – Memory Bandwidth: 28 Gbps – Engine Clock (OC): 2602 MHz – PCI Express: 5.0 x8 – Display Outputs: 3× DisplayPort 2.1b (UHBR20), 1× HDMI 2.1b – Max Displays: 4 – Power Consumption (TDP): 180 W – Power Connector: 1× 8-pin PCIe – Recommended PSU: 600 W – Slot Width: 2-slot – Card Dimensions: 220.5 mm × 120.25 mm × 41.6 mm – Cooling: IceStorm 2.0 – DirectX: 12 Ultimate – OpenGL: 4.6 – HDCP: 2.3 – OS Support: Windows 11 / Windows 10 64-bit (v1809 or later) – SLI: Not supported
