ZOTAC Gaming GeForce RTX 5060 Twin Edge OC White 8GB NVIDIA Graphic Card

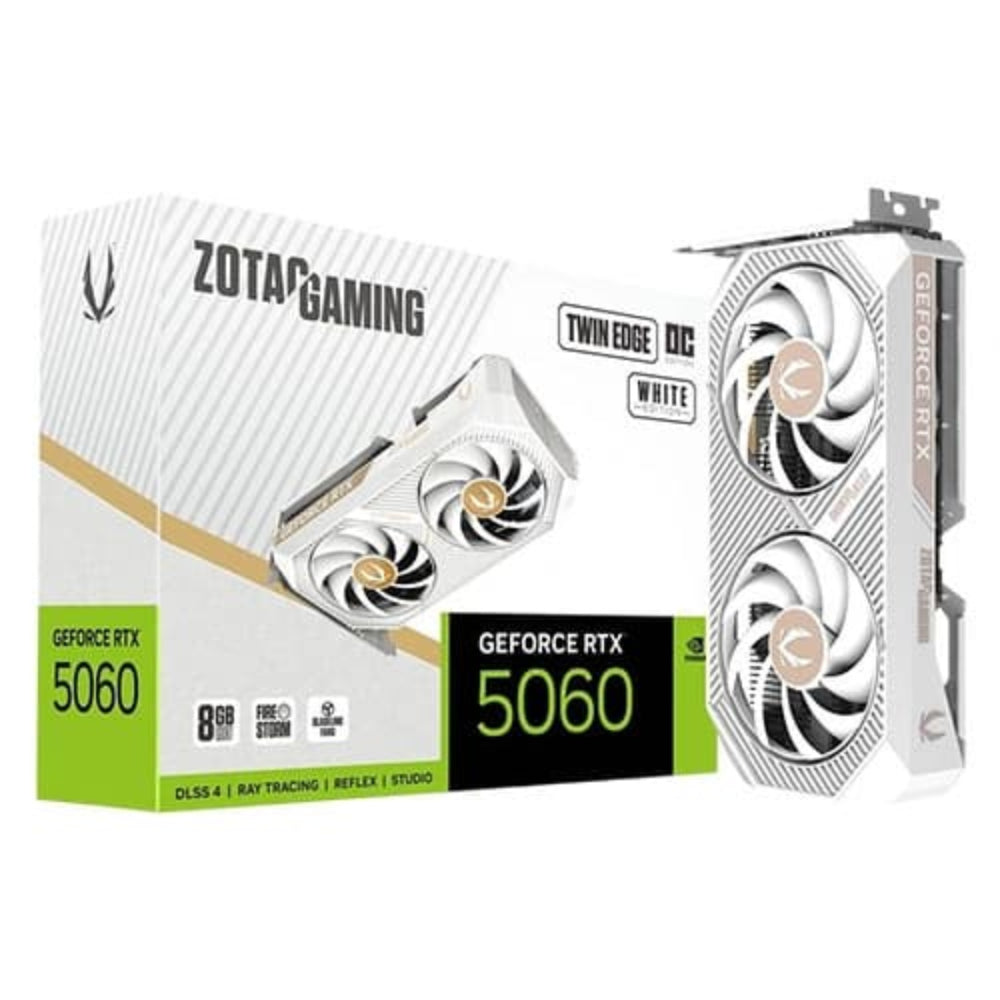

The ZOTAC Gaming GeForce RTX 5060 Twin Edge OC White Edition (model ZT-B50600Q-10M) is a compact, dual-slot graphics card built on the NVIDIA Blackwell architecture. It is designed for gamers who want capable RTX 50-series performance in a small form factor chassis, backed by a clean white aesthetic that complements modern builds. At its core, the card carries 3,840 CUDA cores paired with 8 GB of GDDR7 video memory running at 28 Gbps across a 128-bit bus. The factory overclocked engine clock reaches 2,527 MHz, providing a tangible performance lift over reference speeds straight out of the box. The Blackwell architecture introduces fourth-generation RT Cores for accelerated ray tracing and fifth-generation Tensor Cores that power DLSS 4 — NVIDIA’s neural rendering suite that uses AI to multiply frame output, reduce latency, and improve image quality through Multi Frame Generation and enhanced Super Resolution. Connectivity is broad for its class. Three DisplayPort 2.1b outputs support UHBR20 bandwidth, enabling up to 4K at 480 Hz or 8K at 165 Hz with DSC. A single HDMI 2.1b port supports 4K at 480 Hz HDR or 8K at 120 Hz HDR with DSC, along with Gaming VRR. Together these four outputs enable quad-display configurations. The card connects via PCI Express 5.0 x8 and requires only a single 8-pin PCIe power connector, keeping cable management simple. Power draw is rated at 145 W with a recommended PSU of 550 W — a modest requirement that makes this card a straightforward upgrade for most existing systems. Cooling is handled by the Twin Edge dual-fan air cooler, housed in a 2-slot form factor measuring 220.5 mm × 120.25 mm × 41.6 mm (approximately 8.7 × 4.7 × 1.6 inches). This compact footprint is SFF-ready and fits the majority of mid-tower and small-form-factor cases without modification. A metal backplate adds structural rigidity and contributes to the premium White Edition finish. NVIDIA Reflex 2 with Frame Warp is supported, optimising the graphics pipeline for competitive play by reducing system latency. The card also accelerates AI-powered tasks through its Tensor Cores, including content creation and productivity workloads on Windows. Verified Specifications: • Model: ZT-B50600Q-10M • GPU Architecture: NVIDIA Blackwell • CUDA Cores: 3,840 • Video Memory: 8 GB GDDR7 • Memory Bus: 128-bit • Memory Speed: 28 Gbps • Engine Clock (Boost): 2,527 MHz • PCI Express: PCIe 5.0 x8 • Display Outputs: 3× DisplayPort 2.1b (UHBR20), 1× HDMI 2.1b • Max Resolution: 4K 480 Hz / 8K 165 Hz (DP, DSC); 4K 480 Hz HDR / 8K 120 Hz HDR (HDMI, DSC) • Multi-Display: Quad Display • Power Consumption: 145 W • Power Connector: 1× 8-pin PCIe • Recommended PSU: 550 W • Slot Width: 2-slot • Card Dimensions: 220.5 × 120.25 × 41.6 mm • DirectX: 12 Ultimate • OpenGL: 4.6 • HDCP: 2.3 • Supported OS: Windows 11 / Windows 10 64-bit (v1809 or later) • SLI: Not supported
