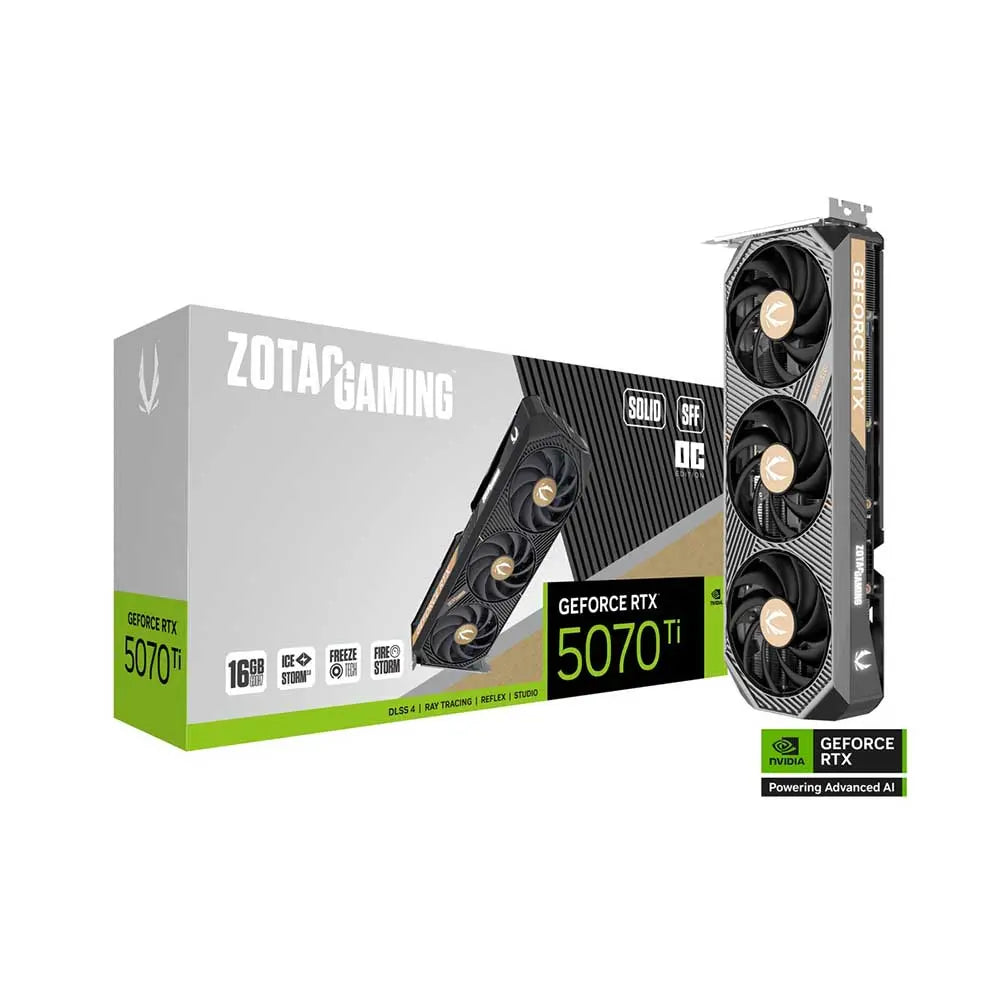

ZOTAC Gaming RTX 5070 Ti Solid SFF OC 16GB Nvidia Graphic Card

The ZOTAC Gaming GeForce RTX 5070 Ti Solid SFF OC 16GB is a high-performance graphics card engineered for enthusiast-level gaming and content creation in space-constrained builds. Built on NVIDIA’s Blackwell architecture, it combines powerful silicon with a compact two-slot form factor that meets the NVIDIA SFF-Ready specification, making it one of the few RTX 5070 Ti class cards suited to small form factor PC cases. At its core, the card carries 8,960 CUDA cores and 16 GB of GDDR7 video memory running across a 256-bit memory bus at 28 Gbps, delivering ample bandwidth for 4K gaming workloads. The boost clock is rated at 2,482 MHz, and the card interfaces with the motherboard via PCI Express 5.0 x16 for maximum throughput. NVIDIA DLSS 4 support enables AI-driven frame generation and upscaling, allowing compatible titles to reach higher frame rates at lower rendering overhead. ZOTAC’s IceStorm 2.0 Advanced Cooling system keeps thermals in check through BladeLink fans and an active fan-control algorithm. The FREEZE Fan Stop feature allows the fans to spin down completely under light or idle loads, reducing noise during everyday tasks. A metal backplate adds structural rigidity, and white LED lighting provides subtle visual accent without requiring full RGB management software. A GPU Support Bracket is bundled in the box to prevent PCIe slot sag. Display output consists of three DisplayPort 2.1b ports with UHBR20 (supporting up to 4K 480 Hz or 8K 165 Hz with DSC) and one HDMI connector supporting 4K 480 Hz HDR or 8K 120 Hz HDR with DSC and Gaming VRR per the HDMI 2.1b specification, enabling up to four simultaneous displays. The card draws power through a single 12V-2×6 connector; ZOTAC rates power consumption at 300 W and recommends a minimum 750 W system power supply. Verified Specifications: • Model / SKU: ZT-B50710J3-10P • GPU: NVIDIA GeForce RTX 5070 Ti (Blackwell) • CUDA Cores: 8,960 • Video Memory: 16 GB GDDR7 • Memory Bus: 256-bit • Memory Speed: 28 Gbps • Boost Clock: 2,482 MHz • Interface: PCI Express 5.0 x16 • Display Outputs: 3 × DisplayPort 2.1b (UHBR20) + 1 × HDMI 2.1b • Multi-Display: Up to 4 displays • Power Consumption: 300 W • Recommended PSU: 750 W • Power Connector: 1 × 12V-2×6 • Slot Width: 2-slot • Card Dimensions: 304.4 mm × 115.8 mm × 41.6 mm • API Support: DirectX 12 Ultimate, OpenGL 4.6 • HDCP: 2.3 • OS Support: Windows 11 / Windows 10 64-bit (v1809 or later) • Warranty: 3-year standard + 2-year extended upon registration (5 years total) • In the Box: GPU Support Bracket, 2 × 8-pin-to-16-pin adapter cable, User Manual
