ADATA XPG Gammix S60 1TB M.2 NVME Gen4 Internal Solid State Drive ( SSD )

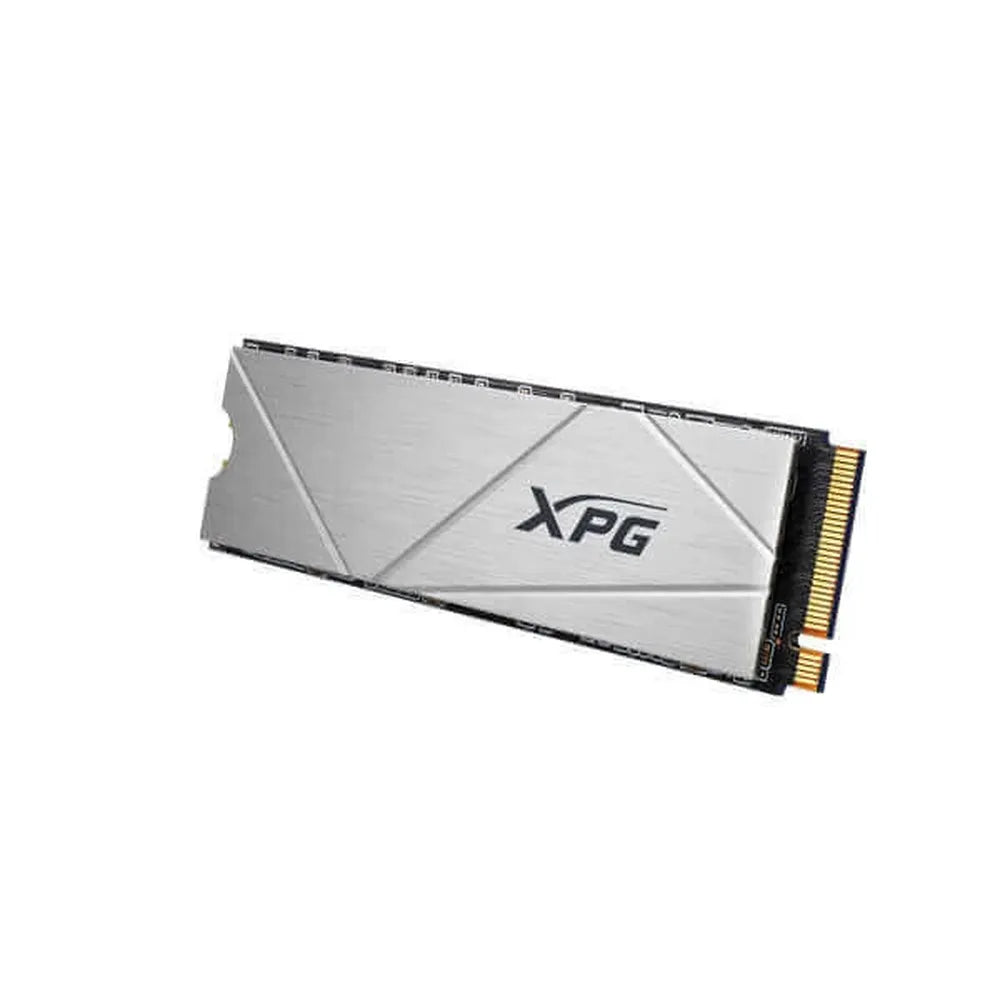

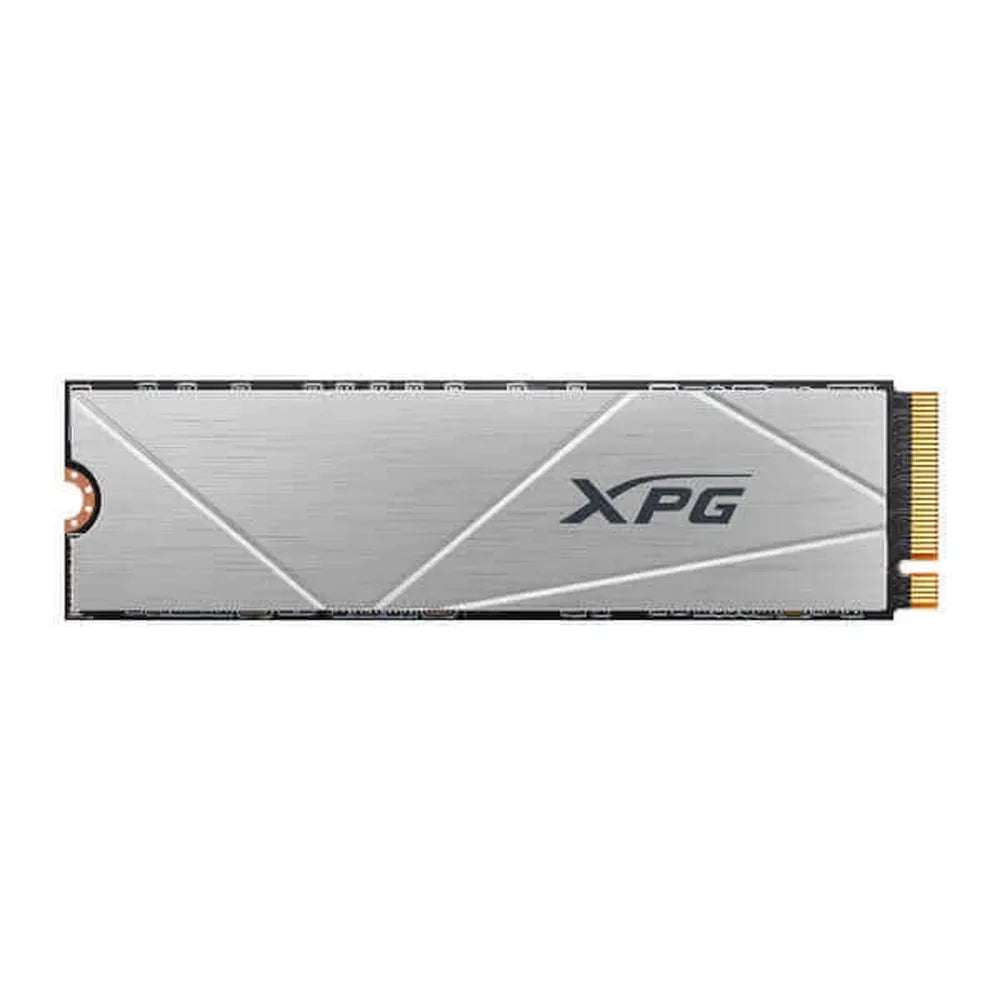

The ADATA XPG Gammix S60 1TB is a PCIe Gen 4 x4 NVMe internal solid-state drive built for users who demand high-throughput storage in an M.2 2280 form factor. Designed under ADATA’s performance-oriented XPG gaming sub-brand, the Gammix S60 leverages a PCIe Gen4 x4 interface to deliver sequential read speeds of up to 5,000 MB/s and sequential write speeds of up to 3,200 MB/s — significantly ahead of what PCIe Gen3 drives and SATA SSDs can offer. It is fully backward compatible with PCIe 3.0 platforms, so it can be dropped into existing systems without complications. Storage reliability is addressed through 3D NAND flash memory, an SLC caching algorithm that accelerates burst writes, and HMB (Host Memory Buffer) support, which offloads mapping table tasks to system RAM to improve multi-file processing efficiency. Data integrity is maintained by an LDPC (Low Density Parity Check) error-correction engine, which detects and corrects bit errors at the hardware level before they can cause data loss. The drive is available in a heatsink-equipped configuration as well as a bare-drive variant, both using the standard M.2 2280 footprint. The heatsink version measures 80 × 22 × 3.13 mm and weighs 8 g, while the bare version measures 80 × 22 × 2.15 mm and weighs 7 g — meaning it will clear most M.2 slots even on compact motherboards. For peace of mind, ADATA backs the Gammix S60 with a 5-year limited warranty. Verified Specifications — Model: AGAMMIXS60-1T-CS | Capacity: 1 TB | Interface: PCIe Gen4 x4 | Protocol: NVMe | Form Factor: M.2 2280 | NAND: 3D NAND | Sequential Read: 5,000 MB/s | Sequential Write: 3,200 MB/s | MTBF: 1,500,000 hours | Shock Resistance: 1,500 G / 0.5 ms | Operating Temperature: 0 °C – 70 °C | Storage Temperature: −40 °C – 85 °C | Dimensions with heatsink: 80 × 22 × 3.13 mm | Dimensions without heatsink: 80 × 22 × 2.15 mm | Weight with heatsink: 8 g | Weight without heatsink: 7 g | Warranty: 5-year limited
