AMD Ryzen 5 8600G 8th Generation Processor ( 5 GHz / 6 Cores / 12 Threads )
MPN AMD-RYZEN-5-8600G · Brand AMD
Features of AMD Ryzen 5 8600G 8th Generation Processor ( 5 GHz / 6 Cores / 12 Threads ) 6 Cores & 12 Threads 4.3 GHz Base Clock 5 GHz Max Boost Clock Socket AM5 6MB L2 & 16MB L3 Cache Integrated AMD Radeon 760M Graphics DDR5-5200 Memory Unlocked Processor | AMD Ryzen AI Includes Wraith Stealth Cooler Zen 4 Architecture Specification of AMD Ryzen 5 8600G 8th Generation Processor ( 5 GHz / 6 Cores / 12 Threads ) CPU Model AMD Ryzen 5 8600G ( 100-100001237BOX ) CPU Socket AM5 Manufacturing
Inclusive of GST · GST invoice available
Overview
Features of AMD Ryzen 5 8600G 8th Generation Processor ( 5 GHz / 6 Cores / 12 Threads )
- 6 Cores & 12 Threads
- 4.3 GHz Base Clock
- 5 GHz Max Boost Clock
- Socket AM5
- 6MB L2 & 16MB L3 Cache
- Integrated AMD Radeon 760M Graphics
- DDR5-5200 Memory
- Unlocked Processor | AMD Ryzen AI
- Includes Wraith Stealth Cooler
- Zen 4 Architecture
Specification of AMD Ryzen 5 8600G 8th Generation Processor ( 5 GHz / 6 Cores / 12 Threads )
| CPU Model | AMD Ryzen 5 8600G ( 100-100001237BOX ) |
| CPU Socket | AM5 |
| Manufacturing Process | 4 nm |
| Maximum CPU Configuration | 1S |
| Maximum Number of PCIe Lanes | 20 (Revision 4.0) |
| Unlocked | Yes |
| Performance | |
| Number of Cores | 6 |
| Number of Threads | 12 |
| Base Clock Speed | 4.3 GHz |
| Maximum Boost Speed | 5 GHz |
| L3 Cache | 16 MB |
| Memory Support | |
| Maximum Capacity | 256 GB |
| Memory Support | DDR5 Up to 5200 MHz |
| ECC Memory | Yes |
| Channel Architecture | Dual Channel |
| Power | |
| Thermal Design Power (TDP) | 65 W |
| Included Thermal Solution | Wraith Stealth |
| Maximum Temperature | 203°F / 95°C |
| Thermal Monitoring Technologies | Yes |
| Technology | |
| AES Support | Yes |
| Extension | AVX, AVX 2.0, AVX-512, FMA3, SSE 4.1, SSE 4.1/4.2 |
| Instruction Set | 64-Bit |
| Virtualization | Yes |
| Performance Technologies | AMD EXPO, AMD Ryzen AI, Precision Boost 2 |
| Integrated Graphics | |
| Integrated Graphics | AMD Radeon 760M |
| Maximum Resolution Support | 7680 x 4320 at 60 Hz |
| Supported APIs | DirectX: 12 |
| Number of Displays | 4 |
| Output Support | DisplayPort, HDMI |
| Base Clock Speed | 2800 MHz |

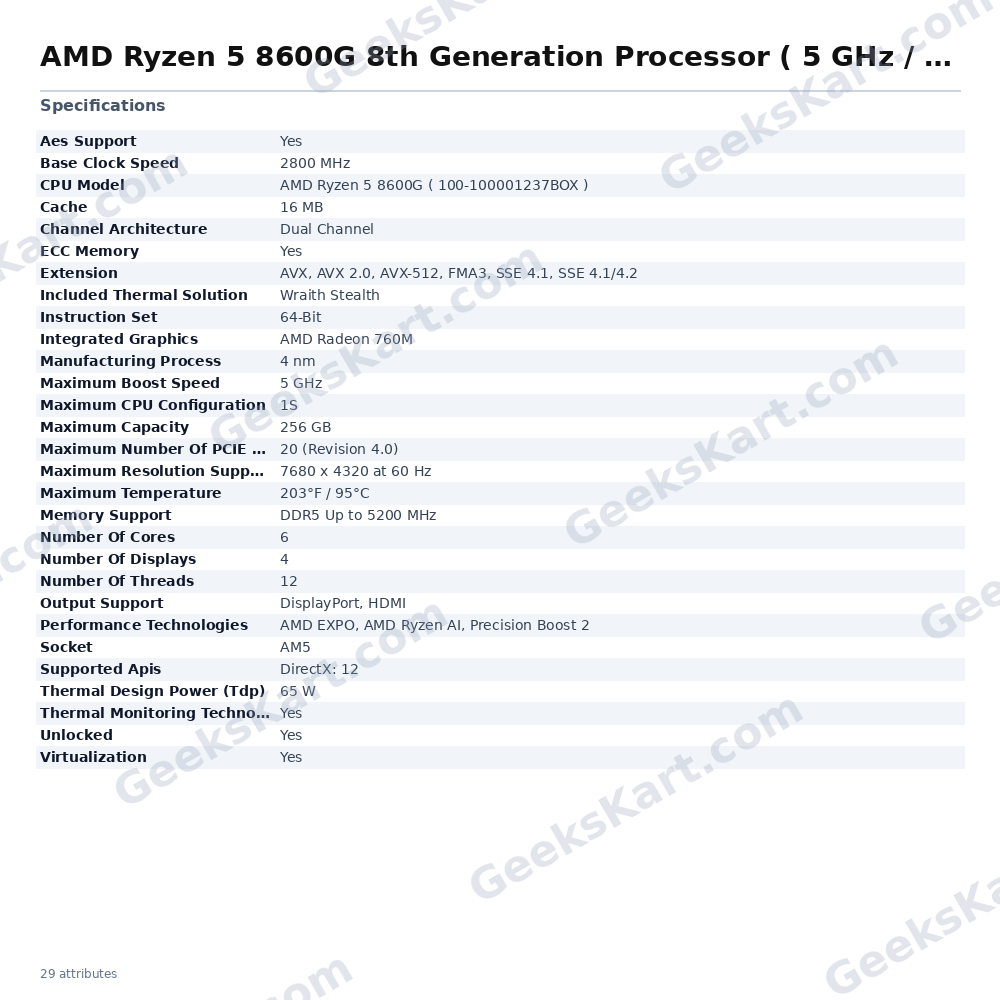

Datasheet
| Socket | AM5 |
|---|---|
| Cache | 16 MB |
| Unlocked | Yes |
| CPU Model | AMD Ryzen 5 8600G ( 100-100001237BOX ) |
| Extension | AVX, AVX 2.0, AVX-512, FMA3, SSE 4.1, SSE 4.1/4.2 |
| ECC Memory | Yes |
| Aes Support | Yes |
| Memory Support | DDR5 Up to 5200 MHz |
| Output Support | DisplayPort, HDMI |
| Supported Apis | DirectX: 12 |
| Virtualization | Yes |
| Instruction Set | 64-Bit |
| Number Of Cores | 6 |
| Base Clock Speed | 2800 MHz |
| Maximum Capacity | 256 GB |
| Number Of Threads | 12 |
| Number Of Displays | 4 |
| Integrated Graphics | AMD Radeon 760M |
| Maximum Boost Speed | 5 GHz |
| Maximum Temperature | 203°F / 95°C |
| Channel Architecture | Dual Channel |
| Manufacturing Process | 4 nm |
| Performance Technologies | AMD EXPO, AMD Ryzen AI, Precision Boost 2 |
| Included Thermal Solution | Wraith Stealth |
| Maximum CPU Configuration | 1S |
| Maximum Resolution Support | 7680 x 4320 at 60 Hz |
| Thermal Design Power (Tdp) | 65 W |
| Maximum Number Of PCIE Lanes | 20 (Revision 4.0) |
| Thermal Monitoring Technologies | Yes |
