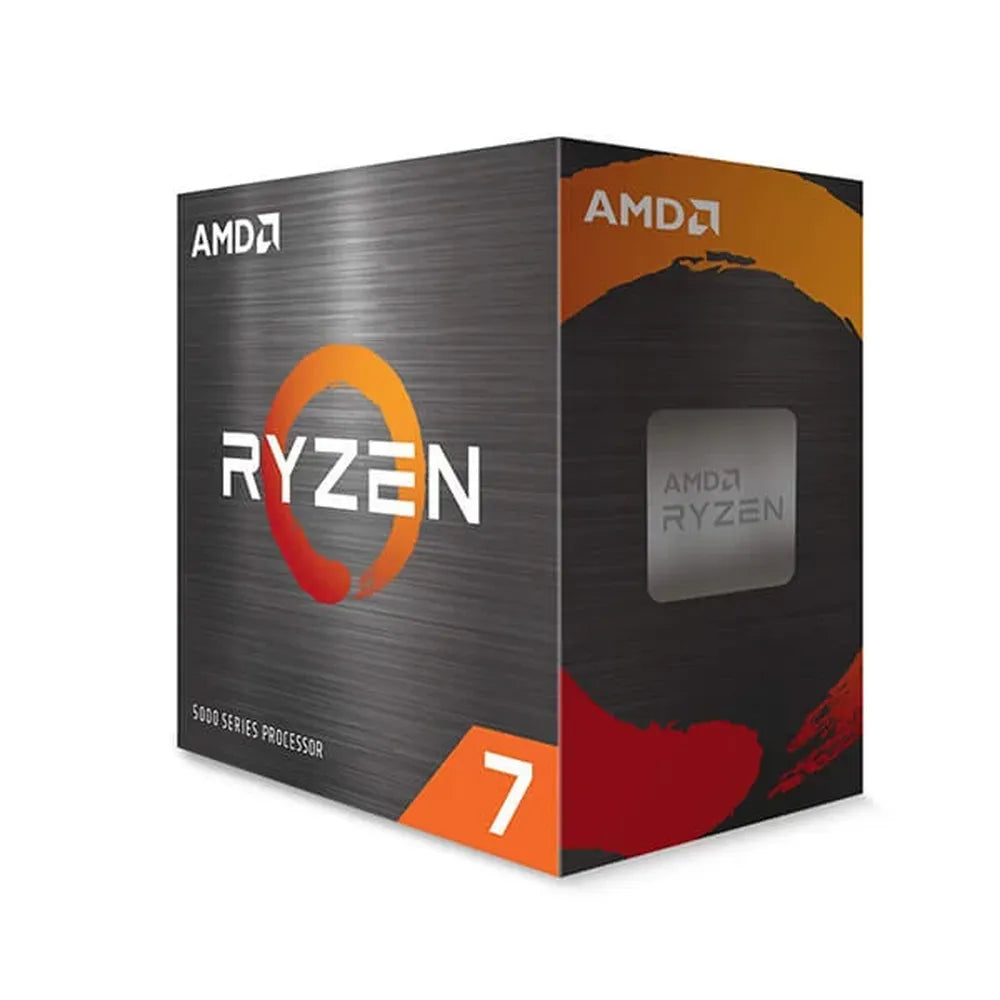

AMD Ryzen 7 5700 5th Generation Desktop Processor ( 4.6 GHz / 8 Cores / 16 Threads )
MPN AMD-RYZEN-7-5700 · Brand AMD
Features of AMD Ryzen 7 5700 5th Generation Desktop Processor ( 4.6 GHz / 8 Cores / 16 Threads ) AMD ryzen 7 5700 is a AM4 Unlocked Processor with 8 CPU Core, 16 Threads, Up to 4.6GHz Boost Clock, 3.7GHz Base Clock, 20MB Cache and Zen 3 Architecture, 65W TDP and DDR4 Memory. This CPU Good for multitasking, content creation, video editing, 3D rendering. AMD Ryzen 7 5700 is an APU and part of the Zen 3 “Cezanne” line up of the AMD Ryzen processors which feature faster clock speeds thanks to improv
Inclusive of GST · GST invoice available
Overview
Features of AMD Ryzen 7 5700 5th Generation Desktop Processor ( 4.6 GHz / 8 Cores / 16 Threads )
AMD ryzen 7 5700 is a AM4 Unlocked Processor with 8 CPU Core, 16 Threads, Up to 4.6GHz Boost Clock, 3.7GHz Base Clock, 20MB Cache and Zen 3 Architecture, 65W TDP and DDR4 Memory. This CPU Good for multitasking, content creation, video editing, 3D rendering.
AMD Ryzen 7 5700 is an APU and part of the Zen 3 “Cezanne” line up of the AMD Ryzen processors which feature faster clock speeds thanks to improvements in the silicon used by AMD for these processors.
AMD 5000 Series Processor deliver unrivaled technologies for exceptional performance
Precision Boost 2
Precision Boost Overdrive
AMD StoreMI Technology
AMD Ryzen VR Ready Premium
AMD Ryzen Master Utility
Personalized Performance
System Monitoring
Specifications of AMD Ryzen 7 5700 5th Generation Desktop Processor ( 4.6 GHz / 8 Cores / 16 Threads )
| Model | AMD Ryzen 7 5700 |
| Platform | Boxed Processor |
| Market Segment | Mainstream Desktop |
| Product Family | AMD Ryzen™ Processors |
| Product Line | AMD Ryzen™ 7 Desktop Processors |
| Consumer Use | Yes |
| Former Codename | "Cezanne" |
| Architecture | "Zen 3" |
| # of CPU Cores | 8 |
| # of Threads | 16 |
| Max. Boost Clock | Up to 4.6GHz |
| Base Clock | 3.7GHz |
| L1 Cache | 512KB |
| L2 Cache | 4MB |
| L3 Cache | 16MB |
| Default TDP | 65W |
| AMD Configurable TDP (cTDP) | 45-65W |
| Processor Technology for CPU Cores | TSMC 7nm FinFET |
| CPU Compute Die (CCD) Size | 180mm² |
| Package Die Count | 1 |
| Unlocked for Overclocking | Yes |
| CPU Socket | AM4 |
| Socket Count | 1P |
| Supporting Chipsets | X570 X470 X370 B550 B450 B350 A520 |
| CPU Boost Technology | Precision Boost 2 |
| Instruction Set | x86-64 |
| Supported Extensions | AES, AMD-V, AVX, AVX2, FMA3, MMX(+), SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64 |
| Thermal Solution (PIB) | AMD Wraith Stealth |
| Max. Operating Temperature (Tjmax) | 95°C |
| *OS Support | Windows 10 - 64-Bit Edition RHEL x86 64-Bit Ubuntu x86 64-Bit *Operating System (OS) support will vary by manufacturer. |
| Connectivity | |
| USB Type-C® Support | Yes |
| Native USB 4 (40Gbps) Ports | 0 |
| Native USB 3.2 Gen 2 (10Gbps) Ports | 4 |
| Native USB 3.2 Gen 1 (5Gbps) Ports | 0 |
| Native USB 2.0 (480Mbps) Ports | 0 |
| Native SATA Ports | 2 |
| PCI Express® Version | PCIe 3.0 |
| Native PCIe® Lanes (Total/Usable) | 24 / 20 |
| Additional Usable PCIe Lanes from Motherboard | AMD X570 16x Gen 3 AMD X470 2x Gen 3 AMD X470 8x Gen 2 |
| NVMe Support | Boot, RAID0, RAID1, RAID10 |
| System Memory Type | DDR4 |
| Memory Channels | 2 |
| System Memory Subtype | UDIMM |
| System Memory Specification | Up to 3200MT/s |
| Max Memory Speed | 2x1R DDR4-3200 2x2R DDR4-3200 4x1R DDR4-2933 4x2R DDR4-2667 |
| ECC Support | No |
| Graphics Capabilities | |
| Integrated Graphics | No |
| Graphics Model | Discrete Graphics Card Required |
| Key Features | |
| Supported Technologies | AMD StoreMI Technology AMD Ryzen™ VR-Ready Premium |
| Warranty | 3 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
Datasheet
| Model | AMD Ryzen 7 5700 |
|---|---|
| L1 Cache | 512KB |
| L2 Cache | 4MB |
| Platform | Boxed Processor |
| Base Clock | 3.7GHz |
| *Os Support | Windows 10 – 64-Bit EditionRHEL x86 64-BitUbuntu x86 64-Bit*Operating System (OS) support will vary by manufacturer |
| Ecc Support | No |
| Architecture | "Zen 3" |
| Consumer Use | Yes |
| Nvme Support | Boot, RAID0, RAID1, RAID10 |
| Product Line | AMD Ryzen™ 7 Desktop Processors |
| Socket Count | 1P |
| Integrated Graphics | Discrete Graphics Card Required |
| Market Segment | Mainstream Desktop |
| Product Family | AMD Ryzen™ Processors |
| Former Codename | "Cezanne" |
| Instruction Set | x86-64 |
| Memory Channels | 2 |
| Max Memory Speed | 2x1R DDR4-32002x2R DDR4-32004x1R DDR4-29334x2R DDR4-2667 |
| Boost Clock | Up to 4.6GHz |
| Native Sata Ports | 2 |
| Package Die Count | 1 |
| Supporting Chipsets | X570X470X370B550B450B350A520 |
| Cpu Boost Technology | Precision Boost 2 |
| Supported Extensions | AES, AMD-V, AVX, AVX2, FMA3, MMX(+), SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64 |
| Usb Type-C® Support | Yes |
| Pci Express® Version | PCIe 3.0 |
| System Memory Subtype | UDIMM |
| Supported Technologies | AMD StoreMI TechnologyAMD Ryzen™ VR-Ready Premium |
| Cpu Cooler Included | AMD Wraith Stealth |
| Unlocked For Overclocking | Yes |
| Cpu Compute Die (Ccd) Size | 180mm² |
| Amd Configurable Tdp (Ctdp) | 45-65W |
| Native Usb 4 (40Gbps) Ports | 0 |
| System Memory Specification | Up to 3200MT/s |
| Native Usb 2.0 (480Mbps) Ports | 0 |
| Max. Operating Temperature (Tjmax) | 95°C |
| Native Pcie® Lanes (Total/Usable) | 24 / 20 |
| Native Usb 3.2 Gen 1 (5Gbps) Ports | 0 |
| Processor Technology For Cpu Cores | TSMC 7nm FinFET |
| Native Usb 3.2 Gen 2 (10Gbps) Ports | 4 |
| Additional Usable Pcie Lanes From Motherboard | AMD X570 16x Gen 3AMD X470 2x Gen 3AMD X470 8x Gen 2 |
| Memory Type | DDR4 |
| Warranty | 3 Years |
| Socket | AM4 |
| Cores | 8 |
| Threads | 16 |
| TDP | 65W |
| Cache | 16MB |
