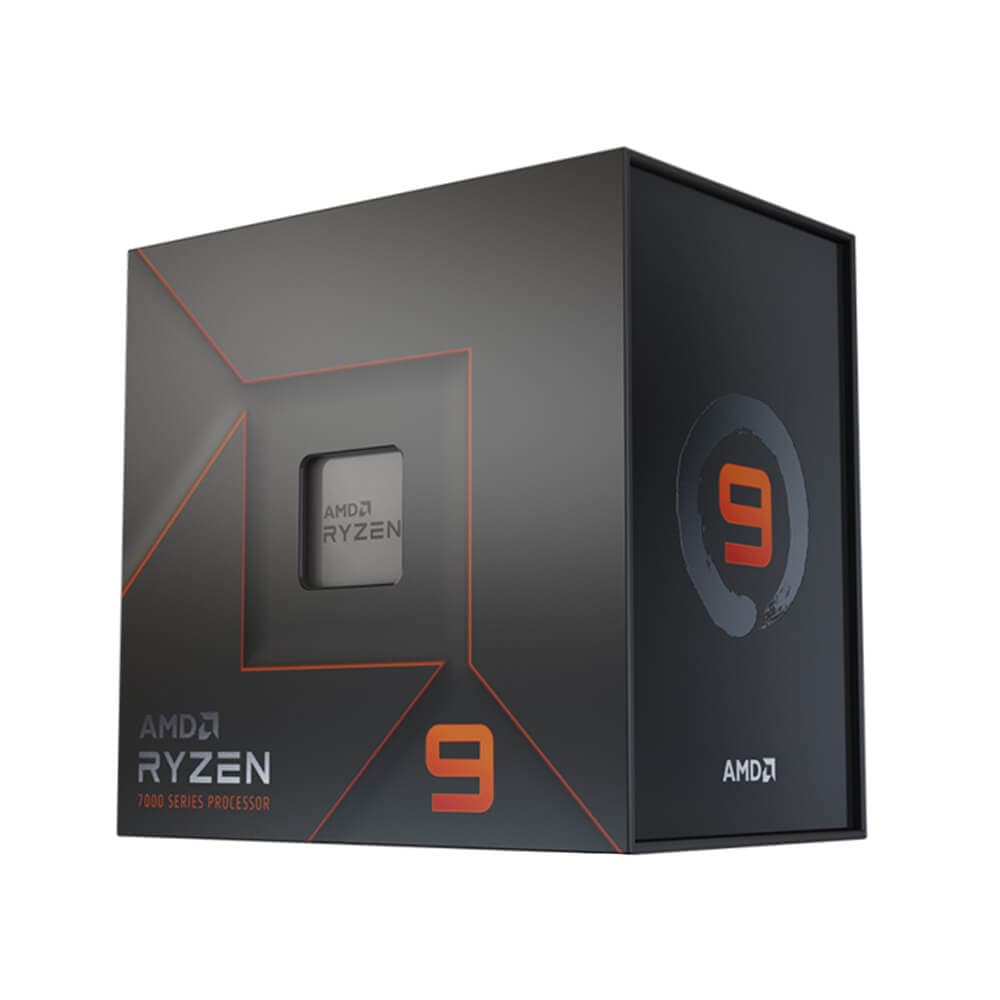

AMD Ryzen 9 7900X 7th Generation Processor ( 5.6 GHz / 12 Cores / 24 Threads )

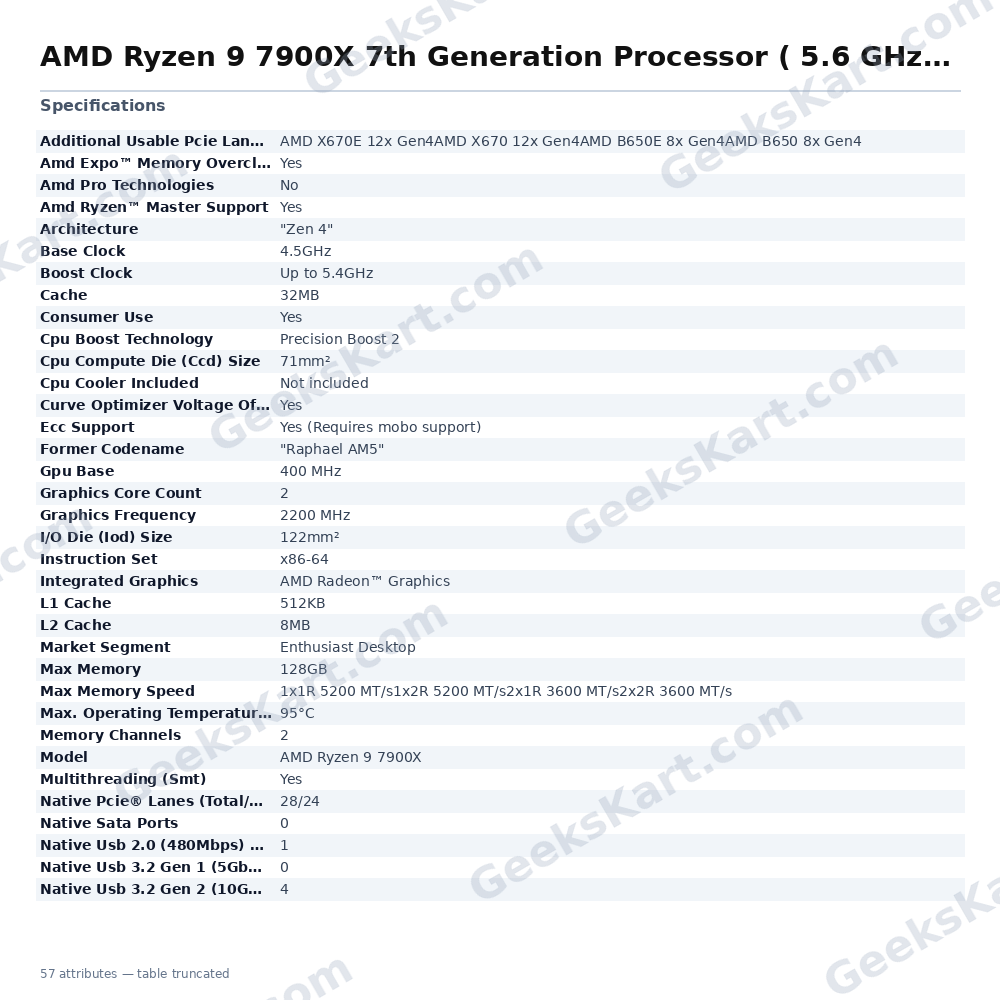

The AMD Ryzen 9 7900X is a high-performance desktop processor built on AMD’s Zen 4 architecture, designed for enthusiast-class users who demand serious compute capability for gaming, content creation, and professional workloads. Manufactured on TSMC’s 5nm process for the compute die and 6nm FinFET for the I/O die, it delivers a strong balance of raw throughput and power efficiency. With 12 cores and 24 threads courtesy of Simultaneous Multi-Threading (SMT), the 7900X handles demanding multi-threaded tasks with ease. The processor runs at a base clock of 4.5GHz and can boost up to 5.4GHz via Precision Boost 2, which dynamically adjusts frequencies based on workload, thermals, and power headroom. Precision Boost Overdrive further extends this capability by using your motherboard’s power delivery to sustain higher clocks for longer periods. The 7900X uses the AMD AM5 platform, supporting DDR5 memory with up to 128GB across two channels, reaching speeds of up to 5200 MT/s in a single-rank configuration. AMD EXPO technology enables straightforward one-touch DDR5 memory overclocking, letting you unlock higher memory frequencies with minimal setup. The processor also offers ECC memory support, subject to motherboard compatibility. On the connectivity front, it provides 28 PCIe lanes (24 usable) natively, with full PCIe 5.0 support for graphics and NVMe storage. Compatible chipsets include X670E, X670, B650E, and B650, offering builders a range of platform options. NVMe storage is supported in Boot, RAID 0, RAID 1, and RAID 10 configurations. The integrated AMD Radeon Graphics (2 compute units, up to 2200MHz) serve as a basic display output during setup or troubleshooting. A dedicated discrete GPU is recommended for gaming or GPU-accelerated workloads. The processor is fully unlocked for overclocking and supports AMD Ryzen Master, Curve Optimizer, and Voltage Offset tuning for fine-grained performance adjustments. No cooler is included; a capable third-party AM5-compatible cooler is required. Verified Specifications: – Cores / Threads: 12 / 24 – Base Clock: 4.5GHz | Boost Clock: Up to 5.4GHz – L1 Cache: 512KB | L2 Cache: 8MB | L3 Cache: 32MB – TDP: 105W | Max Tj: 95°C – Socket: AM5 | Architecture: Zen 4 – Memory: DDR5, Dual-Channel, Up to 128GB, Max 5200 MT/s (1R) – PCIe Lanes: 28 total / 24 usable (PCIe 5.0) – Integrated Graphics: AMD Radeon (2CU, up to 2200MHz) – Process Node: TSMC 5nm (CCD), TSMC 6nm FinFET (IOD) – Overclocking: Unlocked; supports PBO, EXPO, Curve Optimizer – OS Support: Windows 11/10 (64-bit), RHEL, Ubuntu – Warranty: 3 Years – Cooler: Not included
