ANT ESPORTS Crystal X11 ARGB ATX Mid Tower Cabinet (Green)
MPN ANT-ESPORTS-CRYSTAL-X11-GREEN · Brand Ant Esports
The Ant Esports Crystal X11 is an ARGB ATX mid-tower PC cabinet in Green-Black featuring tempered glass panels, four pre-installed 120 mm ARGB fans, 410 mm GPU clearance, and support for up to 360 mm AIO liquid cooling
Inclusive of GST · GST invoice available
Overview

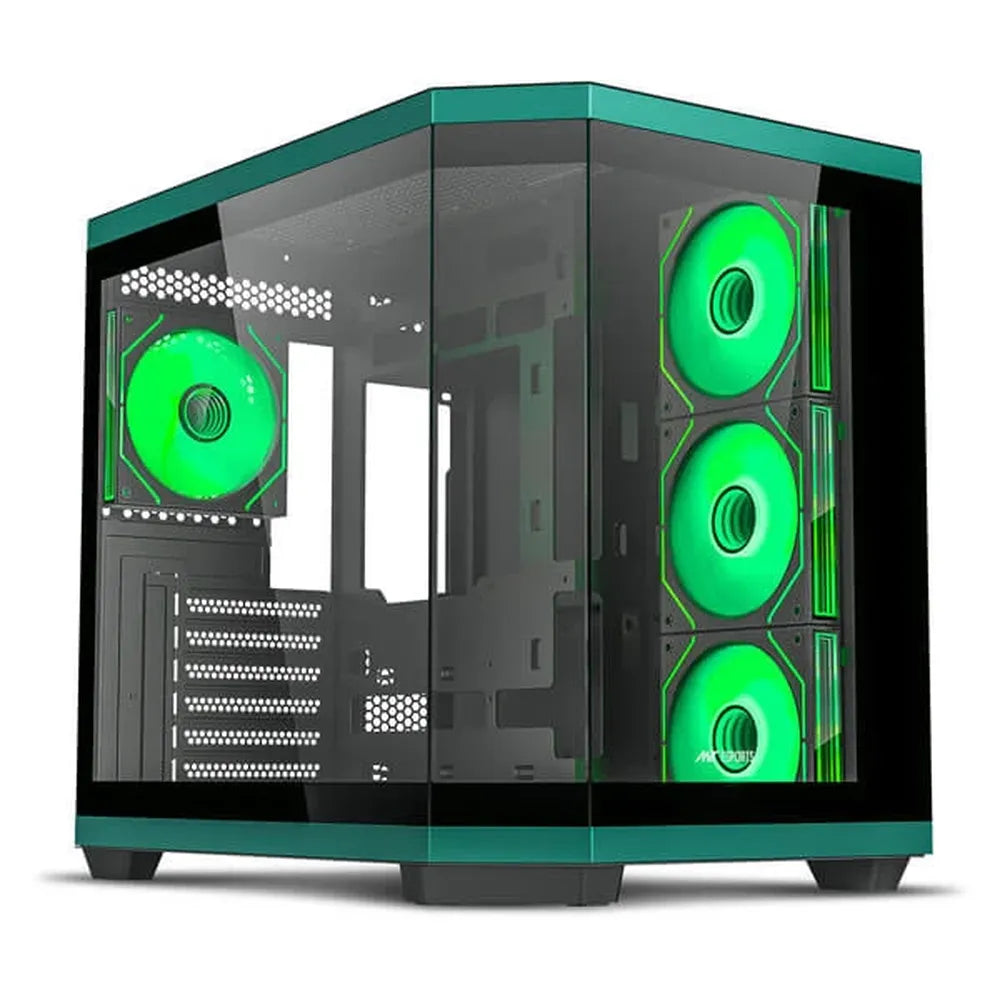

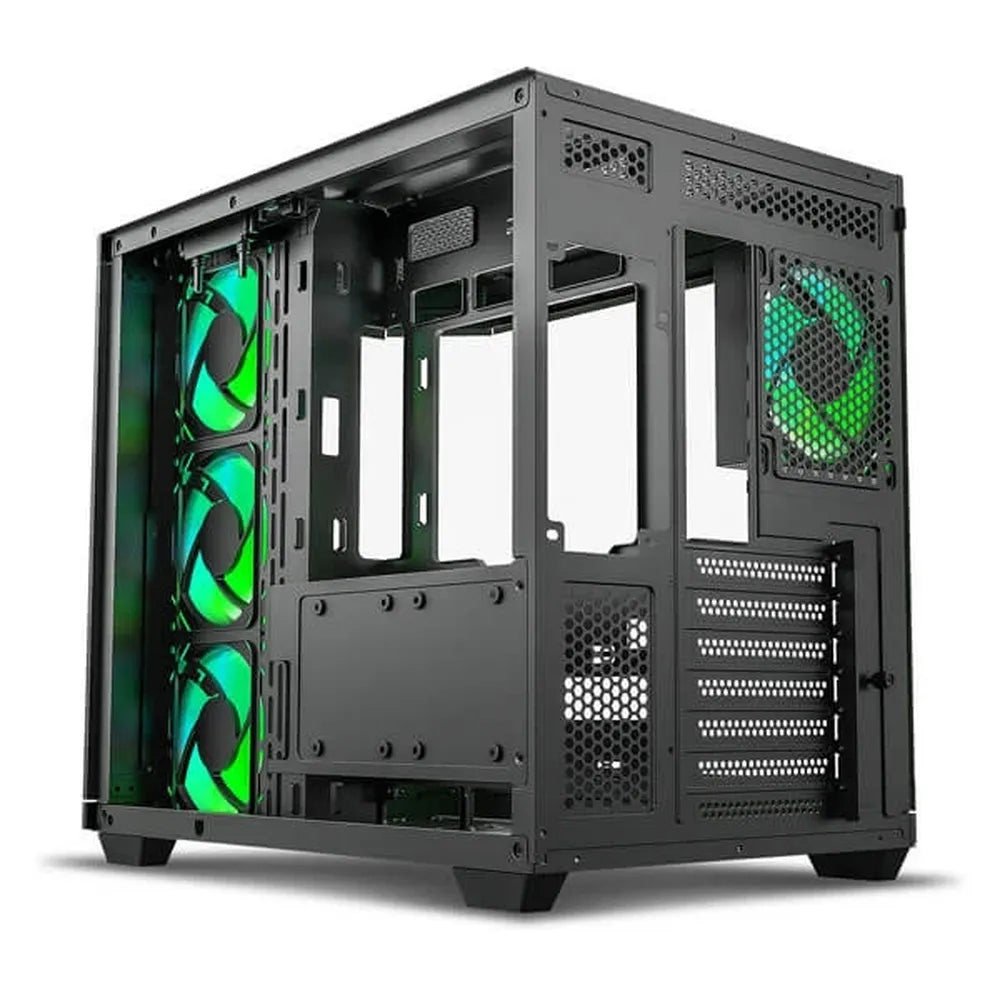

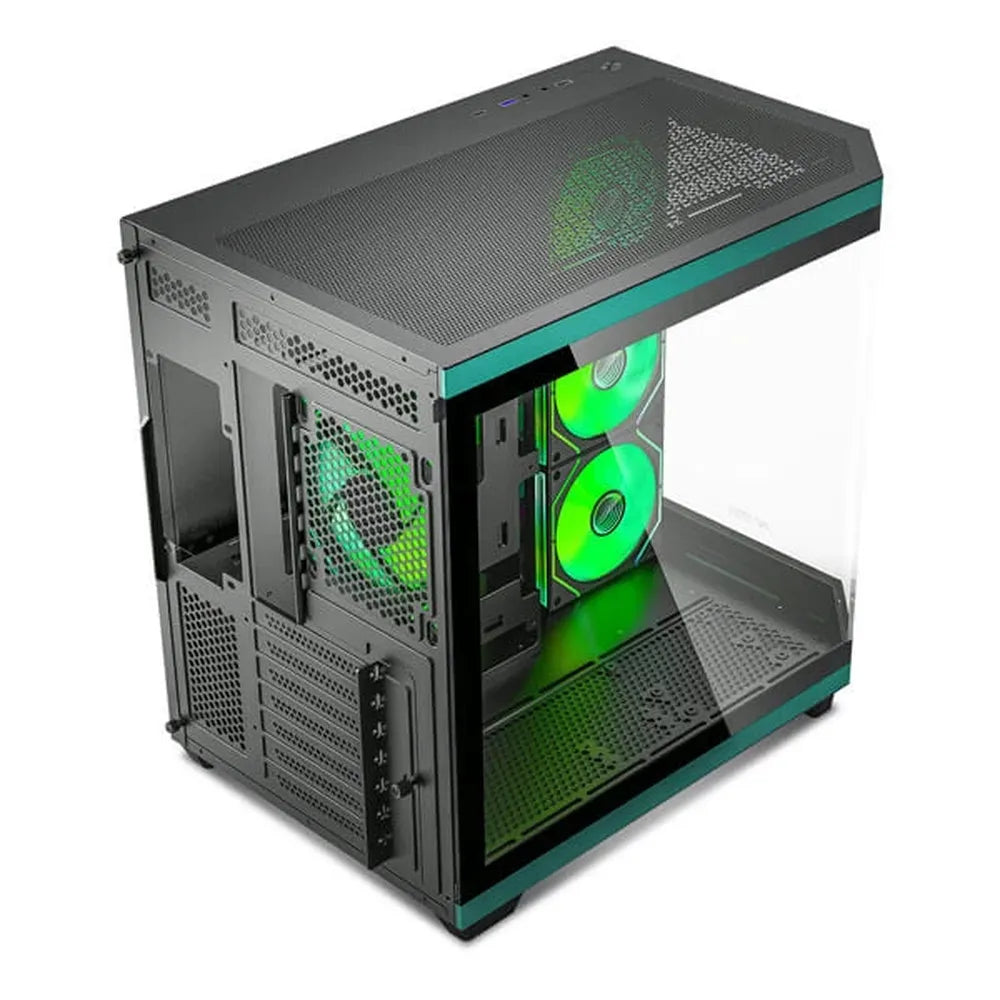

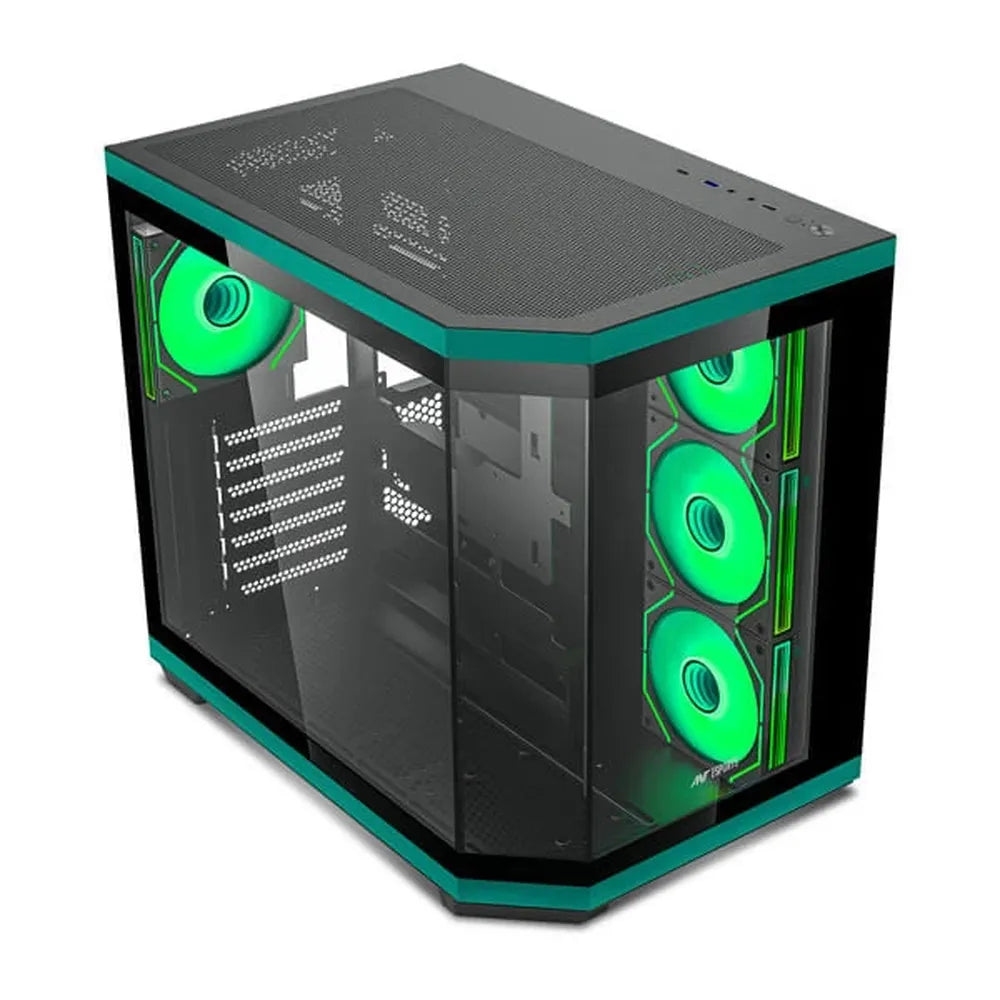

The Ant Esports Crystal X11 ARGB ATX Mid Tower Cabinet in Green-Black delivers a show-stopping aesthetic and capable hardware support for gamers building their first serious rig or upgrading an existing one. The chassis combines SPCC steel construction with tempered glass on both the front and side panels, giving a clear view of the interior lighting and components at all times. Out of the box, the Crystal X11 comes with four pre-installed 120 mm ARGB fans — three on the side panel featuring reverse blades that draw air across the GPU and one at the rear for exhaust. The reverse-blade side fans push cool air directly toward the graphics card, helping manage thermals in a compact mid-tower footprint. The case also supports additional fan expansion across the top (up to three 120 mm), bottom (up to three 120 mm), and rear (one 120 mm) positions. For builders considering water cooling, the Crystal X11 accommodates radiators up to 360 mm on the top, up to 280 mm on the side, and up to 120 mm at the rear. Taller custom-loop configurations are well served, while the 160 mm CPU cooler height clearance leaves room for most tower air coolers on the market. The 410 mm GPU clearance means even high-end, triple-fan graphics cards fit without modification. Motherboard compatibility spans ATX, Micro-ATX, and Mini-ITX form factors, and seven expansion slots provide flexibility for multi-GPU or multi-card setups. Storage is handled by two 3.5-inch HDD bays and two 2.5-inch SSD mounts, keeping drives accessible yet tidy. The front I/O panel is positioned conveniently on the top of the case and includes two USB 3.0 ports, one USB Type-C port, a 3.5 mm HD audio jack, a microphone jack, and dedicated power and reset buttons — a practical layout for everyday use. Verified Specifications: - Form Factor: Mid-Tower (ATX, Micro-ATX, Mini-ITX) - Chassis Dimensions (L × W × H): 426 × 285 × 398 mm - Materials: SPCC steel + Tempered Glass (front and side) - Pre-Installed Fans: 3 × 120 mm ARGB side fans (reverse blades) + 1 × 120 mm ARGB rear fan - Fan Support: Top 3 × 120 mm | Bottom 3 × 120 mm | Side 2 × 120 mm or 2 × 140 mm | Rear 1 × 120 mm | Front: none - Liquid Cooling Support: Top up to 360 mm | Side up to 280 mm | Rear up to 120 mm | Front: none - GPU Clearance: 410 mm - CPU Cooler Clearance: 160 mm - Drive Bays: 2 × 3.5-inch HDD, 2 × 2.5-inch SSD - Expansion Slots: 7 - I/O Panel: 2 × USB 3.0, 1 × USB Type-C, 1 × HD Audio, 1 × Mic, Power & Reset - Warranty: 1 Year
Datasheet
| Warranty | 1 Year |
|---|---|
| I/O Panel | 2 x USB 3.0, 1 x Type-C, 1 x HD Audio, 1 x Mic, Power and Reset Button |
| Materials | SPCC+Tempered Glass |
| Drive Bays | 2 x 3.5"and 2 x 2.5" |
| Model | Ant Esports Crystal X11 Gaming Cabinet |
| Fan Support | None -Front120 mm x 3 – Top120 mm x 3 – Bottom120 mm x 2/ 140 mm x 2- Side120mm x1 – Rear |
| Expansion Slots | 7 |
| Vga Card Length | 410 mm |
| Motherboard Type | ATX, Micro-ATX, Mini-ITX |
| CPU Cooler Height | 160 mm |
| Pre-Installed Fan | x 3 Side Fans (Reverse Blades), x 1 Rear Fan |
| Chassis Size(L X B X H) | 426x 285 x 398 mm |
| Packing Size(L X B X H) | 445 x 350x 510mm |
| Liquid Cooling Support(Maximum) | None – Front240 / 360 mm – TopNone – Bottom120 mm – Rear240 / 280 mm – Side |
