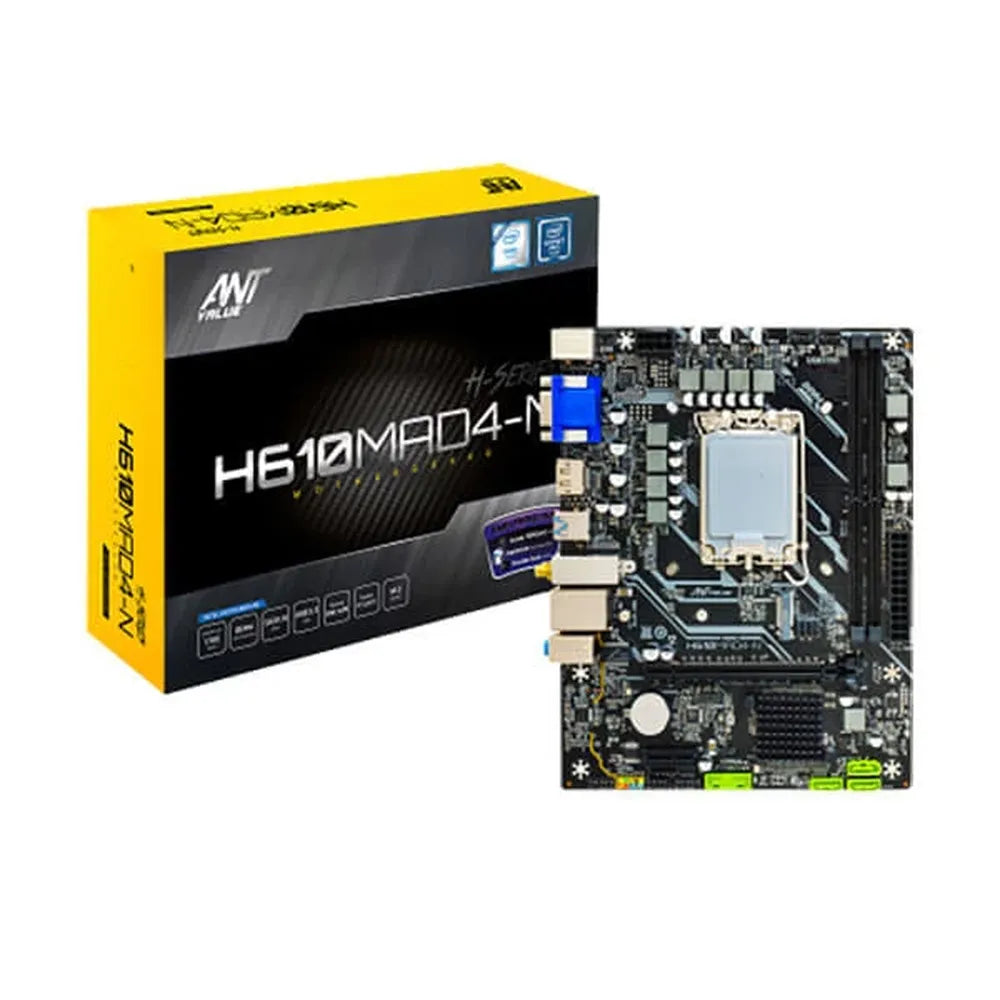

ANT VALUE H610MAD4-N DDR4 Intel Motherboard

The ANT Value H610MAD4-N is a Micro-ATX motherboard built around the Intel H610 chipset, targeting budget-conscious builders who need a reliable foundation for 12th or 13th generation Intel Core, Pentium, and Celeron processors on the LGA 1700 socket. Its compact 220 mm × 175 mm footprint fits a wide range of Micro-ATX and compatible mid-tower cases, making it a practical choice for office workstations, home PCs, and entry-level productivity builds. Memory configuration is handled by two DDR4 UDIMM slots capable of running at up to 3200 MHz and accommodating a combined maximum of 64 GB. For storage, the board provides three SATA 3.0 ports delivering 6 Gb/s throughput, plus a single M.2 slot (2242/2280 key) that accepts both NVMe PCIe Gen 3.0 ×4 and SATA-based SSDs—allowing fast boot drives without sacrificing the SATA ports for secondary storage. Expansion is covered by one PCIe x16 Gen 4.0 slot for a discrete graphics card and one PCIe x1 Gen 3.0 slot for add-in cards. Networking is handled by a Realtek RTL8111H Gigabit Ethernet controller with Wake- LAN support, while audio is managed by a Realtek ALC897 high-fidelity controller. An M.2 Wi-Fi slot on the rear I/O panel accommodates an optional wireless card (sold separately). The rear panel offers versatile display output through one DisplayPort, one HDMI port, and one VGA port, enabling connection to up to three monitors when using Intel's integrated graphics. USB connectivity includes two USB 3.2 Gen 2 Type-A ports and two USB 2.0 ports on the back panel, supplemented by internal headers supporting two additional USB 3.0 and two additional USB 2.0 ports for a total of nine USB connections. A PS/2 keyboard port and a single 3.5 mm audio jack round out the rear I/O. The board ships with an I/O shield, user manual, driver CD, and an optional SATA cable, and is backed by a two-year warranty. — Verified Specifications — Model: H610MAD4-N | Chipset: Intel H610 | Socket: LGA 1700 | CPU Support: Intel 12th/13th Gen Core i3/i5/i7/i9, Pentium, Celeron | Memory: 2× DDR4 UDIMM, up to 3200 MHz, max 64 GB | Storage: 3× SATA 3.0 (6 Gb/s), 1× M.2 (2242/2280, NVMe PCIe Gen 3.0 ×4 / SATA) | Slots: 1× PCIe x16 Gen 4.0, 1× PCIe x1 Gen 3.0 | LAN: Realtek RTL8111H 10/100/1000 Mbps, Wake- LAN | Audio: Realtek ALC897 | Display: 1× DP, 1× HDMI, 1× VGA | USB: 2× USB 3.2 Gen 2, 2× USB 3.2 Gen 1, 5× USB 2.0 (total 9) | Form Factor: Micro-ATX (220 mm × 175 mm) | Warranty: 2 Years
