ARCTIC Freezer 36 Single Tower CPU Air Cooler

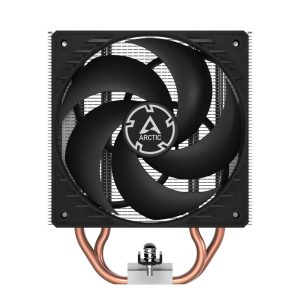

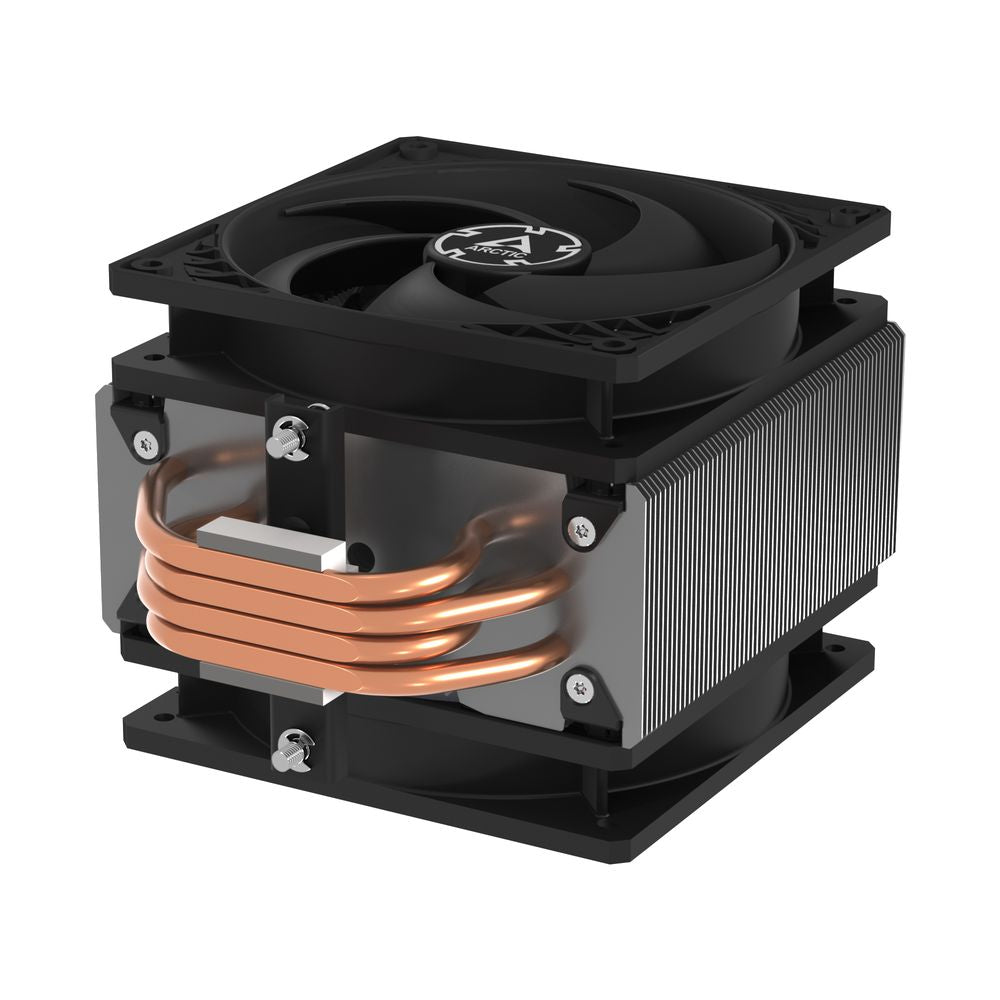

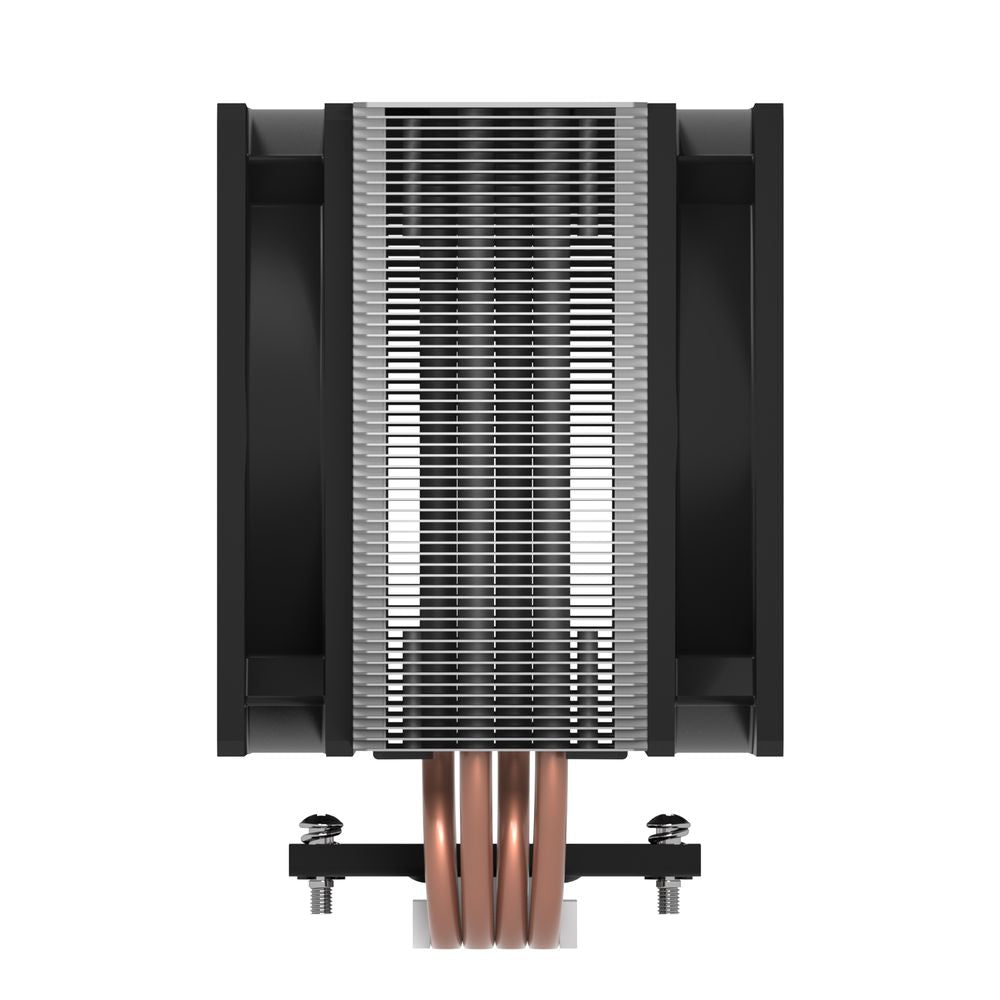

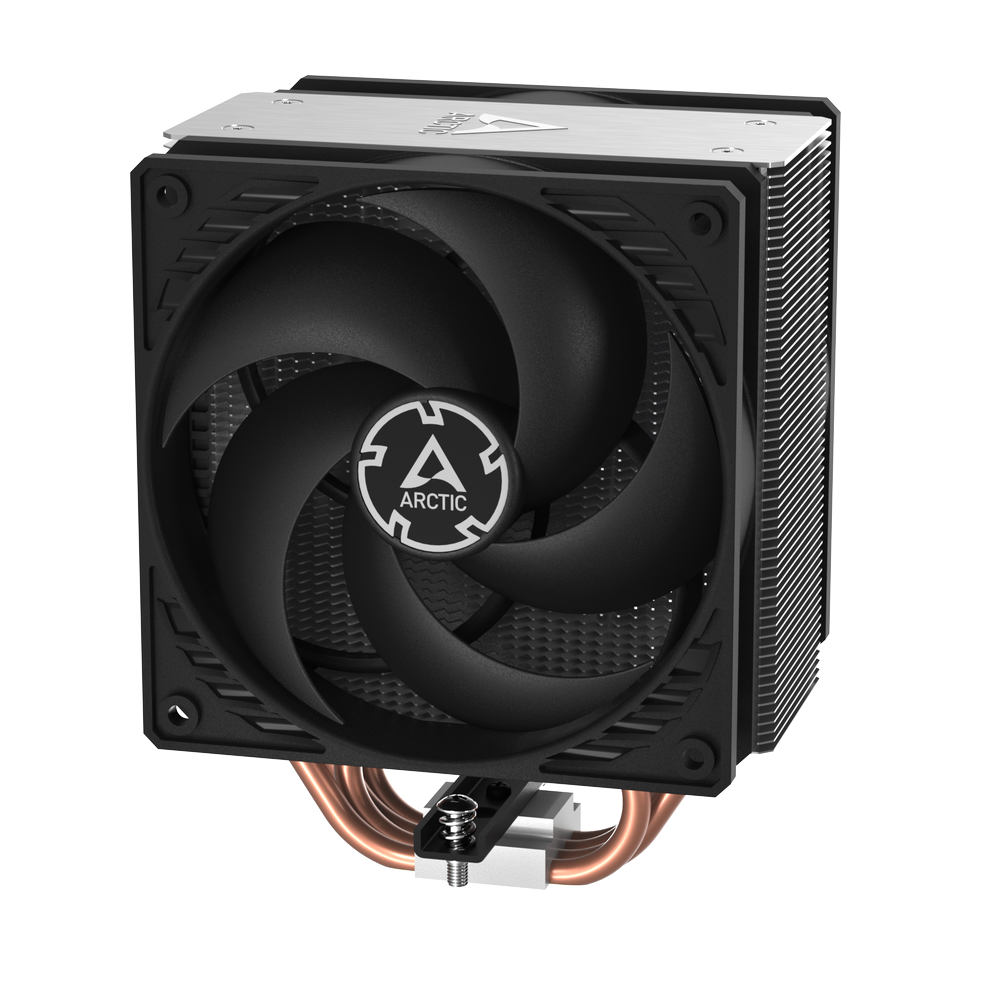

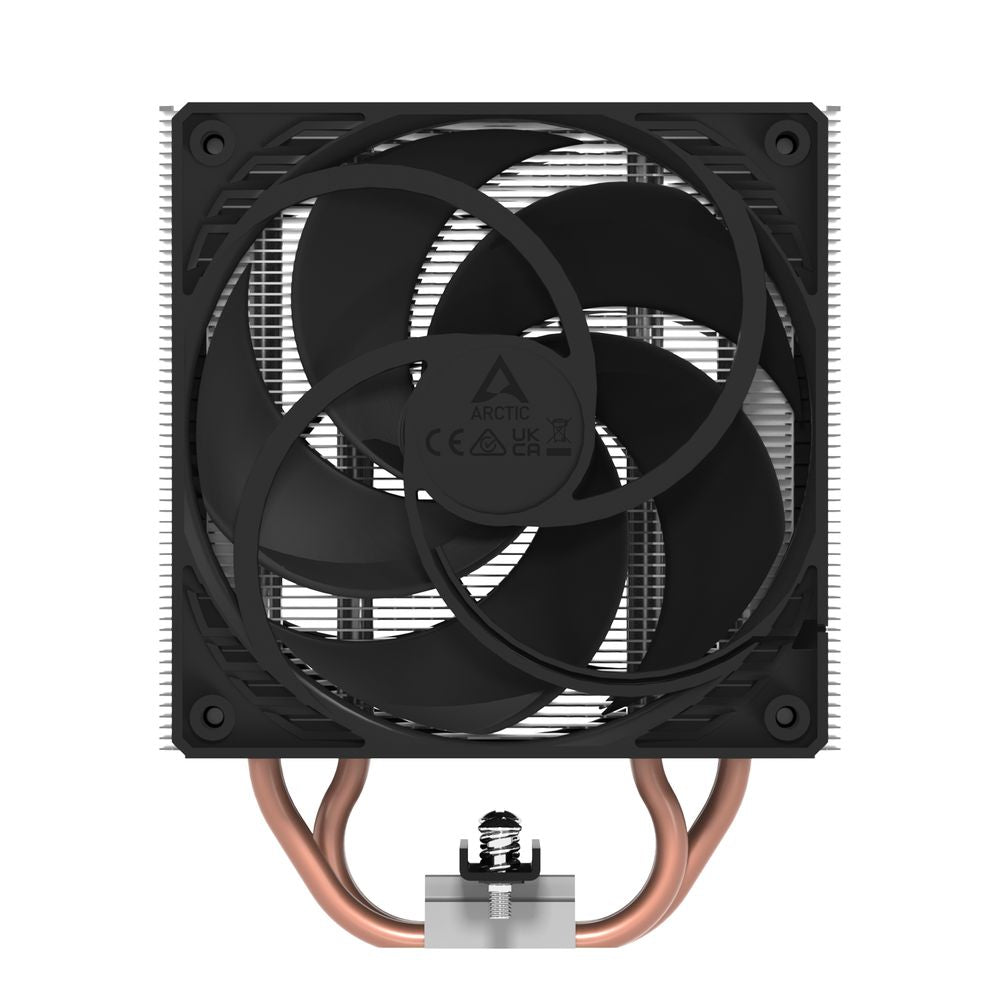

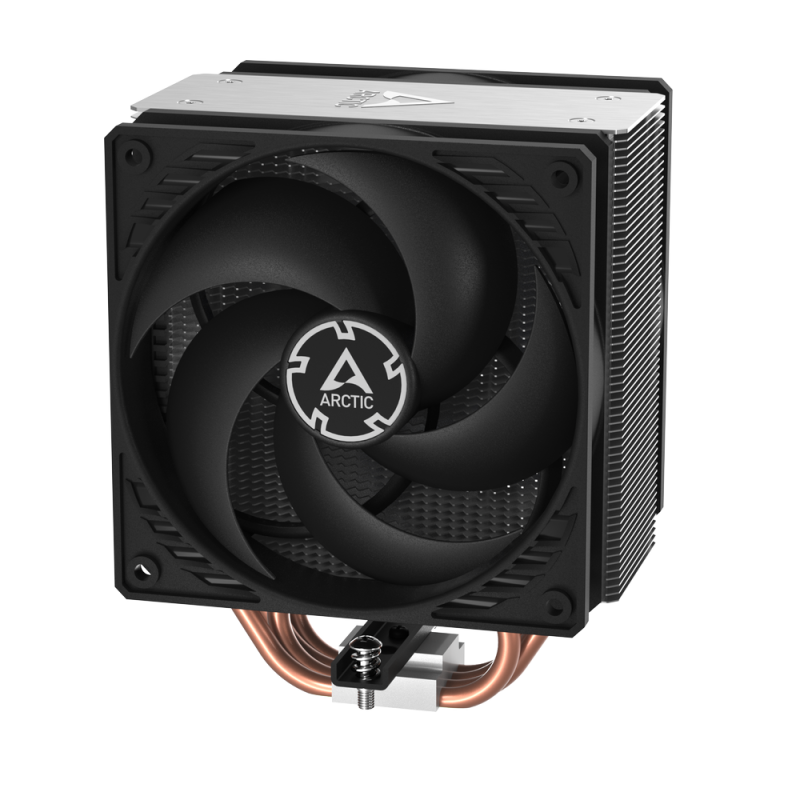

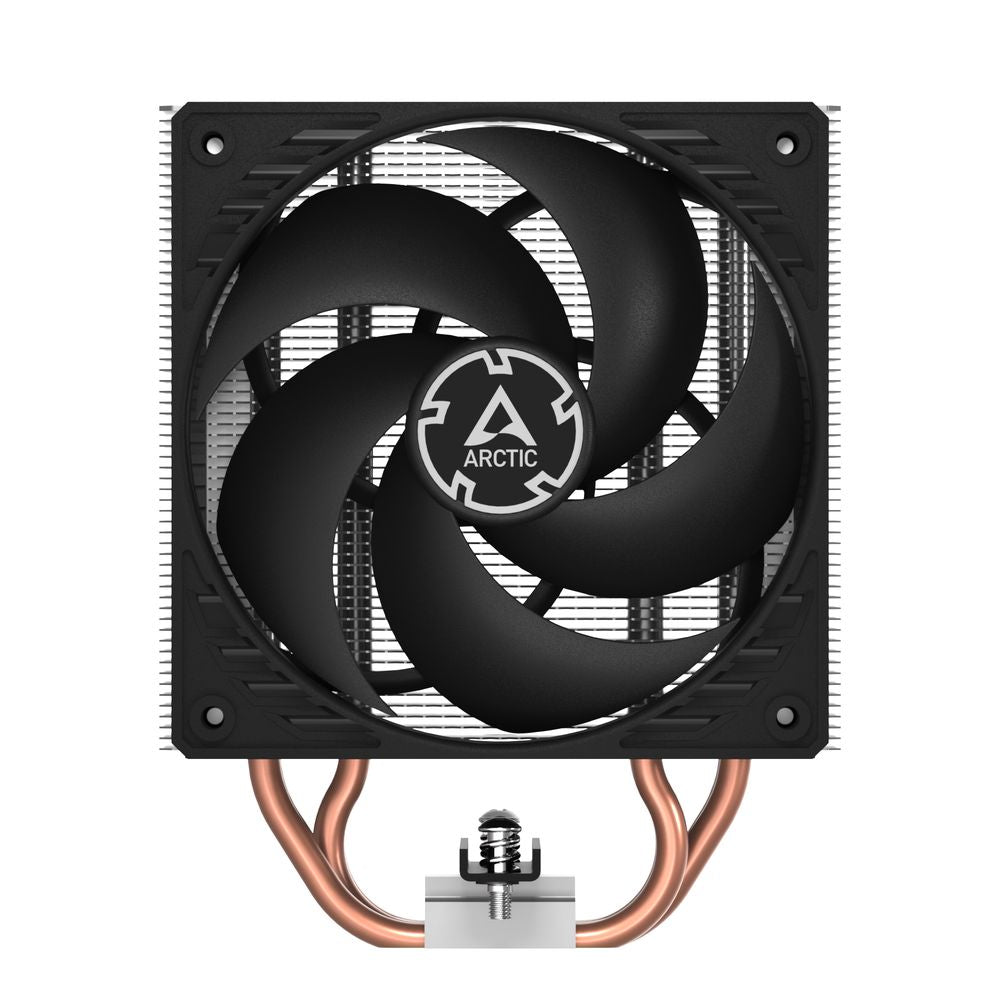

The ARCTIC Freezer 36 Single Tower CPU Air Cooler (Black) delivers efficient thermal management in a compact single-tower form factor, making it a capable choice for mainstream and mid-range desktop builds. Finished with a screwed aluminium top plate that conceals the soldered heatpipe ends, the cooler integrates cleanly into virtually any PC setup without exposing raw internals. At the heart of the design are four 6 mm diameter copper heatpipes that transfer heat from the CPU contact base up through a fin stack of 59 aluminium fins, each 0.4 mm thick. Airflow is handled by two ARCTIC P12 PWM PST fans arranged in a push-pull configuration, which drives air more effectively through the dense fin array than a single fan can achieve. The P-series fans are designed specifically for high-static-pressure applications such as heatsinks and radiators, making them well suited to the Freezer 36’s closely spaced fins. Fan speed is PWM-controlled across a range of 200 to 1,800 rpm, dropping to 0 rpm below 5% PWM duty cycle for fully passive operation during light workloads. Both fans use a fluid dynamic bearing developed with a German-formulated alloy-lubricant combination that minimises friction, reduces wear on the pin and sleeve, and lowers bearing noise over the product’s lifespan. The mounting system uses a clip-in mechanism rather than traditional fan clips, so fans can be added, removed, or replaced even after the cooler is installed in the case. The Freezer 36 ships with a dedicated contact frame for Intel LGA1851 and LGA1700 sockets, designed to distribute mounting pressure more evenly than Intel’s Independent Loading Mechanism (ILM), reducing mechanical stress on the CPU die, IHS solder layer, and mainboard PCB. Socket compatibility spans Intel LGA1851 and LGA1700, as well as AMD AM5 and AM4, covering a broad range of current-generation platforms. ARCTIC rates the cooler at a Performance Index (PI) of 250 and a Normalised Noise Performance Index (NNPI) of 234. Verifiable Specifications: – Product Code: ACFRE00121A – Dimensions: 104 (L) × 126 (W) × 159 (H) mm – Weight: 890 g – Heatpipes: 4× 6 mm Ø, copper – Fin Stack: 59× 0.4 mm aluminium fins – Fans: 2× ARCTIC P12 PWM PST – Fan Speed: 200–1,800 rpm PWM (0 rpm below 5% PWM) – Bearing: Fluid Dynamic Bearing – Current / Voltage: 0.10 A / 12 V DC – Cable: 200 mm + 80 mm splitter cable – Connector: 4-pin PWM + 4-pin plug – Intel Compatibility: LGA1851, LGA1700 – AMD Compatibility: AM5, AM4 – PI / NNPI: 250 / 234 – Warranty: 6 years (manufacturer)
