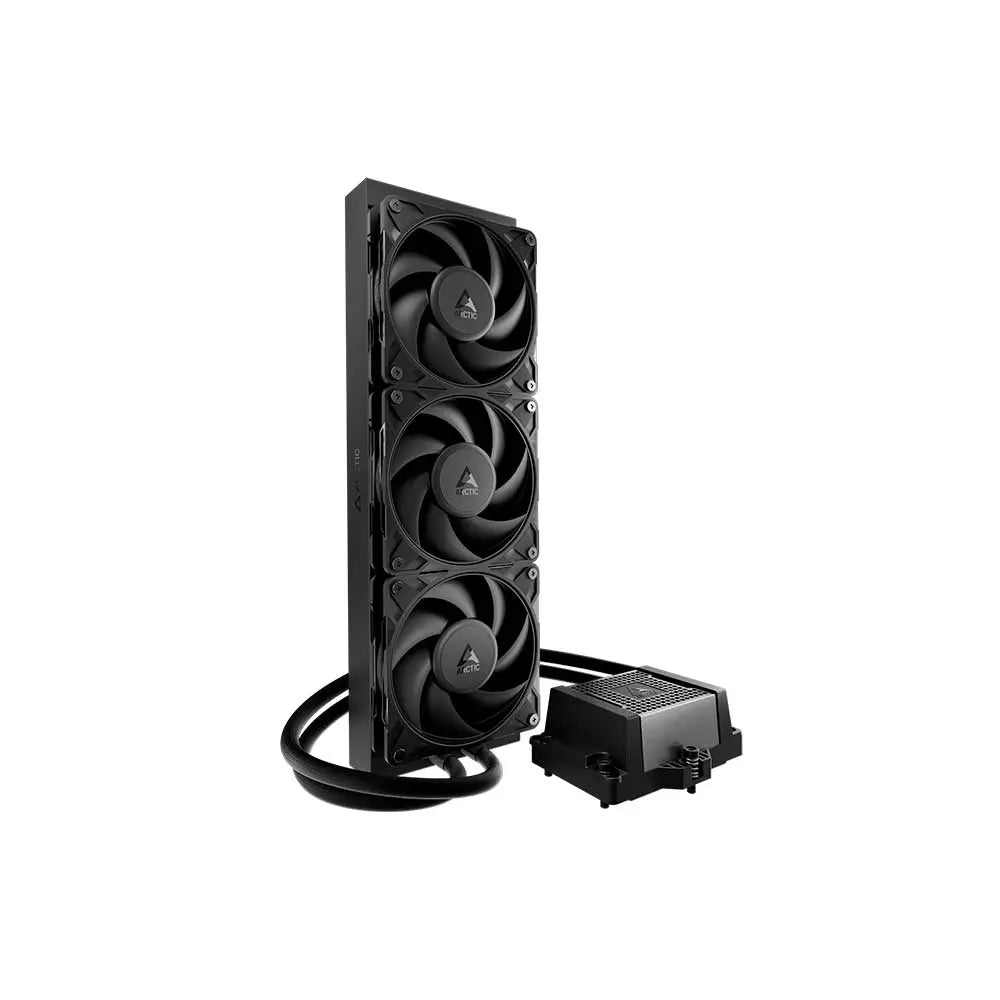

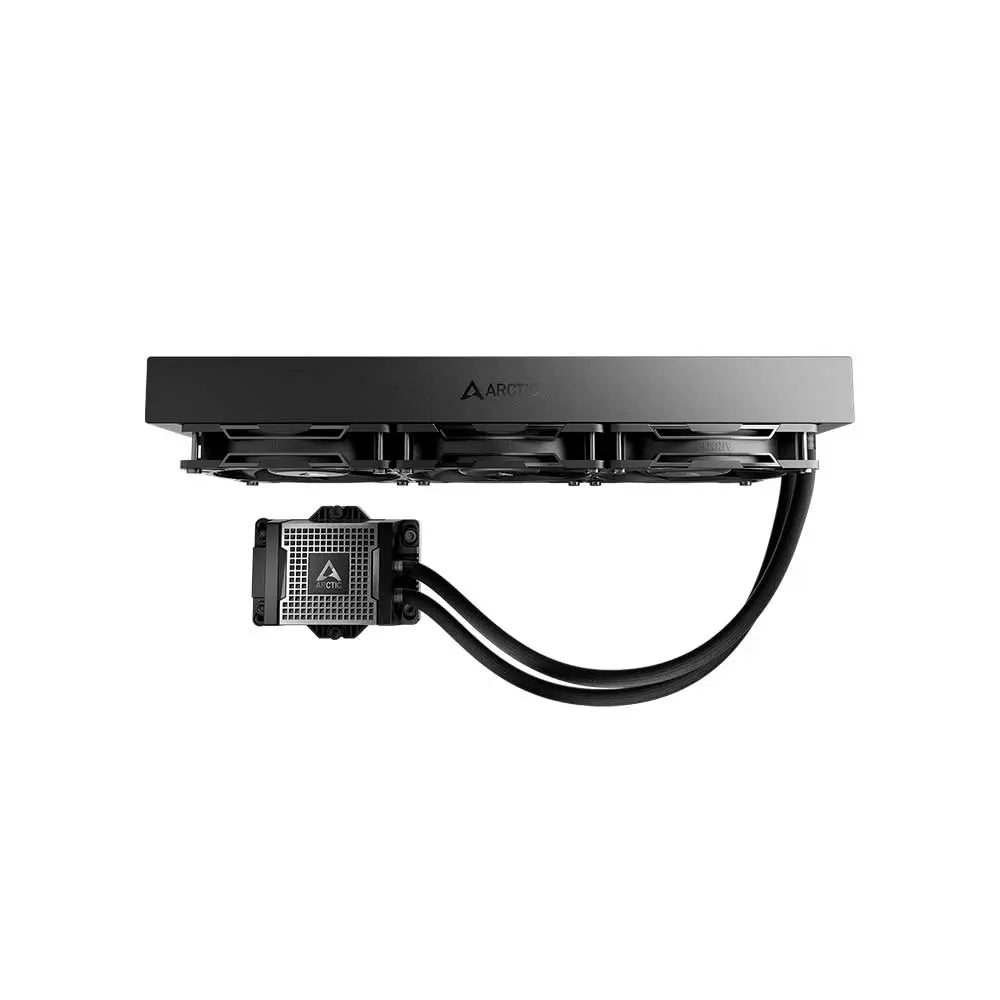

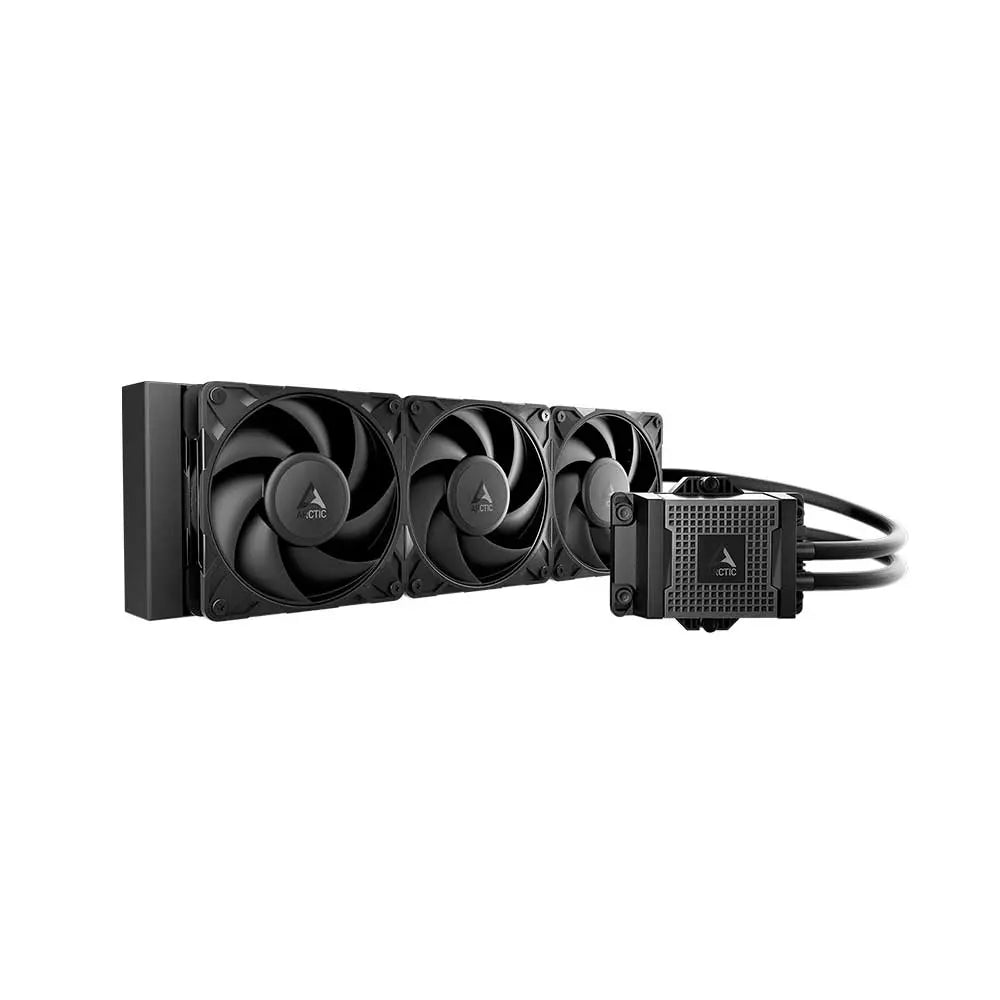

ARCTIC Liquid Freezer WS360 SP5 360mm CPU Liquid Cooler ( Black )

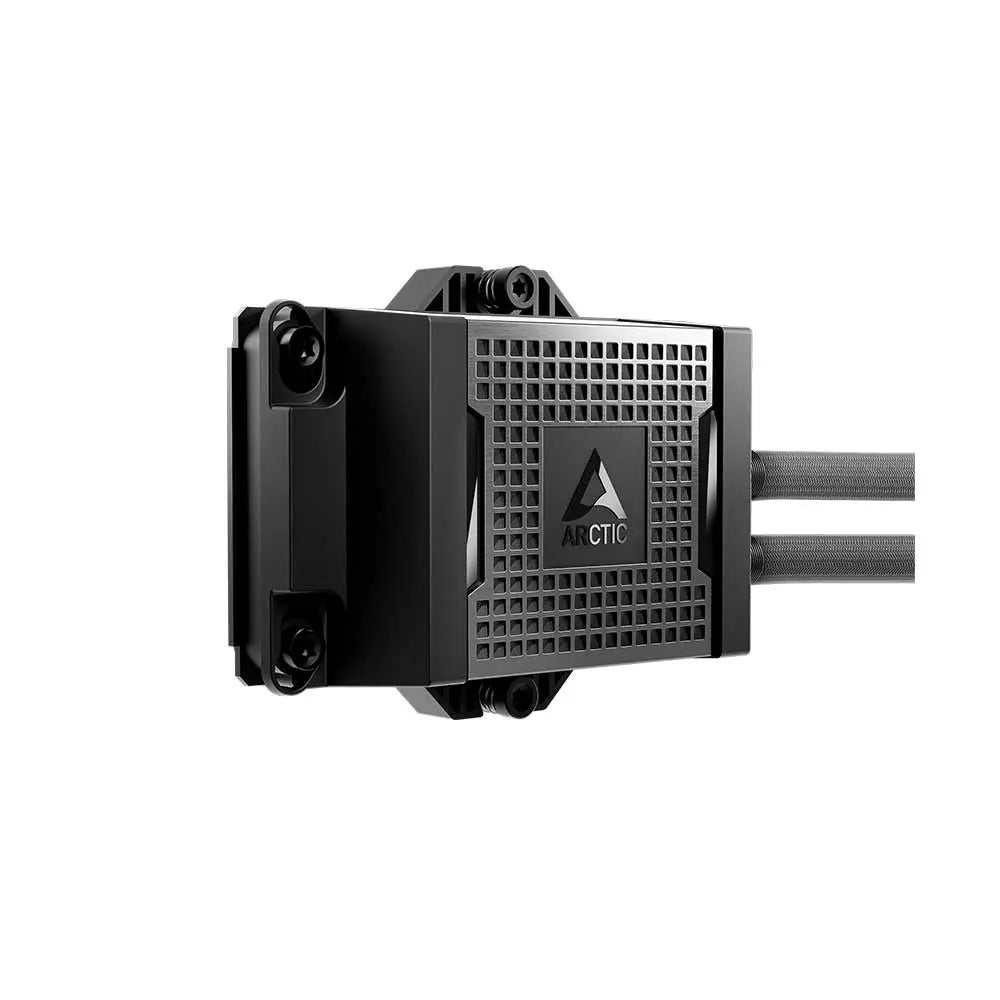

The ARCTIC Liquid Freezer WS360 SP5 (model ACFRE00200A) is an all-in-one liquid cooling solution engineered specifically for the AMD SP5 workstation platform. Its platform-specific fixed mounting system ensures optimal contact pressure on the CPU while simplifying the installation process for system builders working with demanding workstation hardware. At the heart of the cooler is a newly designed water block featuring high-density micro-fins and an efficient chamber flow path, paired with a durable pump rated at 800–3000 rpm. The 38mm-thick premium radiator provides superior thermal dissipation surface area compared to standard-thickness radiators, allowing the system to handle the extreme heat loads generated by AMD SP5 processors. According to the manufacturer, the cooler is capable of dissipating up to 800W of CPU heat while consuming only 14.8W in total system power, delivering an outstanding Power Efficiency Ratio (PER) that helps reduce total cost of ownership in production and enterprise environments. Three ARCTIC P12 Pro PST CO fans are mounted on the radiator, each running at 600–3000 rpm and delivering up to 77 CFM (131 m³/h) of airflow with 6.9 mm H₂O of static pressure. These fans use dual ball bearings specifically engineered for continuous 24/7 operation, making them well-suited to always-on workstation environments. Fan connectivity uses a 4-pin PWM connector with a 4-pin plug daisy-chain pass-through, with 400mm cable lengths. The tubing is constructed from EPDM with braided sheathing, offering flexibility and resistance to leakage over extended use. The tube outer diameter is 12.4mm with a length of 450mm, designed to comfortably reach radiator mounting positions in compatible workstation cases. ARCTIC includes MX-7 thermal paste, applied in a three parallel-line pattern to ensure even coverage across the large SP5 CPU heat spreader surface. Key Verified Specifications: - Model: ACFRE00200A - Socket Compatibility: AMD SP5 only - Radiator Size: 360mm (three 120mm fans) - Fan Speed: 600–3000 rpm - Airflow: 77 CFM / 131 m³/h - Static Pressure: 6.9 mm H₂O - Fan Bearing: Dual Ball Bearing - Pump Speed: 800–3000 rpm - Tube Material: EPDM with braided sheathing - Tube Length: 450mm; Outer Diameter: 12.4mm - Cable Length: 400mm - Connector: 4-Pin PWM + 4-Pin Plug - Operating Ambient Temperature: 0–40°C - Packaging Dimensions: 431mm (L) × 156mm (W) × 154mm (H) - Packaged Weight: 2.6 kg - Thermal Compound: MX-7 (included) - Warranty: 6 Years - Color: Black
