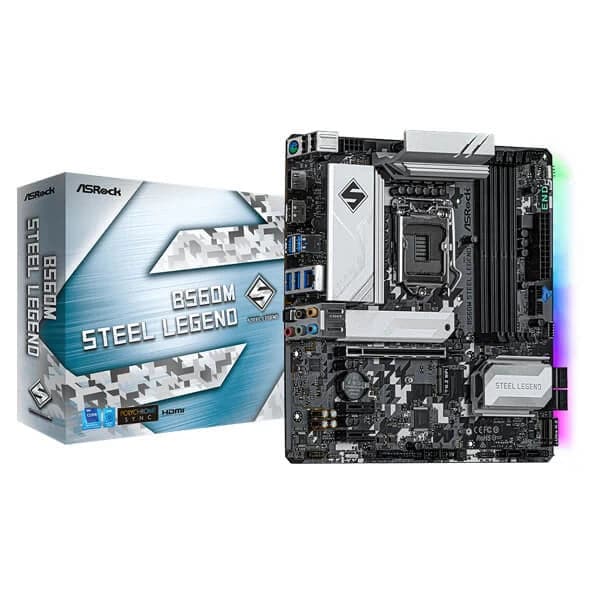

ASROCK B560M Steel Legend DDR4 Intel Motherboard
MPN ASROCK-B560M-STEEL · Brand ASROCK · mATX
The ASRock B560M Steel Legend is a Micro-ATX motherboard for 10th and 11th Gen Intel LGA1200 CPUs, featuring PCIe 4.0, dual M.2 slots, 2.5G LAN, and USB 3.2 Gen2x2 Type-C connectivity. A capable and well-equipped platform for mainstream Intel builds
Inclusive of GST · GST invoice available
Overview

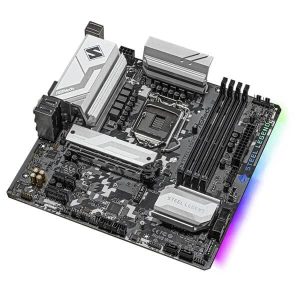

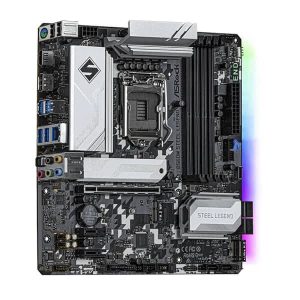

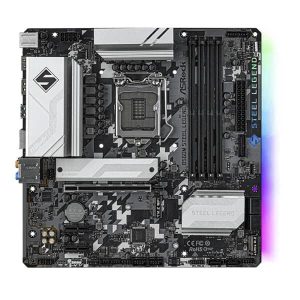

The ASRock B560M Steel Legend is a Micro-ATX motherboard built on the Intel B560 chipset, designed for 10th and 11th Generation Intel Core processors using the LGA1200 socket. It delivers a strong combination of connectivity, power delivery, and storage flexibility in a compact 9.6 x 9.6-inch form factor, making it well suited for mainstream desktop builds that demand performance without occupying a full-ATX footprint. Power delivery is handled by a 10-phase Dr.MOS design with premium 60A power chokes and Nichicon 12K Black capacitors, providing stable Vcore regulation under sustained workloads. The board supports up to 128 GB of DDR4 memory across four DIMM slots. With an 11th Gen CPU, memory can be configured up to DDR4 4800 MHz (OC); with a 10th Gen CPU, the ceiling is DDR4 4666 MHz (OC). Intel XMP 2.0 profiles are also supported for straightforward memory overclocking. Storage options are generous. The Hyper M.2 slot (M2_1) runs at PCIe Gen4 x4 (64 Gb/s) with 11th Gen processors—or Gen3 x4 with 10th Gen—while the Ultra M.2 slot (M2_2) supports PCIe Gen3 x4 and SATA3. Six SATA3 6.0 Gb/s connectors with Intel Rapid Storage Technology 18, AHCI, and Hot Plug round out the storage bay. Connectivity highlights include a Dragon 2.5 Gigabit LAN port (Realtek RTL8125BG) with Smart Auto Adjust Bandwidth Control, Wake- LAN, and Energy Efficient Ethernet 802.3az. A front-panel USB 3.2 Gen2x2 Type-C header delivers 20 Gb/s transfer speeds, complemented by six USB 3.2 Gen1 ports (four rear, two front) and six USB 2.0 ports. An M.2 Key-E slot supports 802.11ac Wi-Fi module add-in cards. Display output is handled via independent HDMI and DisplayPort 1.4 controllers. The HDMI 2.0 port supports up to 4K (4096x2160) at 60 Hz with 11th Gen processors, while DisplayPort 1.4 reaches 4K (4096x2304) at 60 Hz. Audio is powered by a Realtek ALC897 codec delivering 7.1-channel HD audio with Nahimic Audio software and gold audio jacks. ASRock Polychrome RGB Sync is supported via two RGB LED headers and two addressable LED headers. Verified Specifications: - Form Factor: Micro-ATX, 9.6 in x 9.6 in (24.4 cm x 24.4 cm) - Chipset: Intel B560 - CPU Socket: LGA1200 (10th & 11th Gen Intel Core) - Memory: 4 x DDR4 DIMM, max 128 GB, up to DDR4 4800 MHz OC (11th Gen) / 4666 MHz OC (10th Gen) - PCIe Slots: 1 x PCIe 4.0 x16 (11th Gen) / PCIe 3.0 x16 (10th Gen); 2 x PCIe 3.0 x1 - Storage: 1 x Hyper M.2 (PCIe Gen4 x4 / Gen3 x4), 1 x Ultra M.2 (PCIe Gen3 x4 & SATA3), 6 x SATA3 - LAN: 2.5 Gigabit (Realtek RTL8125BG) - Audio: Realtek ALC897, 7.1 CH HD - USB: 1 x USB 3.2 Gen2x2 Type-C (20 Gb/s), 6 x USB 3.2 Gen1, 6 x USB 2.0 - Display Output: HDMI 2.0, DisplayPort 1.4 - BIOS: 128 Mb AMI UEFI - OS Support: Windows 10 / 11 (64-bit) - Certifications: FCC, CE, ErP/EuP ready - Warranty: 3 Years

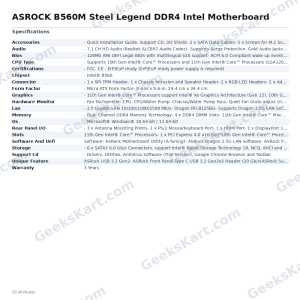

Datasheet
| Warranty | 3 Years |
|---|---|
| Form Factor | mATX |
| Chipset | – Intel® B560 |
| CPU Type | – Supports 10th Gen Intel® CoreTM Processors and 11th Gen Intel® CoreTM Processors (LGA1200)- Digi Power design- 10 Power Phase design- Supports Intel® Turbo Boost Max 3.0 Technology |
| Os | – Microsoft® Windows® 10 64-bit / 11 64-bit |
| Lan | – 2.5 Gigabit LAN 10/100/1000/2500 Mb/s- Dragon RTL8125BG- Supports Dragon 2.5G LAN Software- Smart Auto Adjust Bandwidth Control- Visual User Friendly UI- Visual Network Usage Statistics- Optimized Default Setting for Game, Browser, and Streaming Modes- User Customized Priority Control- Supports Wake-On-LAN- Supports Lightning/ESD Protection- Supports Energy Efficient Ethernet 802.3az- Supports PXE |
| Bios | – 128Mb AMI UEFI Legal BIOS with multilingual GUI support- ACPI 6.0 Compliant wake up events- SMBIOS 2.7 Support- CPU Core/Cache, CPU GT, VCCSA, DRAM, VCCIO, VCCIO 1 2, VPPM, VCCIN AUX, Voltage Multi-adjustment |
| Audio | – 7.1 CH HD Audio (Realtek ALC897 Audio Codec)- Supports Surge Protection- Gold Audio Jacks- 15μ Gold Audio Connector- Nahimic Audio |
| Slots | 11th Gen Intel® Core™ Processors- 1 x PCI Express 4.0 x16 Slot*10th Gen Intel® Core™ Processors- 1 x PCI Express 3.0 x16 Slot*- 2 x PCI Express 3.0 x1 Slots- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVi (Integrated WiFi/BT)- 15μ Gold Contact in VGA PCIe Slot (PCIE1) |
| Memory | – Dual Channel DDR4 Memory Technology- 4 x DDR4 DIMM Slots- 11th Gen Intel® Core™ Processors support DDR4 non-ECC, un-buffered memory up to 4800+(OC)- 10th Gen Intel® Core™ Processors support DDR4 non-ECC, un-buffered memory up to 4666+(OC)- Supports ECC UDIMM memory modules (operate in non-ECC mode)- Max. capacity of system memory: 128GB- Supports Intel® Extreme Memory Profile (XMP) 2.0- 15μ Gold Contact in DIMM Slots |
| Storage | – 6 x SATA3 6.0 Gb/s Connectors, support Intel® Rapid Storage Technology 18, NCQ, AHCI and Hot Plug- 1 x Hyper M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 PCI Express module up to Gen4 x4 (64 Gb/s) (with 11th Gen Intel® Core™ Processors) or Gen3 x4 (32 Gb/s) (with 10th Gen Intel® Core™ Processors)- 1 x Ultra M.2 Socket (M2_2), supports M Key type 2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) |
| Graphics | – 11th Gen Intel® Core™ Processors support Intel® Xe Graphics Architecture (Gen 12). 10th Gen Intel® Core™ Processors support Gen 9 Graphics- Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers- Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096×2160) @ 60Hz with 11th Gen Intel® Core™ Processors- Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096×2160) @ 30Hz with 10th Gen Intel® Core™ Processors- Supports DisplayPort 1.4 with max. resolution up to 4K x 2K (4096×2304) @ 60Hz- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Port (Compliant HDMI monitor is required)- Supports HDCP 2.2 with DisplayPort and HDMI Ports (HDCP 2.3 ready with 11th Gen Intel® Core™ Processors) |
| Connector | – 1 x SPI TPM Header- 1 x Chassis Intrusion and Speaker Header- 2 x RGB LED Headers- 2 x Addressable LED Headers- 1 x CPU Fan Connector (4-pin)- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)- 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)- 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)- 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)- 1 x Front Panel Audio Connector (15μ Gold Audio Connector)- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)- 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) (Supports ESD Protection) |
| Support Cd | – Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar |
| Accessories | – Quick Installation Guide, Support CD, I/O Shield- 2 x SATA Data Cables- 3 x Screws for M.2 Sockets- 1 x Standoff for M.2 Socket |
| Certifications | – FCC, CE – ErP/EuP ready (ErP/EuP ready power supply is required) |
| Rear Panel I/O | – 3 x Antenna Mounting Points- 1 x PS/2 Mouse/Keyboard Port- 1 x HDMI Port- 1 x DisplayPort 1.4- 1 x Optical SPDIF Out Port- 4 x USB 3.2 Gen1 Ports (ASMedia ASM1074 hub) (Supports ESD Protection)- 2 x USB 2.0 Ports (Supports ESD Protection)- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)- HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks) |
| Unique Feature | ASRock USB 3.2 Gen2- ASRock Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)ASRock Super Alloy- XXL Aluminum Alloy Heatsink- Premium 60A Power Choke- 50A Dr.MOS- Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)- Matte Black PCB- High Density Glass Fabric PCB2.5G LANASRock Steel SlotASRock Full Coverage M.2 HeatsinkASRock Hyper M.2 (PCIe Gen4x4)ASRock POST Status Checker (PSC)ASRock Full Spike Protection (for all USB, Audio, LAN Ports)ASRock Live Update & APP Shop |
| Hardware Monitor | – Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans- Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans- Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans- CASE OPEN detection- Voltage monitoring: CPU Vcore, VCCIN AUX, DRAM, VCCIO, VPPM, VCCSA, CPU PLL, +12V, +5V, +3.3V |
| Software And Uefi | Software- ASRock Motherboard Utility (A-Tuning)- ASRock Dragon 2.5G LAN Software- ASRock Polychrome SYNC*UEFI- ASRock EZ Mode- ASRock Full HD UEFI- ASRock My Favorites in UEFI- ASRock Instant Flash- ASRock Internet Flash |
